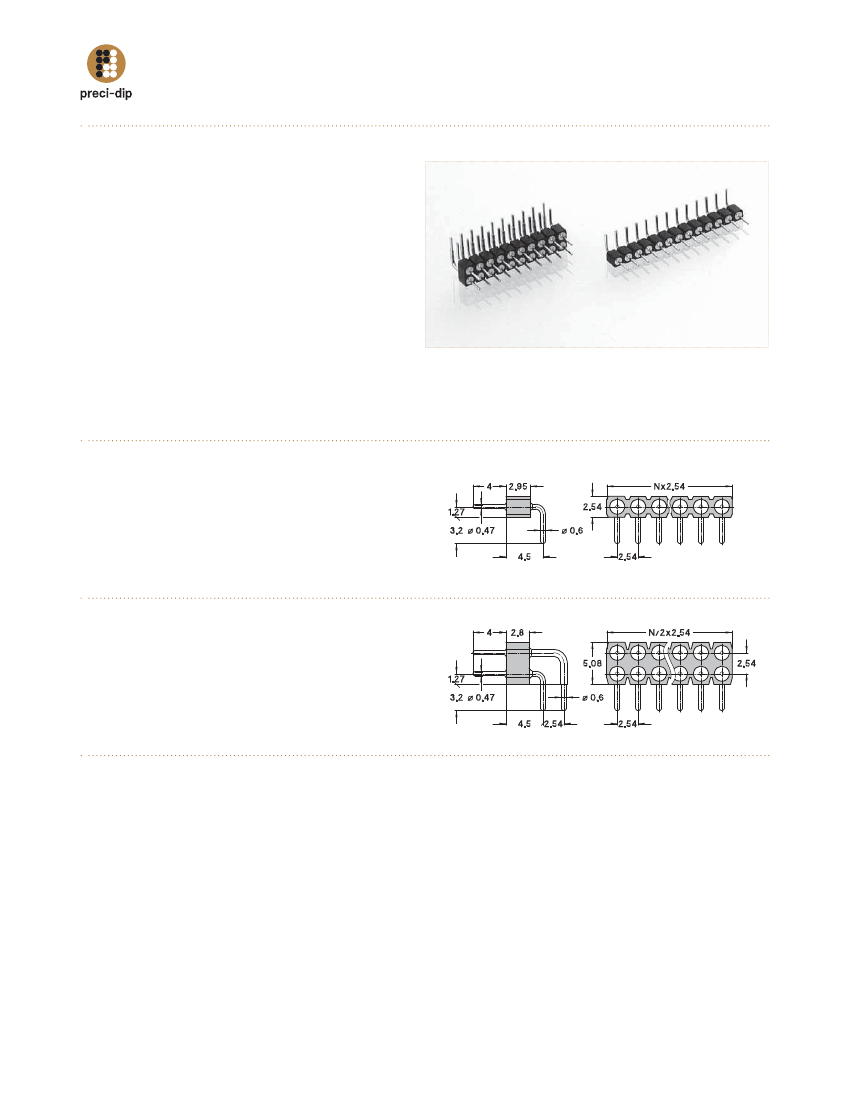

PIN CONNECTORS 2.54 mm
CONNECTING PIN Ø 0.47 mm / SINGLE ROW / DOUBLE ROW
SOLDER TAIL / RIGHT ANGLE
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Right angle pin connectors, solder tail.
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
FL AMMABILIT Y
CONTACT
CONNECTING PIN Ø
MECHANICAL LIFE
RATED CURRENT
DIELECTRIC STRENGTH
Black glass filled polyester PCT-GF30-FR
UL 94V-O
Brass CuZn36Pb3 (C36000)
0.47 mm
Min. 500 cycles
3A
Min. 1’000 V
RMS
For corresponding socket connectors, see pages 69-84.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
80
V3
0.25 μm gold
Tin
Tin
0.25 μm gold
Tin
0.75 μm gold
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested number of poles,
e.g. 499-10-2NN-10-009101 for a double row version with 8 pins becomes
499-10-208-10-009101.
399-PP-1NN-10-009101
Right angle pin connector, solder tail, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
499-PP-2NN-10-009101
Right angle pin connector, solder tail, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
104
Due to technical progress, all information provided is subject to change without prior notice.
