60S131-806N1

Description
RF Connectors / Coaxial Connectors STRAIGHT PLUG
CategoryThe connector    The connector
File Size59KB,2 Pages
ManufacturerRosenberger
Websitehttps://www.rosenberger.com/
Environmental Compliance
Download Datasheet Parametric View All

60S131-806N1 Overview

RF Connectors / Coaxial Connectors STRAIGHT PLUG

60S131-806N1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerRosenberger
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresCAPTIVE CENTER CONTACT, APPLICABLE CABLES: RG 141 /U; RG 58 C/U
subject depth1.2 inch
Body/casing typePLUG
Cable typeRG-141/U
Characteristic impedance50 Ω
Connector typeRF 7/16 DIN CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
Contact resistance1.5 mΩ
Contact styleCOAX
Coupling typeTHREADED
DIN complianceNO
Durability500 Cycles
Filter functionNO
IEC complianceNO
Insertion loss0.05 dB
Insulation resistance10000000000 Ω
insulator materialPOLYTETRAFLUORO ETHYLENE
MIL complianceNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeCABLE
Number of ports1
Maximum operating frequency8.3 GHz
Maximum operating temperature85 °C
Minimum operating temperature-45 °C
OptionsGENERAL PURPOSE
Panel mountingNO
reliabilityCOMMERCIAL
Shell materialBRASS
Terminal length0.531 inch
Termination typeCRIMP
Total number of contacts1
voltage standing wave ratio1.47
Base Number Matches1

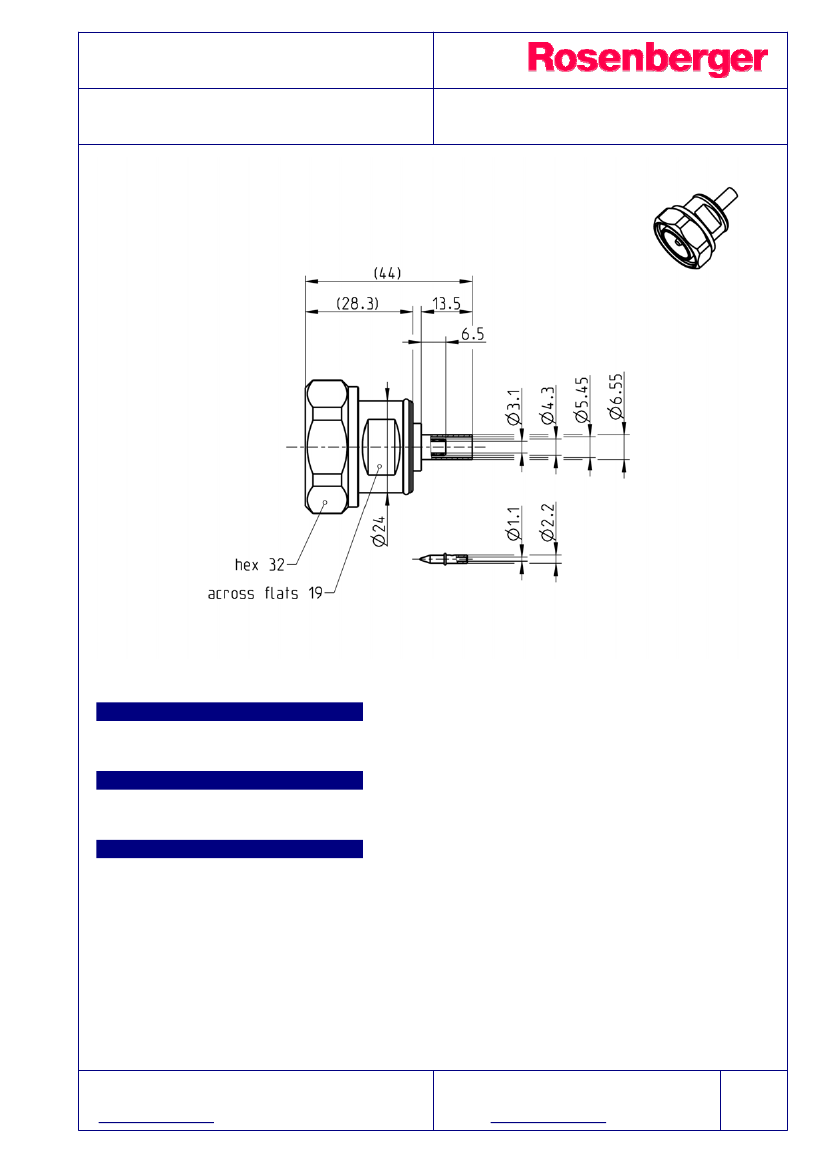

TECHNICAL DATA SHEET
7/16
STRAIGHT PLUG
60S131-806N1
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-4, VG 95250, EN 122190, DIN 47223
Documents
Assembly instruction
53 O13
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Gasket
Crimping ferrule
Material
Spring bronze
Brass
Brass
PTFE
Silicone
Copper
Plating
Silver, 3-6 µm
Flash white bronze over silver(e.g. Optargen®)
Flash white bronze over silver(e.g. Optargen®)
Flash white bronze over silver(e.g. Optargen®)
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
email: info@rosenberger.de
Page
