TECHNICAL DATA SHEET
ADAPTOR

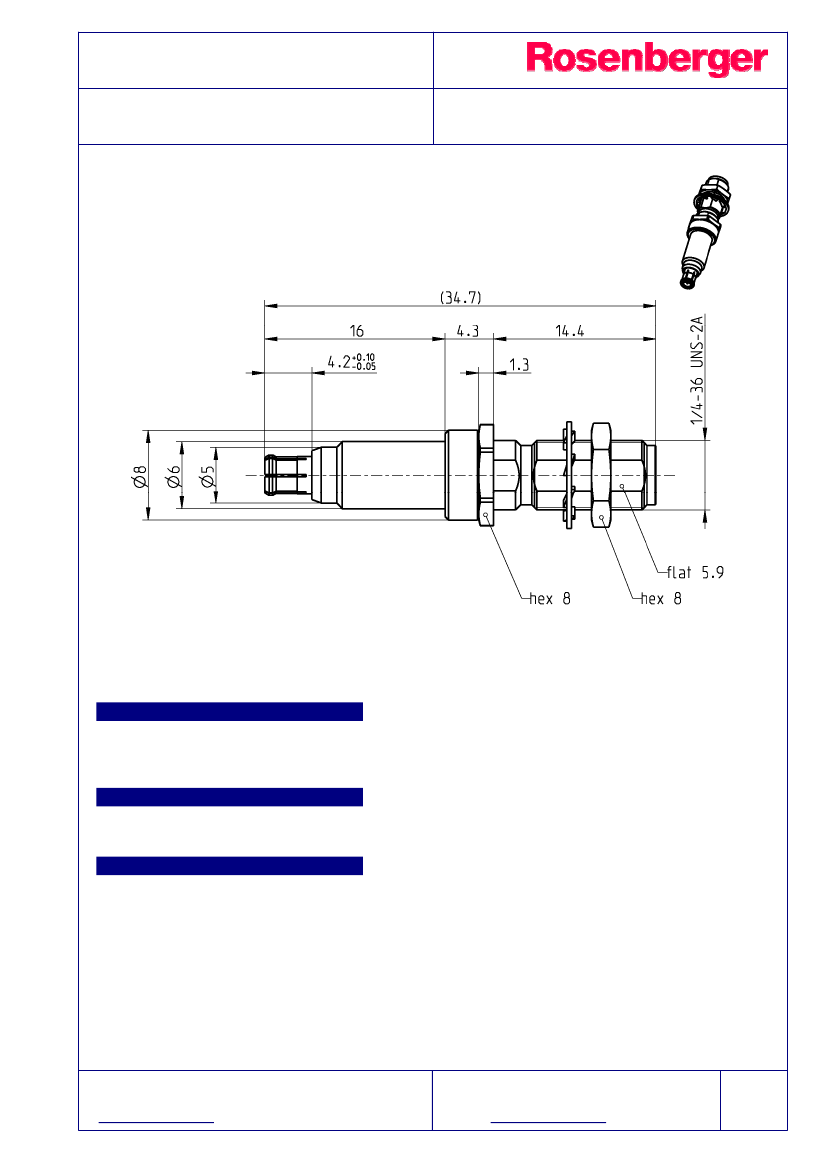

mcx plug – sma JACK
29S132-K01N5
All dimensions are in mm; tolerances acc. ISO 2768 m-H
Interface
According to
MCX side:
SMA side:
CECC 22 220, IEC 60169-36
IEC 60169-15; EN 122110; MIL-STD-348A, Fig. 310
Documents
Panel piercing
B 56
Material and plating
Connector parts
Center contact
Outer contact MCX
Outer contact SMA
Dielectric
Material
Beryllium copper
Beryllium copper
Brass
PTFE
Plating
AuroDur, gold plated
AuroDur, gold plated
Flash white bronze over silver(e.g. Optargen®)
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
ADAPTOR
mcx plug – sma JACK
Electrical data
Impedance
Frequency
Return loss
50
DC to 6 GHz
30 dB, DC to 2 GHz
26 dB, 2 to 4 GHz
20 dB, 4 to 6 GHz
0.05 x
f(GHz)
dB
1 G
5.0 m, MCX side;
2.5 m, MCX side;
750 V rms
335 V rms
1.5A DC max.
29S132-K01N5
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Contact Current
3 m, SMA side
2 m, SMA side
Mechanical data
Mating cycles
Center contact captivation: axial
Engagement force
Disengagement force
Coupling test torque
Recommended torque
MCX side
500
27 N
25 N
8 N min. to 20 N max.
N/A
N/A
SMA side
min. 500
27 N
N/A
N/A
max. 1.7 Nm
0.8 Nm to 1.1 Nm
Environmental data
Temperature range
Thermal shock
Vibration
Corrosion
Moisture resistance
RoHS
-55°C to +155°C
CECC 22 220, Chapter
CECC 22 220, Chapter
CECC 22 220, Chapter
CECC 22 220, Chapter
compliant
4.6.7
4.6.3
4.6.10
4.6.6
Tooling
N/A
Suitable cables
N/A
Weight
Weight
5.5 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Inge Mühlauer
Date
30/08/04
Approved
Sa. Krautenbacher
Date
13.03.14
Rev.
d00
Engineering change number
14-0352
Name
T. Krojer
Date
13.03.14
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
