86563004064LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 86563004064LF

86563004064LF: DescriptionD-Sub Contacts CRIMP CONT 24/28 AWG SOCKET SIGNAL; CategoryThe connector; File Size105KB，1 Pages; ManufacturerFCI / Amphenol; Environmental Compliance

Download Datasheet Parametric Compare View All

86563004064LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	86563004064LF	-	-	View	Buy Now

86563004064LF Overview

D-Sub Contacts CRIMP CONT 24/28 AWG SOCKET SIGNAL

86563004064LF Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	FCI / Amphenol
Product Category	D-Sub Contacts
RoHS	Details
Contact Gender	Socket (Female)
Contact Plating	Gold
Wire Gauge	28-24
Termination Style	Crimp
Packaging	Cut Tape
Packaging	Reel
Current Rating	5 A
Factory Pack Quantity	400

Preview

Download Datasheet

View All

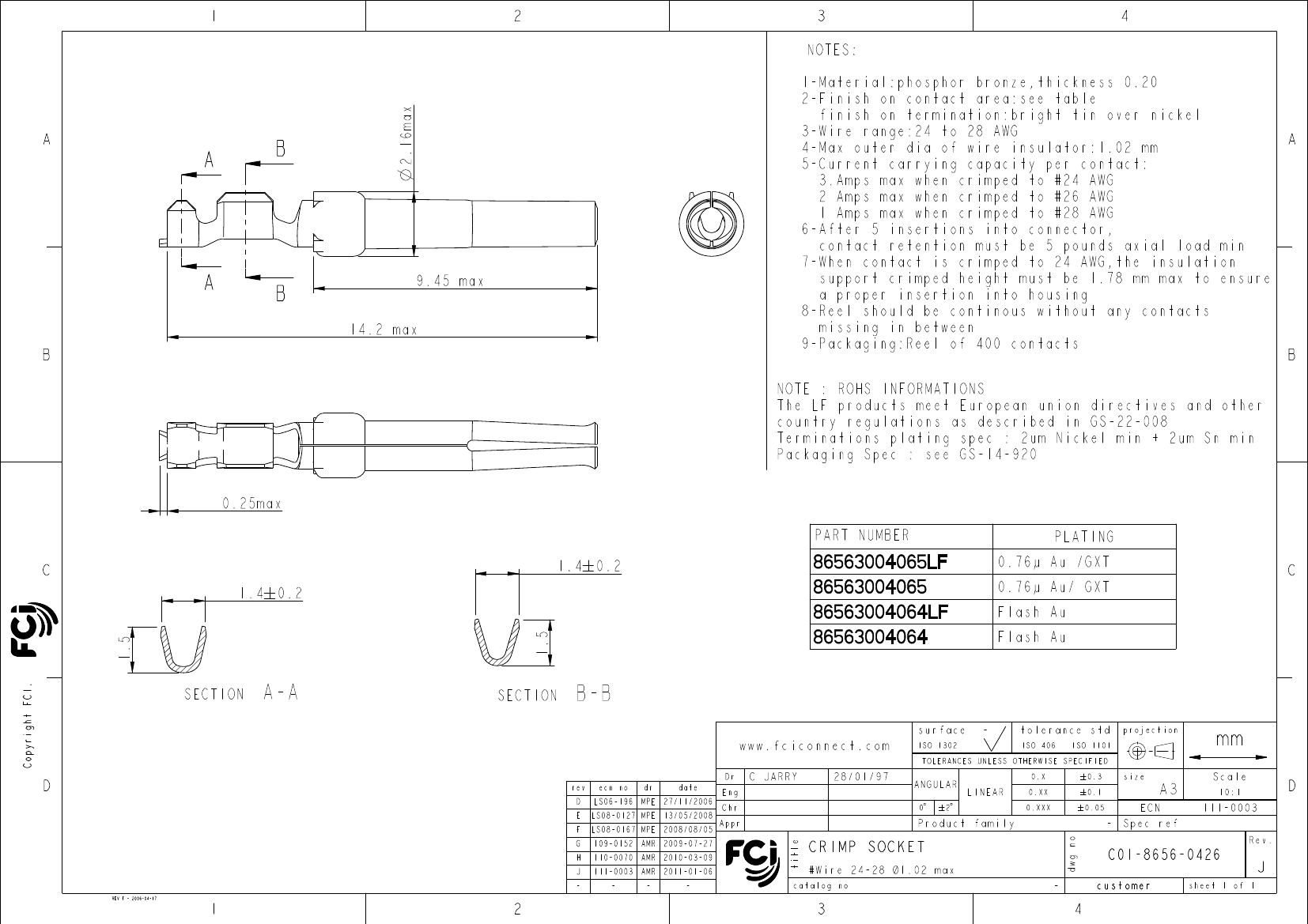

NOTES:

9.45 max

14.2 max

1-Material:phosphor bronze,thickness 0.20

2-Finish on contact area:see table

finish on termination:bright tin over nickel

3-Wire range:24 to 28 AWG

4-Max outer dia of wire insulator:1.02 mm

5-Current carrying capacity per contact:

3.Amps max when crimped to #24 AWG

2 Amps max when crimped to #26 AWG

1 Amps max when crimped to #28 AWG

6-After 5 insertions into connector,

contact retention must be 5 pounds axial load min

7-When contact is crimped to 24 AWG,the insulation

support crimped height must be 1.78 mm max to ensure

a proper insertion into housing

8-Reel should be continous without any contacts

missing in between

9-Packaging:Reel of 400 contacts

NOTE : ROHS INFORMATIONS

The LF products meet European union directives and other

country regulations as described in GS-22-008

Terminations plating spec : 2um Nickel min + 2um Sn min

Packaging Spec : see GS-14-920

2.16max

0.25 max

PART NUMBER

1.4 0.2

1.5

1.4 0.2

PLATING

0.76µ Au /GXT

0.76µ Au/ GXT

Flash Au

86563004065LF

86563004065

86563004064LF

86563004064

SECTION

A-A

SECTION

B-B

surface

tolerance std

ISO 406

ISO 1101

projection

www.fciconnect.com

ISO 1302

Scale

10:1

TOLERANCES UNLESS OTHERWISE SPECIFIED

rev

REV F - 2006-04-17

C JARRY

28/01/97

ecn no

LS06-196

date

Eng

Chr

Appr

ANGULAR

0.X

0.3

0.1

0.05

size

MPE 27/11/2006

LINEAR

0.XX

0.XXX

ECN

- Spec ref

LS08-0127 MPE 13/05/2008

LS08-0167 MPE 2008/08/05

I09-0152

I10-0070

I11-0003

AMR 2009-07-27

AMR 2010-03-09

AMR 2011-01-06

I11-0003

Rev.

Product family

dwg no

title

CRIMP SOCKET

#Wire 24-28 Ø1.02 max

C01-8656-0426

customer

sheet

1 of 1

catalog no

PDM: Rev:J

STATUS:

Released

Printed: Mar 05, 2011

86563004064LF Related Products

	86563004064LF	86563004065LF
Description	D-Sub Contacts CRIMP CONT 24/28 AWG SOCKET SIGNAL	D-Sub Contacts DSUB CRIMP CONTACT SOCK
Product Attribute	Attribute Value	Attribute Value
Manufacturer	FCI / Amphenol	FCI / Amphenol
Product Category	D-Sub Contacts	D-Sub Contacts
RoHS	Details	Details
Contact Gender	Socket (Female)	Socket (Female)
Contact Plating	Gold	Gold
Wire Gauge	28-24	28-24
Termination Style	Crimp	Crimp
Current Rating	5 A	5 A
Factory Pack Quantity	400	400
Packaging	Reel	Reel
