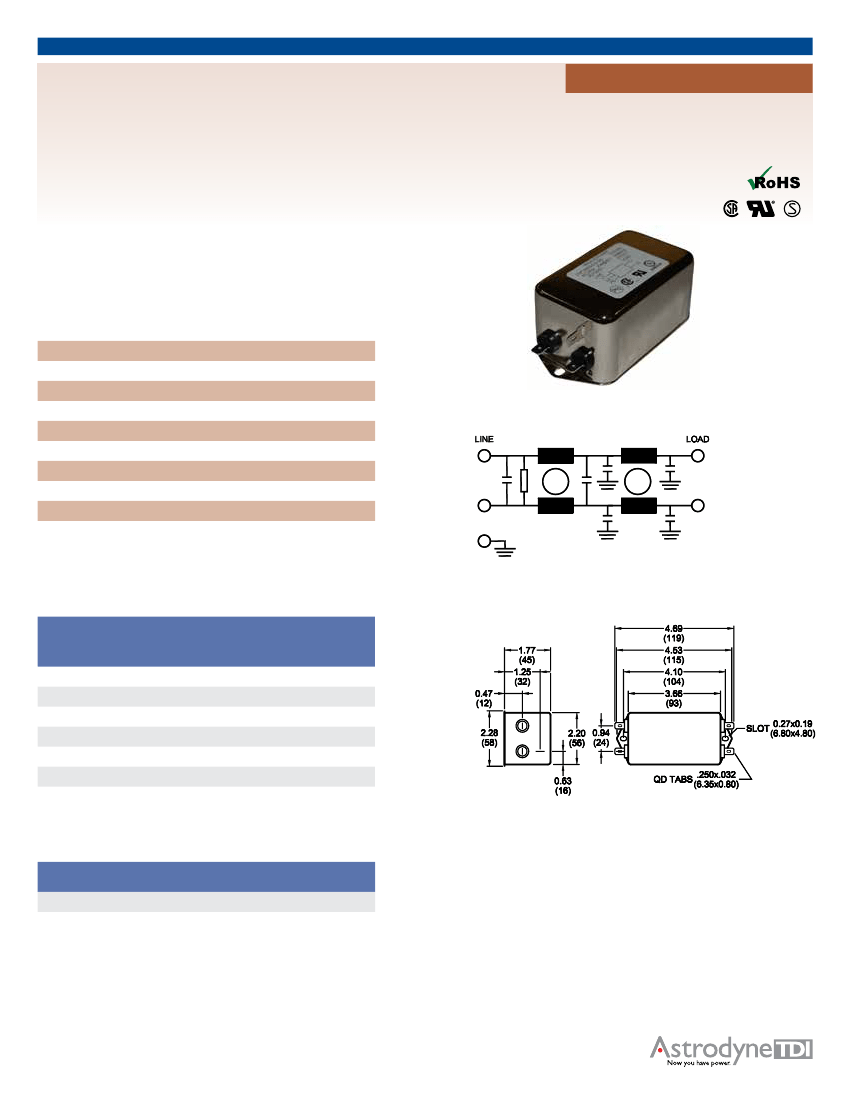

DSC2000
20 A Chassis Mount Filter
Specifications
Operating Frequency
Usable Frequency
Max. Operating Voltage*
Rated Current
Ambient Temperature
Climatic Category
Hipot Rating (L-G)
Terminals (-T)
Safety Approvals
Typ. Weight, lbs (kg)
50/60 Hz
SINGLE PHASE FILTERS
High Performance Dual Stage Power Line Filters
DC - 400 Hz
250 V +10%
20 A
-25 to 40°C
25/100/21
2700 VDC
QD: 0.25 Tabs
CSA, UR, EN60939
0.8 (0.4)
Electrical Schematic
*Available up to 300 VAC. Please contact us to verify specifications.
Part Number/Ordering
DSC2000
-Y
(Ycap,
Center, nF)
0
0.47
1
2.2
4.7
10
-Z
(Ycap,
Load, nF)
0
0.47
1
2.2
4.7
10
-T
QD
120 V/60 Hz
(LK, mA)
0.0
0.08
0.18
0.4
0.8
1.8
250 V/60 Hz
(LK, mA)
0.0
0.16
0.35
0.8
1.6
3.5
Mechanical Dimensions
TYPICAL TOLERANCE: +/-0.02” (0.50 mm)
Note:
Use any combination of -Y and -Z
Typical Insertion Loss, dB (50/50 Ohm)
Freq (MHz)
CM(dB)
DM(dB)
0.15
42
36
0.5
65
60
1.0
70
65
10
55
70
30
50
70
Specifications are subject to change. Consult factory to verify specifications.
For more information on our filter products call us at: (800) 527-4362 or (714) 289-0055
LCR, Radius Power, and Filter Concepts are now part of Astrodyne TDI
www.AstrodyneTDI.com
