142-1801-591 datasheet, PDF - EEWORLD Datasheet

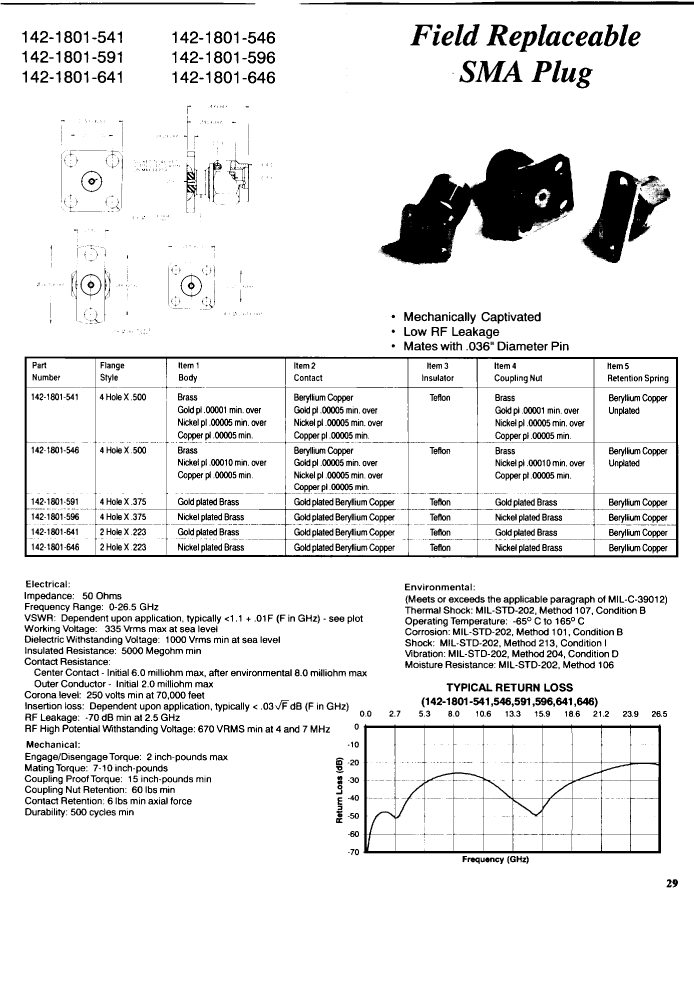

142-1801-591: DescriptionRF SMA Connector, Male, Panel Mount, Plug; CategoryThe connector The connector; File Size51KB，1 Pages; ManufacturerEF Johnson Technologies Inc.

Download Datasheet Parametric Compare View All

142-1801-591 Overview

RF SMA Connector, Male, Panel Mount, Plug

Parameter Name	Attribute value
Reach Compliance Code	unknow
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.15 dB
insulator material	TEFLON
MIL compliance	NO
Manufacturer's serial number	142-1801-591
Installation method	STRAIGHT
Maximum operating frequency	26.5 GHz
Panel mounting	YES
voltage standing wave ratio	1.36
Base Number Matches	1

	142-1801-591	142-1801-641	142-1801-646	142-1801-541	142-1801-546	142-1801-596
Description	RF SMA Connector, Male, Panel Mount, Plug	RF SMA Connector, Male, Panel Mount, Plug	RF SMA Connector, Male, Panel Mount, Plug	RF SMA Connector, Male, Panel Mount, Plug	RF SMA Connector, Male, Panel Mount, Plug	RF SMA Connector, Male, Panel Mount, Plug
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
Insertion loss	0.15 dB	0.15 dB	0.15 dB	0.15 dB	0.15 dB	0.15 dB
insulator material	TEFLON	TEFLON	TEFLON	TEFLON	TEFLON	TEFLON
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	142-1801-591	142-1801-641	142-1801-646	142-1801-541	142-1801-546	142-1801-596
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Maximum operating frequency	26.5 GHz	26.5 GHz	26.5 GHz	26.5 GHz	26.5 GHz	26.5 GHz
Panel mounting	YES	YES	YES	YES	YES	YES
voltage standing wave ratio	1.36	1.36	1.36	1.36	1.36	1.36
Base Number Matches	1	1	1	1	1	1
