350-80-120-00-001101 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 350-80-120-00-001101

350-80-120-00-001101: DescriptionBoard Connector, 20 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size89KB，1 Pages; ManufacturerPRECI-DIP; Websitehttp://www.precidip.com/en/index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

350-80-120-00-001101 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	350-80-120-00-001101	-	-	View	Buy Now

350-80-120-00-001101 Overview

Board Connector, 20 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT

350-80-120-00-001101 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
body width	0.1 inch
subject depth	0.157 inch
body length	2 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYCYCLOHEXYLENE TEREPHTHALLATE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	350
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.164 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

PRECI-DIP SA -

Page 1 of 1

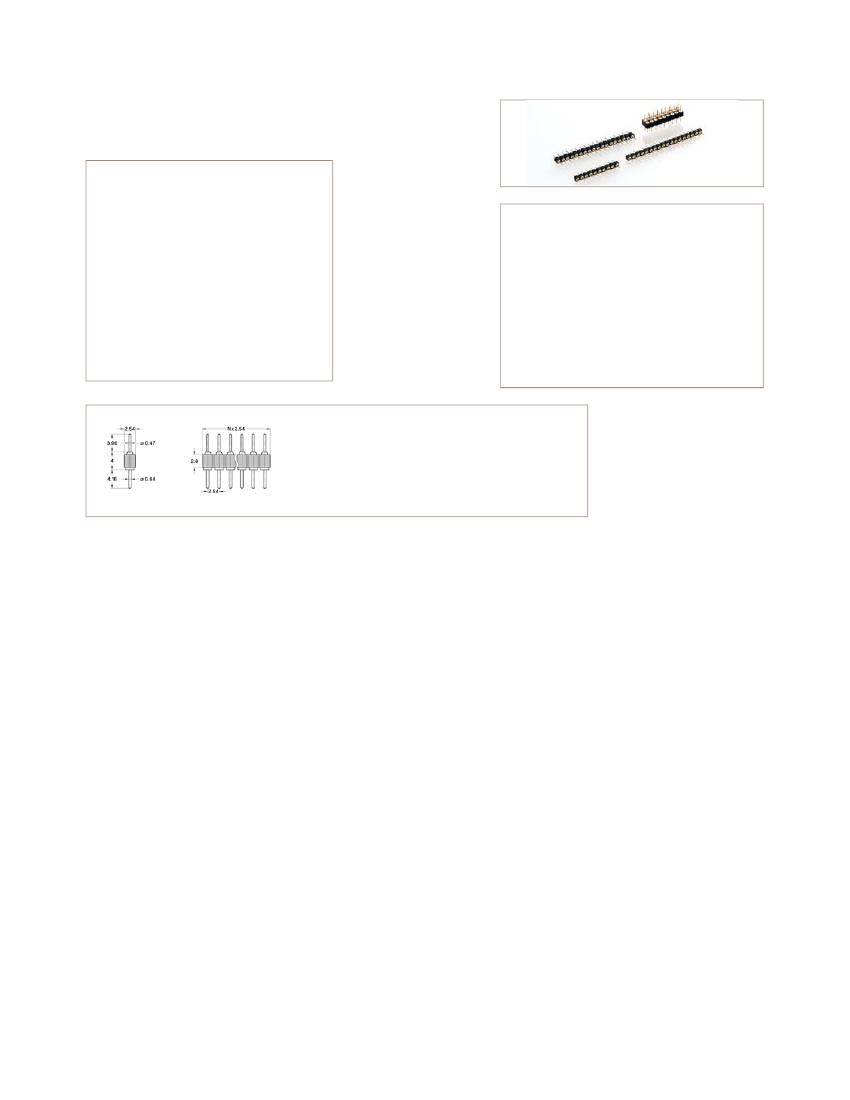

PCB CONNECTORS - STRAIGHT SOLDER TAIL

Series

350

PCB Connectors - Straight solder tail

Single row

2.54/5.08 mm, Straight solder tail, Pin 0.47mm

Pin connectors, solder tail.

Ordering information RoHS-compliant parts

Technical specs.:

Insulator:

Flammability:

Contact:

Connecting pin Ø:

Mechanical life:

Rated current:

Dielectric strength:

Black glass filled polyester

PCT-GF30-FR

UL 94V-O

Brass CuZn36Pb3 (C36000)

0.47 mm

Min. 500 cycles

Min. 1000 V RMS

PP Plating code

Termination

Gold 0.25 µm

Tin

V3*

Tin

*only for 350...00-006101 series

Connecting pin

Gold 0.25 µm

Tin

Gold 0.75 µm

NN number of poles.

Replace

with the requested

number of poles, e.g. 450-10-2NN-00-006101 for a double

row version with 16 pins becomes 450-10-216-00-006101.

General technical specs. ...

350-PP-1NN-00-001101

Straight pin connector, height 4 mm: solder

tail, single row.

Pin Ø 0.47 mm

Availability from: 2 to 64 contacts.

Standard number of contacts 64.

http://www.precidip.com/catalog/product.asp?c=0&p=177&i=552&q=350-PP-1NN-00-... 11-Oct-2011

350-80-120-00-001101 Related Products

	350-80-120-00-001101	350-10-120-00-001101	350-80-112-00-001101	350-80-164-00-001101	350-80-110-00-001101	ST0805D9K76P05	DWC-12-A-0595-1950-1-B-0	AHP4008RA-1R0M	350-80-106-00-001101
Description	Board Connector, 20 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT	Board Connector, 20 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT	Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT	Board Connector, 64 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT	Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT	Fixed Resistor, Ruthenium Oxide, 0.125W, 9760ohm, 150V, 0.5% +/-Tol, -100,100ppm/Cel, 0805,	Splitter/Coupler,	Power Inductor	Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	-	-	-	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	-	-	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-	-	-	ROHS COMPLIANT
Reach Compliance Code	compli	compli	compliant	compliant	compliant	compliant	unknown	-	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-	-	EAR99
body width	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-	-	-	0.1 inch
subject depth	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch	-	-	-	0.157 inch
body length	2 inch	2 inch	1.2 inch	6.4 inch	1 inch	-	-	-	0.6 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	-	-	-	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	-	-	BOARD CONNECTOR
Contact to complete cooperation	TIN	GOLD (10)	TIN	TIN	TIN	-	-	-	TIN
Contact completed and terminated	Tin (Sn)	Gold (Au)	Tin (Sn)	Tin (Sn)	Tin (Sn)	-	-	-	Tin (Sn)
Contact point gender	MALE	MALE	MALE	MALE	MALE	-	-	-	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	-	-	-	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-	-	RECTANGULAR
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	-	-	-	RND PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	-	-	-	NO
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	-	-	-	1400VAC V
Durability	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	-	-	-	500 Cycles
Filter function	NO	NO	NO	NO	NO	-	-	-	NO
IEC compliance	NO	NO	NO	NO	NO	-	-	-	NO
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	-	-	-	10000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	-	-	-	BLACK
insulator material	GLASS FILLED POLYCYCLOHEXYLENE TEREPHTHALLATE	GLASS FILLED POLYCYCLOHEXYLENE TEREPHTHALLATE	GLASS FILLED POLYCYCLOHEXYLENE TEREPHTHALLATE	GLASS FILLED POLYCYCLOHEXYLENE TEREPHTHALLATE	GLASS FILLED POLYCYCLOHEXYLENE TEREPHTHALLATE	-	-	-	GLASS FILLED POLYCYCLOHEXYLENE TEREPHTHALLATE
JESD-609 code	e3	e4	e3	e3	e3	e3	-	-	e3
MIL compliance	NO	NO	NO	NO	NO	-	-	-	NO
Manufacturer's serial number	350	350	350	350	350	-	-	-	350
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-	-	-	0.1 inch
Mixed contacts	NO	NO	NO	NO	NO	-	-	-	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-	-	-	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	-	-	-	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	-	-	-	ONE
PCB row number	1	1	1	1	1	-	-	-	1
Number of rows loaded	1	1	1	1	1	-	-	-	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	155 °C	85 °C	-	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-40 °C	-	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-	-	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-	-	RECTANGULAR
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	-	-	-	3 A
Guideline	UL	UL	UL	UL	UL	AEC-Q200	-	-	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	-	-	COMMERCIAL
Terminal length	0.164 inch	0.164 inch	0.164 inch	0.164 inch	0.164 inch	-	-	-	0.164 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	-	-	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	-	-	-	SOLDER
Total number of contacts	20	20	12	64	10	-	-	-	6
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	-	-	-	94V-0
Base Number Matches	1	1	1	1	1	-	-	-	-
