ZTA-6.51MT: DescriptionResonators CER RES 6.5100MHZ T/H 6.51MHz 0.3% 0.5% 30 Ohm -20 C ~ 80 C Through Hole Radial - 2 Lead, 5.00mm Pitch 0.394" L x 0.197" W (10.00mm x 5.00mm) 0.394" (10.00mm); CategoryPassive components; File Size499KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/

Download Datasheet Parametric Compare View All

ZTA-6.51MT Overview

Resonators CER RES 6.5100MHZ T/H 6.51MHz 0.3% 0.5% 30 Ohm -20 C ~ 80 C Through Hole Radial - 2 Lead, 5.00mm Pitch 0.394" L x 0.197" W (10.00mm x 5.00mm) 0.394" (10.00mm)

ZTA-6.51MT Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	ECS
Product Category	Resonators
Frequency	6.51 MHz
Tolerance	0.5 %
Termination Style	Through Hole
Minimum Operating Temperature	- 20 C
Maximum Operating Temperature	+ 80 C
Packaging	Bulk
Frequency Stability	0.3 %
Height	10 mm
Length	10 mm
Load Capacitance	30 pF
Type	Ceramic Resonator
Width	5 mm
Lead Diameter	0.6 mm
Lead Spacing	5 mm
Factory Pack Quantity	500

Preview

Download Datasheet

View All

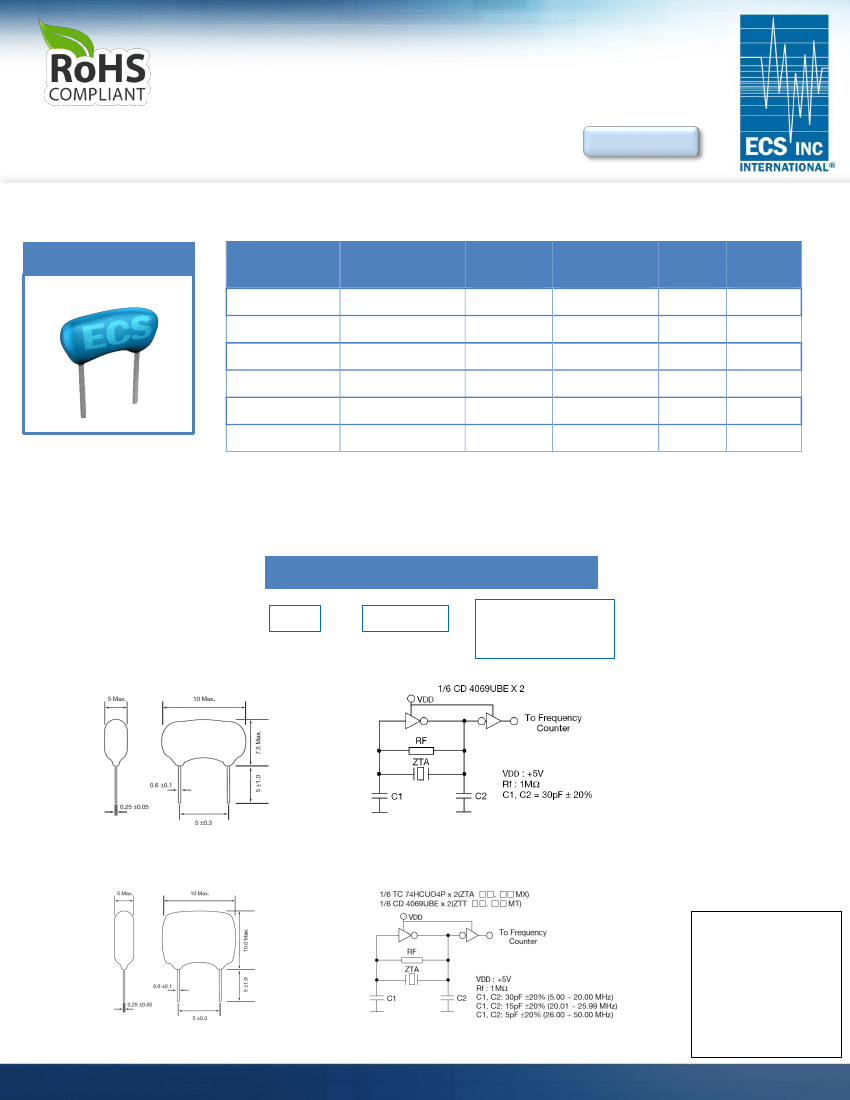

ZTA Series

Ceramic Resonator

The ZTA Series ceramic resonator offers a wide frequency range

and extended temperature range capabilities.

Request a Sample

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

ZTA Series

Part Number *

ZTA

□.□□

MG

ZTA

□.□□

MG

ZTA

□.□□

MG

ZTA

□.□□

MT

ZTA

□□.□□

MT

ZTA

□□.□□

MX

•

Low Profile

Wide Frequency Range

Extended temperature

range

RoHS Compliant (Note 7

Exemption)

•

Frequency Range

(MHz)

2.00 ~ 2.99

3.00 ~ 3.49

3.50 ~ 8.00

6.01 ~ 6.99

7.00 ~ 13.00

13.01 ~ 50.00

Frequency

Accuracy

@25⁰C (%)

±0.5

Stability in

Temperature

-20 ~ +80⁰C (%)

±0.3

Aging for

Ten

Years (%)

±0.3

Resonant

Resistance

(Ω) MAX

80

50

30

25

30

Withstanding voltage (5 seconds max.) : 100V DC

Insulation Resistance 100M Ω Min. (at 10V DC)

Part Numbering Guide: ZTA-4.00MG

ZTA

-

Frequency

-

Suffix

ZTA

4.00 MHz

MG (2~8 MHz)

MT (6.01 ~ 13 MHz)

MX (13.01 ~ 50 MHz)

Package Dimensions (mm)

Figure 1)

ZTA

□.□□

MG

Side and Front Views

Figure 2)

ZTA

□.□□

MG

Test Circuit

Figure 3)

ZTA

□.□□

MT, MX

Side and Front Views

Figure 4)

ZTA

□.□□

MT & ZTA

□.□□

MX

Test Circuit

Note: ECS does not

approve the use of it’s

products in Automotive,

Military, Avionics, Life

Sustaining or Life Support

systems or any other

related medical

applications without

written approval from ECS

Inc.

15351 West 109

th

Street

|

Lenexa, KS 66219

|

Phone: 913.782.7787

|

Fax: 913.782.6991

|

www.ecsxtal.com
