DB15-16 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DB15-16

DB15-16: DescriptionThree-Phase Si-Bridge Rectifiers; CategoryDiscrete semiconductor diode; File Size223KB，2 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

DB15-16 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DB15-16	-	-	View	Buy Now

DB15-16 Overview

Three-Phase Si-Bridge Rectifiers

DB15-16 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SEMIKRON
package instruction	S-PUFM-D5
Contacts	5
Reach Compliance Code	unknow
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	S-PUFM-D5
JESD-609 code	e2
Maximum non-repetitive peak forward current	250 A
Number of components	6
Phase	3
Number of terminals	5
Maximum output current	15 A
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1600 V
surface mount	NO
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

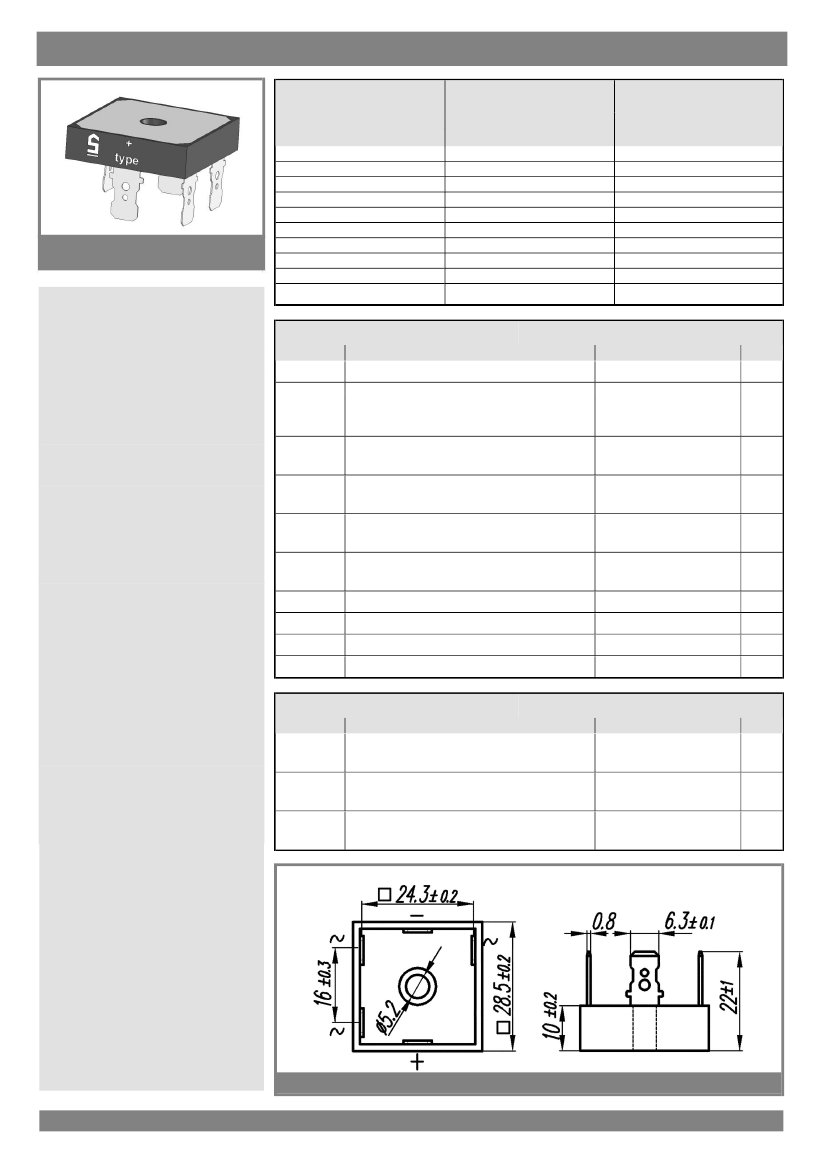

DB 15-005 ... DB 15-16

Square bridge

Three-Phase Si-Bridge

Rectifiers

DB 15-005 ... DB 15-16

Forward Current: 15 A

Reverse Voltage: 50 to 1600 V

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Publish Data

Features

Mechanical Data

Characteristics

Symbol Conditions

Values

Units

Dimensions in mm

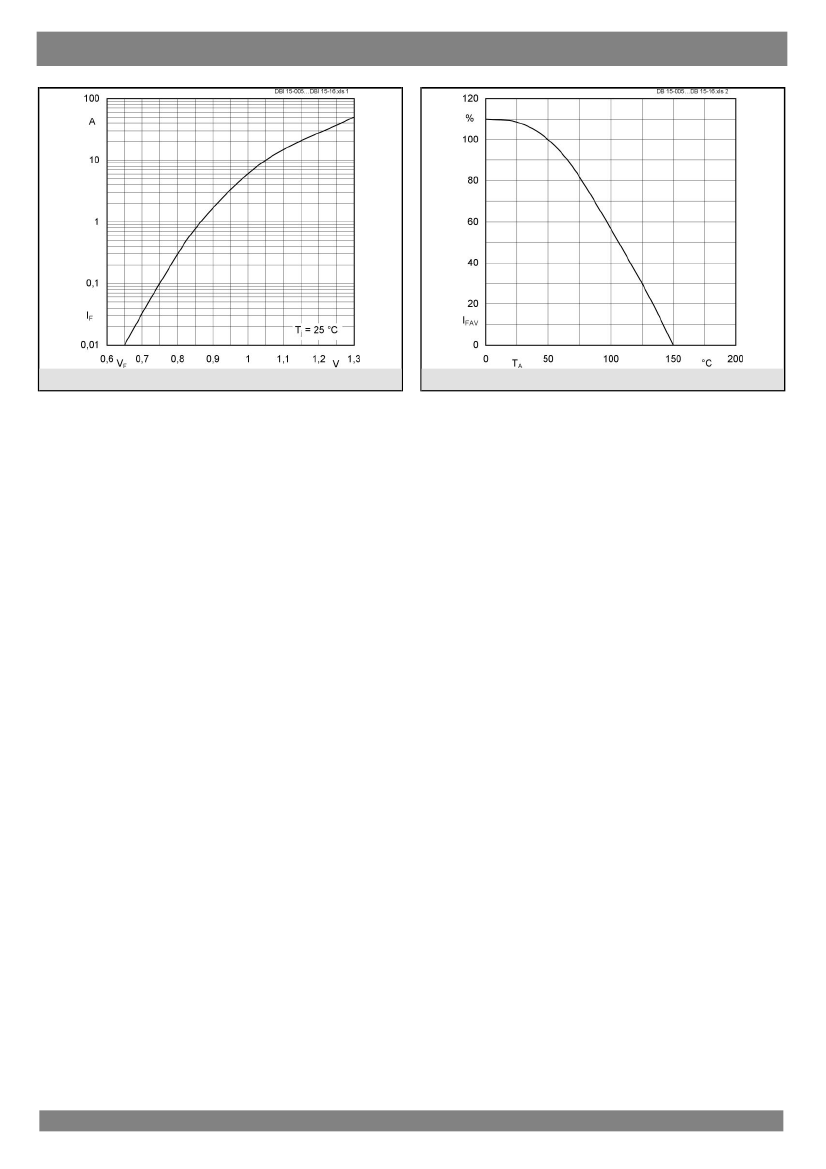

10-04-2006 SCT

DB15-16 Related Products

	DB15-16	DB15-005	DB15-005_06	DB15-01	DB15-04	DB15-14	DB15-11	DB15-10	DB15-08	DB15-06
Description	Three-Phase Si-Bridge Rectifiers	Three-Phase Si-Bridge Rectifiers	Three-Phase Si-Bridge Rectifiers	Three-Phase Si-Bridge Rectifiers	Three-Phase Si-Bridge Rectifiers	Three-Phase Si-Bridge Rectifiers	Three-Phase Si-Bridge Rectifiers	Three-Phase Si-Bridge Rectifiers	Three-Phase Si-Bridge Rectifiers	Three-Phase Si-Bridge Rectifiers
Is it Rohs certified?	conform to	conform to	-	conform to	conform to	conform to	-	conform to	conform to	conform to
package instruction	S-PUFM-D5	S-PUFM-D5	-	S-PUFM-D5	S-PUFM-D5	S-PUFM-D5	-	S-PUFM-D5	S-PUFM-D5	S-PUFM-D5
Contacts	5	5	-	5	5	5	-	5	5	5
Reach Compliance Code	unknow	unknow	-	unknow	unknow	unknow	-	unknow	unknow	unknow
Other features	UL RECOGNIZED	UL RECOGNIZED	-	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	-	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Shell connection	ISOLATED	ISOLATED	-	ISOLATED	ISOLATED	ISOLATED	-	ISOLATED	ISOLATED	ISOLATED
Configuration	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	-	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	-	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON	SILICON	-	SILICON	SILICON	SILICON	-	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	-	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	-	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
JESD-30 code	S-PUFM-D5	S-PUFM-D5	-	S-PUFM-D5	S-PUFM-D5	S-PUFM-D5	-	S-PUFM-D5	S-PUFM-D5	S-PUFM-D5
JESD-609 code	e2	e2	-	e2	e2	e2	-	e2	e2	e2
Maximum non-repetitive peak forward current	250 A	250 A	-	250 A	250 A	250 A	-	250 A	250 A	250 A
Number of components	6	6	-	6	6	6	-	6	6	6
Phase	3	3	-	3	3	3	-	3	3	3
Number of terminals	5	5	-	5	5	5	-	5	5	5
Maximum output current	15 A	15 A	-	15 A	15 A	15 A	-	15 A	15 A	15 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	SQUARE	-	SQUARE	SQUARE	SQUARE	-	SQUARE	SQUARE	SQUARE
Package form	FLANGE MOUNT	FLANGE MOUNT	-	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	-	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1600 V	50 V	-	100 V	400 V	1400 V	-	1000 V	800 V	600 V
surface mount	NO	NO	-	NO	NO	NO	-	NO	NO	NO
Terminal surface	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	-	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	-	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)
Terminal form	SOLDER LUG	SOLDER LUG	-	SOLDER LUG	SOLDER LUG	SOLDER LUG	-	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	-	UPPER	UPPER	UPPER	-	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
