DB107G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DB107G

DB107G: Description1 A, 1000 V, SILICON, BRIDGE RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size115KB，2 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DB107G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DB107G	-	-	View	Buy Now

DB107G Overview

1 A, 1000 V, SILICON, BRIDGE RECTIFIER DIODE

DB107G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Taiwan Semiconductor
package instruction	PLASTIC, DB, 4 PIN
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	UL RECOGNIZED
Minimum breakdown voltage	1000 V
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	R-PDIP-T4
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	50 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1000 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	DUAL

Preview

Download Datasheet

View All

DB101G

THRU

DB107G

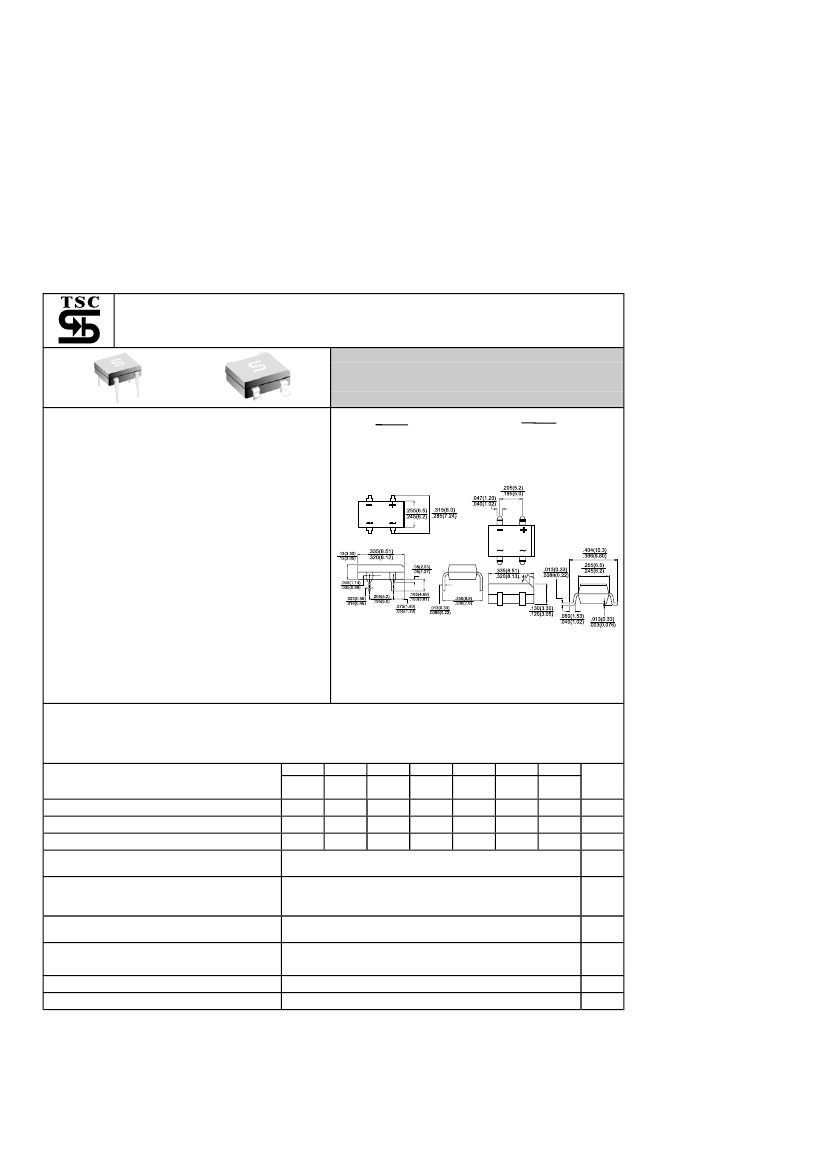

Single Phase 1.0 AMP. Glass Passivated Bridge Rectifiers

Voltage Range

50 to 1000 Volts

Current

1.0 Ampere

Features

UL Recognized File # E-96005

Ideal for printed circuit board

Reliable low cost construction utilizing

molded plastic technique

High temperature soldering guaranteed:

250°C / 10 seconds / 0.375” ( 9.5mm )

lead length at 5 lbs., ( 2.3 kg ) tension

Small size, simple installation

Leads solderable per MIL-STD-202,

Method 208

High surge current capability

DBS

Dimensions in inches and (millimeters)

Maximum Ratings and Electrical Characteristics

Rating at 25°C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%

Type Number

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified Current

= 40°C

Peak Forward Surge Current, 8.3 ms Single

Half Sine-wave Superimposed on Rated Load

(JEDEC method )

Maximum Instantaneous Forward Voltage

@ 1.0A

Maximum DC Reverse Current @ T

=25°C

at Rated DC Blocking Voltage @ T

=125°C

Operating Temperature Range T

Storage Temperature Range T

STG

DB101G DB102G DB103G DB104G DB105G DB106G DB107G

DBS

101G

102G

103G

104G

105G

106G

107G

100

200

140

200

400

280

400

1.0

1.1

600

420

600

800

560

800

Units

1000

700

1000

°C

500

-55 to +150

Note: DBS for Surface Mount Package.

- 470 -

DB107G Related Products

	DB107G	DB104G	DB106G
Description	1 A, 1000 V, SILICON, BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	1 A, SILICON, BRIDGE RECTIFIER DIODE
Is it Rohs certified?	conform to	conform to	conform to
Maker	Taiwan Semiconductor	Taiwan Semiconductor	Taiwan Semiconductor
package instruction	PLASTIC, DB, 4 PIN	PLASTIC, DB, 4 PIN	PLASTIC, DB, 4 PIN
Reach Compliance Code	unknow	unknow	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Minimum breakdown voltage	1000 V	400 V	800 V
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V
JESD-30 code	R-PDIP-T4	R-PDIP-T4	R-PDIP-T4
Humidity sensitivity level	1	1	1
Maximum non-repetitive peak forward current	50 A	50 A	50 A
Number of components	4	4	4
Phase	1	1	1
Number of terminals	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Maximum output current	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1000 V	400 V	800 V
surface mount	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL
