533BA000877DG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 533BA000877DG

533BA000877DG: DescriptionStandard Clock Oscillators Dual Frequency XO, OE Pin 1; CategoryPassive components; File Size1MB，12 Pages; ManufacturerSilicon Laboratories

Download Datasheet Parametric View All

533BA000877DG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	533BA000877DG	-	-	View	Buy Now

533BA000877DG Overview

Standard Clock Oscillators Dual Frequency XO, OE Pin 1

533BA000877DG Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Silicon Laboratories
Product Category	Standard Clock Oscillators
Packaging	Tray

Preview

Download Datasheet

View All

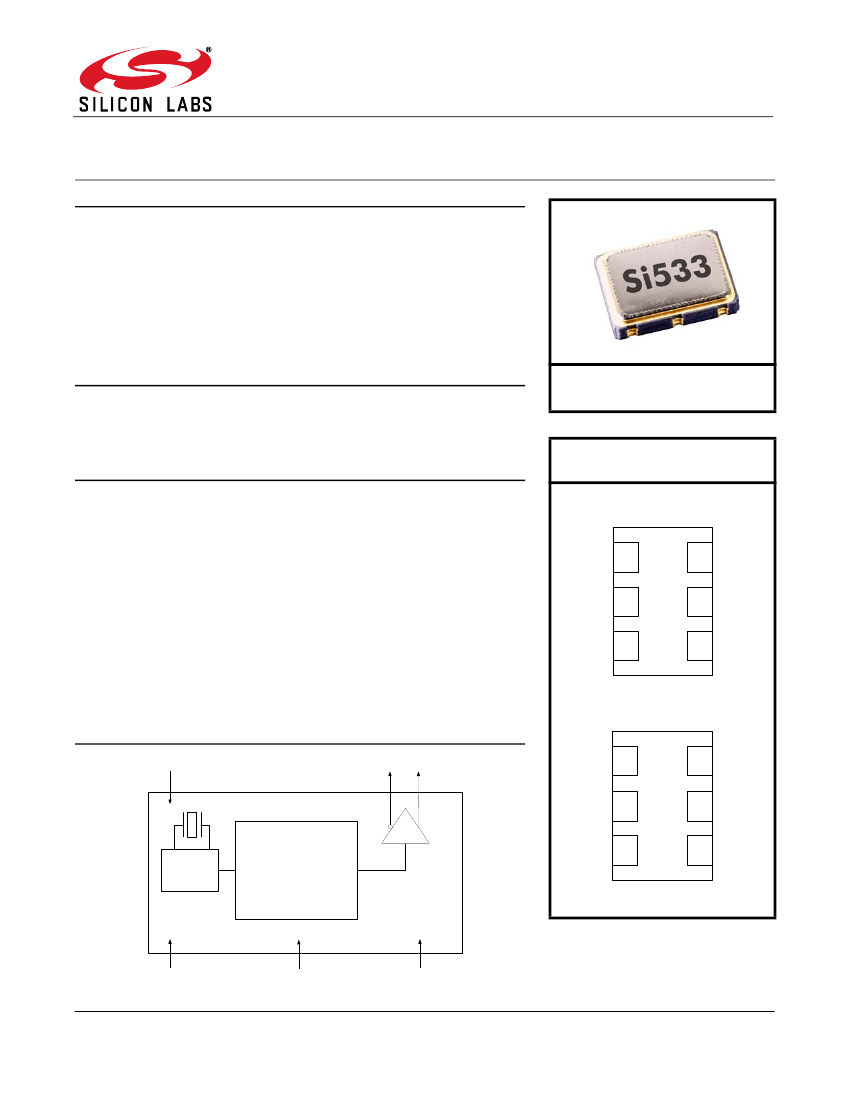

Si533

EVISION

U A L

REQUENCY

R Y S TA L

SCILLATOR

(XO )

(10 M H

Z TO

1.4 G H

)

Features



Available with any-frequency output



frequencies from 10 MHz to 945 MHz

and select frequencies to 1.4 GHz

2 selectable output frequencies



3rd generation DSPLL with superior



jitter performance



3x better frequency stability than

SAW-based oscillators



Pin 1 output enable (OE)

Internal fixed crystal frequency

ensures high reliability and low

aging

Available CMOS, LVPECL,

LVDS, and CML outputs

3.3, 2.5, and 1.8 V supply options

Industry-standard 5 x 7 mm

package and pinout

Pb-free/RoHS-compliant

Si5602

Applications



Ordering Information:



SONET/SDH



Networking



SD/HD video

Clock and data recovery



FPGA/ASIC clock generation

See page 7.

Description

The Si533 dual frequency XO utilizes Silicon Laboratories’ advanced

DSPLL

circuitry to provide a low jitter clock at high frequencies. The Si533

is available with any-frequency output frequency from 10 to 945 MHz and

select frequencies to 1400 MHz. Unlike a traditional XO, where a different

crystal is required for each output frequency, the Si533 uses one fixed crystal

to provide a wide range of output frequencies. This IC based approach allows

the crystal resonator to provide exceptional frequency stability and reliability.

In addition, DSPLL clock synthesis provides superior supply noise rejection,

simplifying the task of generating low jitter clocks in noisy environments

typically found in communication systems. The Si533 IC based XO is factory

configurable for a wide variety of user specifications including frequency,

supply voltage, output format, and temperature stability. Specific

configurations are factory programmed at time of shipment, thereby

eliminating long lead times associated with custom oscillators.

Pin Assignments:

See page 6.

(Top View)

CLK–

GND

CLK+

LVDS/LVPECL/CML

Functional Block Diagram

CLK– CLK+

Fixed

Frequency

Any-frequency

10–1400 MHz

DSPLL®

Clock

Synthesis

GND

CLK+

CMOS

GND

Rev. 1.3 4/13

Si533
