Eurostyle D Subminiature Connectors
Introduction
The D Subminiature Eurostyle connector is a
product line extension of the well known
D Subminiature family originally invented by
ITT Industries, Cannon.
It is a special low profile 90° solder pin
connector acc. to the CECC75 301 802
European specification. It replaces the D*
version with the code 1AEN which was not
100% in line with above mentioned
specification.
Introduction
The main applications will be found in industrial
as well as in telecommunication equipment.
The major advantage for the end user is to
achieve additional space due to the low profile
configuration.
The D Subminiature Eurostyle connectors are
fully mateable with all standard D Subminiature
connectors according to DIN 41652.
Product features
Meets European Eurostyle specification CECC75 301 802
Available in all common layouts (9, 15, 25, 37-way), male and female
Available in Performance Classes 1, 2 and 3 according to DIN 41652
Clinch nut with M3 or4-40 UNC thread
Jack Post with M3 or 4-40 UNC thread
Technical Data
Materials and Finishes
Shell
Insulator
Contacts
Boardlock / Grounding Insert
Threaded insert
Steel, tin plated
Thermoplastic, UL 94V-0
Copper alloy, gold over nickel plated
Brass, tin plated
Steel, tin plated
Electrical Data
Current rating
temperature
Test voltage
Insulation resistance
Contact resistance
5 A / 25°C, 3,5 A / 70°C ambient
1000 V ac rms at sea level
5 G
Ω
min.
25 mΩ
Mechanical Data
Polarizing
Number of contacts
Termination method
CECC 75301802
Performance class 3 (Standard)
Performance class 2
Performance class 1
Operating temperature
Keystone shaped front shell
9, 15, 25 and 37
Solder pin 90° Eurostyle acc.
50 mating cycles (without code)
200 mating cycles (code -A191)
500 mating cycles (code -A190)
- 55°C to 125°C
Cannon
2
Dimensions are shown in mm
Dimensions subject to change
www.ittcannon.com
Eurostyle D Subminiature Connectors
Order Reference Explanation
Series Prefix
Cannon designation
Shell size
E - 9 way
A - 15 way
B - 25 way
C - 37 way
Class
N - new generation
Termination / Mounting
E - 90° pushfit / row spacing 2,54
F - 90° pushfit / row spacing 2,84
Number of contacts
9, 15, 25, 37
Contact gender
P - pin contact
S - socket contact
Contact termination
L - solder pin
Pushfit Type
0 - no pushfit
1 - for pcb 1,6
2 - for pcb 2,4
3 - for pcb 3,2
Mounting height
E - Euro 3,6
Locking
03 - M3 thread
04 - 4-40 UNC thread
13 - M3 thread with jackpost
14 - 4-40 UNC thread with jackpost
Modification
no code - performance class 3
A191 - performance class 2
A190 - performance class 1
Order Reference
D A N E - 15 S - L 1 - E 03 - *
Part numbers in
red letter
typeface indicate standard products: usually available with shorter lead times.
Cannon
3
Dimensions are shown in mm
Dimensions subject to change
www.ittcannon.com
Eurostyle D Subminiature Connectors

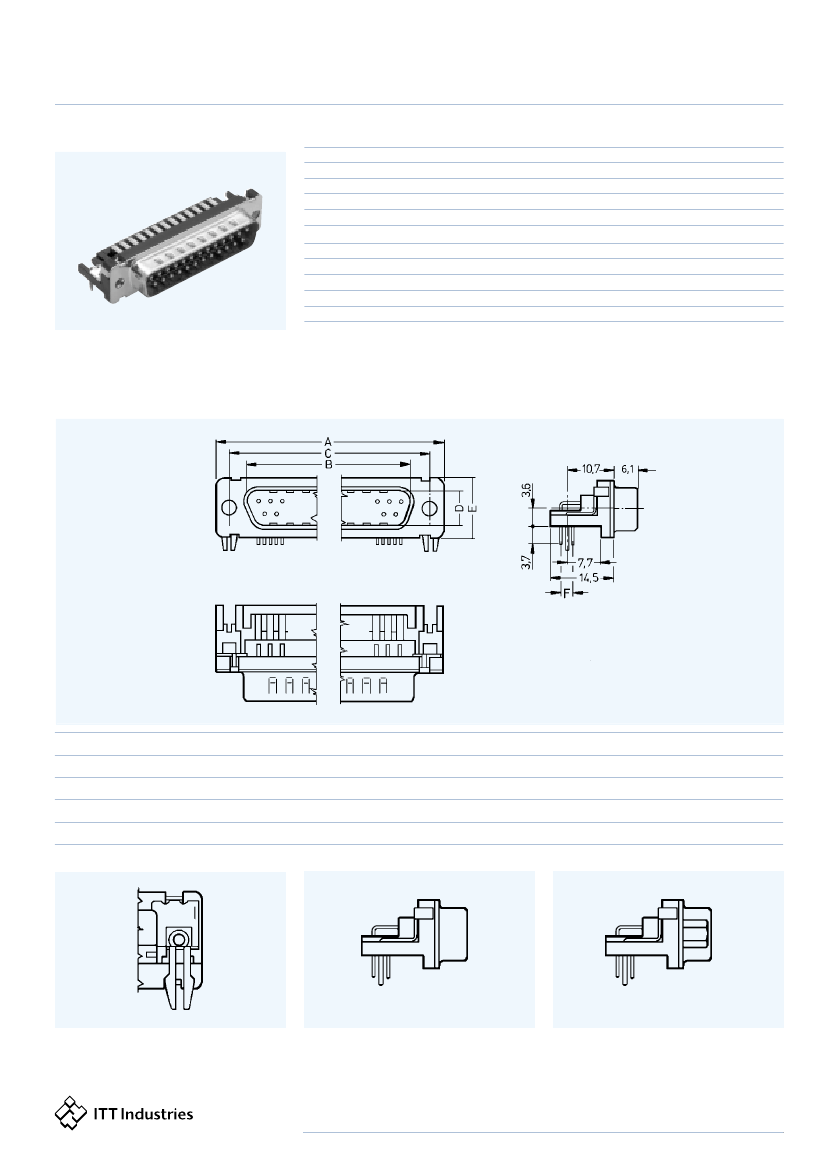

Pin Connector 90
°
Part numbers Pin
Shell size
DE
DA
DB
DC
Shell size
DE
DA
DB
DC
Layout
9
15
25
37
Layout
9
15
25
37
Clinch nut 4-40 UNC
DENE-9P-L1-E04-A191
DANE-15P-L1-E04-A191
DBNE-25P-L1-E04-A191
DCNE-37P-L1-E04-A191
Jackpost 4-40 UNC
DENE-9P-L1-E14-A191
DANE-15P-L1-E14-A191
DBNE-25P-L1-E14-A191
DCNE-37P-L1-E14-A191
Pin Connector
Clinch nut M3
DENE-9P-L1-E03-A191
DANE-15P-L1-E03-A191
DBNE-25P-L1-E03-A191
DCNE-37P-L1-E03-A191
Jackpost M3
DENE-9P-L1-E13-A191
DANE-15P-L1-E13-A191
DBNE-25P-L1-E13-A191
DCNE-37P-L1-E13-A191
Part numbers in
red letter
typeface indicate standard products: usually available with shorter lead times.
Note:
For performance class 1 replace A-191 by -A190;
For performance class 3 delete -A191.
Example: DENE-9P-L1-E13
For row spacing 2,84 mm replace D*NE with D*NF
Example: DANF-15P-L1-A191
Shell size
DE
DA
DB
DC
Contacts
9
15
25
37
A - 0,7
31,20
39,50
53,40
69,70
B + 0,25
16,79
25,12
38,84
55,30
C
±
0,1
25,00
33,35
47,04
63,50
D + 0,25
8,23
8,23
8,23
8,23
E - 0,7
12,90
12,90
12,90
12,90
F
2,54 or 2,84
2,54 or 2,84
2,54 or 2,84
2,54 or 2,84
pushfit
clinch nut
Jackpost
03 - M3 thread
04 - 4-40 UNC thread
13 - M3 thread
14 - 4-40 UNC thread
Cannon
4
Dimensions are shown in mm
Dimensions subject to change
www.ittcannon.com
Eurostyle D Subminiature Connectors

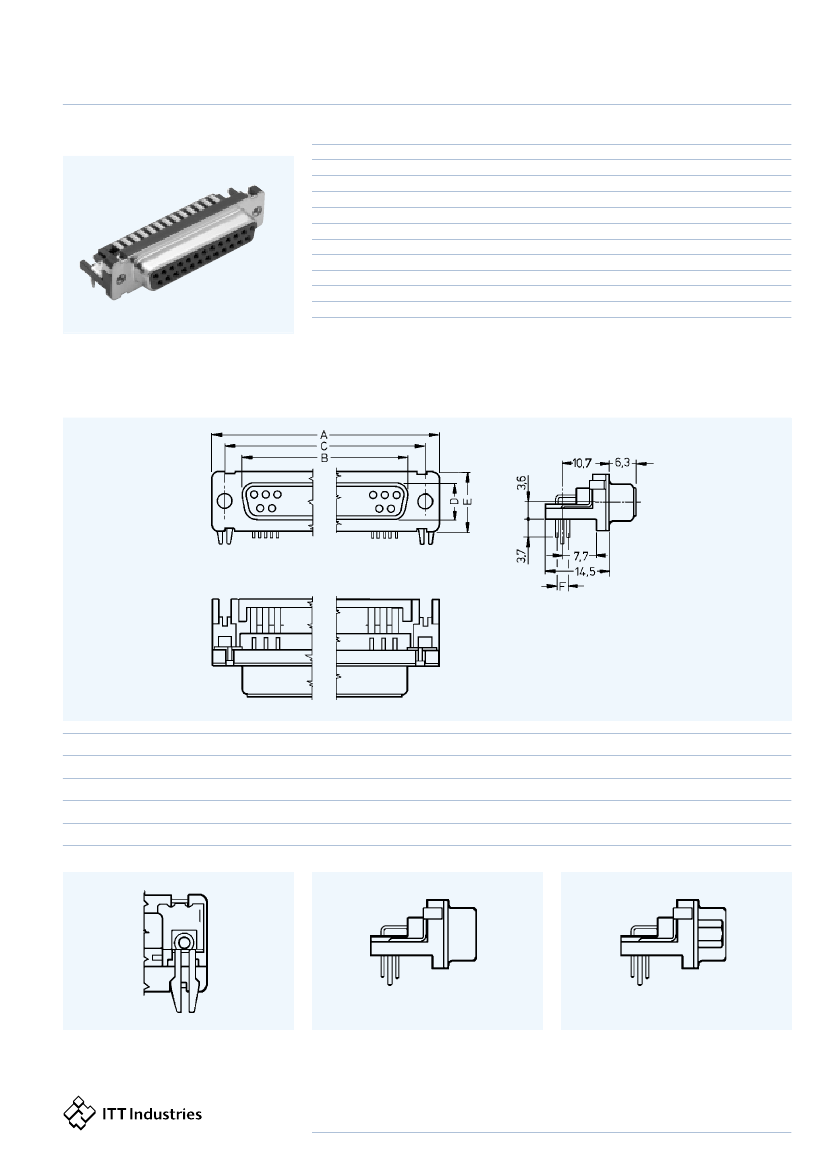

Socket Connector 90
°
Part numbers Socket
Shell size
DE
DA
DB
DC
Shell size
DE
DA
DB
DC
Layout
9
15
25
37
Layout
9
15
25
37
Clinch nut 4-40 UNC
DENE-9S-L1-E04-A191
DANE-15S-L1-E04-A191
DBNE-25S-L1-E04-A191
DCNE-37S-L1-E04-A191
Jackpost 4-40 UNC
DENE-9S-L1-E14-A191
DANE-15S-L1-E14-A191
DBNE-25S-L1-E14-A191
DCNE-37S-L1-E14-A191
Socket Connector
Clinch nut M3
DENE-9S-L1-E03-A191
DANE-15S-L1-E03-A191
DBNE-25S-L1-E03-A191
DCNE-37S-L1-E03-A191
Jackpost M3
DENE-9S-L1-E13-A191
DANE-15S-L1-E13-A191
DBNE-25S-L1-E13-A191
DCNE-37S-L1-E13-A191
Part numbers in
red letter
typeface indicate standard products: usually available with shorter lead times.
Note:
For performance class 1 replace A-191 by -A190;
For performance class 3 delete -A191.
Example: DENE-9S-L1-E13
For row spacing 2,84 mm replace D*NE with D*NF
Example: DANF-15S-L1-A191
Shell size
DE
DA
DB
DC
pushfit
Contacts
9
15
25
37
A - 0,7
31,20
39,50
53,40
69,70
B - 0,25
16,46
24,79
38,50
54,96
clinch nut
C
±
0,1
25,00
33,35
47,04
63,50
D - 0,25
8,02
8,02
8,02
8,02
E - 0,7
12,90
12,90
12,90
12,90
Jackpost
F
2,54 or 2,84
2,54 or 2,84
2,54 or 2,84
2,54 or 2,84
03 - M3 thread
04 - 4-40 UNC thread
13 - M3 thread
14 - 4-40 UNC thread
Cannon
5
Dimensions are shown in mm
Dimensions subject to change
www.ittcannon.com
