801-93-063-10-002 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 801-93-063-10-002

Preview

801-93-063-10-002: DescriptionBoard Connector, 63 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket; CategoryThe connector; File Size180KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

801-93-063-10-002 Overview

Board Connector, 63 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket

801-93-063-10-002 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
Other features	COMPATIBLE CONTACT: 1303-0-15-01-47-01-04-0
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD (200) OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	801
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	63
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

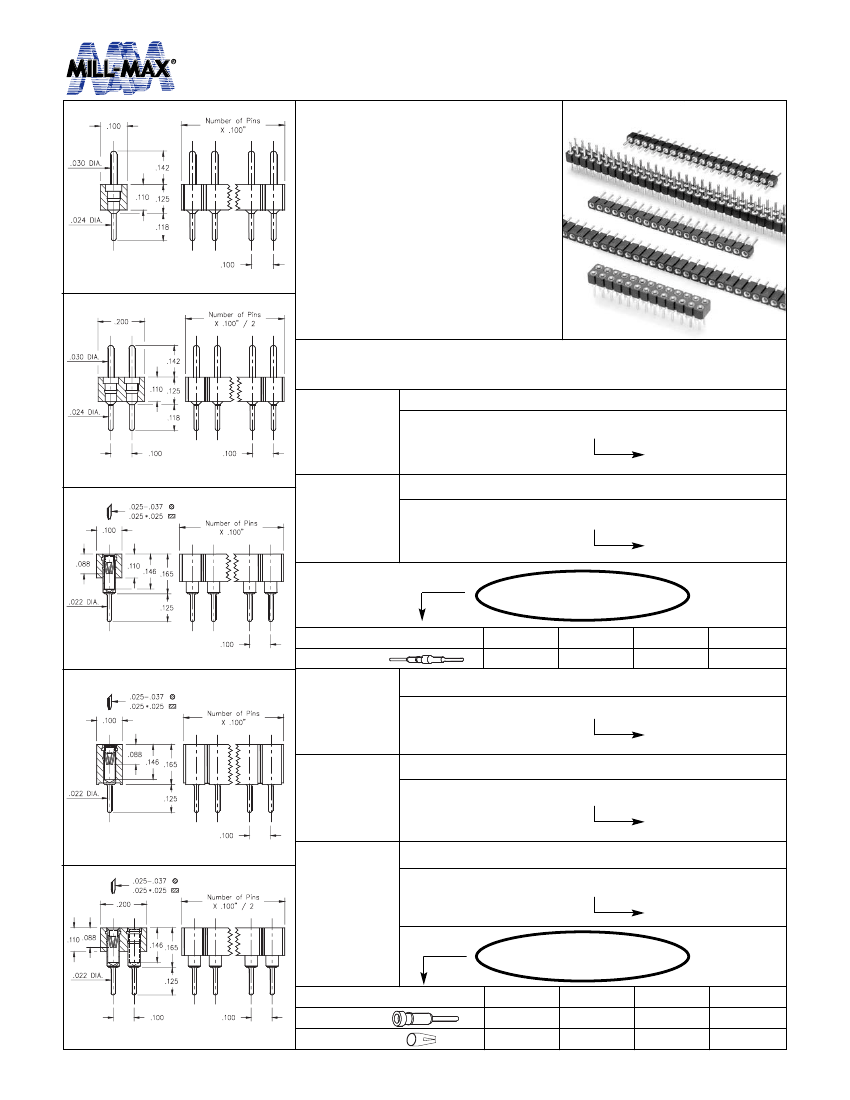

INTERCONNECTS

.030” dia. Low Profile Pins

Single and Double Row

Series 800, 801

802, 803

•

Receptacles accept .030”

diameter and .025” square pins.

•

Pin headers use MM# 5016 pins.

(See page 173 for details)

•

Low profile sockets use MM#

1303 pins. (See page 148 for

details)

Fig. 1

Ordering Information

Single Row

Low Profile Pin Header

800-XX-0_ _-10-002

Specify # of pins

Fig. 2

Fig. 1

Double Row

01-64

Low Profile Pin Header

Fig. 2

802-XX-0 _ _-10-002

Specify # of pins

XX= Plating Code

See Below

02-64

SPECIFY PLATING CODE XX=

10

10µ” Au

90

200µ” Sn/Pb

Fig. 3

Pin Plating

Single Row

Low Profile Socket

(short insulator)

801-XX-0 _ _-10-002

01-64

Fig. 3

Single Row

Specify # of pins

Fig. 4

Low Profile Socket

(long insulator)

801-XX-0 _ _-10-012

01-36

Specify # of pins

Double Row Low Profile Socket

803-XX-0 _ _-10-002

Specify # of pins

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

Fig. 5

02-72

93

30µ” Au

99

200µ”Sn/Pb

Sleeve (Pin)

200µ” Sn/Pb 200µ”Sn/Pb

Fig. 5

Contact (Clip)

w w w. m i l l - m a x . c o m

81

516-922-6000
