B82720A2152N040 datasheet, PDF

Datasheet> All Categories > Passive components> inductor> B82720A2152N040

B82720A2152N040: DescriptionCommon Mode Chokes / Filters RING CORE CHOKE 2X1.6MH 1.5A; CategoryPassive components inductor; File Size177KB，7 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric Compare View All

B82720A2152N040 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B82720A2152N040	-	-	View	Buy Now

B82720A2152N040 Overview

Common Mode Chokes / Filters RING CORE CHOKE 2X1.6MH 1.5A

B82720A2152N040 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	EPCOS (TDK)
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Rectangular
core material	Ferrite
DC Resistance	0.11 Ω
Nominal inductance(L)	1600 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Lead diameter	0.6 mm
Lead length	3 mm
Number of functions	2
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	9.6 mm
Package length	14.2 mm
Package form	PCB Mount
Package width	14.2 mm
method of packing	Bulk
Maximum rated current	1.5 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	INDUCTANCE IS MEASURED AT 0.1 MILLI AMPERE
surface mount	NO
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL IN-LINE
Terminal shape	WIRE
Test frequency	0.01 MHz
Tolerance	50%

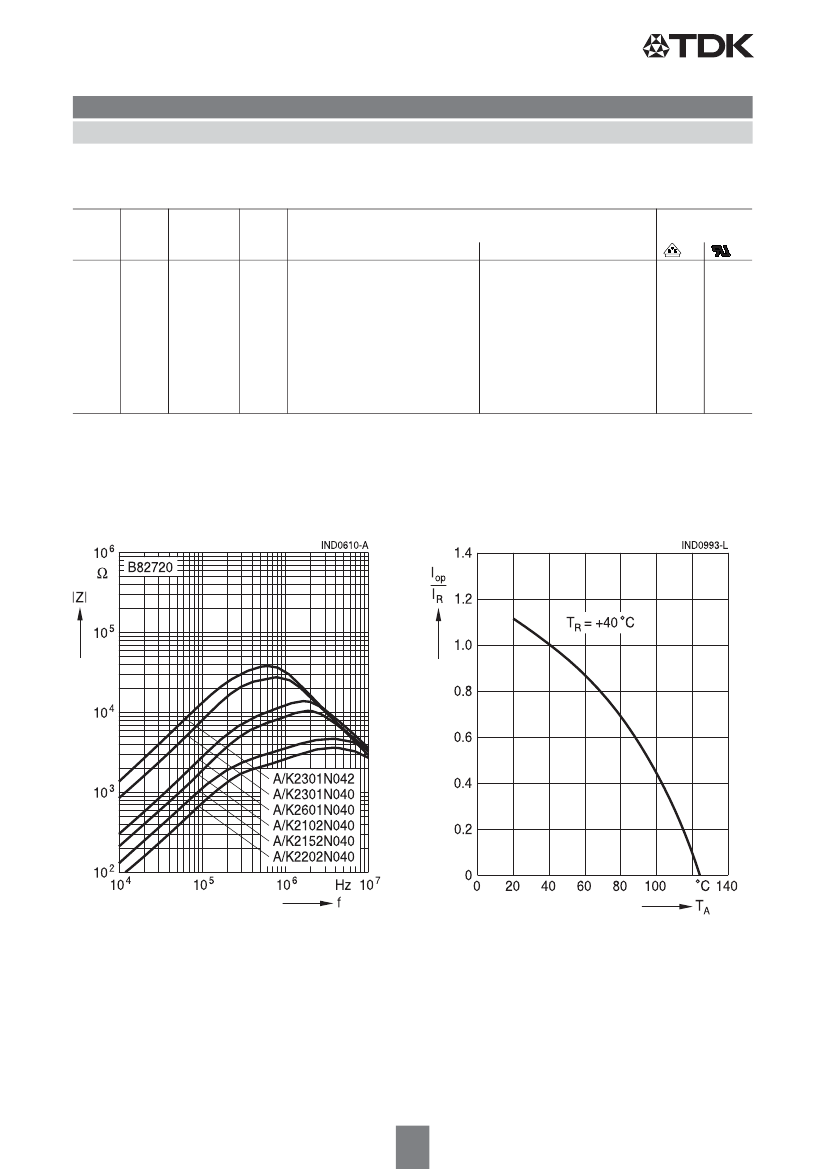

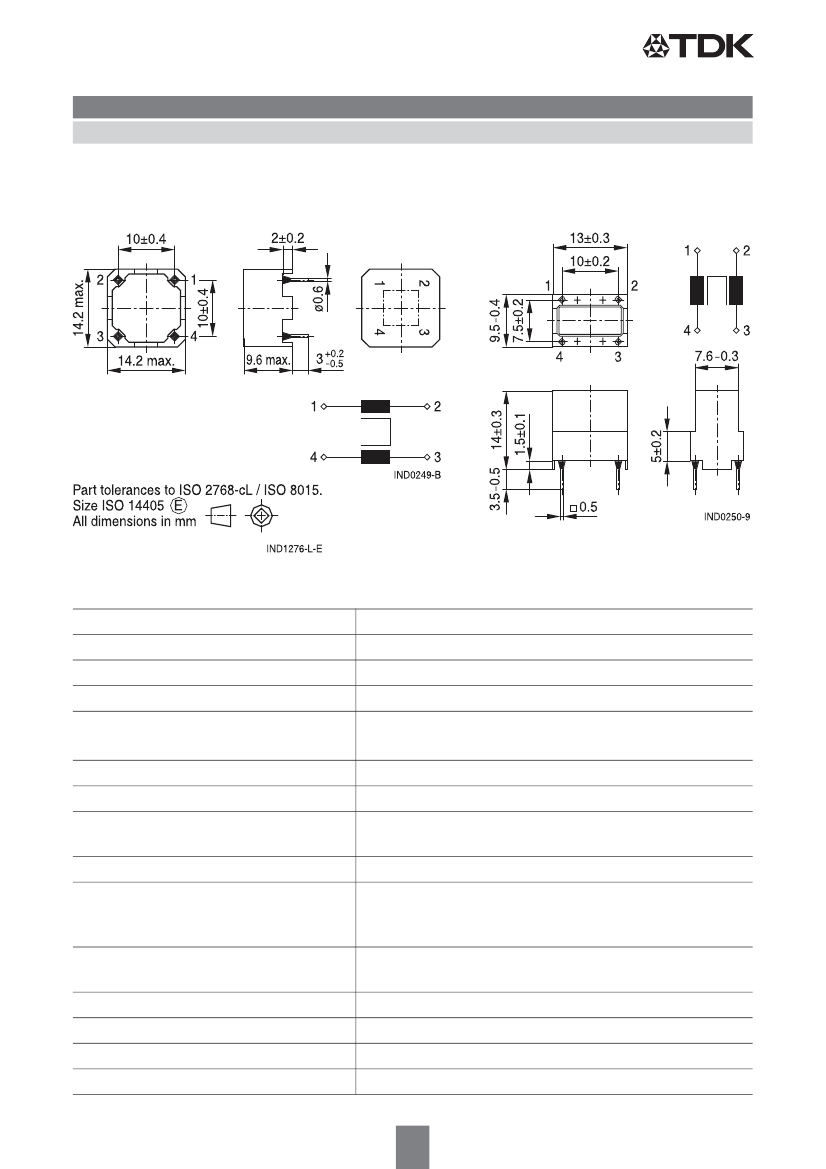

Preview

Download Datasheet

View All

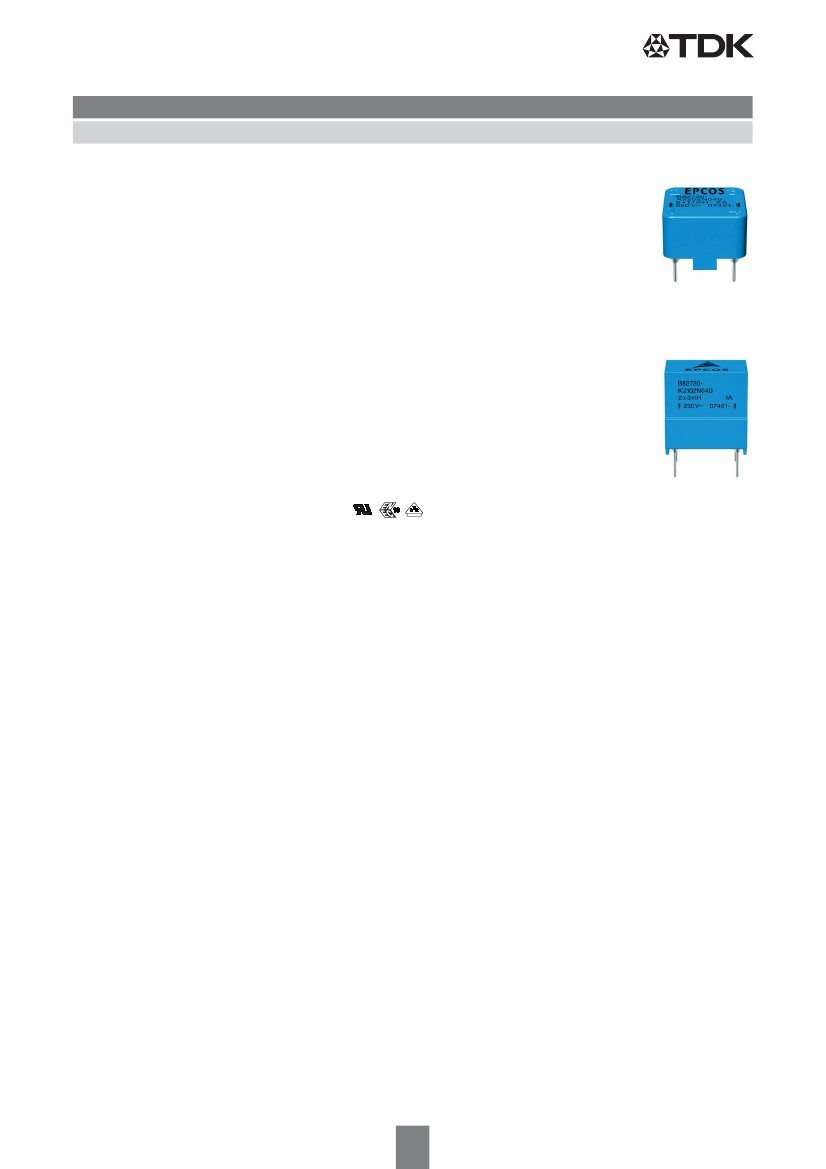

Power line chokes

Current-compensated ring core double chokes

250 V AC, 1.1 … 22 mH, 0.3 … 2 A, +40 °C

Series/Type:

Date:

B82720A/K

January 2017

a~í~=pÜÉÉí

EPCOS AG 2017. Reproduction, publication and dissemination of this publication, enclosures hereto and the

information contained therein without EPCOS’ prior express consent is prohibited.

EPCOS AG is a TDK Group Company.

Cautions and warnings

■

Please note the recommendations in our Inductors data book (latest edition) and in the data

sheets.

– Particular attention should be paid to the derating curves given there.

– The soldering conditions should also be observed. Temperatures quoted in relation to wave

soldering refer to the pin, not the housing.

■

If the components are to be washed varnished it is necessary to check whether the washing

varnish agent that is used has a negative effect on the wire insulation, any plastics that are used,

or on glued joints. In particular, it is possible for washing varnish agent residues to have a

negative effect in the long-term on wire insulation.

Washing processes may damage the product due to the possible static or cyclic mechanical

loads (e.g. ultrasonic cleaning). They may cause cracks to develop on the product and its parts,

which might lead to reduced reliability or lifetime.

■

The following points must be observed if the components are potted in customer applications:

– Many potting materials shrink as they harden. They therefore exert a pressure on the plastic

housing or core. This pressure can have a deleterious effect on electrical properties, and in

extreme cases can damage the core or plastic housing mechanically.

– It is necessary to check whether the potting material used attacks or destroys the wire

insulation, plastics or glue.

– The effect of the potting material can change the high-frequency behaviour of the components.

■

Ferrites are sensitive to direct impact. This can cause the core material to flake, or lead to

breakage of the core.

■

Even for customer-specific products, conclusive validation of the component in the circuit can

only be carried out by the customer.

Display of ordering codes for EPCOS products

The ordering code for one and the same product can be represented differently in data sheets,

data books, other publications and the website of EPCOS, or in order-related documents such as

shipping notes, order confirmations and product labels.

The varying representations of the

ordering codes are due to different processes employed and do not affect the

specifications of the respective products.

Detailed information can be found on the Internet

under www.epcos.com/orderingcodes.

Please read

Cautions and warnings

and

Important notes

at the end of this document.

01/17

B82720A2152N040 Related Products

	B82720A2152N040	B82720K2601N40	-TDK-B82720A2152N040	B82720K2152N040	B82720K2102N040	B82720A2202N040	B82720A2301N042
Description	Common Mode Chokes / Filters RING CORE CHOKE 2X1.6MH 1.5A	Common Mode Chokes / Filters 4.4 MH 0.6A	Common Mode Chokes / Filters RING CORE CHOKE 2X1.6MH 1.5A	Common Mode Chokes / Filters 2-FACH-NETZCHOKE 2X1.6MH 1.5A	Common Mode Chokes / Filters 2-FACH-NETZCHOKE 2X3.0MH 1.0A	Common Mode Chokes / Filters RING CORE CHOKE 2X1.1MH 2.0A	Common Mode Chokes / Filters RING CORE CHOKE 2x22mH 0.3A
Is it lead-free?	Lead free	-	-	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	-	-	conform to	conform to	conform to	conform to
Maker	EPCOS (TDK)	-	-	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)
Reach Compliance Code	compliant	-	-	compliant	compliant	compliant	compliant
ECCN code	EAR99	-	-	EAR99	EAR99	EAR99	EAR99
structure	Rectangular	-	-	Rectangular	Rectangular	Rectangular	Rectangular
core material	Ferrite	-	-	Ferrite	Ferrite	Ferrite	Ferrite
DC Resistance	0.11 Ω	-	-	0.11 Ω	0.22 Ω	0.065 Ω	1.5 Ω
Nominal inductance(L)	1600 µH	-	-	1600 µH	3000 µH	1100 µH	22000 µH
Inductor Applications	POWER INDUCTOR	-	-	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	-	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3	-	-	e3	e3	e3	e3
Lead length	3 mm	-	-	3.5 mm	3.5 mm	3 mm	3 mm
Number of functions	2	-	-	2	2	2	2
Number of terminals	4	-	-	4	4	4	4
Maximum operating temperature	125 °C	-	-	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-	-	-40 °C	-40 °C	-40 °C	-40 °C
Package height	9.6 mm	-	-	14 mm	14 mm	9.6 mm	9.6 mm
Package length	14.2 mm	-	-	13 mm	13 mm	14.2 mm	14.2 mm
Package form	PCB Mount	-	-	PCB Mount	PCB Mount	PCB Mount	PCB Mount
Package width	14.2 mm	-	-	9.5 mm	9.5 mm	14.2 mm	14.2 mm
method of packing	Bulk	-	-	Bulk	Bulk	Bulk	Bulk
Maximum rated current	1.5 A	-	-	1.5 A	1 A	2 A	0.3 A
Shape/Size Description	RECTANGULAR PACKAGE	-	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	-	-	NO	NO	NO	NO
special characteristics	INDUCTANCE IS MEASURED AT 0.1 MILLI AMPERE	-	-	INDUCTANCE IS MEASURED AT 0.1 MILLI AMPERE	INDUCTANCE IS MEASURED AT 0.1 MILLI AMPERE	INDUCTANCE IS MEASURED AT 0.1 MILLI AMPERE	INDUCTANCE IS MEASURED AT 0.1 MILLI AMPERE
surface mount	NO	-	-	NO	NO	NO	NO
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier	-	-	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn)	Tin (Sn)	Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL IN-LINE	-	-	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE
Terminal shape	WIRE	-	-	FLAT	FLAT	WIRE	WIRE
Test frequency	0.01 MHz	-	-	0.01 MHz	0.01 MHz	0.01 MHz	0.01 MHz
Tolerance	50%	-	- 30 %, + 50 %	50%	50%	50%	50%
