15-46-3603: DescriptionCard Edge Connector, 60 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket; CategoryThe connector The connector; File Size83KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

15-46-3603 Overview

Card Edge Connector, 60 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket

15-46-3603 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	POLARIZED
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	78956
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	60
UL Flammability Code	94V-0
Base Number Matches	1

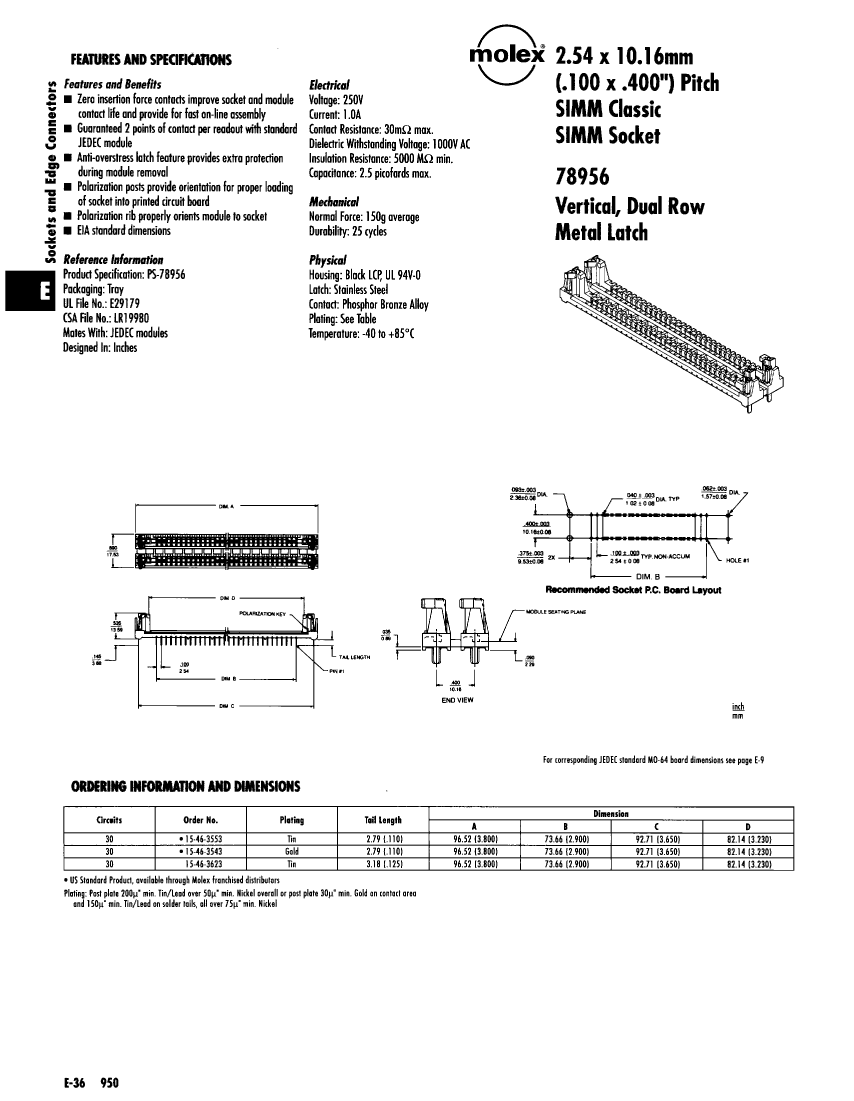

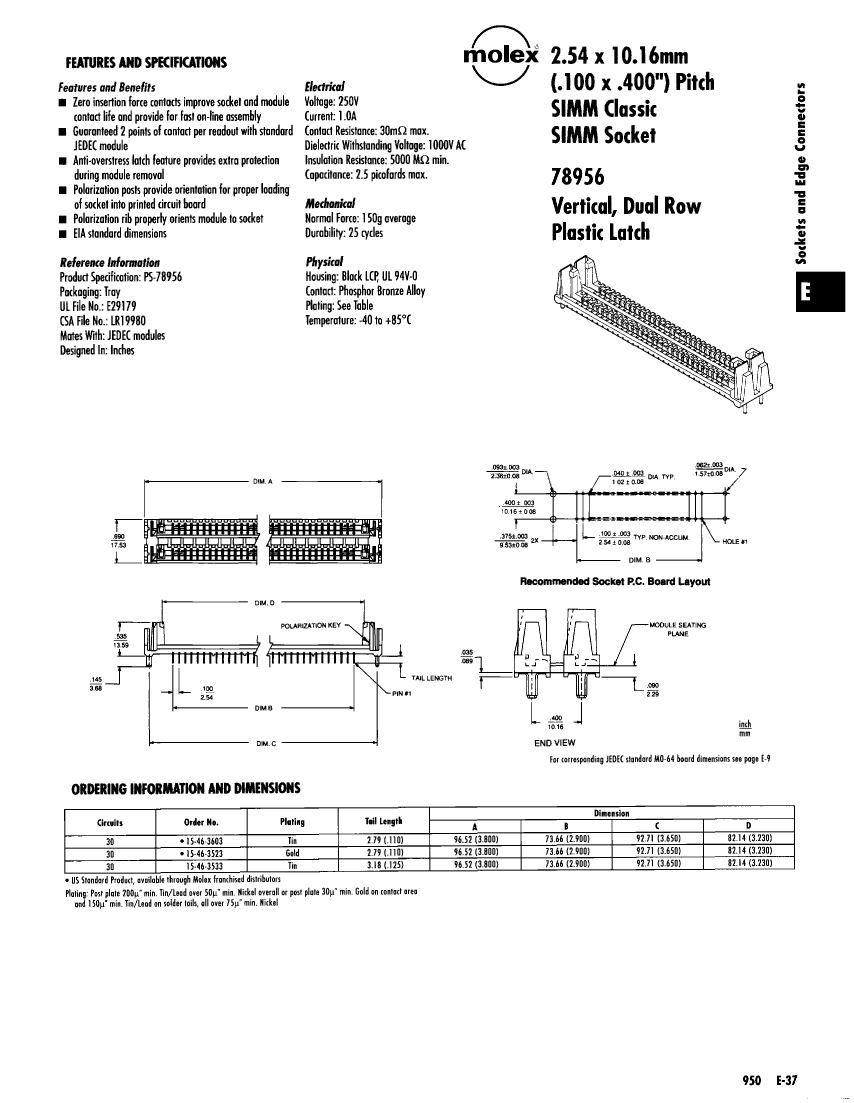

Preview

Download Datasheet

View All

15-46-3603 Related Products

	15-46-3603	15-46-3543	15-46-3553	15-46-3623	15-46-3523	15-46-3533
Description	Card Edge Connector, 60 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket	Card Edge Connector, 60 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket	Card Edge Connector, 60 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket	Card Edge Connector, 60 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket	Card Edge Connector, 60 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket	Card Edge Connector, 60 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	78956	78956	78956	78956	78956	78956
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	60	60	60	60	60	60
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1
