B82730U3162A020 datasheet, PDF

B82730U3162A020: DescriptionCommon Mode Chokes / Filters U CORE-CHOKE; CategoryPassive components inductor; File Size689KB，8 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric Compare View All

B82730U3162A020 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B82730U3162A020	-	-	View	Buy Now

Common Mode Chokes / Filters U CORE-CHOKE

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	EPCOS (TDK)
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Rectangular
core material	Ferrite
DC Resistance	0.16 Ω
Nominal inductance(L)	1000 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Lead diameter	0.6 mm
Lead length	3 mm
Number of functions	2
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	16.5 mm
Package length	16.5 mm
Package form	PCB Mount
Package width	11 mm
method of packing	Tray
Maximum rated current	1.6 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	INDUCTANCE IS MEASURED AT 0.1 mA
surface mount	NO
Terminal location	DUAL IN-LINE
Terminal shape	WIRE
Test frequency	0.1 MHz
Tolerance	50%

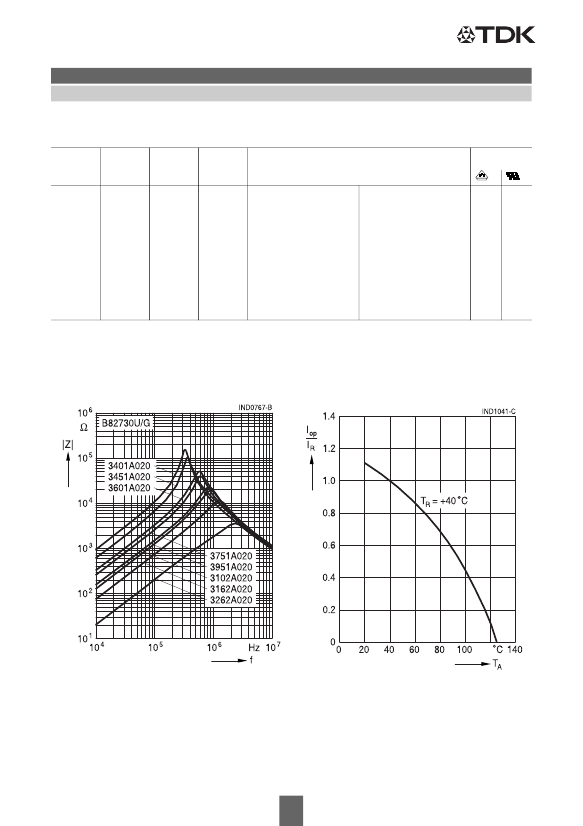

Power line chokes

Current-compensated U core double chokes

300 V AC, 0.4 … 2.6 A, 0.33 … 15 mH, +40° C

Series/Type:

Date:

B82730U/G

July 2012

a~í~=pÜÉÉí

information contained therein without EPCOS' prior express consent is prohibited.

EPCOS AG is a TDK Group Company.

	B82730U3162A020
Description	Common Mode Chokes / Filters U CORE-CHOKE
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	EPCOS (TDK)
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Rectangular
core material	Ferrite
DC Resistance	0.16 Ω
Nominal inductance(L)	1000 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Lead diameter	0.6 mm
Lead length	3 mm
Number of functions	2
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	16.5 mm
Package length	16.5 mm
Package form	PCB Mount
Package width	11 mm
method of packing	Tray
Maximum rated current	1.6 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	INDUCTANCE IS MEASURED AT 0.1 mA
surface mount	NO
Terminal location	DUAL IN-LINE
Terminal shape	WIRE
Test frequency	0.1 MHz
Tolerance	50%
