DATASHEET

ZL9024M

Digital DC/DC PMBus 33A Module

FN8837

Rev.1.00

Dec 20, 2017

The

ZL9024M

is a 33A step-down DC/DC power supply

module with integrated digital PWM controller,

synchronous power switches, an inductor, and passives.

Only bulk input and output capacitors are needed to

finish the design. The 33A of continuous output current

can be delivered without a need of airflow or a heatsink.

The thermally enhanced HDA module is capable of

dissipating heat directly into the PCB.

The ZL9024M uses ChargeMode™ control architecture,

which responds to a transient load within a single

switching cycle. The ZL9024M comes with a

preprogrammed configuration for operating in a pin-strap

mode; output voltage, switching frequency, and device

SMBus address can be programmed with external

resistors. More configurations such as soft-start and fault

limits, can be easily programmed or changed using

PMBus compliant serial bus interface. PMBus can be

used to monitor voltages, current, temperatures, and fault

status. The ZL9024M is supported by PowerNavigator™

software, a Graphical User Interface (GUI) that can be

used to configure modules to a desired solution.

The ZL9024M is available in a 40 Ld compact

17mmx19mm HDA module with a very low profile

height of 3.55mm, suitable for automated assembly by

standard surface mount equipment. The ZL9024M is

RoHS compliant by exemption.

Features

• Complete digital switch mode power supply

• V

range: 2.75V to 4V

• Programmable V

OUT

range: 0.6V to 1.5V

• PMBus compliant I

C communication interface

• Programmable V

OUT

, margining, UV/OV, I

OUT

limit, soft-start/stop, sequencing, and external

synchronization

• Monitor: V

, V

OUT

, I

OUT

, temperature, duty

cycle, switching frequency, and faults

• ChargeMode control architecture

• ±1.2% V

OUT

accuracy over line, load, and

temperature

• Power-good indicator

• Over-temperature protection

• Internal non-volatile memory and fault logging

•

PowerNavigator

supported

• Patented thermally enhanced HDA package

Applications

• Server, telecom, storage, and datacom

• Industrial/ATE and networking equipment

• General purpose power for ASIC, FPGA, DSP, and

memory

Related Literature

• For a full list of related documents, visit our website

•

ZL9024M

product page

17mm

3.55mm

Note:

1. Only input and output capacitors are required to finish

the design.

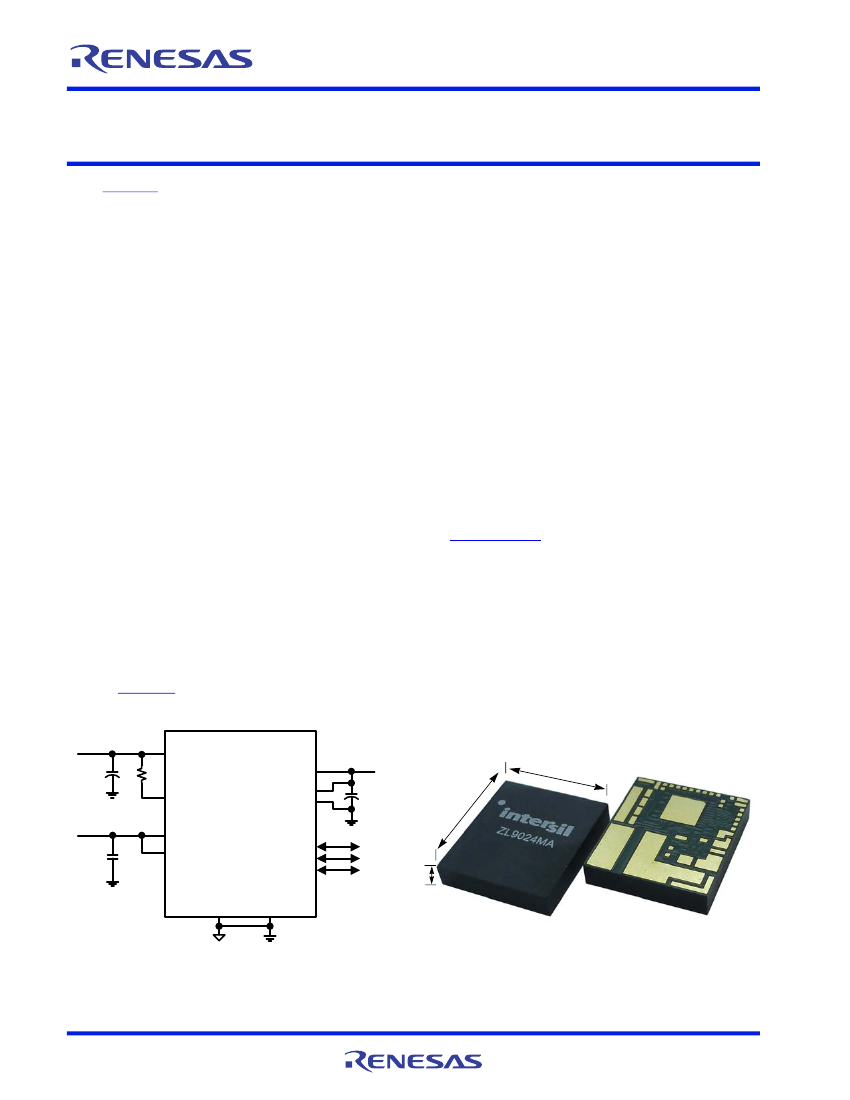

Figure 1. Complete Digital Switch Mode Power Supply

FN8837 Rev.1.00

Dec 20, 2017

Figure 2. Small Package for High Power Density

Page 1 of 72

ZL9024M

Contents

1.1

1.2

1.3

1.4

1.5

2.1

2.2

2.3

2.4

4.1

4.2

4.3

4.4

4.5

4.6

4.7

4.8

4.9

4.10

4.11

4.12

4.13

4.14

4.15

4.16

4.17

4.18

4.19

4.20

6.1

6.2

6.3

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

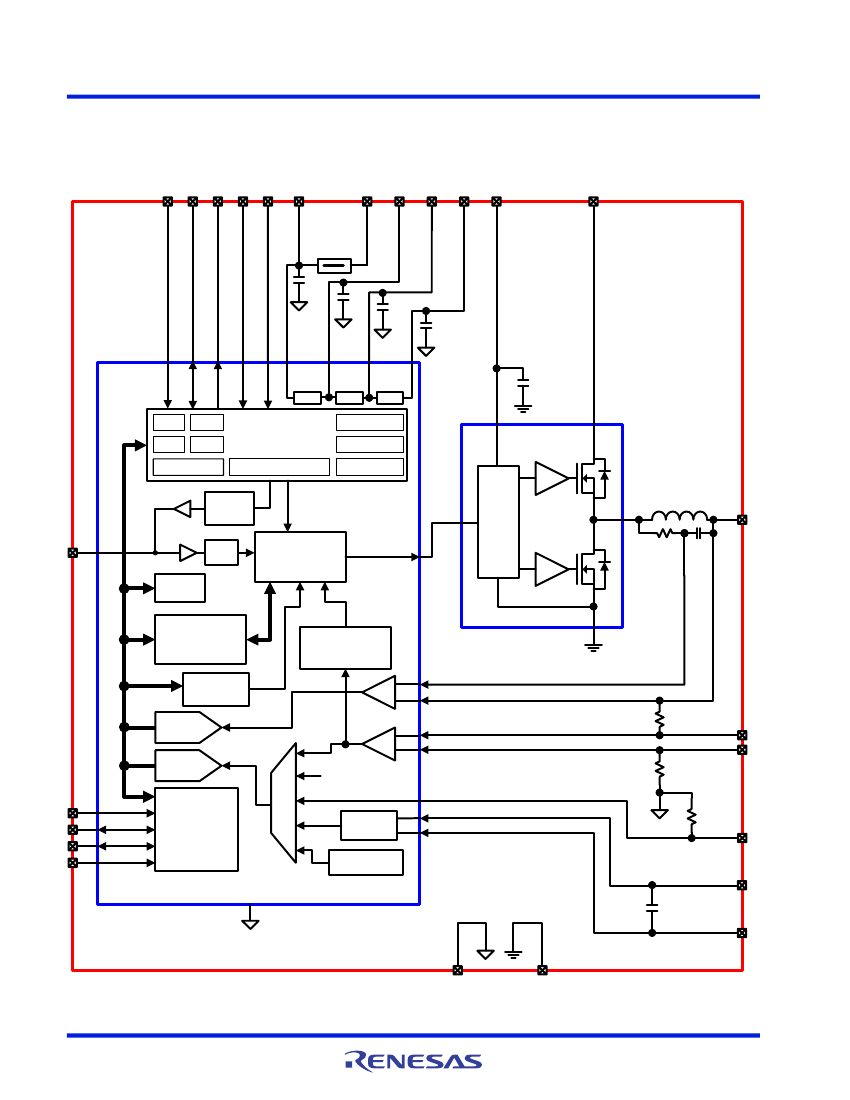

Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pin Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pin Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Typical Application Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Thermal Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Recommended Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Typical Performance Curves. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

SMBus Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Output Voltage Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Soft-Start Delay and Ramp Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power-Good. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Switching Frequency and PLL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Loop Compensation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Undervoltage Lockout (UVLO). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SMBus Module Address Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Output Overvoltage Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Output Prebias Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Output Overcurrent Protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Thermal Overload Protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Digital-DC Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Phase Spreading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Output Sequencing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fault Spreading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Temperature Monitoring Using the XTEMP Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Monitoring Using SMBus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Snapshot Parameter Capture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Non-Volatile Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PCB Layout Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Thermal Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Package Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

PCB Layout Pattern Design. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Thermal Vias . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

FN8837 Rev.1.00

Dec 20, 2017

Page 2 of 72

Recommended Resources
