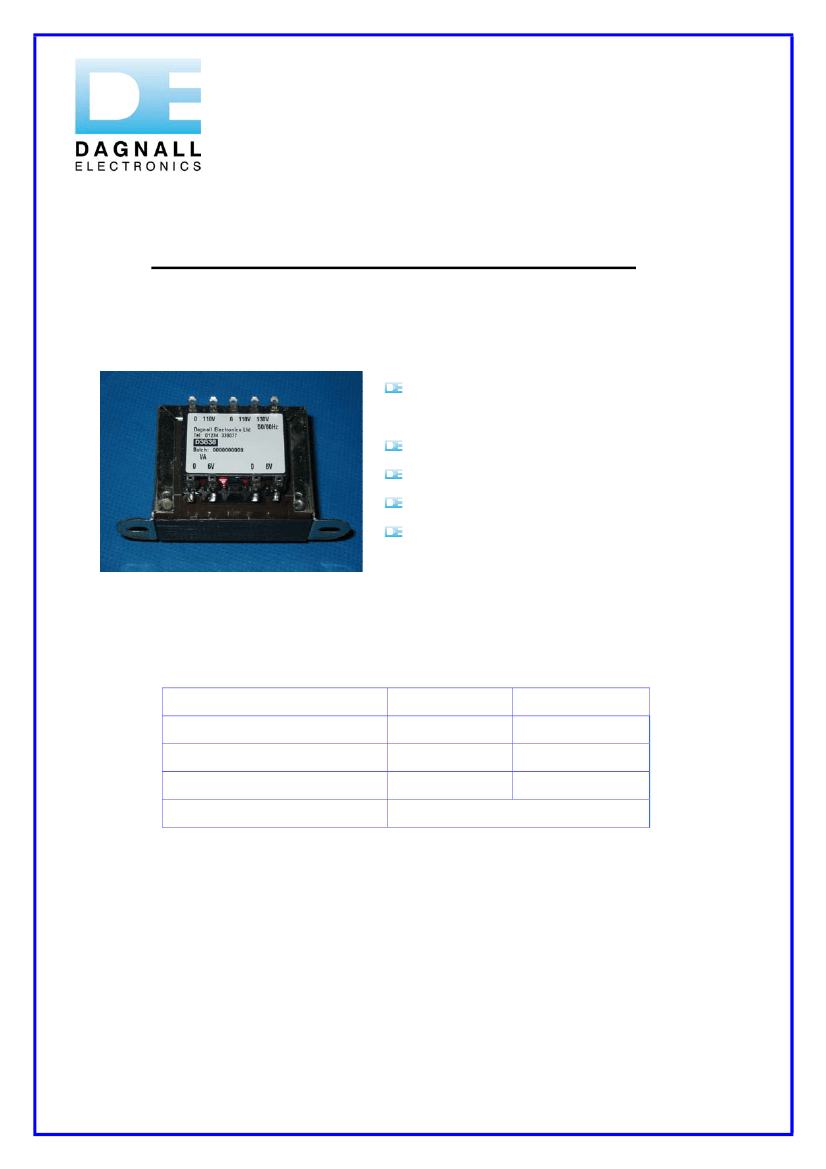

20VA CHASSIS MOUNTED TRANSFORMER
Designed, Manufactured and tested in accordance
with
BS3535, EN60742
∗
, EN61558
∗
, BS415.
Dual Primaries. For use with 110, 220, 240 input
4000V isolation Primary - Secondary
Comprehensive choice of Secondary Voltages.
Fully shrouded double section construction.
Weight
Typical Regulation
Frequency
Max Ambient
Bobbin Material
0.68
Kg
7.5
%
50/60
Hz
o
25
C
UL94-HB Class “B” 130
o
C
∗
requires additional over-current /over-temperature protection.
Please see sheet 2 for part numbers.
THIS DOCUMENT IS THE PROPERTY OF DAGNALL ELECTRONICS LIMITED WHICH HOLDS THE COPYRIGHT IN THE DRAWING AND ALL
THE DESIGN RIGHTS IN THE PRODUCT OR COMPONENTS DESCRIBED. ANY INFORMATION SHALL NOT BE COPIED, REPRODUCED OR
DIVULGED TO A THIRD PARTY NOR SHALL THE PRODUCT OR COMPONENTS BE MADE, COPIED OR REPRODUCED OR ITS EXISTENCE
DISCLOSED TO A THIRD PARTY WITHOUT THE PRIOR CONSENT IN WRITING OF DAGNALL ELECTRONICS LIMITED.
IN THE INTEREST OF TECHNICAL IMPROVEMENT AND/OR CUSTOMER SERVICE DAGNALL ELECTRONICS RESERVES THE RIGHT TO
INTRODUCE MODIFIED SPECIFICATIONS TO ANY OF THE PRODUCTS ILLUSTRATED OR DESCRIBED IN THIS DATASHEET. E&OE
DAGNALL ELECTRONICS LIMITED
Shuttleworth Road, Elms Industrial Estate, Bedford. MK41 0EP UK
TEL +44(0)1234 330077 FAX +44(0)1234 330088
E-mail sales@dagnall-electronics.com
Iss 1 10/07/03
2 of 4
Part Numbers
Part No
D3647
D3648
D3649
D3650
D3651
D3652
D3653
D3654
D3655
Primary
0-110 0-110-130V
0-110 0-110-130V
0-110 0-110-130V
0-110 0-110-130V
0-110 0-110-130V
0-110 0-110-130V
0-110 0-110-130V
0-110 0-110-130V
0-110 0-110-130V
Secondary
4.5+4.5V
6+6V
9+9V
10V
12+12V
15+15V
18+18V
20+20V
24+24V
Recommended
Secondary Fuse
2AT
1.6AT
1AT
2AT
0.8AT
0.63AT
0.5AT
0.5AT
0.4AT
Please see sheets 3 and 4 for dimensions, pin outs and connection information.
THIS DOCUMENT IS THE PROPERTY OF DAGNALL ELECTRONICS LIMITED WHICH HOLDS THE COPYRIGHT IN THE DRAWING AND ALL
THE DESIGN RIGHTS IN THE PRODUCT OR COMPONENTS DESCRIBED. ANY INFORMATION SHALL NOT BE COPIED, REPRODUCED OR
DIVULGED TO A THIRD PARTY NOR SHALL THE PRODUCT OR COMPONENTS BE MADE, COPIED OR REPRODUCED OR ITS EXISTENCE
DISCLOSED TO A THIRD PARTY WITHOUT THE PRIOR CONSENT IN WRITING OF DAGNALL ELECTRONICS LIMITED.
IN THE INTEREST OF TECHNICAL IMPROVEMENT AND/OR CUSTOMER SERVICE DAGNALL ELECTRONICS RESERVES THE RIGHT TO
INTRODUCE MODIFIED SPECIFICATIONS TO ANY OF THE PRODUCTS ILLUSTRATED OR DESCRIBED IN THIS DATASHEET. E&OE
DAGNALL ELECTRONICS LIMITED
Shuttleworth Road, Elms Industrial Estate, Bedford. MK41 0EP UK
TEL +44(0)1234 330077 FAX +44(0)1234 330088
E-mail sales@dagnall-electronics.com
Issue 1. 09/06/03
•
3 of 4
PRODUCT DATASHEET
20VA CHASSIS MOUNTED TRANSFORMER
Outline Drawing
84
HOLE SIZE 8.5x4.7
0 110 0 110 130
57
0
V
0
V
69
92
52
THIS DOCUMENT IS THE PROPERTY OF DAGNALL ELECTRONICS LIMITED WHICH HOLDS THE COPYRIGHT IN THE DRAWING AND ALL THE DESIGN RIGHTS
IN THE PRODUCT OR COMPONENTS DESCRIBED. ANY INFORMATION SHALL NOT BE COPIED, REPRODUCED OR DIVULGED TO A THIRD PARTY NOR SHALL
THE PRODUCT OR COMPONENTS BE MADE, COPIED OR REPRODUCED OR ITS EXISTENCE DISCLOSED TO A THIRD PARTY WITHOUT THE PRIOR CONSENT IN
WRITING OF DAGNALL ELECTRONICS LIMITED. IN THE INTEREST OF TECHNICAL IMPROVEMENT AND/OR CUSTOMER SERVICE DAGNALL ELECTRONICS
RESERVES THE RIGHT TO INTRODUCE MODIFIED SPECIFICATIONS TO ANY OF THE PRODUCTS ILLUSTRATED OR DESCRIBED IN THIS DATASHEET. E&OE
DAGNALL ELECTRONICS LIMITED
Shuttleworth Road, Elms Industrial Estate, Bedford. MK41 0EP UK
TEL +44(0)1234 330077 FAX +44(0)1234 330088
E-mail sales@dagnall-electronics.com
Issue 1. 09/06/03
•
4 of 4
PRODUCT DATASHEET
20VA CHASSIS MOUNTED TRANSFORMER

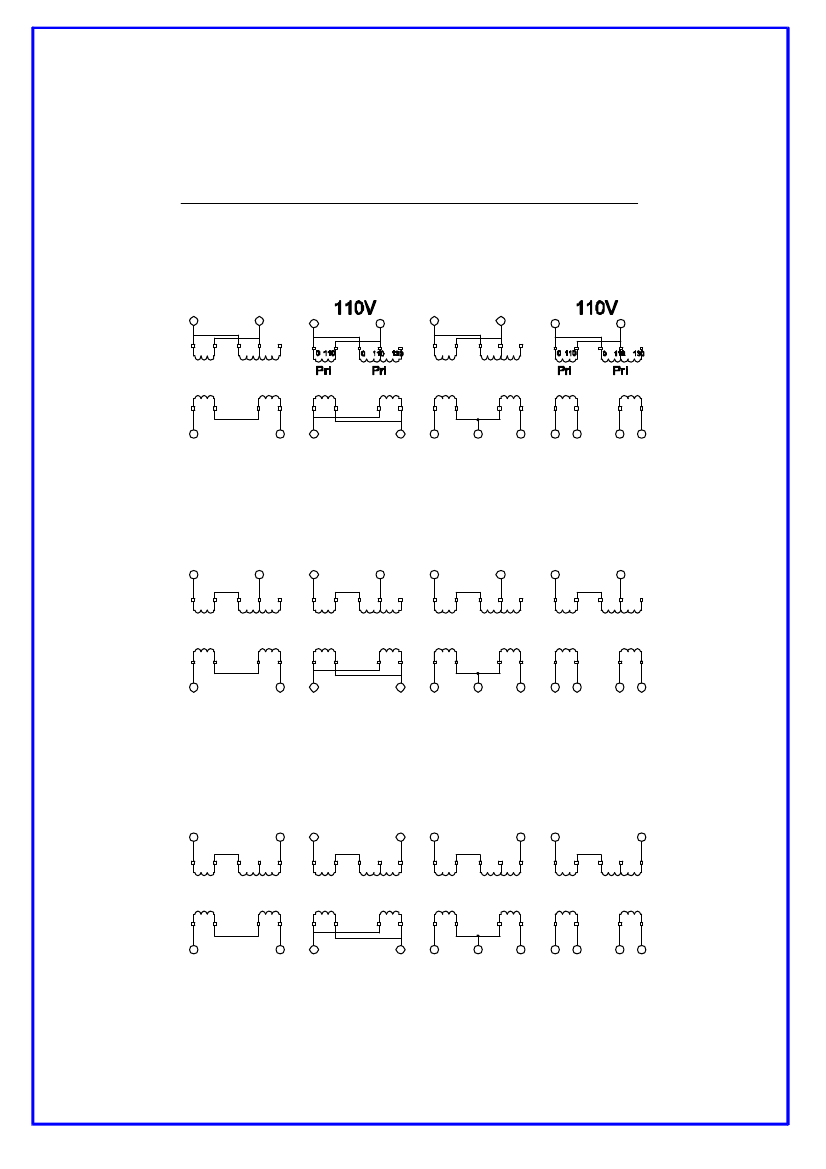

Connection Diagrams for D3647 110V Supply
