1SMB5926 - 1SMB5956
Taiwan Semiconductor
3W, 11V - 200V Surface Mount Silicon Zener Diode
FEATURES
Low profile package
Ideal for automated placement
Glass passivated junction
Built-in strain relief
Low inductance
Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
● Halogen-free according to IEC 61249-2-21
●
●
●
●
●
●
KEY PARAMETERS
PARAMETER
V
Z
Test current I
ZT
P
tot
T
J MAX
Package
Configuration
VALUE
11 - 200
1.9 – 34.1
3.0
150
Single die
UNIT
V
mA
W
°C
DO-214AA (SMB)
APPLICATIONS
●
●
●
●
Switching mode power supply (SMPS)
Adapters
Lighting application
On-board DC/DC converter
MECHANICAL DATA
●
●
●
●
●
●
●
●
●
Case: DO-214AA (SMB)
Molding compound meets UL 94 V-0 flammability rating
Terminal: Matte tin plated leads, solderable per J-STD-002
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound
(halogen-free)
Moisture sensitivity level: level 1, per J-STD-020
Meet JESD 201 class 2 whisker test
Polarity: As marked
Weight: 0.1 g (approximately)
DO-214AA (SMB)
ABSOLUTE MAXIMUM RATINGS
(T
A
= 25°C unless otherwise noted)
PARAMETER
DC power dissipation at T
L
=75°C, measure at
zero lead length (Note 1) derate above 75°C
DC power dissipation at T
A
=25°C
Derate above 25°C
Junction temperature
Storage temperature
Note:
1. Mounted on Cu-Pad size 5mm x 5mm on PCB
SYMBOL
P
tot
P
tot
T
J
T
STG
VALUE
3.0
40
550
4.4
-55 to +150
-55 to +150
UNIT
Watts
mW/°C
mW
mW/°C
°C
°C
THERMAL PERFORMANCE
PARAMETER
Junction-to-lead thermal resistance
Junction-to-ambient thermal resistance
SYMBOL
R
ӨJL
R
ӨJA
LIMIT
25
226
UNIT
°C/W
°C/W
1
Version:K1701
1SMB5926 - 1SMB5956
Taiwan Semiconductor
ELECTRICAL SPECIFICATIONS
(T
A
= 25°C unless otherwise noted)
Device
Marking
Code
Nominal Zener
Voltage
V
z
@I
z
V
Nom
(Note 2)
Device
(Note 1)
Test Zener Impedance
(Note 3)
current
I
ZT
mA
Z
ZT
@ I
ZT
Ω
Z
ZK
@I
ZK
Ω
mA
Leakage
Current
I
R
@V
R
μA
V
Maximum DC
Zener
Current
I
ZM
mA(DC)
Min.
Max.
1SMB5926
1SMB5927
1SMB5928
1SMB5929
1SMB5930
1SMB5931
1SMB5932
1SMB5933
1SMB5934
1SMB5935
1SMB5936
1SMB5937
1SMB5938
1SMB5939
1SMB5940
1SMB5941
1SMB5942
1SMB5943
1SMB5944
1SMB5945
1SMB5946
1SMB5947
1SMB5948
1SMB5949
1SMB5950
1SMB5951
1SMB5952
1SMB5953
1SMB5954
1SMB5955
1SMB5956
926B
927B
928B
929B
930B
931B
932B
933B
934B
935B
936B
937B
938B
939B
940B
941B
942B
943B
944B
945B
946B
947B
948B
949B
950B
951B
952B
953B
954B
955B
956B
10.45
11.40
12.35
14.25
15.20
17.10
19.00
20.90
22.80
25.65
28.50
31.35
34.20
37.05
40.85
44.65
48.45
53.20
58.90
64.60
71.25
77.90
86.45
95.00
104.50
114.00
123.50
142.50
152.00
171.00
190.00
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
150
160
180
200
11.55
12.60
13.65
15.75
16.80
18.90
21.00
23.10
25.20
28.35
31.50
34.65
37.80
40.95
45.15
49.35
53.55
58.80
65.10
71.40
78.75
86.10
95.55
105.00
115.50
126.00
136.50
157.50
168.00
189.00
210.00
34.1
31.2
28.8
25.0
23.4
20.8
18.7
17.0
15.6
13.9
12.5
11.4
10.4
9.6
8.7
8.0
7.3
6.7
6.0
5.5
5.0
4.6
4.1
3.7
3.4
3.1
2.9
2.5
2.3
2.1
1.9
5.5
6.5
7.0
9.0
10.0
12.0
14.0
17.5
19
23
26
33
38
45
53
67
70
86
100
120
140
160
200
250
300
360
450
600
700
900
1200
550
550
550
600
600
650
650
650
700
700
750
800
850
900
950
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
8.4
9.1
9.9
11.4
12.2
13.7
15.2
16.7
18.2
20.6
22.8
25.1
27.4
29.7
32.7
35.8
38.8
42.6
47.1
51.7
56.0
62.2
69.2
76.0
83.6
91.2
98.8
114.0
121.6
136.8
152.0
136
125
115
100
94
83
75
68
63
56
50
45
42
38
35
32
29
27
24
22
20
18
16
15
13
12
11
10
9
8
7
1000 0.25
1100 0.25
1300 0.25
1500 0.25
1700 0.25
2000 0.25
2500 0.25
3000 0.25
3100 0.25
4000 0.25
4500 0.25
5000 0.25
6000 0.25
6500 0.25
7000 0.25
8000 0.25
Notes:
1. Tolerance and type number designation the type numbers listed indicate a tolerance of 5%
2. Zener voltage (V
z
) measurement
Nominal Zener voltage is measured with the device junction in thermal equilibrium with ambient temperature 25°C
3. Zener impedance (Z
z
) derivation : Z
ZT
and Z
ZK
are measured by dividing the AC voltage
drop across the device by the AC current applied.
The specified limits are for I
z
(AC) = 0.1 I
z
(DC) with the AC frequency = 60 Hz
2
Version:K1701
1SMB5926 - 1SMB5956
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
1SMBxxxx
(Note 1)
PARTNO.
SUFFIX
H
PACKING
CODE
R5
R4
M4
G
PACKING CODE
SUFFIX
PACKAGE
SMB
SMB
SMB
PACKING
850 / 7" Plastic reel
3,000 / 13" Paper reel
3,000 / 13" Plastic reel
Note :
1. "xxxx" defines voltage from 11V (1SMB5926) to 200V (1SMB5956)
EXAMPLE
EXAMPLE P/N
1SMB5926HR5G
PART NO.
1SMB5926
PART NO.
SUFFIX
H
PACKING
CODE
R5
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound
3
Version:K1701
1SMB5926 - 1SMB5956
Taiwan Semiconductor
CHARACTERISTICS CURVES
(T
A
= 25°C unless otherwise noted)

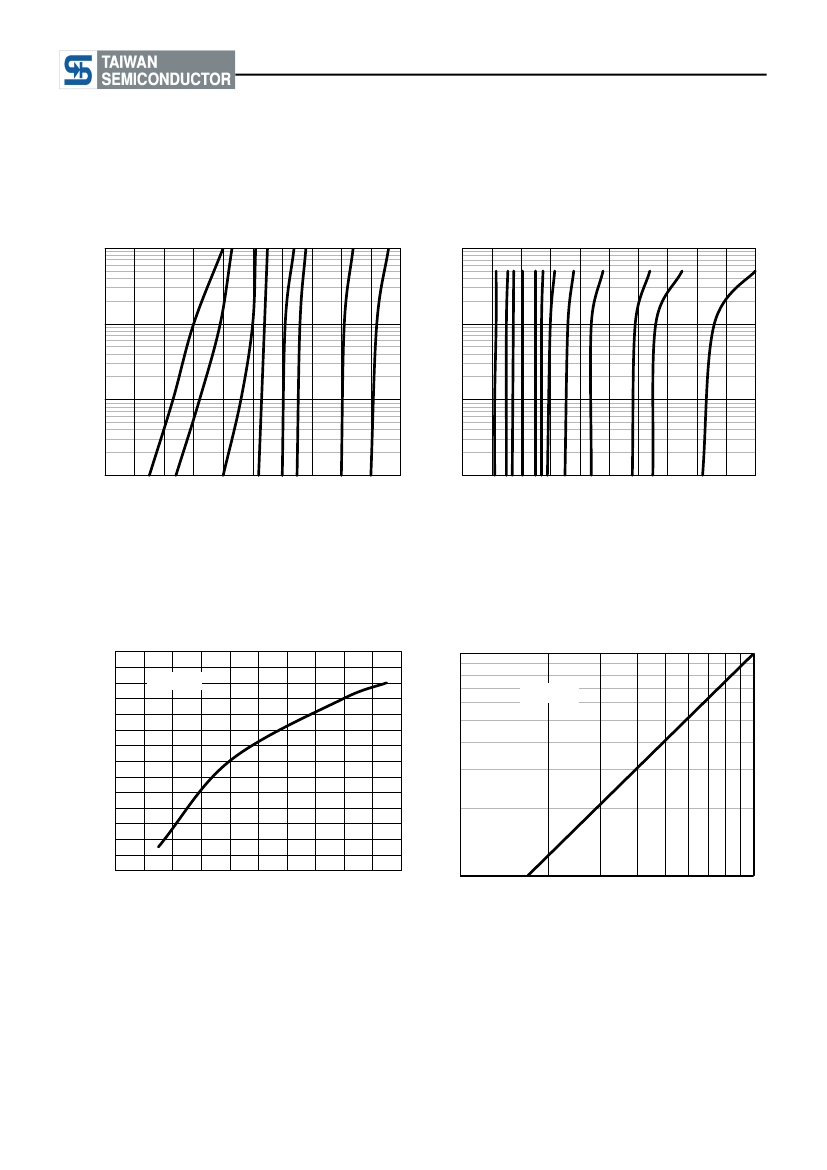

Fig1. Steady State Power Derating
P
D
, MAXIMUM POWER DISSIPATION (WATTS)
4
Fig2. Maximum Surage Power
1000
3
2
T
L
P
PK
, PEAK SURGE POWER(W)
100
125
150
100
1
T
A
0
0
25
50
75
10
0
1
10
100
T, TEMPERATURE(℃)
PW, PULSE WIDTH(ms)
Fig3. Zener Voltage – To 12 Voltages
O
VZ
, TEMPERATURE COEFFICIENT (mV/℃)
10
9
8
7
6
5
4
3
2
1
0
-1
-2
-3
-4
2
3
O
VZ
, TEMPERATURE COEFFICIENT (mV/℃)
Fig4. Zener Voltage 14 To Voltages
100
Vz@I
ZT
Vz@I
ZT
10
10
100
4
5
6
7
8
9
10
11
12
V
Z
, ZENER VOLTAGE(V)
V
z
, ZENER VOLTAGE (V)
4
Version:K1701
1SMB5926 - 1SMB5956
Taiwan Semiconductor
CHARACTERISTICS CURVES
(T
A
= 25°C unless otherwise noted)
Fig5. Vz = 3.3 Thru 10 Volts
100
100
Fig6. Vz = 12 thru 82 Volts
I
Z
, ZENER CURRENT (mA)
10
I
Z
, ZENER CURRENT (mA)
10
1
1
0.1
0
1
2
3
4
5
6
7
8
Vz, ZENER VOLTAGE (V)
9
10
0.1
0
10
20
30 40 50 60 70 80
Vz, ZENER VOLTAGE (V)
90
100
Fig7. Effect Of Zener Voltage
O
VZ
, TEMPERATURE COEFFICIENT (mV/℃)
O
VZ
, TEMPERATURE COEFFICIENT (mV/℃)
10
9
8
7
6
5
4
3
2
1
0
-1
-2
-3
-4
2
3
Fig8. Effect Of Zener Current
100
Vz@I
ZT
Vz@I
ZT
4
5
6
7
8
9
10
11
12
10
10
100
V
Z
, ZENER VOLTAGE(V)
V
z
, ZENER VOLTAGE (V)
5
Version:K1701
