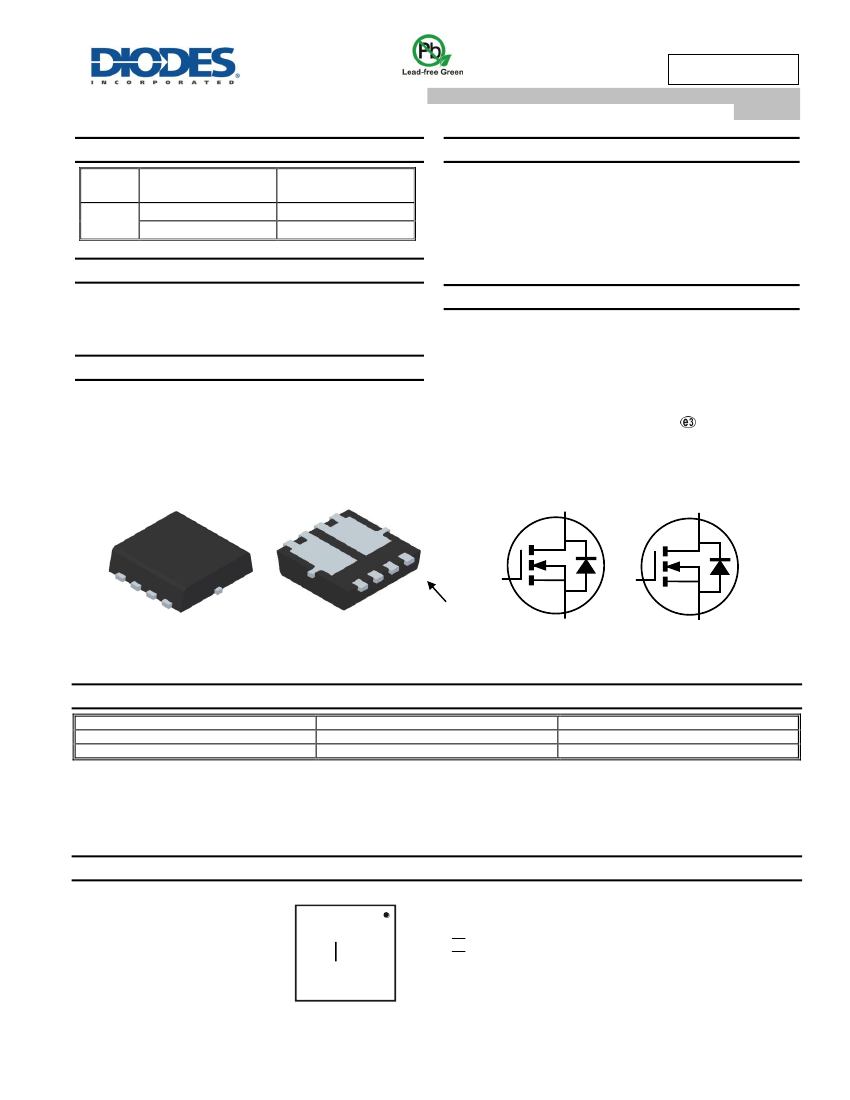

Halogen and Antimony Free. “Green” Device (Note 3)
ADVANCED INFORMATION
30V
Description
This new generation MOSFET is designed to minimize the on-state
resistance (R
DS(ON)
) and yet maintain superior switching performance,
making it ideal for high efficiency power management applications.
Mechanical Data
Case: PowerDI3333-8 (Type UXC)
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections Indicator: See Diagram
Terminals: Finish
Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.072 grams (Approximate)
Applications
Power Management Functions
Analog Switch
PowerDI3333-8 (Type UXC)
D1
D2
D2
D1
D1
D2
G2
S2
S1
G1
PIN1
G1
S1
G2
S2
Equivalent Circuit
Top View
Bottom View
Ordering Information
(Note 4)
Part Number
DMN3016LDV-7
DMN3016LDV-13
Notes:
Case
PowerDI3333-8 (Type UXC)
PowerDI3333-8 (Type UXC)
Packaging
2000/Tape & Reel
3000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
YYWW
SD6
C60
SD6 = Product Type Marking Code
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 16 for 2016)
WW = Week Code (01 to 53)
PowerDI is a registered trademark of Diodes Incorporated.
