D11EP6FPW Overview

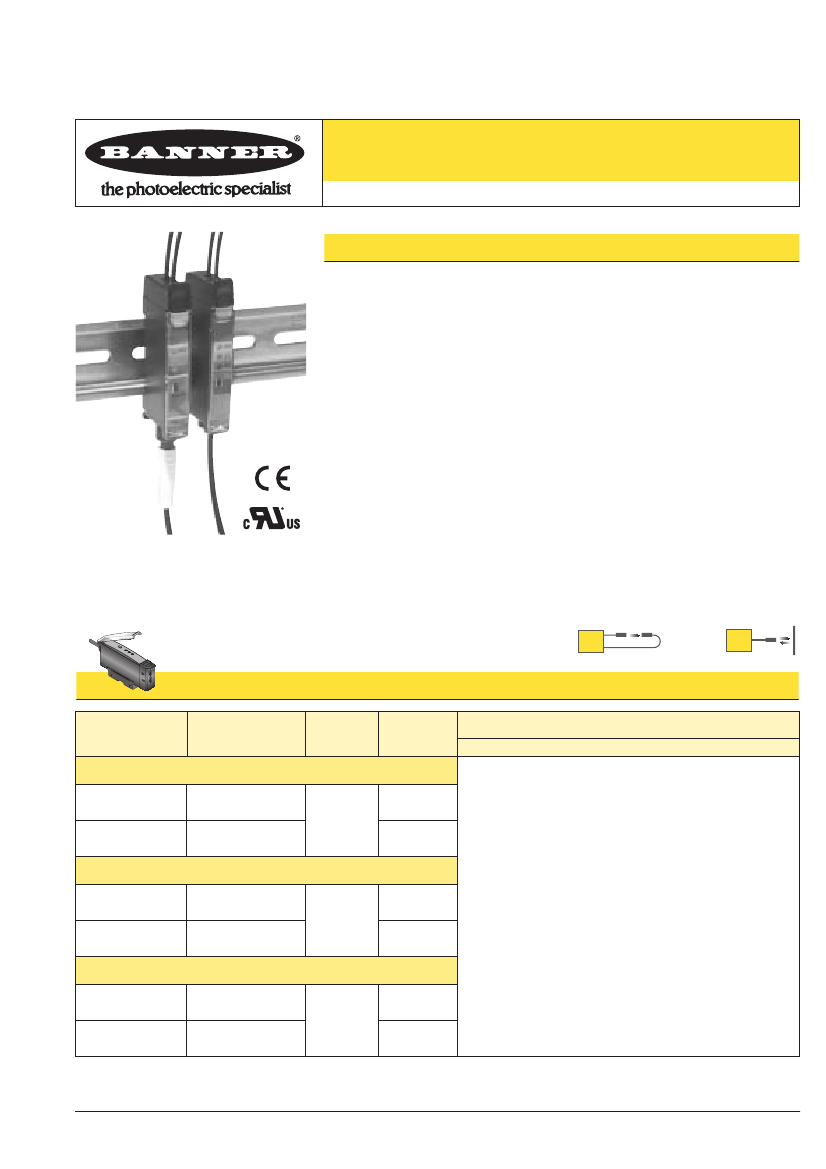

D11 Expert Series, Visible Green, Blue or White LED Light Source

D11
Expert
Series, Visible Green, Blue or White LED Light Source
Low-cost TEACH-mode sensors for use with plastic fiber optics
Features
• Visible green, blue or white LED light source for use in color mark sensing and
other low-contrast sensing applications
• Low-cost, 10 to 30V dc self-contained TEACH mode sensors for use with all
Banner plastic fiber optics
• Compact 11 mm-wide housing designed for DIN rail mounting; can also be
mounted to any surface using the supplied mounting bracket
• Easy push-button TEACH mode programming automatically adjusts sensitivity to
optimal setting
• Designed for high performance, even in low-contrast sensing applications
• Fast, 200 microsecond (0.2 millisecond) output response; a 40 millisecond
output pulse stretcher may be programmed, when needed
• Choose models with NPN (sinking) or PNP (sourcing) output
• Output may be programmed for either light or dark operate
• Separate input for remote programming by external switch, process controller, etc.
• LED status indicators for power ON, output state, received signal strength, and
sensing contrast
• Choose models with integral 2 m (6.5') cable or Pico-style quick-disconnect (QD)
connector; 9 m (30') cables are also available
U.S. Patent #5087838
See Sensing Beam Information Below
D11
Expert
Series Models
Models
Cable*
Supply
Voltage
Maximum Range Specifications
Output Type
Diffuse mode performance based on 90% reflectance white test card
Visible Green 525 nm
D11EN6FPG
D11EN6FPGQ
D11EP6FPG
D11EP6FPGQ
2 m (6.5')
4-pin Pico QD
2 m (6.5')
4-pin Pico QD
10-30V dc
NPN
(sinking)
PNP
(sourcing)
Range varies by sensing mode and fiber optics used:
PIT46U fibers, opposed mode: 50 mm (2.0")
PIT66U fibers, opposed mode: 80 mm (3.1")
PBT46U fiber, diffuse mode: 17 mm (0.7")
PBT66U fiber, diffuse mode: 25 mm (1.0")
Visible Blue 470 nm
D11EN6FPB
D11EN6FPBQ
D11EP6FPB
D11EP6FPBQ
2 m (6.5')
4-pin Pico QD
2 m (6.5')
4-pin Pico QD
10-30V dc
NPN
(sinking)
PNP
(sourcing)
Visible White 450 - 650 nm
D11EN6FPW
D11EN6FPWQ
D11EP6FPW
D11EP6FPWQ
2 m (6.5')
4-pin Pico QD
2 m (6.5')
4-pin Pico QD
10-30V dc
NPN
(sinking)
PNP
(sourcing)
Opposed mode range may be extended using optional lenses
(see Banner Products Catalog for available lenses).
*NOTE: 9 m (30') cables are available by adding suffix
"W/30"
to the model number of any cabled sensor (e.g.,
D11EN6FPG W/30).
A model with
a QD connector requires an optional mating cable (see page 6).
Printed in USA
02/02
P/N 51181rev.B
