DZ23C13-7-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> DZ23C13-7-F

DZ23C13-7-F: Description13 V, 0.3 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE; Categorysemiconductor Discrete semiconductor; File Size153KB，5 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric View All

DZ23C13-7-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DZ23C13-7-F	-	-	View	Buy Now

DZ23C13-7-F Overview

13 V, 0.3 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE

DZ23C13-7-F Parametric

Parameter Name	Attribute value
Number of terminals	3
Number of components	2
Rated working voltage	13 V
Processing package description	GREEN, PLASTIC PACKAGE-3
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
packaging shape	RECTANGULAR
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	GULL WING
terminal coating	MATTE TIN
Terminal location	DUAL
Packaging Materials	PLASTIC/EPOXY
Craftsmanship	ZENER
structure	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Maximum power consumption limit	0.3000 W
polarity	UNIDIRECTIONAL
Diode type	VOLTAGE REGULATOR DIODE
Working test current	5 mA
Maximum total reference voltage	6.42 %

Preview

Download Datasheet

View All

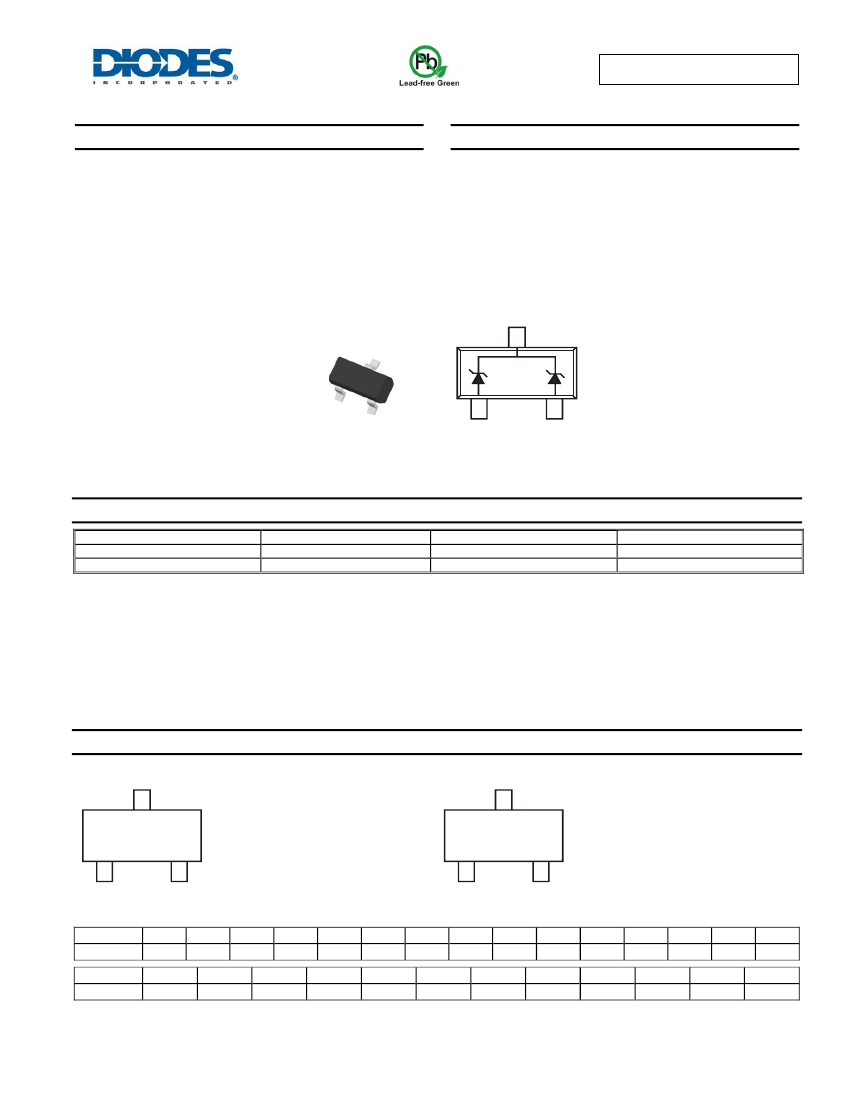

DZ23C2V7 - DZ23C51

300mW DUAL SURFACE MOUNT ZENER DIODE

Features



Dual Zeners in Common Cathode Configuration

300 mW Power Dissipation

Ideally Suited for Automated Insertion

V

For Both Diodes in One Case is



Common Anode Style Available, See AZ Series

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Notes 3 & 4)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data



Case: SOT23

Case Material: Molded Plastic, “Green” Molding Compound. UL

Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish annealed over Alloy 42 lead frame

(Lead Free Plating). Solderable per MIL-STD-202, Method 208

Polarity: See Diagram

Weight: 0.008 grams (approximate)

SOT23

Top View

Device Schematic

Ordering Information

(Note 5)

Device

(Type Number)-7-F*

(Type Number)Q-7-F*

Notes:

Qualification

Commercial

Automotive

Packaging

SOT23

Shipping

3000/Tape & Reel

*Add “-7-F” to the appropriate type number in Electrical Characteristics Table on Page 2. Example: 6.2V Zener = DZ23C6V2-7-F.

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Product manufactured with Date Code OW (week 42, 2009) and newer are built with Green Molding Compound. Product manufactured prior to Date

Code OW are built with Non-Green Molding Compound and may contain Halogens or Sb

Fire Retardants.

5. For Packaging Details, go to our website at http://www.diodes.com/products/packages.html

Marking Information

Kxx

K = SAT (Shanghai Assembly / Test site)

xx = Product Type Marking Code

See Electrical Characteristics Table

YM = Date Code Marking

Y = Year (ex: Z = 2012)

M = Month (ex: 9 = September)

Cxx

C = CAT (Chengdu Assembly / Test site)

xx = Product Type Marking Code

See Electrical Characteristics Table

YM = Date Code Marking

Y = Year (ex: Z = 2012)

M = Month (ex: 9 = September)

Date Code Key

Year

1998

Code

Month

Code

Jan

…

Feb

2002

2003

Mar

2004

Apr

…

May

2010

Jun

2011

2012

Jul

2013

Aug

2014

Sep

2015

Oct

2016

2017

Nov

2018

Dec

DZ23C2V7 - DZ23C51

Document number: DS18002 Rev. 20 - 2

1 of 5

www.diodes.com

July 2013

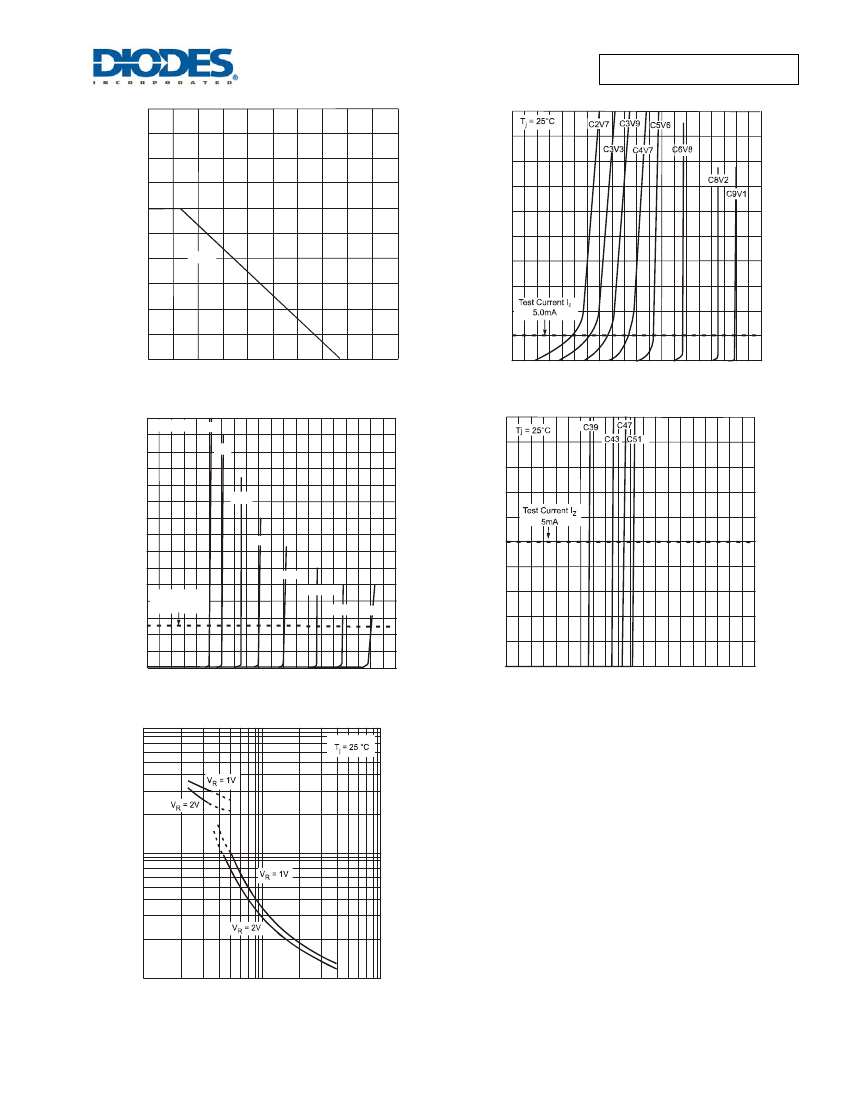

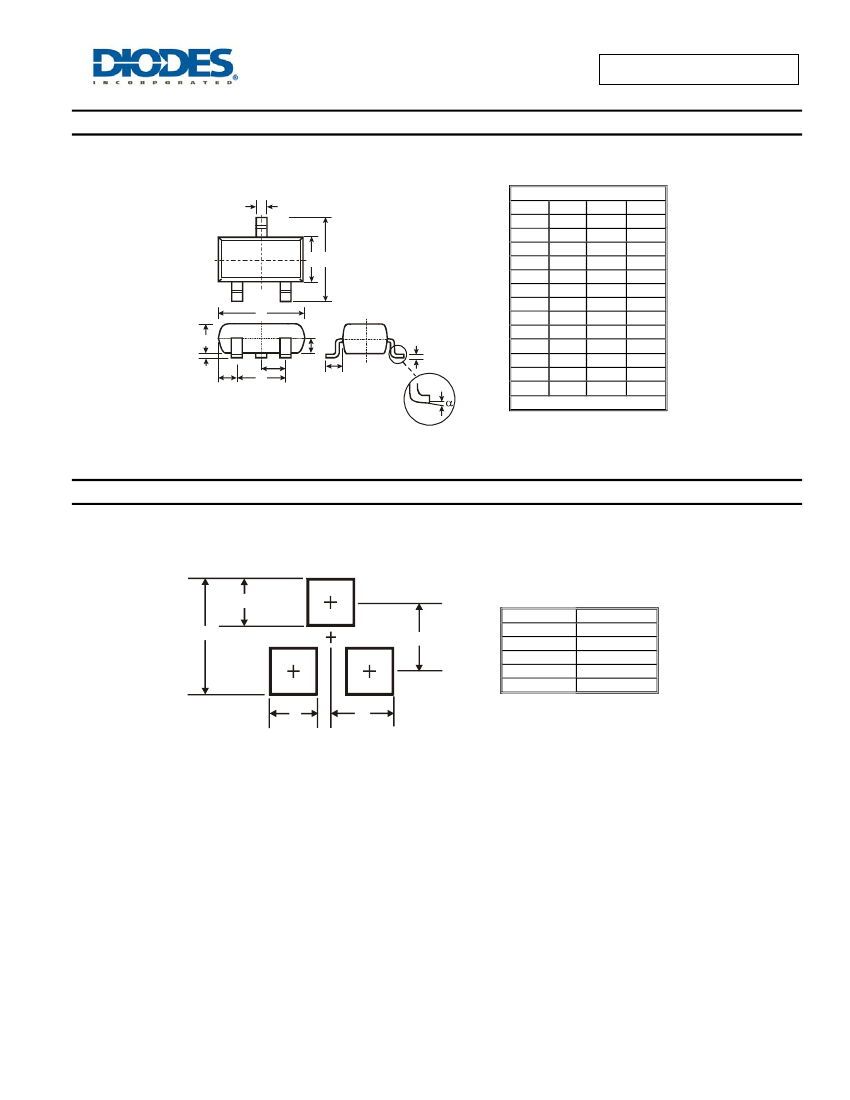

DZ23C2V7 - DZ23C51

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

DZ23C2V7 - DZ23C51

Document number: DS18002 Rev. 20 - 2

5 of 5

www.diodes.com

July 2013
