DY20 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DY20

DY20: Description10 A, SILICON, BRIDGE RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size43KB，2 Pages; ManufacturerEDI [Electronic devices inc.]

Download Datasheet Parametric Compare View All

DY20 Overview

10 A, SILICON, BRIDGE RECTIFIER DIODE

DY20 Parametric

Parameter Name	Attribute value
Maker	EDI [Electronic devices inc.]
package instruction	O-PUFM-W4
Reach Compliance Code	unknow
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	O-PUFM-W4
Maximum non-repetitive peak forward current	400 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	10 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
surface mount	NO
Terminal form	WIRE
Terminal location	UPPER

Preview

Download Datasheet

View All

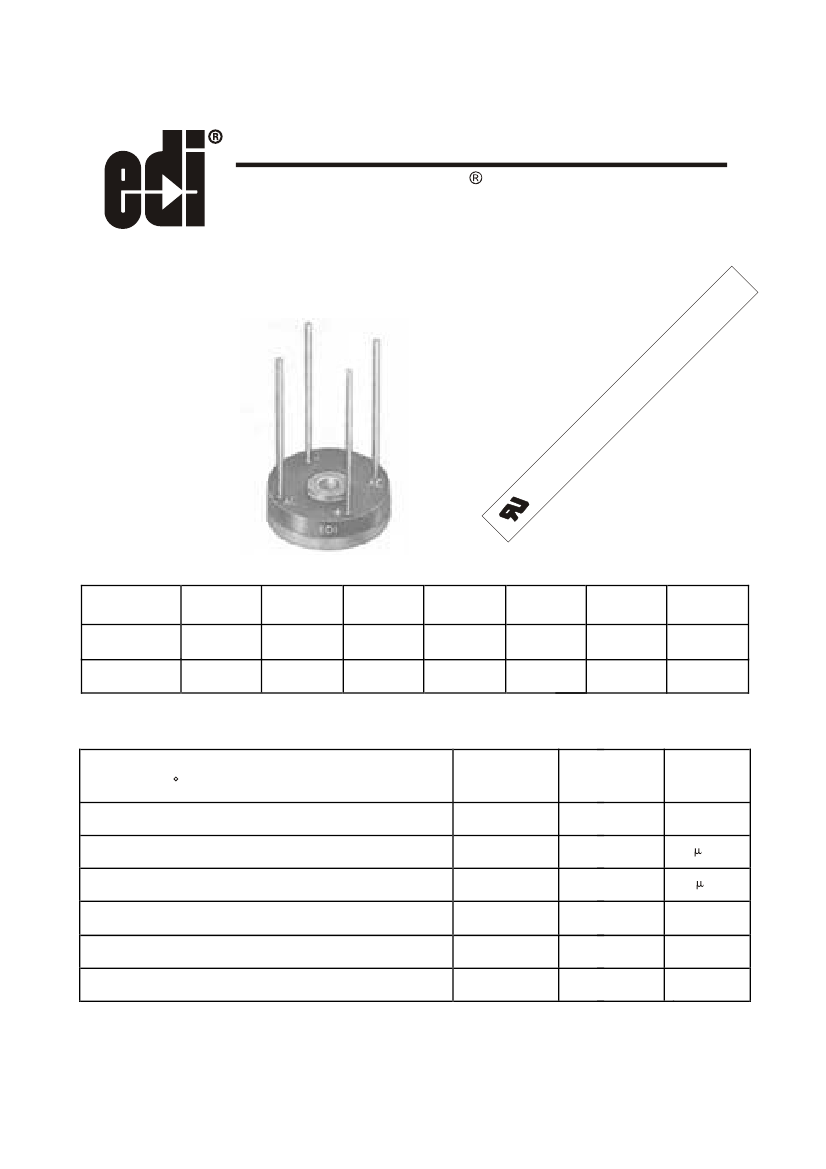

MINIBRIDGE

10 AMPERES - HIGH SURGE

SINGLE-PHASE, FULL-WAVE BRIDGES

HEAT SINK-CHASSIS-P.C. BOARD MOUNTING

PRV/leg

Type No.

50V

PY05

DY05

100V

PY10

DY10

200V

PY20

DY20

400V

PY40

DY40

ELECTRICAL CHARACTERISTICS PER LEG

(at T

=25 C Unless Otherwise Specified )

100

300

-55 to +150

5.1typ.

Max. Forward Voltage Drop V

=1.0 V @ I

Max. DC Reverse Current @ PRV and 25 C, I

Max. DC Reverse Current @ PRV and 100 C, I

Max. Peak Surge Current, I

FSM

(8.3

ms)

Storage Temperature Range, T

STG

Thermal Resistance ( Total Bridge ), R0 j-c

EDI reserves the right to change these specifications at any time without notice.

pr his

og m

ra ar

m ki

of nd

U ica

nd te

er s

w re

rit co

er g

s ni

La tio

bo n

ra u n

to de

r ie r

s, the

in c

c. o m

600V

PY60

DY60

800V

PY80

DY80

1000V

PY100

DY100

100

400

-55 to +150

5.1typ.

Amp

C/ W

DY20 Related Products

	DY20	DY05	DY10	DY60	DY40	DY100	DY	DY80	PY80	PY
Description	10 A, SILICON, BRIDGE RECTIFIER DIODE	10 A, SILICON, BRIDGE RECTIFIER DIODE	10 A, SILICON, BRIDGE RECTIFIER DIODE	10 A, SILICON, BRIDGE RECTIFIER DIODE	10 A, SILICON, BRIDGE RECTIFIER DIODE	10 A, SILICON, BRIDGE RECTIFIER DIODE	10 A, SILICON, BRIDGE RECTIFIER DIODE	10 A, SILICON, BRIDGE RECTIFIER DIODE	10 A, 800 V, SILICON, BRIDGE RECTIFIER DIODE	ALUMINUM, MALE, CIRCULAR CONNECTOR, CRIMP, PLUG
Maker	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	-	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	-
package instruction	O-PUFM-W4	O-PUFM-W4	O-PUFM-W4	O-PUFM-W4	O-PUFM-W4	O-PUFM-W4	-	O-PUFM-W4	O-PUFM-W4	-
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	-	unknow	unknow	-
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	-	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	-
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	-	SILICON	SILICON	-
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	-	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	-
Maximum forward voltage (VF)	1 V	1 V	1 V	1 V	1 V	1 V	-	1 V	1 V	-
JESD-30 code	O-PUFM-W4	O-PUFM-W4	O-PUFM-W4	O-PUFM-W4	O-PUFM-W4	O-PUFM-W4	-	O-PUFM-W4	O-PUFM-W4	-
Maximum non-repetitive peak forward current	400 A	400 A	400 A	400 A	400 A	400 A	-	400 A	300 A	-
Number of components	4	4	4	4	4	4	-	4	4	-
Phase	1	1	1	1	1	1	-	1	1	-
Number of terminals	4	4	4	4	4	4	-	4	4	-
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	-	150 °C	150 °C	-
Maximum output current	10 A	10 A	10 A	10 A	10 A	10 A	-	10 A	10 A	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	-
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	-	ROUND	ROUND	-
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	-	FLANGE MOUNT	FLANGE MOUNT	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	-
Maximum repetitive peak reverse voltage	200 V	50 V	100 V	600 V	400 V	1000 V	-	800 V	800 V	-
surface mount	NO	NO	NO	NO	NO	NO	-	NO	NO	-
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	-	WIRE	WIRE	-
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	-	UPPER	UPPER	-
