3.14.100.537/0000: DescriptionIlluminated Tactile Switches RF 15 R Tact switch Au low 1 LED RED; CategoryTopical application Mechanical and electrical/engineering/automation; File Size975KB，2 Pages; ManufacturerRAFI; Environmental Compliance

Download Datasheet Parametric View All

3.14.100.537/0000 Overview

Illuminated Tactile Switches RF 15 R Tact switch Au low 1 LED RED

3.14.100.537/0000 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	RAFI
Product Category	Illuminated Tactile Switches
RoHS	Details
Operating Force	2.9 N
Actuator	Round
Current Rating	100 mA
Voltage Rating DC	35 V
Power Rating	2 W
Contact Form	SPST
Termination Style	Solder Pin
Mounting Style	Through Hole
Color	White
Illumination	LED
Illumination Color	Red
Contact Plating	Gold
Operating Temperature Range	- 25 C to + 70 C
Travel	0.5 mm
Factory Pack Quantity	32

Preview

Download Datasheet

View All

21.05.2018

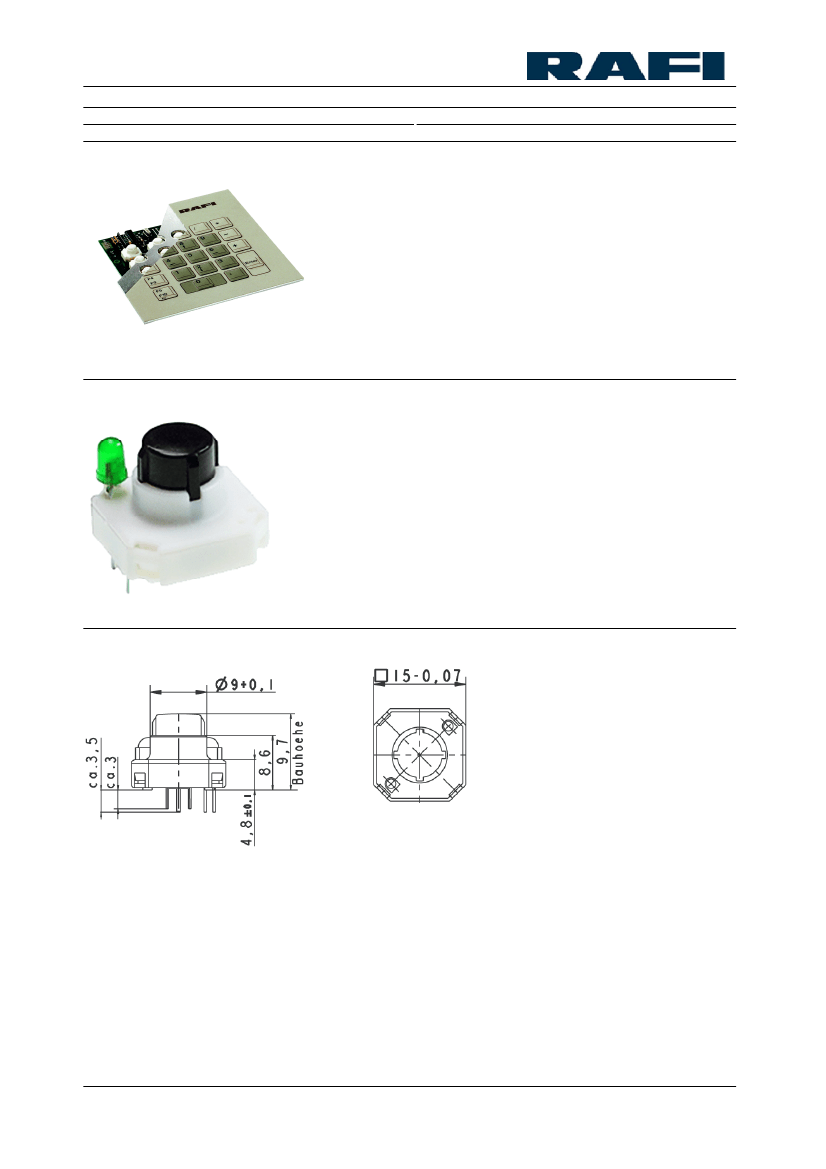

RF 15 R - Low tactile switch, 1 LED spot-illumination, gold

contacts, low current

3.14.100.537/0000

General information

Recommended key grid

Dimensions

Length

Width

Overall height

Mechanical design

Mounting

Terminals

Contact system

Contact arrangement

Contact materials

Illumination

LED color

LED type

Mechanical characteristics

Operating force max.

Switching travel

Robustness max.

Electrical characteristics

Rated voltage min.

Rated voltage max.

Rated current min.

Rated current max.

Rated power max. (ohmic load)

Contact resistance when new max.

Insulation resistance

Other specifications

Ambient temp. operating min.

Ambient temp. operating max.

Environmental restistance

Operating life min. (operations)

Solderability / solder heat resistance

Wave soldering

Manual soldering

ROHS compliant

15.24 mm

15 mm

9.7 mm

soldering in PCB

THT

snap-action contact

1 NO

Au/Ag

spot illumination 1 LED

red

low-current 2 mm

2.9

±0.6

0.5

+0.2

with through-plated PCB 100 N

Au: 0.02 V, Ag: 3 V

35 V

Au: 0.01 mA, Ag: 0.1 mA

Au: 100 mA, Ag: 250 mA

Au: 2 W, Ag: 12.5 W

100 mΩ

-25 °C

+70 °C

acc. to IEC 60068-2-14, -30, -33 and -78

1,000,000 cycle

according to DIN EN 60068-2-20

260 °C max.

350 °C / 5 sec. max.

yes

Technical data are approximate and intended solely for general orientation in the selection of a product.

Subject to modifications and errors. Images and other graphics may only be similar.

For more information, refer to www.rafi.de chapter Imprint / Data Protection.
