Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.08 mm (0.200 inch) - SLA/BLA | Socket
strips, TOP connection pitch 5.08 | BLAT | BLAT B
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Conductor connection system
Outgoing direction of conductor
Pitch
Pitch in inch
No. of poles
No. of rows
Screwdriver blade
Screwdriver blade standard
Tightening torque, min.
Tightening torque, max.
Clamping screw
Stripping length
L1 in mm
L1 in inch
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
1487060000
BLAT 7B SN OR

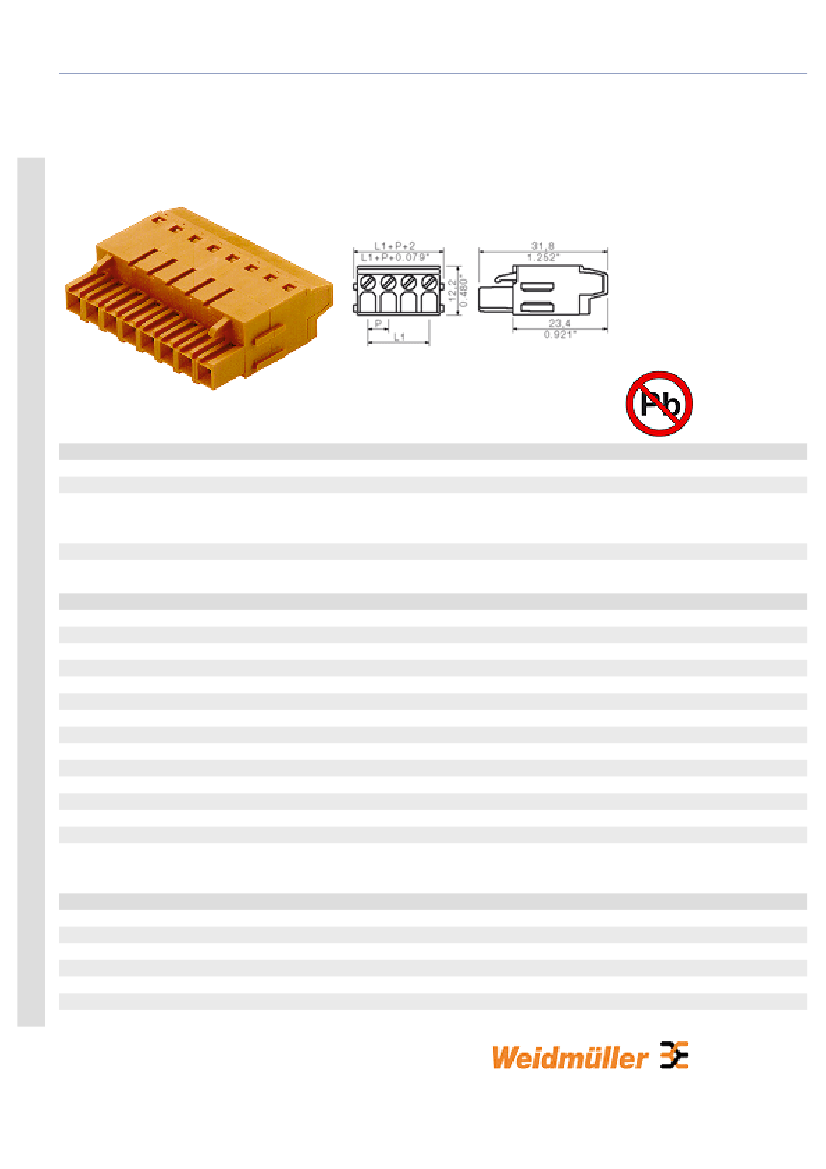

PCB plug-in connector, Female connectors, TOP
connection, Clamping range, max.: 2.5 mm²,
Pitch: 5.08 mm, No. of poles: 7, 180°, Box
4008190031800
50 pc(s).
TOP connection
180°
5.08 mm
0.2 inch
7
1
0.6 x 3.5
DIN 5264
0.4 Nm
0.5 Nm
M 2.5
13 mm
30.48 mm
1.2 inch
Finger-safe unplugged/ back-of-hand-safe
plugged
PBT GF
orange
Similar to RAL 2000
IIIa
V-0
>= 200
CuSn
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.08 mm (0.200 inch) - SLA/BLA | Socket
strips, TOP connection pitch 5.08 | BLAT | BLAT B
Material data
Contact surface
Connectable conductors
Clamping range, min.
Clamping range, max.
AWG, min.
AWG, max.
Solid, min. H05(07) V-U
Solid, max. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible, max. H05(07) V-K
With wire end ferrule, acc. to DIN 46 228/1, min.
w. plastic collar ferrule, DIN 46228 pt 4, min.
Gauge to EN 60999 a x b; ø
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage for overvoltage class/pollution
severity III/2
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor (field wiring), min.
AWG conductor (field wiring), max.
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor, min.
AWG conductor, max.
tinned
0.13 mm²
2.5 mm²
28
16
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.2 mm²
0.2 mm²
2.4 mm x 1.5 mm ; 2.4 mm
15 A
12.5 A
13 A
11 A
400 V
320 V
250 V
4 kV
4 kV
4 kV
3 x 1s with 100 A
300 V
10 A
26
14
300 V
10 A
26
14
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.08 mm (0.200 inch) - SLA/BLA | Socket
strips, TOP connection pitch 5.08 | BLAT | BLAT B
Approvals
Approvals institutes
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-04
Similar products
Order No.
1486560000
1486660000
1486760000
1486860000
1486960000
1487160000
1487260000
1487360000
Part designation
BLAT 2B SN OR
BLAT 3B SN OR
BLAT 4B SN OR
BLAT 5B SN OR
BLAT 6B SN OR
BLAT 8B SN OR
BLAT 9B SN OR
BLAT 10B SN OR
Version
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 2,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 3,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 4,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 5,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 6,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 8,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 9,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 10,
180°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.08 mm (0.200 inch) - SLA/BLA | Socket
strips, TOP connection pitch 5.08 | BLAT | BLAT B
1487460000
1487560000
1487660000
1487760000
1487860000
1487960000
1488060000
1488160000
1488260000
1488360000
1488460000
1488560000
1488660000
1488760000
BLAT 11B SN OR
BLAT 12B SN OR
BLAT 13B SN OR
BLAT 14B SN OR
BLAT 15B SN OR
BLAT 16B SN OR
BLAT 17B SN OR
BLAT 18B SN OR
BLAT 19B SN OR
BLAT 20B SN OR
BLAT 21B SN OR
BLAT 22B SN OR
BLAT 23B SN OR
BLAT 24B SN OR
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 11,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 12,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 13,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 14,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 15,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 16,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 17,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 18,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 19,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 20,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 21,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 22,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 23,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 24,
180°, Box
-4-
