1.14.002.003/0000 datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> 1.14.002.003/0000

1.14.002.003/0000: DescriptionTactile Switches KEYSWTCH MICON 5 SMD SPST-NO 0.1A; CategoryMechanical and electronic products switch; File Size283KB，3 Pages; ManufacturerRAFI; Environmental Compliance

Download Datasheet Parametric View All

1.14.002.003/0000 Overview

Tactile Switches KEYSWTCH MICON 5 SMD SPST-NO 0.1A

1.14.002.003/0000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	BUTTON TYPE
body width	5.1 mm
body height	2.45 mm
Body length or diameter	6.4 mm
Circuit configuration	1X1
Maximum contact bounce time	5 ms
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@42VDC
Maximum contact voltage (DC)	42 V
Electrical life	250000 Cycle(s)
JESD-609 code	e3
Installation features	SURFACE MOUNT-STRAIGHT
Number of switches	1
Maximum operating force	4.5 N
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TAPE AND REEL
seal	HERMETICALLY SEALED
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	KEYPAD SWITCH
Terminal surface	Tin (Sn)
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

31.05.2018

MICON 5 - Short-travel switch, SMT low

1.14.002.003/0000

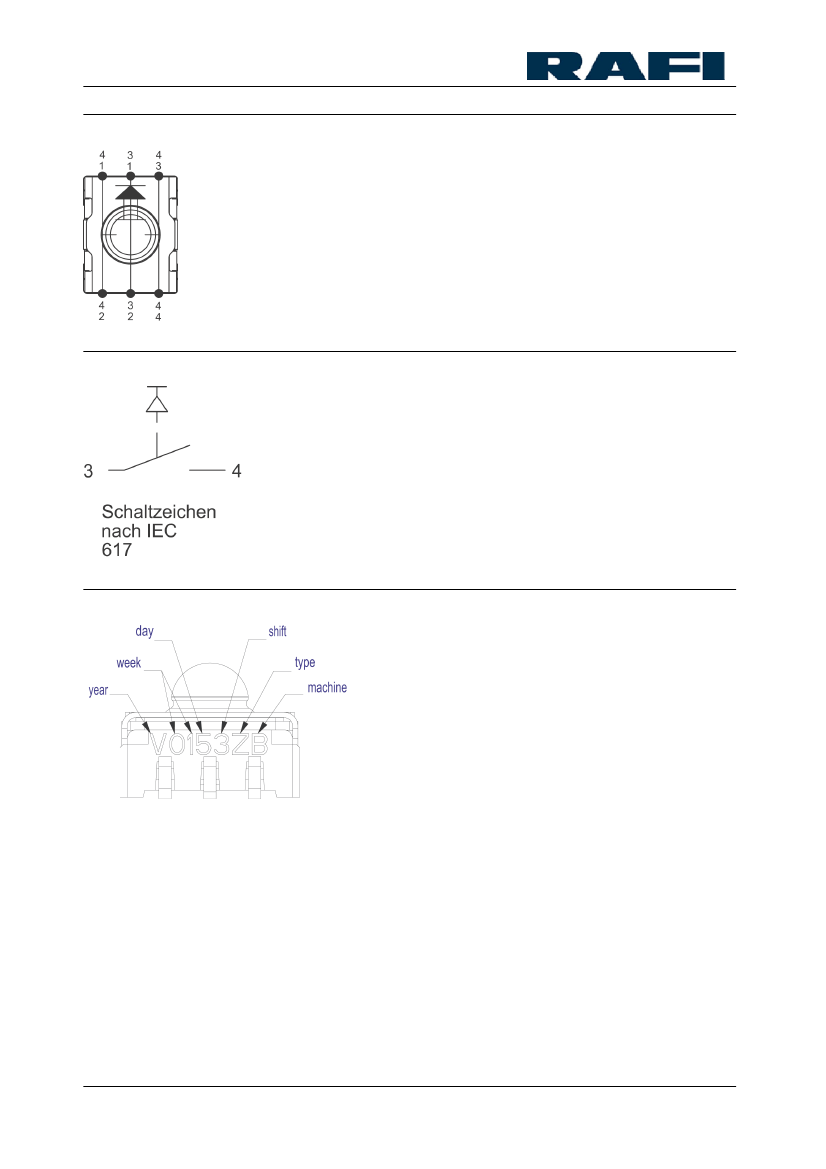

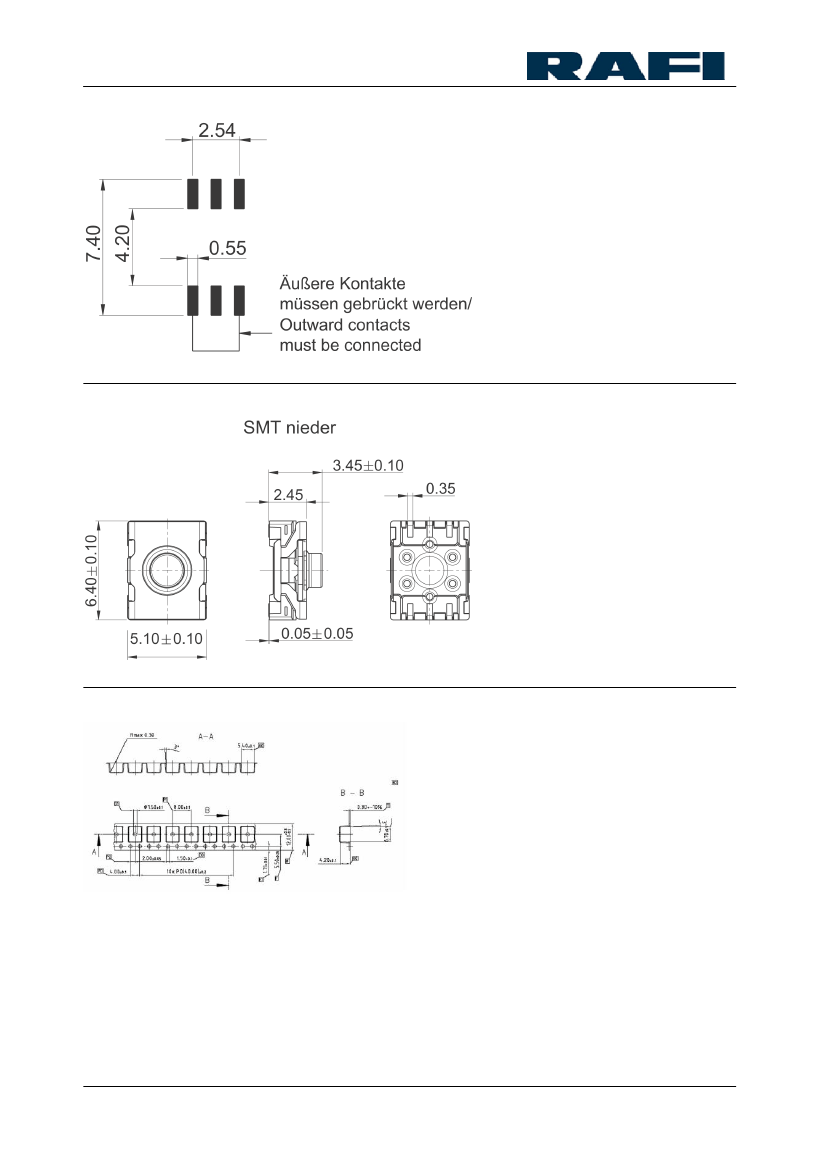

Dimensions

Length of housing

Width of housing

Overall height

Mechanical design

Mounting

Terminals

Contact system

Contact arrangement

Contact materials

Illumination

Mechanical characteristics

Operating force F1 (±20%)

Switching travel S2 (±0.15 mm)

Electrical characteristics

Rated voltage min.

Rated voltage max.

Rated current min.

Rated current max.

Rated power max. (ohmic load)

Contact resistance when new

Rated voltage restistance AC

Insulation resistance

Other specifications

Ambient temp. operating min.

Ambient temp. operating max.

Resistance to environment

Operating life (test force)

Solder heat resistance / Solderability

Flammability of materials

Packing

Produkt type

ROHS compliant

REACH compliant

6.4 mm

5.1 mm

3.45 mm

soldering

SMT

snap-action contact

1 NO

3.6 N

0.7 mm

0.02 V

35 V

0.01 mA

100 mA

? 100 mΩ

250 V

-40 °C

+90 °C

IEC 60068-2 -14,-30,-33, -78

250,000 (6 N)

DIN EN 60068-2-58

UL 94 V1

tape and reel à 2100 pieces

yes

Technical data are approximate and intended solely for general orientation in the selection of a product.

Subject to modifications and errors. Images and other graphics may only be similar.

For more information, refer to www.rafi.de chapter Imprint / Data Protection.
