1.20.125.002/0000 datasheet, PDF

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 1.20.125.002/0000

1.20.125.002/0000: DescriptionSwitch Contact Blocks / Switch Kits RAFIX 22 QR Switch element w. coupling; CategoryTopical application Mechanical and electrical/engineering/automation; File Size107KB，2 Pages; ManufacturerRAFI; Environmental Compliance

Download Datasheet Parametric View All

1.20.125.002/0000 Overview

Switch Contact Blocks / Switch Kits RAFIX 22 QR Switch element w. coupling

1.20.125.002/0000 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	RAFI
Product Category	Switch Contact Blocks / Switch Kits
RoHS	Details
Product	Contact Blocks
Mounting Style	Panel
Termination Style	Screw
Voltage Rating DC	400 VDC
Height	30 mm
Illumination	Non-Illuminated
Length	49.9 mm
Operating Temperature Range	- 25 C to + 70 C
Width	39.5 mm
Maximum Operating Temperature	+ 70 C
Minimum Operating Temperature	- 25 C
Factory Pack Quantity	10

Preview

Download Datasheet

View All

21.05.2018

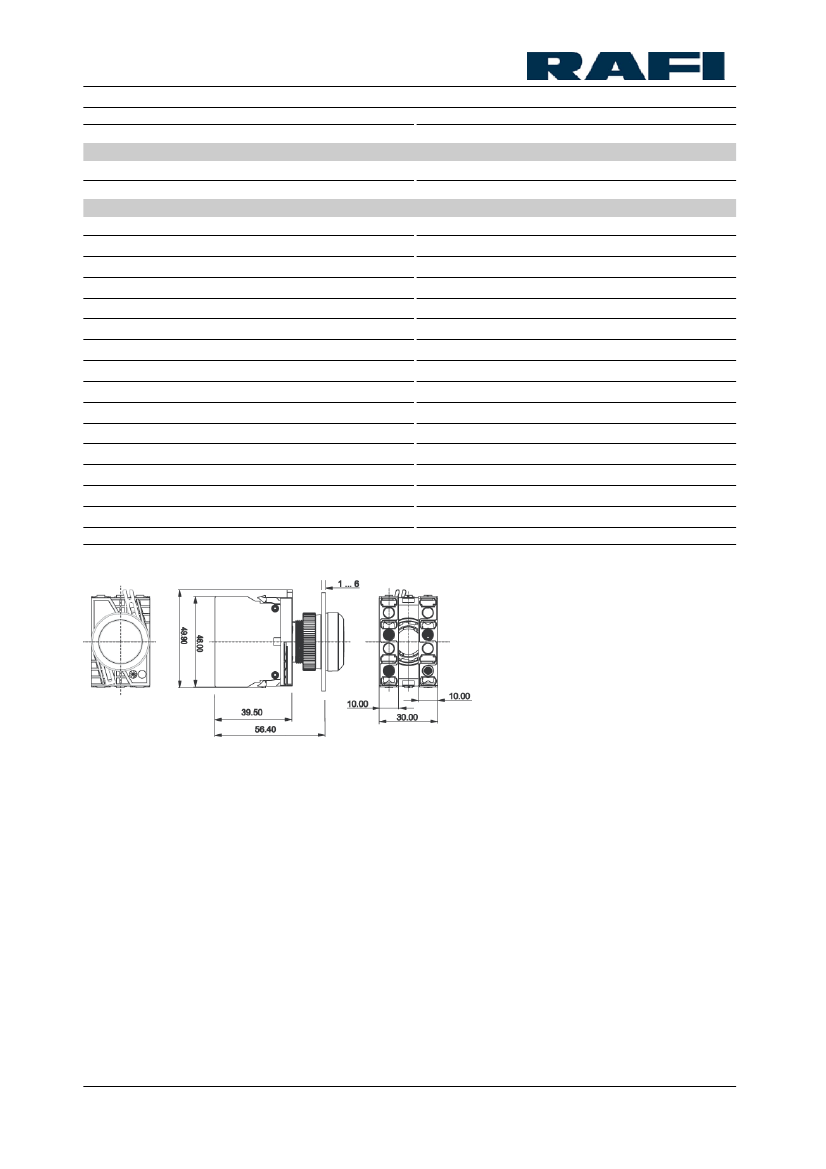

RAFIX 22 QR - Contact block with silver contacts, with

coupling, without lamp socket, spring-type terminals, 1 NO

1.20.125.002/0000

Dimensions

Dimensions with coupling

Mounting depth without cable

Mechanical design

Mounting

Contact system

Contact materials

Contact arrangement

Coupling position 1 (1/2)

Coupling position 3 (5/6), centre

Coupling position 2 (3/4)

NC contact forcibly actuated acc. to IEC

60947-5-1

Terminals

Terminal marking

Robustness

Wire range solid wires without wire end sleeves

Wire range stranded wires without end sleeves

Stripping length, solid or stranded

Wire range with wire end sleeves

Electrice characteristics acc. to IEC 60947

Rated insulation voltage AC/DC

Rated peak voltage

Rated operating current I

AC 12 / DC 12

Rated operating current I

AC-15

39.5 x 49.9 x 30 mm

56.4 mm

snap on coupling and actuator

bridge-contact self cleaning

1 NO

yes

spring type

color encoded

100 N

2 x 0.75 ... 2.5 mm²

2 x 1.0...1.5 (2 x 0.08 ... 2.5) mm²

8 mm

2 x 0.75 ... 1.5 mm²

400 V

6,000 V

10 A

125 V/10 A, 250 V/6 A, 400 V/3.5 A

Rated operating current I

DC-13 Q300

24V/2.75A, 60V/1.1A, 125V/0.55A, 250V/0.275A

Degree of pollution

Positive opening travel

Operating speed

Electrice characteristics acc. to IEC 61058

Resistive load AC

Motor load AC

Peak input current filament lamp AC

Peak capacity input current AC

3 mm

5 ... 1000 mm/c

10 A /250 V; 7.5 A / 400 V

6 A / 250 V; 4 A / 400 V (5 A / 250 V)

36 A

100 A

Technical data are approximate and intended solely for general orientation in the selection of a product.

Subject to modifications and errors. Images and other graphics may only be similar.

For more information, refer to www.rafi.de chapter Imprint / Data Protection.
