01.06.2018
RAFIX 16 - Keylock switch, square collar, alignable without
gaps, momentary
1.30.076.541/0000
Only use contact blocks with momentary function.
Other lock variants available on request.
Included: 2 keys on ring.
General information
Form of collar
Dimensions
Collar dimensions
Collar dimensions
Overall height
Mounting depth
Mounting hole
Key grid
Mechanical design
Mounting
Contact function
Contact arrangement
Illumination
Lock
Wafers
Lock type
Number of locking positions
Main key
Rotating angle
Key removal position
Mechanical characteristics
Torque max.
Electrical characteristics
Protection class
Other specifications
ESD-strength lock / contact
ESD strength key/ front panel
Operating life (operations)
Degree of protection from front side
square alignable
24.95 x 24.95 mm
24.95 x 24.95 mm
27.95 mm
44.7 mm
16.2 mm
25 x 25 mm
ring nut
momentary
according to contact block
no
Micromec
5
001
500
on request
1 x 40°
0
1.3 Nm
II
15 kV
8 kV
65,000 cycle
IP65 (DIN EN 60529)
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
01.06.2018
Operation temperature min.
Ambient temp. operating max. without lamp /
LED
Storage temperature min.
Storage temperature max.
Environmental restistance
ROHS compliant
REACH compliant

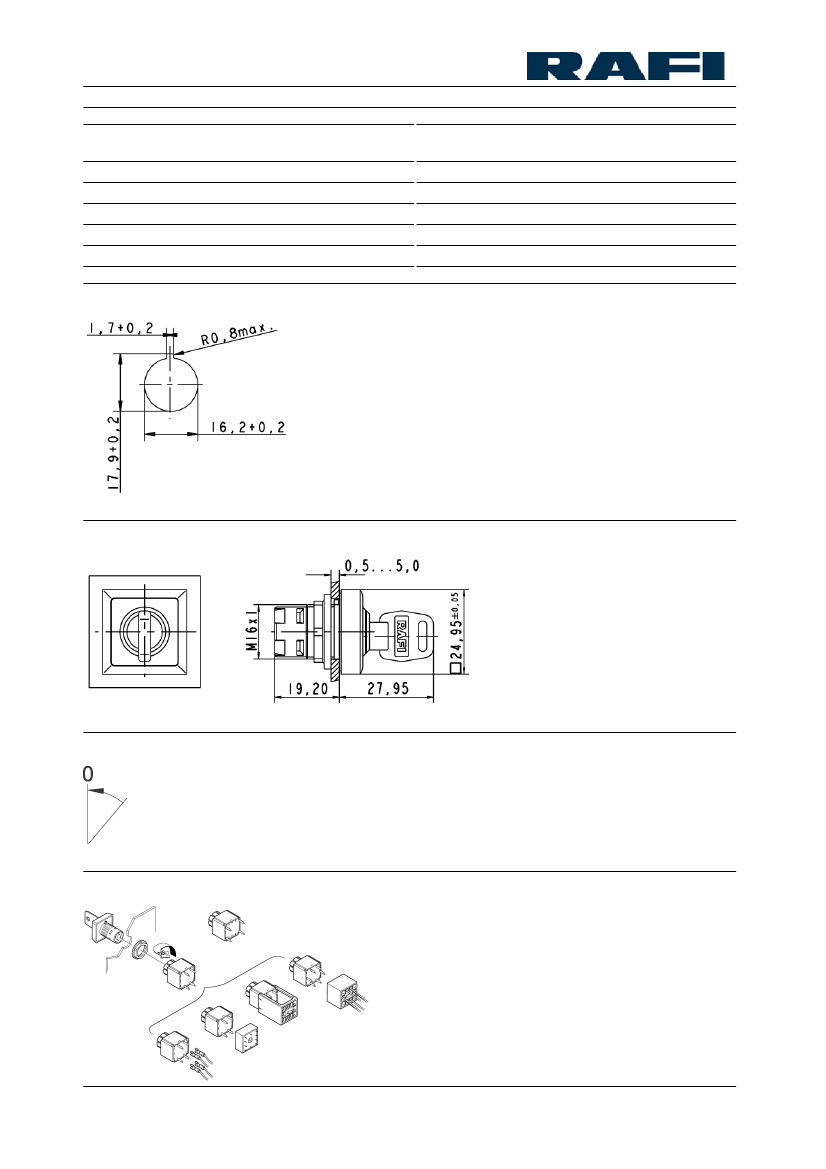

Panel cut-out
-25 °C
+70 °C
-40 °C
+85 °C
acc. to IEC 60068-2-14, -30, -33 and -78
yes
yes
