RACON 8 - Tactile switch, THT inward
1.14.100.602/0000
For keycaps, refer to RK 90.
Dimensions
Length of housing
Width of housing
Height of housing
Mechanical design
Mounting
Terminals
Contact system
Contact arrangement
Contact materials
Illumination
Mechanical characteristics
Operating force
Switching travel
Electrical characteristics
Rated voltage min.
Rated voltage max.
Rated current min.
Rated current max.
Rated power max. (ohmic load)
Contact resistance when new max.
Insulation resistance
Other specifications
Ambient temp. operating min.
Ambient temp. operating max.
Resistance to environment
Operating life
Solderability / Solder heat resistance
Flammability of materials
Packing
Produkt type
ROHS compliant
REACH compliant
8.4 mm
8.4 mm
4.95 mm
soldering
THT inward
snap-action contact
1 NO
Au
no
4.8
±0.8
N
0.42
±0.1
mm
0.02 V
35 V
0.01 mA
100 mA
1W
100 mΩ
10
9
Ω
-40 °C
+90 °C
DIN EN 60068-2 -14,-30,-33 and -78
1,000,000 cycle
DIN EN 60068-2-20
UL 94 HB
tubes à 60 pieces
B2
yes
yes
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
19.05.2018

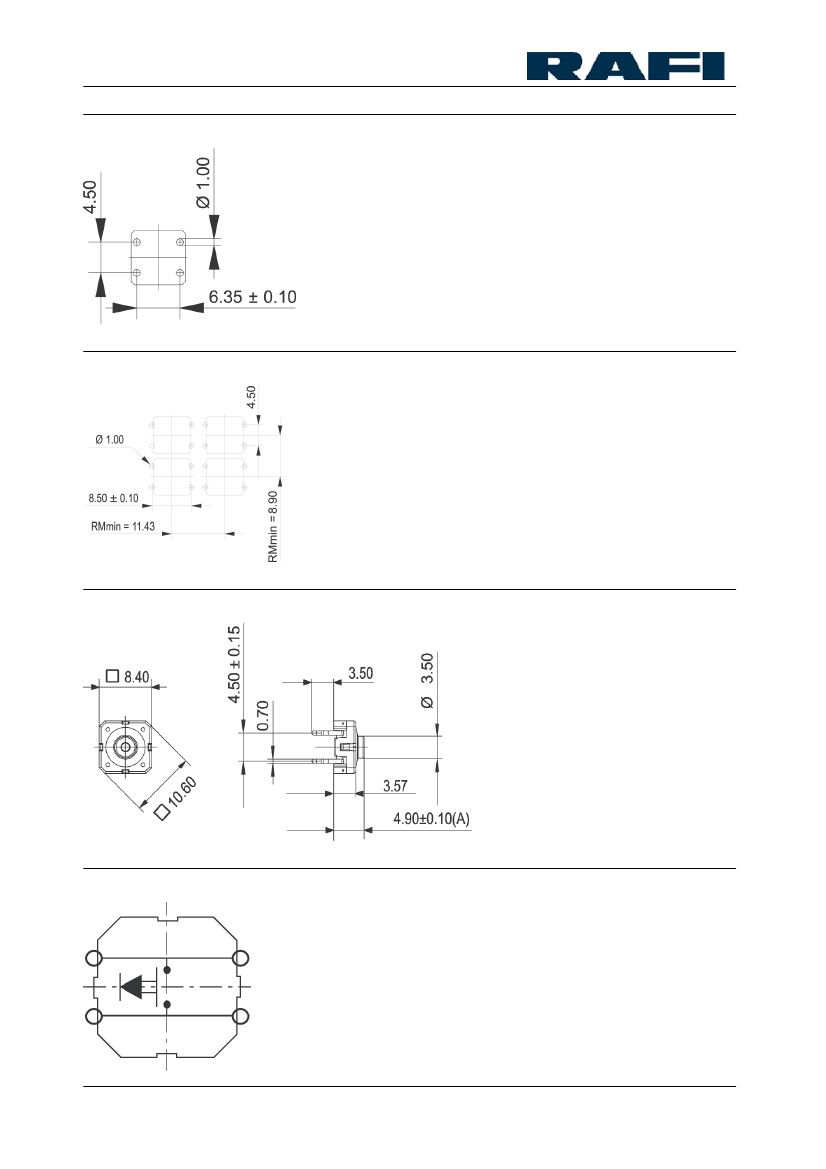

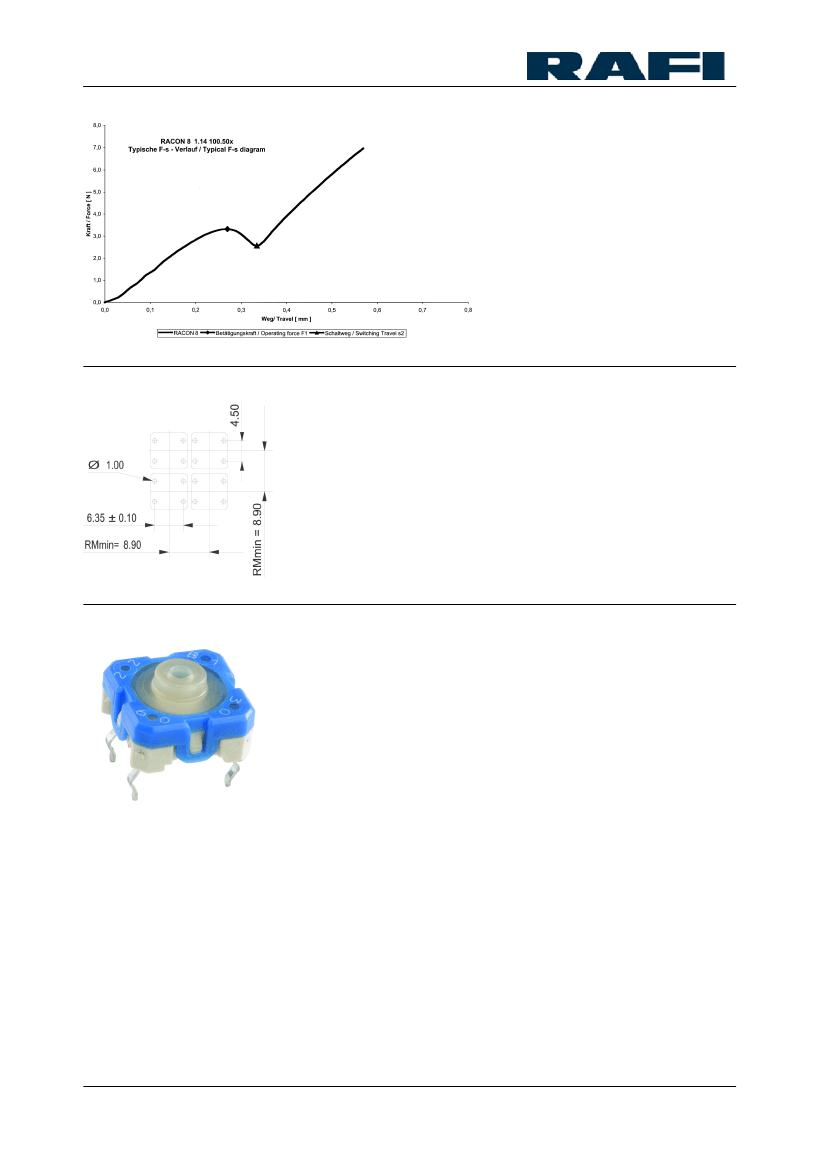

PCB footprint, view on component side
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
19.05.2018
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
