21.05.2018

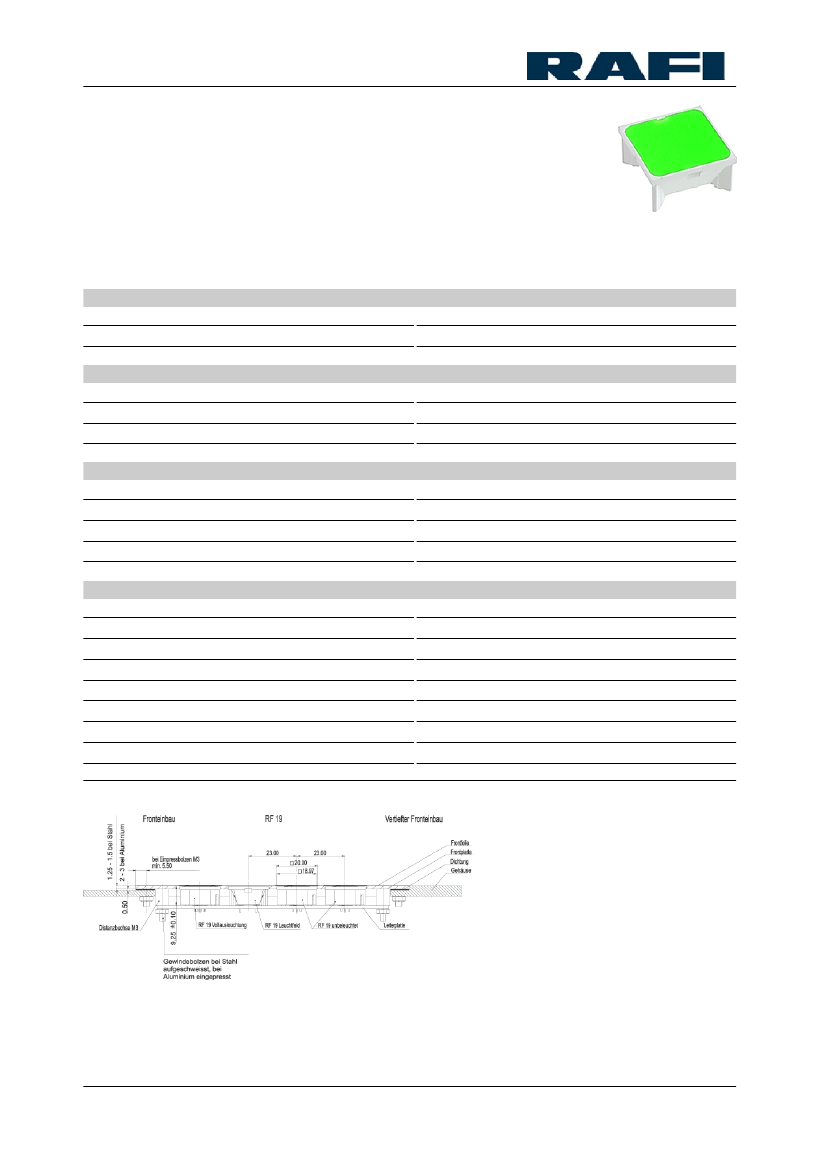

RF 19 - Signal indicator, 1 x 1-module
3.14.002.054/0000
For more information, see LEDs.
Suitable for RK 90 system design, illuminated for 2-module keycap.
General information
Color of lens
Recommended key grid
Dimensions
Length
Width
Overall height
Mechanical design
Mounting
Illumination
LED color
LED type
Other specifications
Ambient temp. operating min.
Ambient temp. operating max.
Environmental restistance
Solderability / solder heat resistance
Wave soldering
Manual soldering
ROHS compliant
REACH compliant
orange
23/x mm
19.05 mm
19.05 mm
9.15 mm
THT soldering in PCB
fully illuminated 2 LED
yellow
2 mm
-25 °C
+70 °C
acc. to IEC 60068-2-14, -30, -33 and -78
according to DIN EN 60068-2-20
260 °C max.
350 °C / 5 sec. max.
yes
yes
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
21.05.2018

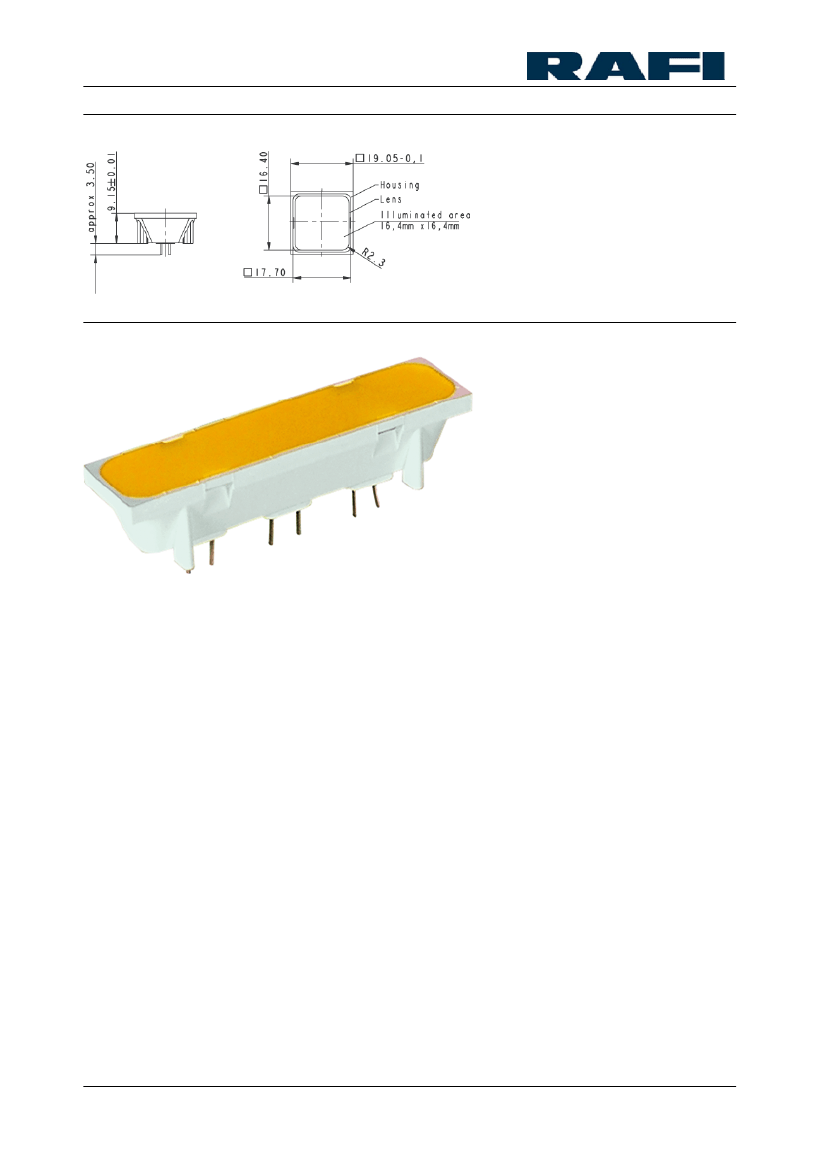

0,5 x 2-module, yellow
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
