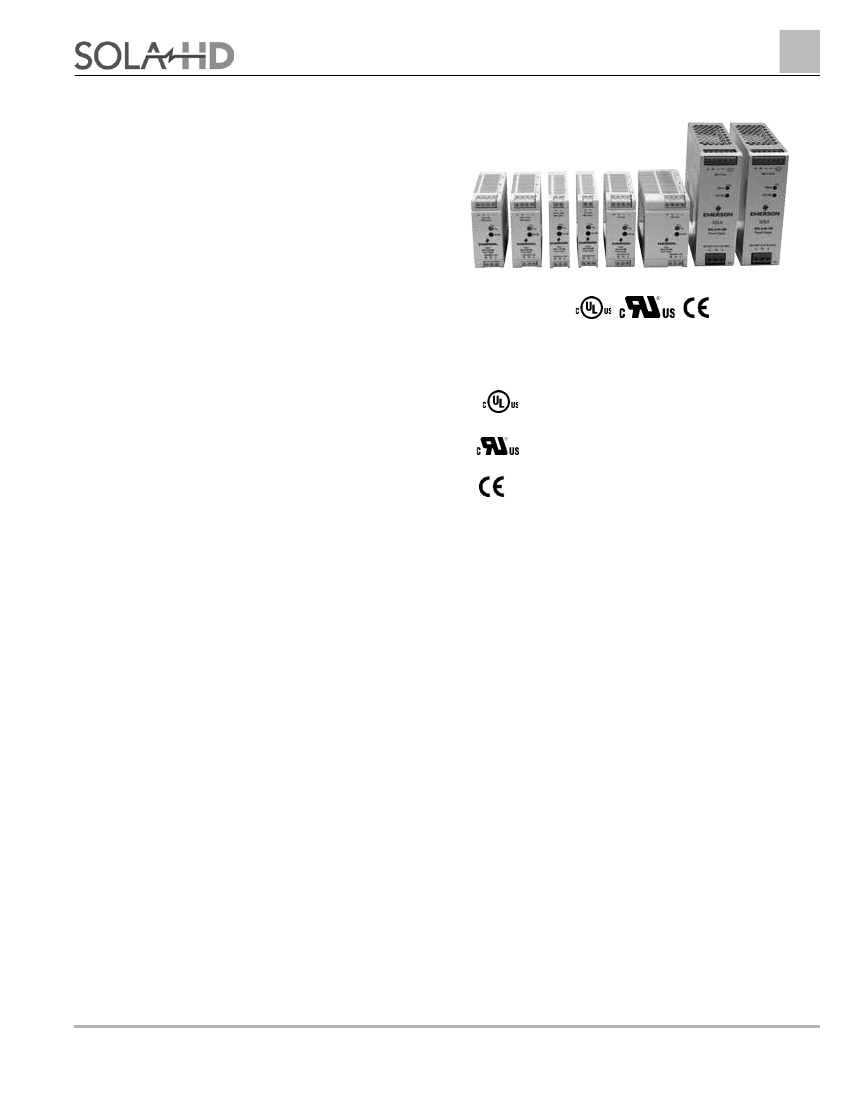

SVL Essential DIN Rail Series
SVL Series power supplies are perfect for high volume,
controlled environment applications where essential features
are the only requirement. When space inside an enclosure
is at a premium, their small footprint makes these power
supplies an excellent alternative to embedded open frame
switchers. The DIN rail mounting capability provides quicker
and easier installation while allowing for design flexibility.
These power supplies range from 15 to 480 Watts in 5, 12,
24 and 48 Volt combinations.
Applications
•
•
•
•
•
•
•
Test and Measure Equipment
Scanners
Instrumentation
Printers Peripheral
ATM Machines
Semiconductor Fabrication Equipment
Vending Machines
UL 60950
EMC and
E61379
UL 508 Listed
E137632
E137632
Low Volt.
IND. CONT. EQ.
CUL/CSA-C22.2 Directive
E61379
No. 234-M90
3
Certifications and Compliances
All Models
•
•
•
Listed, Ind. Control Equipment, E61379
-
UL 508, CSA C22.2 No. 107.1
Recognized Component, ITE, E137632
-
UL 60950-1/CSA C22.2 No. 60950-1, 2nd Edition
UL 508 Listed
IND. CONT. EQ.
E61379
UL 60950
E137632
CUL/CSA-C22.2
No. 234-M90
Features
• Universal Input
• Protection
- Short Circuit
- Over Voltage
- Overload
- Over Temperature
• Convection
cooling
• DC OK LED
• DC OK Relay for >120 Watts models
• Two year warranty
-
IEC/EN60950-1, 2nd Edition
-
Model SVL 1-24-100, SVL 3-5-100, SVL 4-12-100,
SVL 2-24-100 were evaluated for NEC Class 2
outputs.
• RoHS Compliant
EMC and
Low Volt.
Directive
Contact
Technical Services
at
(800) 377-4384
with any questions.
Visit our website at www.solahd.com.
1
3
SVL Specifications <120W
Description
Input Voltage Range
- AC Range
- DC Range
1
- Frequency
Nominal Current
- Inrush Current max,
Efficiency
Leakage Current
Power Supplies
Catalog Number
SVL 3-5-100
Input
85-264 Vac
100–240 Vac
120-375 Vdc
50/60 Hz
0.5 A @ 115 Vac
0.3 A @ 230 Vac
35 A @ 115 Vac
65 A @ 230 Vac
79% typ
88% typ
<1 mA @ 240 Vac
0.8 A @ 115 Vac
0.4 A @ 230 Vac
35 A @ 115 Vac
60 A @ 230 Vac
80% typ
0.9 A @ 115 Vac
0.5 A @ 230 Vac
SVL 1-24-100
SVL 6-5-100
Output
Nominal Voltage
- Tolerance
Voltage Adjustable Range
- Ripple (25 °C)
PARD (25 °C)
Nominal Current
Max. Power
Holdup Time
at full load (25 °C)
Rise Time at full load (25 °C)
Start Up at full load (25 °C)
Regulation
Operating Temperature
Relative Humidity
Storage temp
Power De-rating
2
Shock
Vibration
3A
15 W
20 ms typ. @ 115 Vac
100 ms typ. @ 230 Vac
<100 ms
<3000 ms @ 115 Vac, <1500 ms @ 230 Vac
<0.5% Line and <1% Load
5-5.5 V
5V
24 V
+/-2%
24-28 V
<75 mVp-p
<75 mVp-p
1.25 A
30 W
6A
5-5.5 V
5V
Environmental Data
-20 °C to +70 °C
5 to 95% RH Non-condensing
-40 °C to +85 °C
>55 °C de-rate power by 3.33% / °C
<-10 °C de-rate power by 2% / °C
de-rate to 80% load for operation at -20°C
IEC60068-2-27: half sine wave 10 G, single axis for a duration of 11 ms operational and 50 G three axes for duration
of 11 ms each non-operational
IEC60068-2-6: sine wave; 10 Hz to 500 Hz at 2 g, 0.35 mm displacement, three axes for 60 min each operational and 5 Hz to 500 Hz at
2.09 grms, three axes for 20 min each non-operational
Protections
Overvoltage Protection
Overload Protection
Over Temperature Protection
Short Circuit
Power Factor Correction
MTBF
Galvanic Isolation
Emissions
Immunity
6.3-7.4 V, Latching
30-34.8 V, Latching
Hiccup
No Component Damage, Latch Mode
Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)
Meets EN61000-3-2 Class A
6.3-7.4 V, Latching
Reliability
>350 khrs (115 Vac/230 Vac @ 25 °C) as per Telcordia SR-332 issue 3 Jan 2011.
EMC
I/P to O/P: 3 KVac; I/P to GND: 1.5 KVac; O/P to GND: 0.5 KVac
EN55022 (CISPR22) Class B, EN55011 Class B, EN61000-6-3, EN61000-6-4, EN61000-3-3, EN61204-3, EN61000-3-2 Class A
EN55024, EN61000-6-1, EN61000-6-2 (EN61000-4-2, 3, 4, 5, 6, 8, 11, 12) Level 3, Performance Criteria A
General
H x W x D in (mm
Unit Weight
LED Signals
DC OK Relay Contact
Warranty
1. DC input range is not listed in safety file it is only to confirm product functional performance.
2. >120 Watts models measured at 230 VAC input and 25 °C ambient temperature. See manual for further details.
2.95 x 0.82 x 3.52
(75.0 x 21.0 x 89.5)
0.242 lb (110 g)
GREEN light = DC OK , OCP = blinking
No
2 year
2.95 x 1.18 x 3.52
(75.0 x 30.0 x 89.5)
0.352 lb (160 g)
2
Contact
Technical Services
at
(800) 377-4384
with any questions.
Visit our website at www.solahd.com.
Power Supplies
SVL Specifications <120W
Description
Catalog Number
SVL 4-12-100
Input
Input Voltage Range
- AC Range
- DC Range
1
3
SVL 4-24-100
SVL 2-24-100
85-264 Vac
100–240 Vac
120-375 Vdc
50/60 Hz
- Frequency
Nominal Current
- Inrush Current max.
Efficiency
Leakage Current
88% typ
1.0 A @ 115 Vac
0.6 A @ 230 Vac
1.0 A @ 115 Vac
0.6 A @ 230 Vac
35 A @ 115 Vac
60 A @ 230 Vac
<1 mA @ 240 Vac
1.2 A @ 115 Vac
0.6 A @ 230 Vac
89% typ
Output
Nominal Voltage
- Tolerance
Voltage Adjustable Range
- Ripple (25 °C)
PARD (25 °C)
Nominal Current
Max. Power
Holdup Time
at full load (25 °C)
Rise Time at full load (25 °C)
Start Up at full load (25 °C)
Regulation
Operating Temperature
Relative Humidity
Storage temp
Power De-rating
2
Shock
Vibration
4A
48 W
20 ms typ. @ 115 Vac
90 ms typ. @ 230 Vac
<100 ms
<3000 ms @ 115 Vac, <1500 ms @ 230 Vac
<0.5% Line and <1% Load
12-15 V
<75 mVp-p
<75 mVp-p
2.1 A
50 W
4A
96 W
25 ms typ. @ 115 Vac
50 ms typ. @ 230 Vac
12 V
24 V
+/-2%
24-28 V
24 V
Environmental Data
-20 °C to +70 °C
5 to 95% RH Non-condensing
-40 °C to +85 °C
>55 °C de-rate power by 3.33% / °C
<-10 °C de-rate power by 2% / °C
de-rate to 80% load for operation at -20°C
IEC60068-2-27: half sine wave 10 G, single axis for a duration of 11 ms operational and 50 G three axes for duration
of 11 ms each non-operational
IEC60068-2-6: 10 Hz to 500 Hz at 2 g, 0.35mm displacement, three axes for 60 min each operational and 5 Hz to 500 Hz at
2.09 grms, three axes for 20 min each non-operational
Protections
Overvoltage Protection
Overload Protection
Over Temperature Protection
Short Circuit
Power Factor Correction
MTBF
Galvanic Isolation
Emissions
Immunity
16-18.7 V, Latching
30-34.8 V, Latching
Current foldforward and then hiccup
No Component Damage, Latch Mode
Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)
Meets EN61000-3-2 Class A
Reliability
>350 khrs (115 Vac/230 Vac @ 25 °C) as per Telcordia SR-332 issue 3 Jan 2011.
EMC
I/P to O/P: 3 KVac; I/P to GND: 1.5 KVac; O/P to GND: 0.5 KVac
EN55022 (CISPR22) Class B, EN55011 Class B, EN61000-6-3, EN61000-6-4, EN61000-3-3, EN61204-3, EN61000-3-2 Class A
EN55024, EN61000-6-1, EN61000-6-2 (EN61000-4-2, 3, 4, 5, 6, 8, 11, 12) Level 3, Performance Criteria A
General
H x W x D in (mm
Unit Weight
LED Signals
DC OK Relay Contact
Warranty
1. DC input range is not listed in safety file it is only to confirm product functional performance.
2. >120 Watts models measured at 230 VAC input and 25 °C ambient temperature. See manual for further details.
2.95 x 1.18 x 3.52
(75.0 x 30.0 x 89.5)
0.397 lb (180 g)
GREEN light = DC OK , OCP = blinking
No
2 year
2.95 x 1.77 x 3.93
(75.0 x 45.0 x 100.0)
0.716 lb (325 g)
Contact
Technical Services
at
(800) 377-4384
with any questions.
Visit our website at www.solahd.com.
3
3
SVL Specifications >120W
Description
SVL 2-48-100
Input Voltage Range
- AC Range
- DC Range
1
- Frequency
Nominal Current
- Inrush Current max.
Efficiency
Leakage Current
Power Supplies
Catalog Number
SVL 5-24-100
Input
85-264 Vac
100–240 Vac
120-375 Vdc
50/60 Hz
2.20 A @ 115 Vac
1.20 A @ 230 Vac
20 A typ.@ 115 Vac
40 A typ.@ 230 Vac
88% typ
<1 mA @ 240 Vac
2.8 A @ 115 Vac
1.4 A @ 230 Vac
5.4 A @ 115 Vac
2.7 A @ 230 Vac
40A typ.@ 115 Vac
80A typ.@ 230 Vac
SVL 10-24-100
SVL 20-24-100
Output
Nominal Voltage
- Tolerance
Voltage Adjustable Range
- Ripple (25 °C)
PARD (25 °C)
Nominal Current
Max. Power
Holdup Time
at full load (25 °C)
Rise Time at full load (25 °C)
Start Up at full load (25 °C)
Regulation
Operating Temperature
Relative Humidity
Storage temp
Power De-rating
2
Shock
Vibration
44-56 V
<120 mVp-p
<150 mVp-p
2.5 A
120 W
5A
120 W
10 ms typ.@ 115 Vac
16 ms typ @ 230 Vac
<100 ms
<1000 ms @ 115 Vac & 230 Vac
<0.5% Line and <1% Load
48V
24V
+/-2%
22-28 V
<100 mVp-p
<120 mVp-p
10 A
240 W
20 A
480 W
Environmental Data
-20 °C to +70 °C
5 to 95% RH Non-condensing
-40 °C to +85 °C
>50 °C de-rate power by 2.5% / °C
<-10 °C de-rate power by 2% / °C
<100 Vac de-rate power by 1% / Vac
IEC60068-2-27: half sine wave 10 G, single axis for a duration of 11 ms operational and 50 G three axes for duration
of 11 ms each non-operational
IEC60068-2-6: sine wave; 10 Hz to 500 Hz at 2 g, 0.35 mm displacement, three axes for 60 min each operational and 5 Hz to 500 Hz at
2.09 grms, three axes for 20 min each non-operational
Protections
Overvoltage Protection
Overload Protection
Over Temperature Protection
Short Circuit
Power Factor Correction
MTBF
Galvanic Isolation
Emissions
Immunity
56-67.2 V, Latching
28.8-35.2 V, Latching
105~150% of rated load; constant current at >20 V output and hiccup at <20 V output.
SVL 2-48-100:
constant current at >40 V output and hiccup at <40 V output.
No Component Damage, Latch Mode
Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)
Meets EN61000-3-2 Class A
Reliability
>700 khrs (115 Vac & 230 Vac @ 25 °C) as per Telcordia SR-332 issue 3 Jan 2011.
EMC
I/P to O/P: 3 KVac; I/P to GND: 2 KVac; O/P to GND: 0.5 KVac
EN55022 (CISPR22) Class B, EN55011 Class B, EN61000-6-3, EN61000-6-4, EN61000-3-3, EN61204-3, EN61000-3-2 Class A
EN55024, EN61000-6-1, EN61000-6-2 (EN61000-4-2, 3, 4, 5, 6, 8, 11, 12) Level 3, Performance Criteria A, SEMI F47 @ 200 Vac
General
H x W x D in (mm
Unit Weight
LED Signals
DC OK Relay Contact
Warranty
1. DC input range is not listed in safety file it is only to confirm product functional performance.
2. >120 Watts models measured at 230V AC input and 25°C ambient temperature. See manual for further details.
4.84 x 1.57 x 4.63
(123.6 x 40.0 x 117.6)
540 g (1.19 lb)
Yes
2 year
4.87 x 2.36 x 4.63
(123.6 x 60.0 x 117.6)
660 g (1.45 lb)
4.87 x 3.37 x 5.06
(123.6 x 85.5 x 128.5)
1150 g (2.53 lb)
GREEN light = DC OK , OCP = blinking
4
Contact
Technical Services
at
(800) 377-4384
with any questions.
Visit our website at www.solahd.com.
Power Supplies
SVL Series Dimensions
3
Dimensions - inches (mm)
H
2.95 (75.0)
2.95 (75.0)
2.95 (75.0)
2.95 (75.0)
2.95 (75.0)
2.95 (75.0)
4.84 (123.6)
4.84 (123.6)
4.87 (123.6)
4.87 (123.6)
W
0.82 (21.0)
0.82 (21.0)
1.18 (30.0)
1.18 (30.0)
1.18 (30.0)
1.77 (45.0)
1.57 (40.0)
1.57 (40.0)
2.36 (60.0)
3.37 (85.5)
D
3.52 (89.5)
3.52 (89.5)
3.52 (89.5)
3.52 (89.5)
3.52 (89.5)
3.93 (100.0)
4.63 (117.6)
4.63 (117.6)
4.63 (117.6)
5.06 (128.5)
Catalog
Number
H
SVL 3-5-100
SVL 1-24-100
SVL 6-5-100
SVL 4-12-100
SVL 2-24-100
D
W
SVL 4-24-100
SVL 2-48-100
SVL 5-24-100
SVL 10-24-100
SVL 20-24-100
Contact
Technical Services
at
(800) 377-4384
with any questions.
Visit our website at www.solahd.com.
5
京公网安备 11010802033920号
EEWORLD
