Thermal-Magnetic Circuit Breaker 2210-S2...

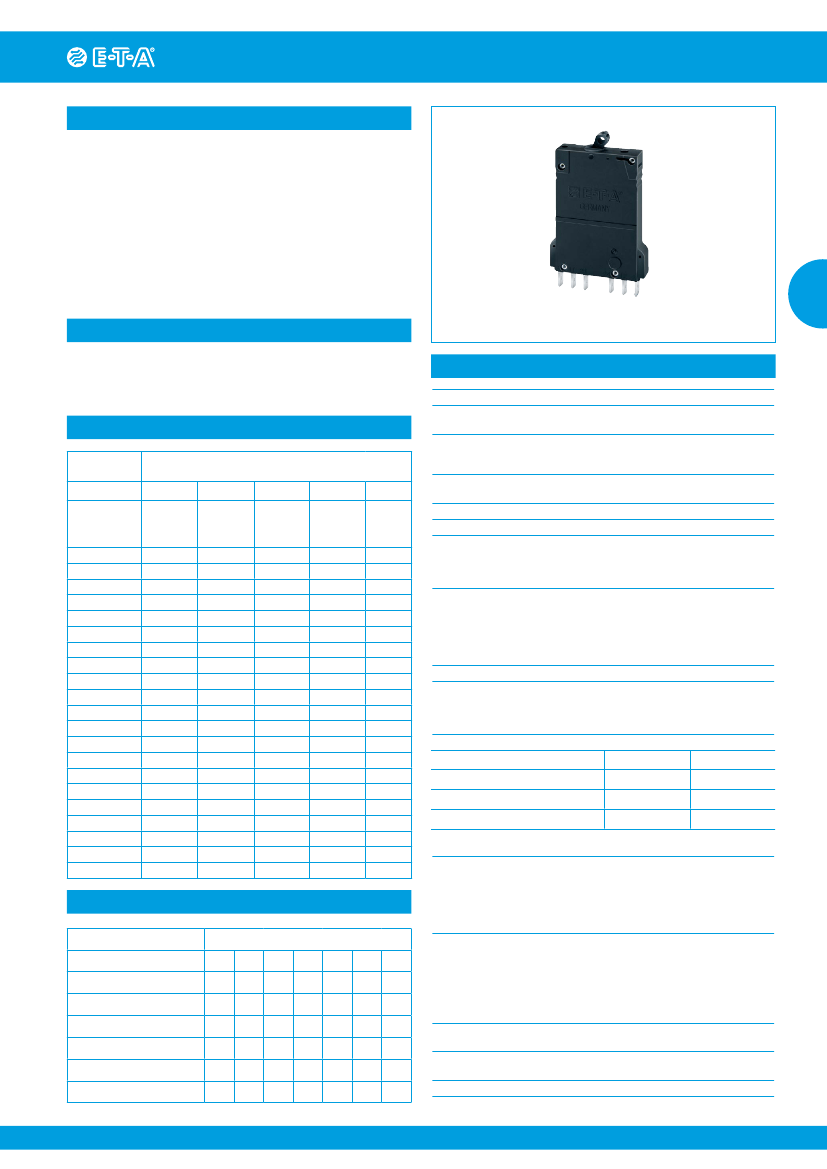

Description

One, two and three pole thermal-magnetic circuit breakers with tripfree

mechanism and toggle actuation (S-type TM CBE to EN 60934/IEC

934). Designed for panel or plug-in mounting. Available with auxiliary

contacts (1 x N/O, 1 x N/C) for status signalling. Two and three pole

models are internally linked to ensure that both/all poles trip in the

event of an overload on one pole, even if the actuator is held in the ON

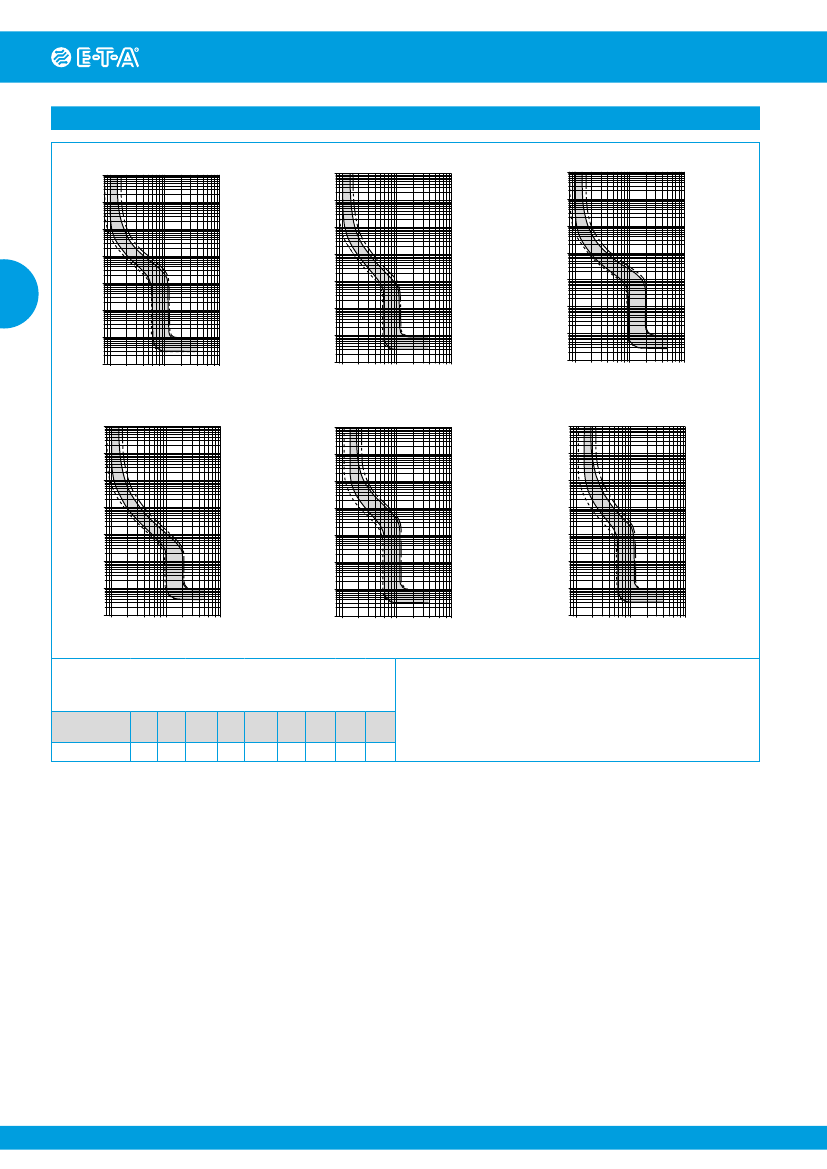

position. A choice of characteristic curves further extends the range

of applications possibilities for these CBEs. Special auxiliary contact

versions for industrial atmosphere and low voltages (e. g. 5 V) available

on request.

Approved to CBE standard EN 60934 (IEC 60934).

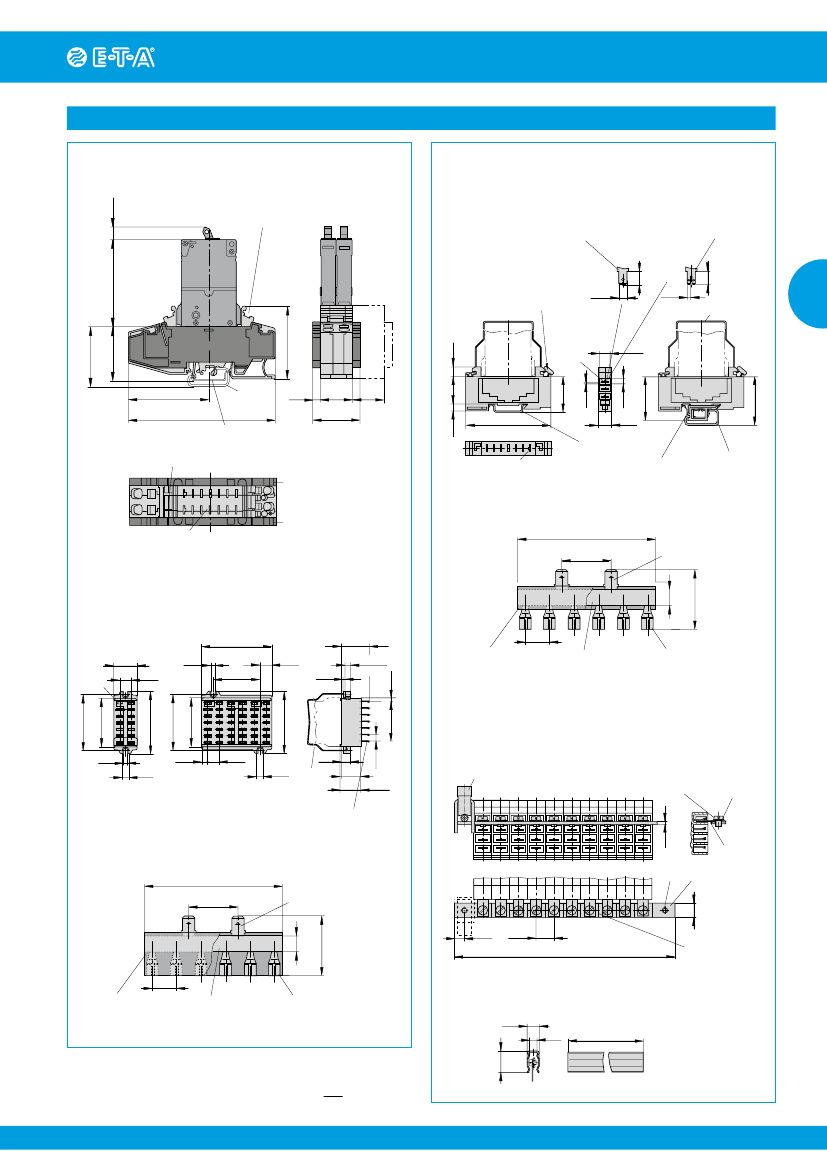

Suitable for use in distribution rails – see section Power Distribution

Systems.

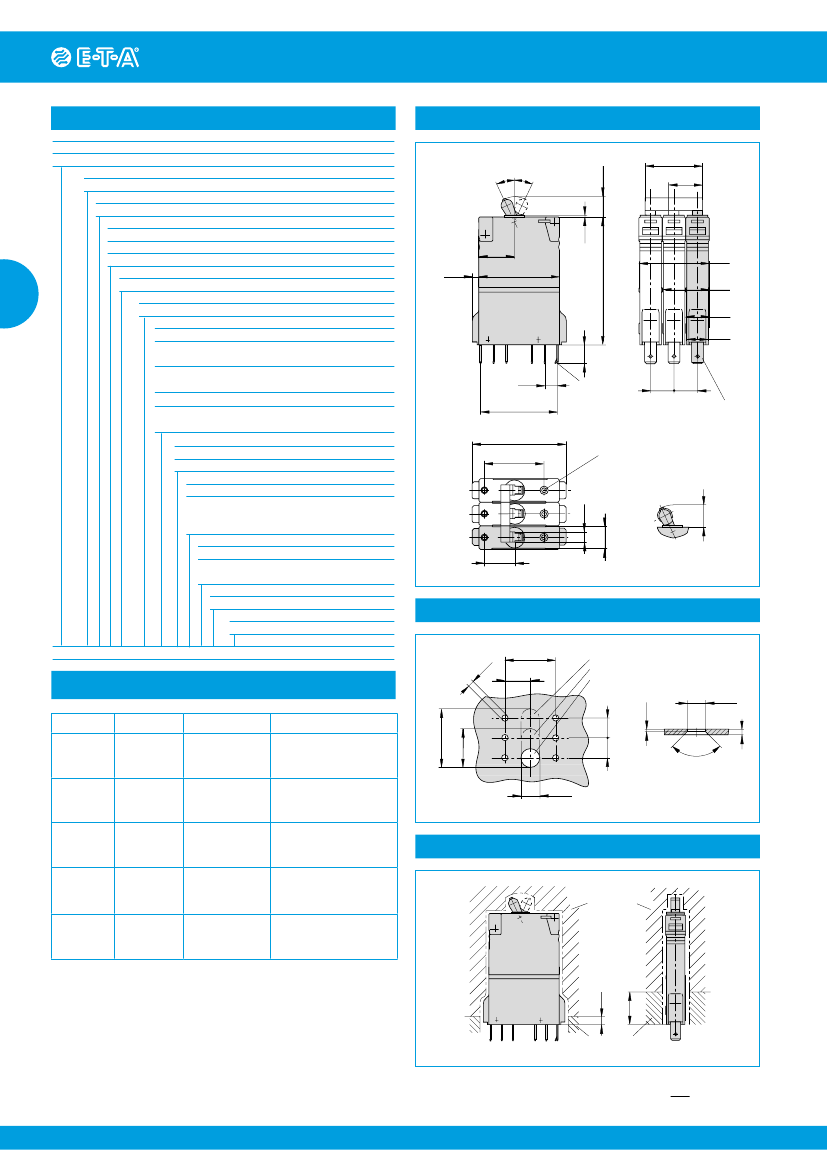

2210-S2..

Technical data

For further details please see chapter: Technical Information

Voltage rating

AC 250 V*; 3 AC 433 V (50-60Hz); DC 65 V

(*UL: AC 277/480 V; DC 65 V)

Current rating range

0.1...25 A for curves M1, T1

0.1...16 A for curves F1, F2

1...16 A for curves M3

Auxiliary circuit

1 A, AC 240 V/DC 65 V, resistive

(min. 10 V / 10 mA)

Typical life

10,000 operations at 1 x I

, inductive

Ambient temperature

-30...+60 °C (-22...+140 °F) T 60

Insulation co-ordination

rated impulse

pollution

(IEC 60664 and 60664A) withstand voltage

degree

2.5 kV

reinforced insulation in operating area

Dielectric strength

(IEC 60664 and 60664A) test voltage

operating area

AC 3,000 V

main/aux. circuit

AC 1,500 V

aux. circuit 11-12/23-24 AC 1,000 V

pole/pole

AC 1,500 V

Insulation resistance

> 100 MΩ (DC 500 V)

Interrupting capacity I

0.1...5 A

400 A

6...25 A

800 A

curves F1, F2, M1, T1: 0.1...16 A

2,500A (at DC 32 V)

curve M3:

1...2 A AC

200 A

DC 400 A

Interrupting capacity (UL 1077)

0.1...16 A

20...25 A

Typical applications

Process control equipment, robotics, machine tool control, communications

systems, instrumentation, rail vehicles. Special versions, e.g. for aggressive

environmental conditions and low voltages (e. g. 5 V) on request.

Standard current ratings and typical internal resistance values

Current

rating (A)

Internal resistance (Ω)

fast acting

for DC only

fast acting

delay

for AC+DC

standard

for AC+DC

delayed

low

resistance

only for AC

standard

delay

0.1

0.2

0.3

0.4

0.5

0.6

0.8

1.5

2.5

162

39.3

17.5

9.2

6.8

4.2

2.8

1.6

0.78

0.42

0.26

0.18

0.12

0.092

0.054

0.025

0.022

≤ 0.02

162

39.3

17.5

9.2

6.8

4.2

2.8

1.6

0.78

0.42

0.26

0.18

0.12

0.092

0.054

0.025

0.02

≤ 0.02

26.1

11.6

6.6

4.1

1.65

1.10

0.47

0.28

0.183

0.124

0.077

0.063

0.045

≤ 0.02

24.2

10.4

6.0

3.9

2.7

1.53

0.98

0.42

0.24

0.17

0.12

0.073

0.055

0.039

≤ 0.02

0.5

0.22

0.136

0.083

0.057

0.041

0.032

0.021

≤ 0.02

AC 277 V

1-pole

AC 277/480 V

2-/3-pole

5,000 A

2,000 A

DC 65 V

Degree of protection

(IEC 60529/DIN 40050)

Vibration

Preferred types

1-pole:

2210-S211-P1F1-H111-

2210-S211-P1M1-H111-

2210-S211-P1M1-Z111-

2-pole:

2210-S221-P1M1-H111-

2210-S221-P1M1-H211-

Standard current ratings (A)

Shock

Corrosion

Humidity

Mass

operating area IP30

terminal area IP00

curves F1, F2:

3 g (57-500 Hz), ± 0.23 mm (10-57 Hz)

curves M1, M3, T1:

5 g (57-500 Hz), ± 0.38 mm (10-57 Hz)

to IEC 60068-2-6, test Fc

10 frequency cycles/axis

curves F1, F2:

25 g (11 ms), directions 1, 2, 3, 4, 5

10 g (11 ms), direction 6

curves M1, M3, T1:

25 g (11 ms), directions 1, 2, 3, 4, 5

20 g (11 ms), direction 6

to IEC 60068-2-27, test Ea

96 hours in 5 % salt mist

to IEC 60068-2-11, test Ka

240 hours at 95 % RH

to IEC 60068-2-78, test Cab

approx. 50 g per pole

1812

www.e-t-a.de
