3.14.002.013/0000 datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> 3.14.002.013/0000

3.14.002.013/0000: DescriptionIlluminated Tactile Switches .02V 1NO 2.9N 2 LED Gold contacts; CategoryMechanical and electronic products switch; File Size912KB，2 Pages; ManufacturerRAFI; Environmental Compliance

Download Datasheet Parametric View All

3.14.002.013/0000 Overview

Illuminated Tactile Switches .02V 1NO 2.9N 2 LED Gold contacts

3.14.002.013/0000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PANEL MOUNTABLE
body width	19.05 mm
body height	9.7 mm
Body length or diameter	19.05 mm
Circuit configuration	1X1
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@35VDC
Maximum contact voltage (DC)	35 V
Electrical life	1000000 Cycle(s)
illumination	YELLOW LED
Installation features	THROUGH HOLE-STRAIGHT
Number of switches	1
Maximum operating force	3.5 N
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	KEYBOARD
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

21.05.2018

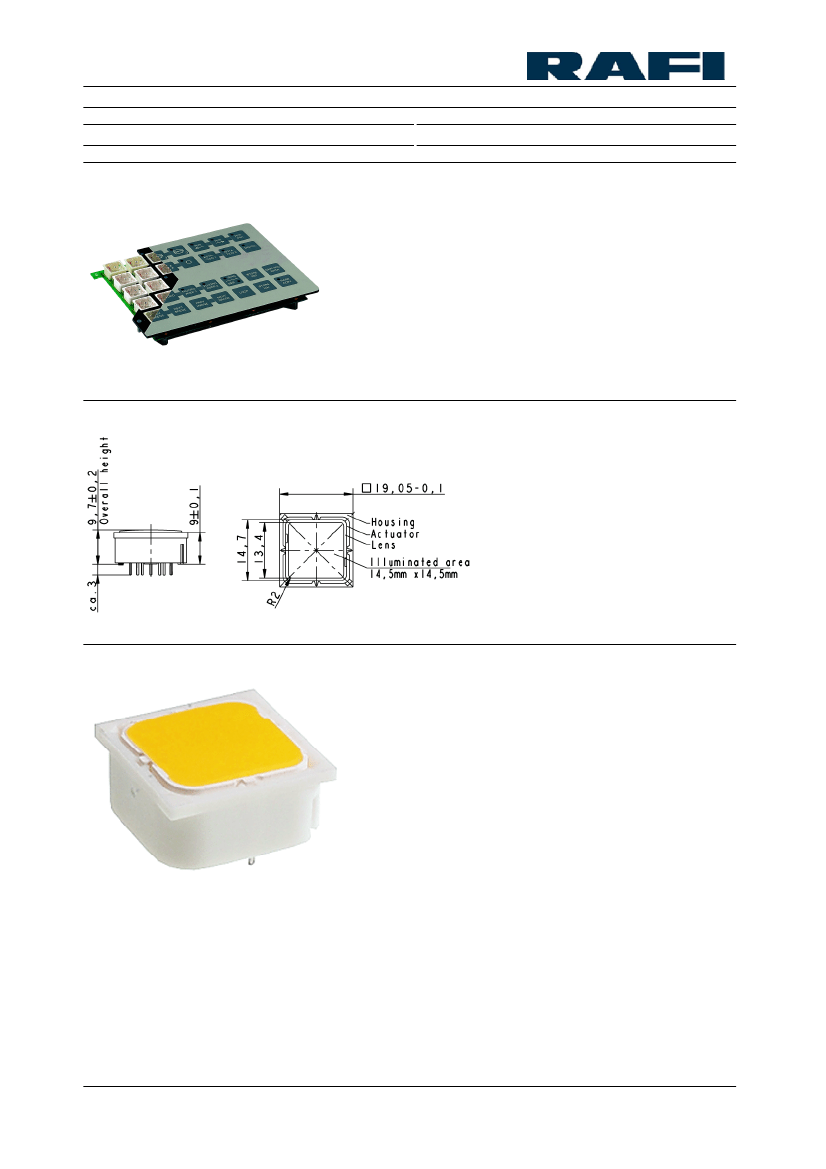

RF 19 - Tactile switch, fully illuminated with 2 LED, gold

contacts

3.14.002.013/0000

General information

Color of lens

Recommended key grid

Dimensions

Length

Width

Overall height

Mechanical design

Mounting

Terminals

Contact system

Contact arrangement

Contact materials

Illumination

LED color

LED type

Mechanical characteristics

Operating force max.

Switching travel

Robustness max.

Electrical characteristics

Rated voltage min.

Rated voltage max.

Rated current min.

Rated current max.

Rated power max. (ohmic load)

Contact resistance when new max.

Insulation resistance

Other specifications

Ambient temp. operating min.

Ambient temp. operating max.

Environmental restistance

Operating life min. (operations)

Solderability / solder heat resistance

Wave soldering

Manual soldering

yellow

23 mm

19.05 mm

9.7 mm

soldering in PCB

THT

snap-action contact

1 NO

fully illuminated 2 LED

yellow

2 mm

2.9

±0.6

0.5

+0.2

with through-plated PCB 100 N

Au: 0.02 V, Ag: 3 V

35 V

Au: 0.01 mA, Ag: 0.1 mA

Au: 100 mA, Ag: 250 mA

Au: 2 W, Ag: 12.5 W

100 mΩ

-25 °C

+70 °C

acc. to IEC 60068-2-14, -30, -33 and -78

1,000,000 cycle

according to DIN EN 60068-2-20

260 °C max.

350 °C / 5 sec. max.

Technical data are approximate and intended solely for general orientation in the selection of a product.

Subject to modifications and errors. Images and other graphics may only be similar.

For more information, refer to www.rafi.de chapter Imprint / Data Protection.
