RF 15 - Tactile switch, 2 LED spot-illumination, gold contacts
3.14.100.083/0000
General information
Color of lens
Recommended key grid
Dimensions
Length
Width
Overall height
Mechanical design
Mounting
Terminals
Contact system
Contact arrangement
Contact materials
Illumination
LED color
LED type
Mechanical characteristics
Operating force max.
Switching travel
Robustness max.
Electrical characteristics
Rated voltage min.
Rated voltage max.
Rated current min.
Rated current max.
Rated power max. (ohmic load)
Contact resistance when new max.
Insulation resistance
Other specifications
Ambient temp. operating min.
Ambient temp. operating max.
Environmental restistance
Operating life min. (operations)
Solderability / solder heat resistance
Wave soldering
Manual soldering
opaque white
19.05 mm
15 mm
15 mm
9.7 mm
soldering in PCB
THT
snap-action contact
1 NO
Au/Ag
spot illumination 2 LED
yellow
3 mm
2.9
±0.6
N
0.5
+0.2
mm
with through-plated PCB 100 N
Au: 0.02 V, Ag: 3 V
35 V
Au: 0.01 mA, Ag: 0.1 mA
Au: 100 mA, Ag: 250 mA
Au: 2 W, Ag: 12.5 W
100 mΩ
10
9
Ω
-25 °C
+70 °C
acc. to IEC 60068-2-14, -30, -33 and -78
1,000,000 cycle
according to DIN EN 60068-2-20
260 °C max.
350 °C / 5 sec. max.
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
21.05.2018
ROHS compliant
REACH compliant
yes
yes

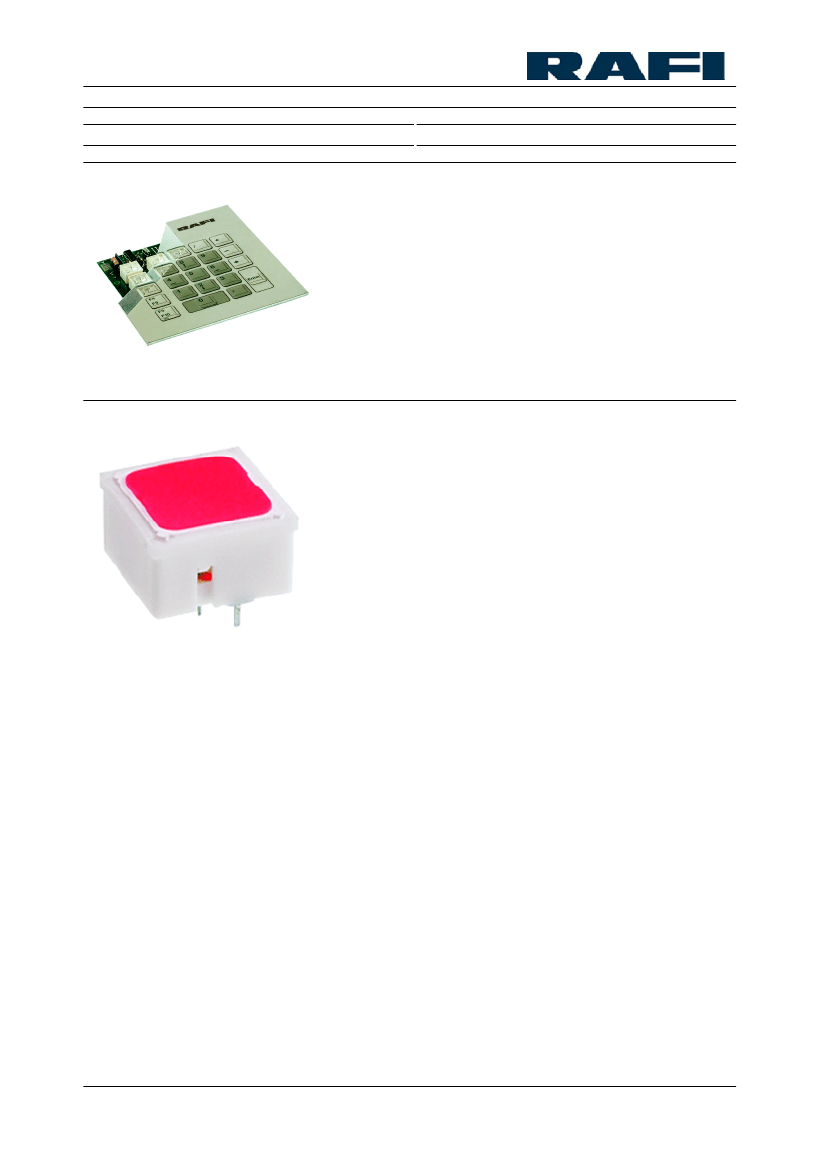

Lens red
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
