PDM71001ZXM Overview

Fuse Holder PWR DIST MOD w/TPAs HWB60-AL

PDM71001ZXM Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Littelfuse
Product Category	Fuse Holder
RoHS	Details
Product	Fuse Holders
Fuse Size / Group	113 mm x 52 mm x 81 mm
Mounting Style	Bolt In
Number of Poles	-
Current Rating	250 A
Voltage Rating	-
Termination Style	Bolt Down
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Bulk
Color	Black
Illumination	Not Illuminated
IP Rating	IP69K
Factory Pack Quantity	50

Preview

Download Datasheet

View All

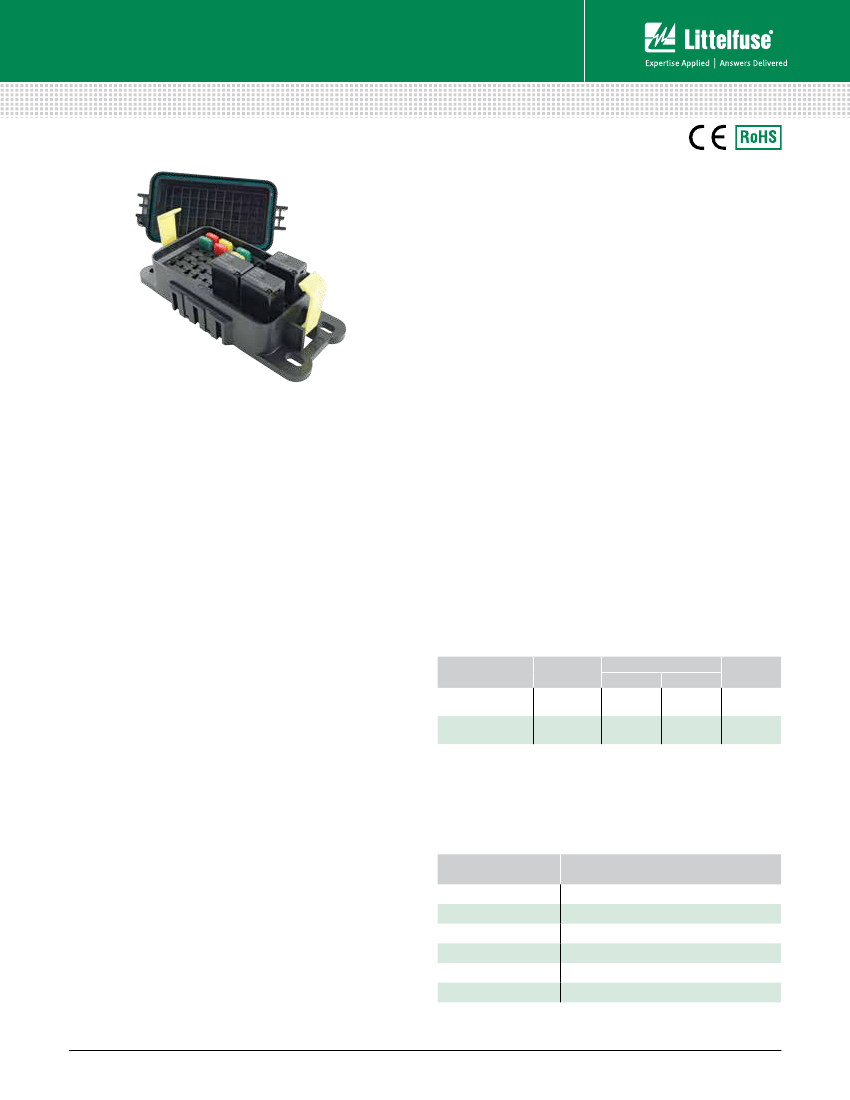

Commercial Vehicle Product Datasheet

HWB60-AL SEALED POWER DISTRIBUTION MODULE

Compact Hard-Wired PDM for 280 Style Components

Specifications Overview

Max Fuse Rating:

Max Continuous Current:

Number of Cavities

Mounting Torque:

Operating Temp:

Ingress Protection:

Corrosion Test:

30A per circuit

250A

4-6 Nm

-40 to +125 °C

IP67/IP69K

96 hours - salt spray test

to ASTM standard

SAE J1455

Description

The HWB60-AL Hard-Wired Box is the perfect fit for

accessory circuits and overflow circuits from your main PDM.

For smaller vehicles, this unit is an ideal solution as a main

vehicle module. It features durable construction, and IP67/

IP69K rating and a compact size. The user can customize their

own circuitry utilizing direct wire-to-component connections.

Vibration and Shock Test:

Applications

• Accessory Circuits

• Overflow Circuits

• Primary on Small Vehicles

Features and Benefits

• AssureLatch™ yellow positive-sealing latches keep the

cover securely in place while allowing for fast service.

• Accepts any mini (280 style) circuit protection component.

• Compact size allows the unit to be installed in vehicles

with limited space.

• Ideal for accessory circuits, overflow circuits from main

PDM, or as a main module on smaller vehicles.

• IP67/IP69K sealed units can be installed virtually

anywhere on the vehicle and stands up to road splash and

salt spray.

• TPAs (terminal position assurance locks) give secondary

locking protection of the wire leads, which help keeps

leads securely in place.

• Wires plug into the back of the unit using industry-

standard Delphi Metri-Pack Series 280 tanged terminals.

• Multiple units can be dovetailed together to expand

capacity. They can also be interlocked to other Littelfuse

PDMs and fuse holders. (FLEC, Flex-MEGA, Flex-MIDI).

• Add-on accessory can hold a fuse puller and spare fuses.

• Tethers available to prevent loss of cover during service.

• Optional grid on inside cover available; functions as relay

retention insert

Web Resources

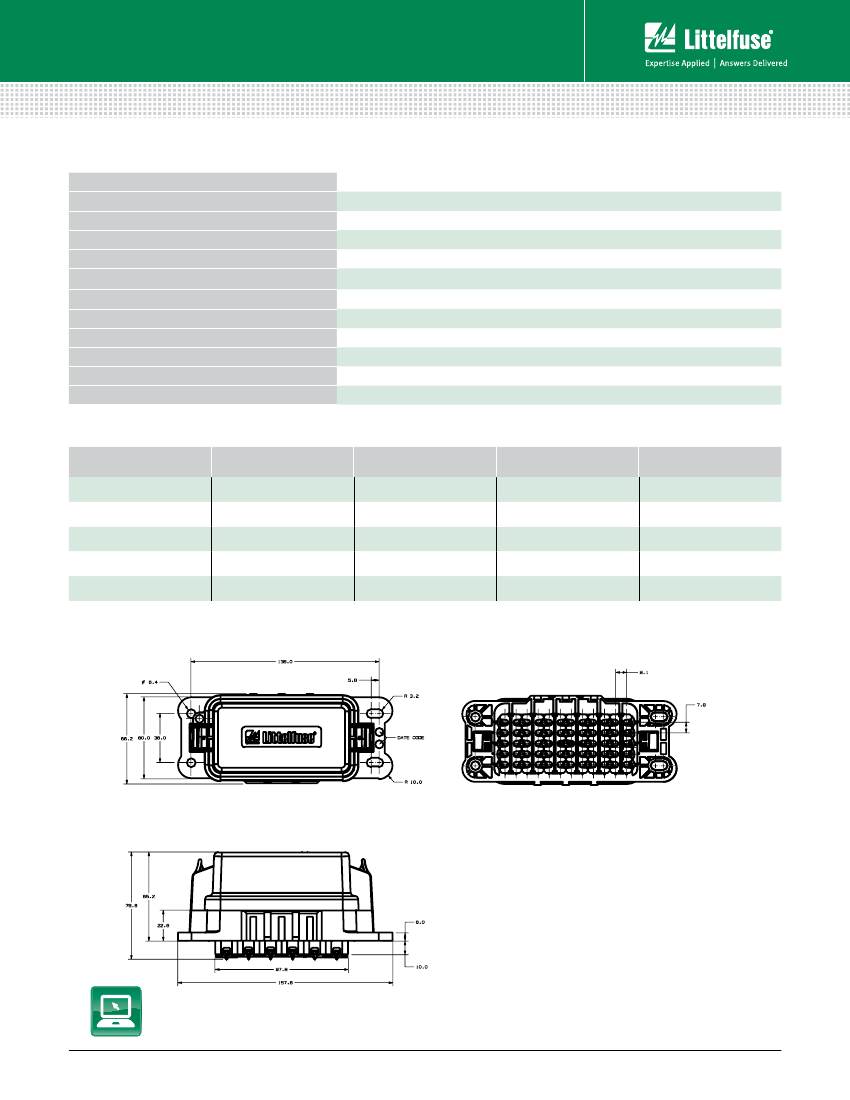

Download 2D print and technical resources at:

littelfuse.com/HWB60-AL

Ordering Information

PART NUMBER

PDM71001ZXM

PDM71003ZXM

COMPLETE

ASSEMBLY

•

AssureLatch™

FINGER

TOOL

•

GRID

Complete assembly includes: cover, base, gasket & 6 TPAs

TPA: Terminal Position Assurance secondary locks for wire terminals

Accessories and Service Parts

PART NUMBER

868-055

873-018

901-323

883-083

873-680

901-322

DESCRIPTION

Base

Cover

Gasket

TPA (6 needed per assembly)

Optional Tether

Grid

littelfuse.com

1 of 2

Rev: 050917
