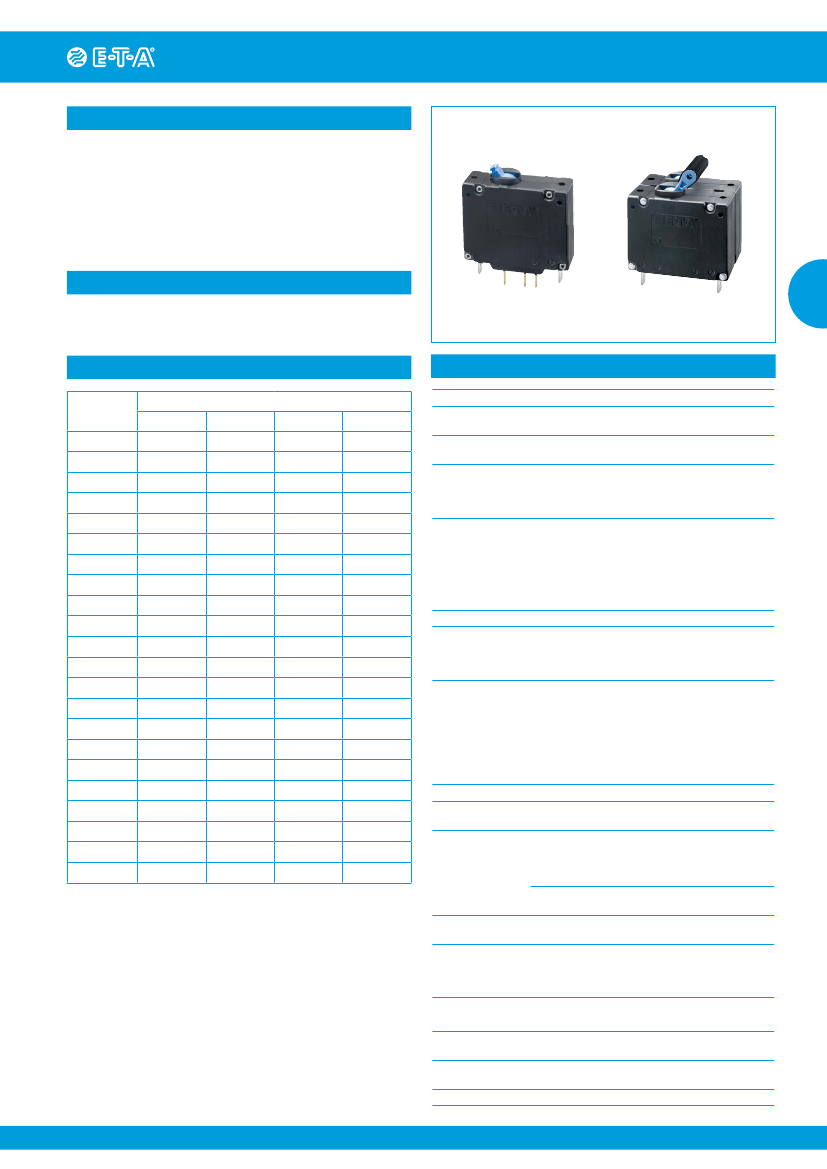

Magnetic and Hydraulic-Magnetic Circuit Breaker 8340-F...
Description
Single and multipole magnetic circuit breakers with trip-free
mechanism and toggle actuation. A choice of fast magnetic only or
hydraulically delayed switching characteristics (S-type MO or HM
CBE to EN 60934) ensures suitability for a wide range of applications.
Industry standard dimensions and panel mounting. Options include
auxiliary changeover contacts. Low temperature sensitivity at rated
load.
Approved to CBE standard EN 60934 (IEC 60934).
Typical application
Control equipment, communications systems, transportation, power
supplies.
1-pole
8340-F...
1
2-pole
Standard current ratings and typical internal resistance values
Current
rating (A)
0,02
0,05
0,1
0,25
0,5
0,75
1
2
2,5
3
5
6
8
10
12
15
16
20
25
30
40
50
Internal resistance values (Ω) per pole
F1
1 493
276
58
8,2
2,3
0,98
0,58
0,145
0,096
0,065
0,025
< 0,02
< 0,02
< 0,02
< 0,02
< 0,02
< 0,02
< 0,02
< 0,02
< 0,02
< 0,01
< 0,01
953
152
37
6,0
1,47
0,63
0,35
0,096
0,061
0,048
< 0,02
< 0,02
< 0,02
< 0,02
< 0,02
< 0,02
< 0,02
< 0,02
< 0,02
< 0,02
-
-
F2
K1, M1, T1
2 669
452
100
15,5
3,9
1,65
0,95
0,26
0,15
0,10
0,042
0,029
< 0,02
< 0,02
< 0,02
< 0,02
< 0,02
< 0,02
< 0,02
< 0,02
< 0,01
< 0,01
K2, M2, T2
2 457
376
94
14,7
3,2
1,56
0,90
0,20
0,15
0,10
0,040
0,028
< 0,02
< 0,02
< 0,02
< 0,02
< 0,02
< 0,02
< 0,02
< 0,02
-
-
Technical data
For further details please see chapter: Technical Information
Voltage rating
3 AC 415 V; AC 240 V, 50/60 Hz; DC 80 V
(higher DC ratings to special order)
Current ratings
0.02...50 A DC
0.02...30 A AC
Auxiliary circuit
6 A, AC 240 V;
3 A, DC 28 V
1 A, DC 65 V;
0.5 A, DC 80 V
Typical life
3 AC 415 V, AC 240 V:
0.02...30 A
6,000 operations at 1 x I
N
, inductive
10,000 operations at 1 x I
N
, resistive
DC 80 V: 0.02...25 A
6,000 operations at 1 x I
N
, inductive
0.02...30 A
10,000 operations at 1 x I
N
, resistive
40 + 50 A
6,000 operations at 1 x I
N
, resistive
Ambient temperature
-40...+85 °C (-40...+185 °F)
Insulation co-ordination
rated impulse
pollution
(IEC 60664 and 60664A) withstand voltage
degree
2.5 kV
2
reinforced insulation in operating area
Dielectric strength
(IEC 60664 and 60664A)
operating area
test voltage AC 3,000 V
Line to Load
test voltage AC 1,500 V
pole to pole
(2- and 3-pole)
test voltage AC 1,500 V
main to auxiliary circuit
test voltage AC 3,000 V
switching to trip circuit
test voltage AC 1,500 V
(version -X)
Insulation resistance
> 100 MΩ (DC 500 V)
Interrupting capacity
6 x IN at AC;
IEC 60934 - test sequence E 4 x IN at DC
Interrupting capacity
(UL 1077)
AC:
1-pole
2-pole
3-pole
1-pole
2-pole
I
N
0.02...20 A
25...30 A
AC 250 V/3,500A AC 250 V/3,500A
AC 250 V/3,500A AC 250 V/5,000A
3AC 250V/3,500A 3AC250V/5,000A
0.02...50 A
0.02...30 A
DC 80 V/3,500 A
DC 80 V/3500 A
DC:
Degree of protection
(IEC 60529/DIN 40050)
Vibration
with toggle down:
directions 1, 2, 3, 4, 5:
Shock
Corrosion
Humidity
Mass
1747
www.e-t-a.de
operating area IP40
terminal area IP00
10 g (57-2000Hz) ± 0.76 mm (10-57 Hz)
at 0.9 x IN
10 g (57-2000 Hz) at 1 x IN.
100 g (11 ms) at 1 x IN, directions 1,2,3,4,5
100 g (11 ms) at 0.8 x IN, direction 6.
96 hours at 5 % salt mist,
to IEC 60068-2-11, test Ka
240 hours at 95 % RH
to IEC 60068-2-78, test Cab
approx. 65 g per pole
1
Magnetic and Hydraulic-Magnetic Circuit Breaker 8340-F...
Ordering information
Type No.
8340
magnetic circuit breaker with toggle actuator
Mounting
F
flange mounting
Configuration
1
with mounting nuts 6-32 UNC
4
with mounting nuts M3
9
snap-in frame
Number of poles
1
single pole protected
magnetic and
2
two pole protected
hydraulic magnetic delayed
3
three pole protected
Panel hardware
0
without panel hardware
Terminal design (main contact)
K4
screw terminals M5 recommended for I
N
> 20 A
P1
blade terminals A6.3-0.8 mm (QC.250) (≤ 35 A)
Characteristic curve *
)
Characteristic curve, instantaneous:
F1
DC
F2
AC 50/60 Hz
Short delay:
K1
DC
K2
AC 50/60 Hz
Medium delay:
M1
DC
M2
AC 50/60 Hz
Long delay:
T1
DC
T2
AC 50/60 Hz
Actuator colour/design
A
black, long toggle
K
black, short toggle
Z
black, without toggle, with slot (only 1-pole)
other colours to special order
Marking on actuator
0
without marking
L
I-O; ON-OFF
N
I-O; ON-OFF (IN on housing top)
Auxiliary contacts
H0
without auxiliary contacts
H1
with auxiliary contacts, gold-flushed
H2
auxiliary contacts, gold-flushed
on one pole only (multipole)
Auxiliary contact function
4
1 change over contact
Auxiliary contact terminal design
2
blade terminal 2.8-0.5 mm
Current ratings
0.02...50 A
Approvals
Authority
VDE
Standard
IEC / EN
60934
UL 1077
Rated voltage
AC 240/415 V
AC 240 V
DC 80 V
AC 250 V
DC 80 V
DC 80 V
AC 250 V
DC 80 V
AC 240/415 V
AC 240 V
DC 80 V
AC 240 V
DC 50 V
AC 240 V
AC 240 / 415 V
Current ratings
0.02 A…30 A
0.02 A…30 A
0.02 A…50 A
0.02 A…30 A
0.02 A…50 A
100 A (2 poles in
parallel)
0.02 A…30 A
0.02 A…30 A
0.02 A…30 A
0.02 A…30 A
0.02 A…50 A
1 A…30 A (8340-F410)
1 A…30 A (8340-410)
1 A…30 A (8340-F420)
1 A…30 A (8340-F430)
UL
1
}
CSA
CQC
C22.2 No
235
GB 17701
QPL
Sweden
Defence
Material
Admin.
MIL-C-55629
Internal connection diagrams
1-pole protected
magnetic
line 1
11(C)
unit 1
12(NC) 14(NO)
12(NC) 14(NO)
I>
2 load
I>
2
1
unit 2
12(NC) 14(NO)
I>
unit 3
12(NC) 14(NO)
I>
2 load
2 load
11(C)
multipole
line 1
11(C)
1-pole protected
hydraulic-magnetic
line 1
11(C)
8340 - F
1 1
0 - P1 M1 - A L H1 4 2 - 30A
ordering example
*
)
Other characteristic curves upon request
(e.g. pulse delayed, for high
inrush currents or capacitive loads)
Preferred types
Preferred types
8340-F410-P1K1-KNH0-
8340-F410-P1K1-KNH142-
8340-F410-P1M1-KNH0-
8340-F410-P1M1-KNH142-
8340-F410-K4K1-KNH0-
8340-F410-K4K1-KNH142-
8340-F410-K4M1-KNH0-
8340-F410-K4M1-KNH142-
Standard current ratings (A)
1
x
x
x
x
2
x
x
x
x
3
x
x
x
x
5
x
x
x
x
8
x
x
x
x
10
x
x
x
x
12
x
x
x
x
16
x
x
x
x
20
x
x
x
x
25
30
40
50
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
2
www.e-t-a.de
1747
Magnetic and Hydraulic-Magnetic Circuit Breaker 8340-F...

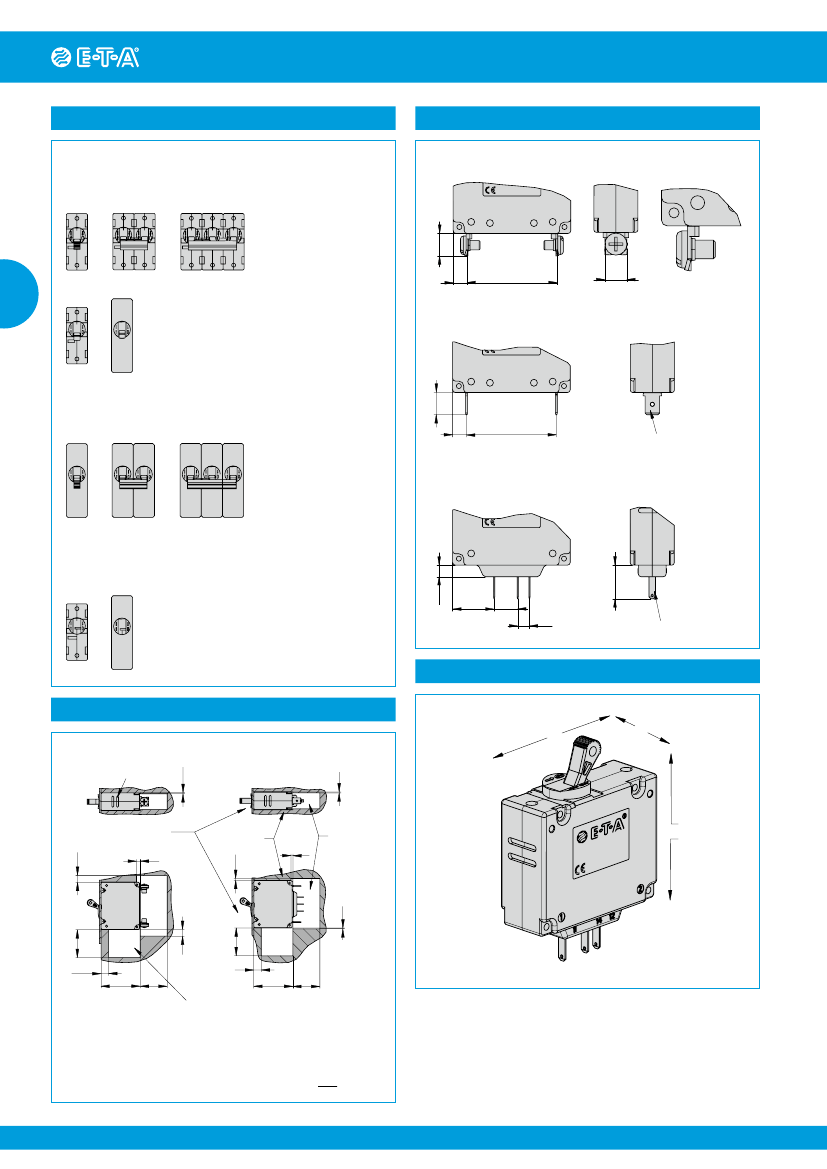

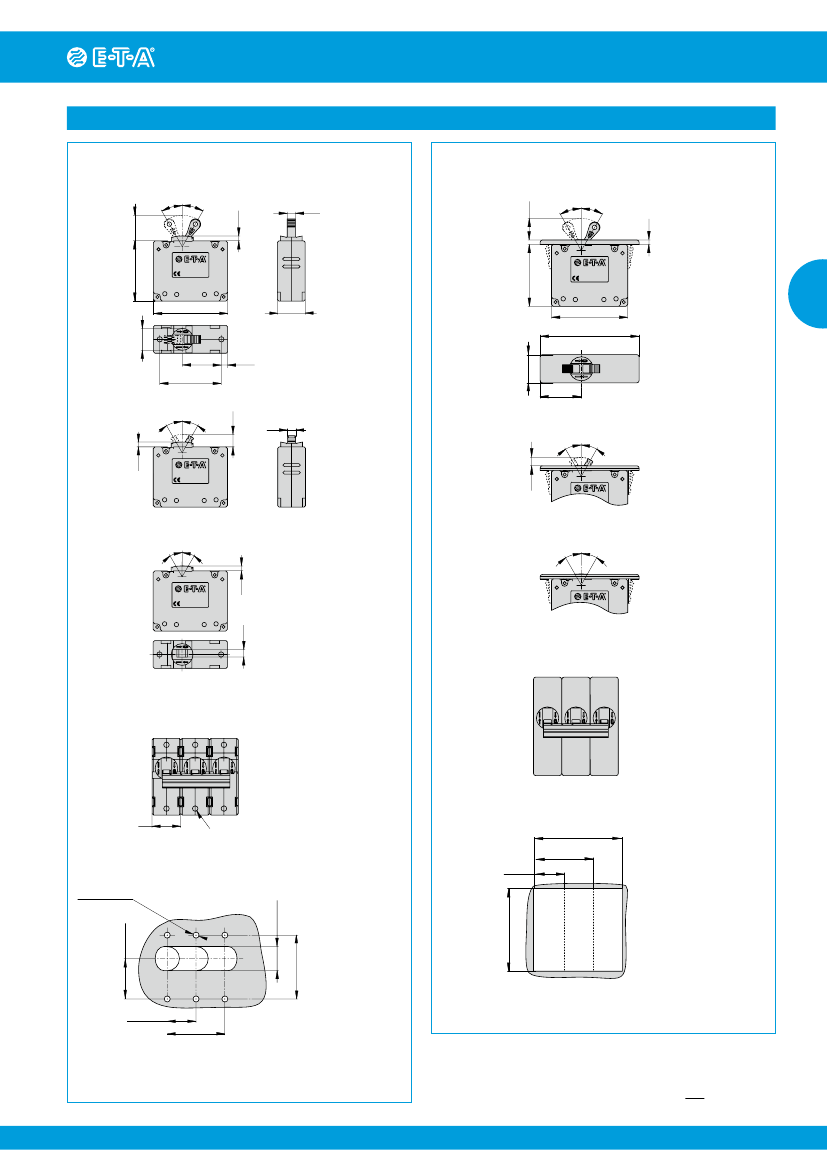

Dimensions
Flange mounting
Configuration: F4
Actuator: long toggle
30°
30°
Configuration: F9
Actuator: long toggle
3.3
.130
5.5
.217
14.4
.567
30°
ON
30°
17.5
.689
ON
OFF
OFF
41.2
1.62
41.2
1.62
3
.118
1
4
3
2
1
4
3
2
50.8
2.00
19
.748
Ø15
.591
50.8
2.00
66
2.60
19
.748
1
26.7
1.05
42.2
1.66
4.3
.169
Actuator: short toggle
30°
ON
27.4
1.08
8.6
.339
5.5
.217
30°
OFF
Actuator: short toggle
30°
ON
5.6
.220
30°
OFF
3.3
.130
1
4
3
2
Actuator: without toggle, with slot
ON
30°
30°
Actuator: without toggle, with slot
30°
30°
ON
OFF
OFF
1
5.3
.208
4
3
2
3.3
.130
number of poles: 1-3
Applicable for nominal dimensions without direct tolerance indication:
DIN ISO 286 ± IT13
Pole
1
2
3
number of poles: 1-3
pole:
1
2
3
Cut-out dimensions
max. panel thickness: 2 ± 0.1 mm or 4 ± 0.15 mm
(snap-fit)
19
.748
Cut-out dimensions
max. panel thickness: 3 mm
3.5
±0.1
(M3)
+0.1
4
-0.15
(6-32UNC)
Ø16
±0.12
.630
±.004
.138
±.004
(M3)
+.004
.157
-.006
(6-32UNC)
26.7
±0.1
1.05
±.004
mounting thread M3
or 6-32 UNC-2B
mounting depth
max. 4.5 mm/.177 in.
tightening torque max. 0.33 Nm
19.2
±0.2
.756
±.008
57.6
±0.2
2.27
±.008
38.4
±0.2
1.51
±.008
42.2
±0.1
1.66
±.004
Applicable for nominal dimensions without direct tolerance indication:
DIN ISO 286 ± IT13
19.05
±0.12
.750
±.005
38.1
±0.12
1.50
±.005
This is a metric design and millimeter dimensions take precedence ( mm )
inch
1747
www.e-t-a.de
55.4
±0.2
2.18
±.008
3
Magnetic and Hydraulic-Magnetic Circuit Breaker 8340-F...
Actuator configuration
Actuator design
number of poles: 1 - 3
Configuration: F4
Actuator long
1
0
Terminal design / Dimensions
K4 screw terminals M5
tightening torque max. 1.2 Nm
1
4
3
2
16 A
16 A
16 A
9.7
.382
OFF
0
OFF
0
OFF
0
OFF
OFF
0
OFF
0
1
Actuator short
6
.236
38.8
1.53
9.4
.370
OFF
0
OFF
0
P1 blade terminals
16 A
16 A
1
4
3
2
number of poles: 1 - 3
Configuration: F9
Actuator long
9.6
.378
6
.236
38.8
1.53
blade terminals
DIN 46244-A6.3-0.8
OFF
0
OFF
0
OFF
0
OFF
0
OFF
0
OFF
0
Auxiliary contacts
16 A
16 A
16 A
16 A
16 A
16 A
number of poles: 1
Configuration: F4 / F9
5
.197
1
11
14
12
2
Actuator: Z (black, without toggle, with slot)
17.9
.705
10.2
.401
OFF
OFF
5.1
.200
blade terminals
DIN 46244-A2.8-0.5
16 A
16 A
Shock directions / Mounting attitudes
Installation drawing
12
34
Terminal design K
1
.039
blow out outlet CBE
Terminal design P
1
.039
14.5
.571
operating area
(reinforced insulation)
4
.157
.276
7
mounting area
2
.079
2
.079
terminal
area
5
6
1.18
7
.276
8
.315
42
1.65
29
1.14
8
.315
1.18
30
30
42
1.65
29
1.14
blow out area
(minuaturable on request)
Trip time values indicated for front mounting on a vertical
even surface
This is a metric design and millimeter dimensions take precedence ( mm )
inch
1
.039
4
www.e-t-a.de
1747
Magnetic and Hydraulic-Magnetic Circuit Breaker 8340-F...

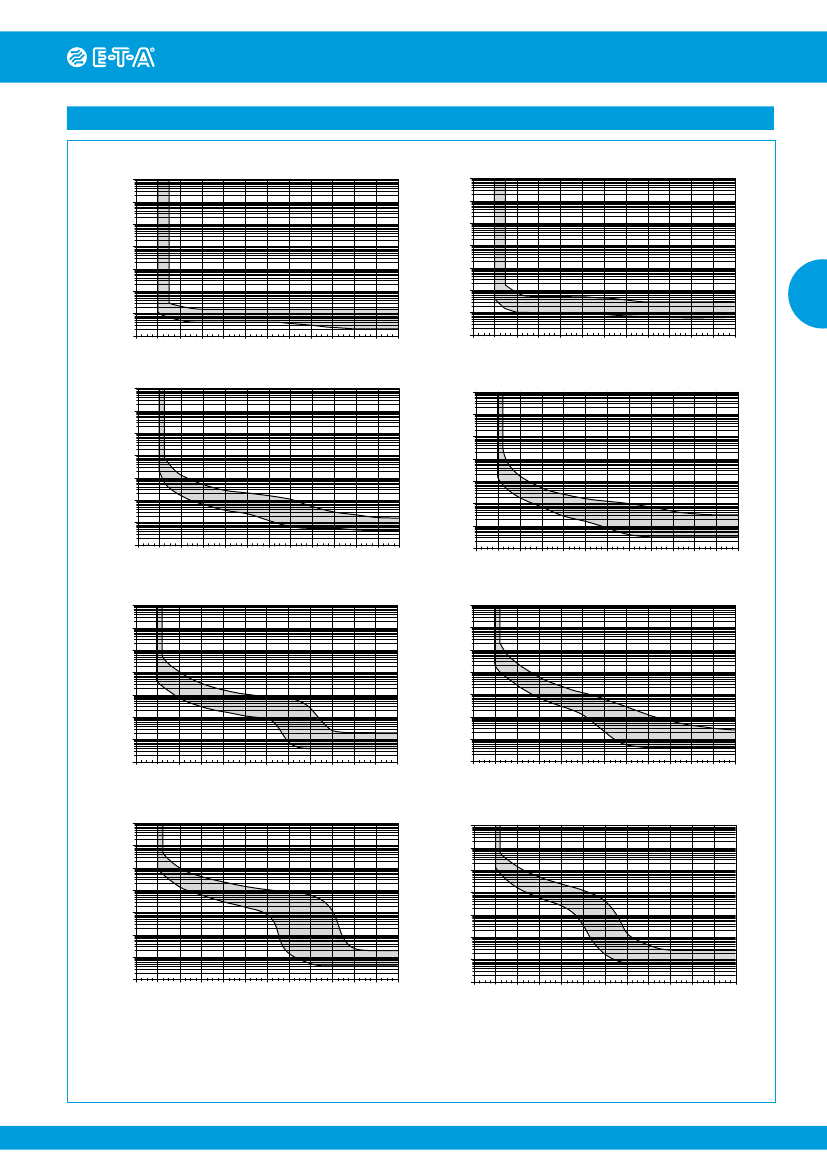

Typical time/current characteristics at 23 °C / +73.4 °F
Curve F1 (instantaneous) for DC
10000
1000
Trip time in seconds
100
10
1
0,1
0,01
0,001
0
1
2
3
4
5
6
7
8
… times rated current
9
10
11
12
Curve F2 (instantaneous) for AC
10000
1000
100
10
1
0,1
0,01
0,001
0
1
2
3
5
7
8
4
6
… times rated current
9
10
11
12
Trip time in seconds
1
Curve K1 (short delay) for DC
10000
1000
100
10
1
0,1
0,01
0,001
0
1
2
3
4
5
6
7
… times rated current
8
9
10
11
12
Curve K2 (short delay) for AC 50/60 Hz
10000
1000
100
10
1
0,1
0,01
0,001
0
1
2
3
4
6
5
7
… times rated current
8
9
10
11
12
Trip time in seconds
Curve M1 (medium delay) for DC
10000
1000
Curve M2 (medium delay) for AC 50/60 Hz
10000
1000
100
10
1
0,1
0,01
0,001
Trip time in seconds
10
1
0,1
0,01
0,001
0
1
2
3
4
5
6
7
8
… times rated current
9
10
11
12
Trip time in seconds
100
Trip time in seconds
0
1
2
3
4
6
7
5
… times rated current
8
9
10
11
12
Curve T1 (long delay) for DC
10000
1000
100
10
1
0,1
0,01
0,001
0
1
2
3
5
6
7
4
… times rated current
8
9
10
11
12
Curve T2 (long delay) for AC 50/60 Hz
10000
1000
100
10
1
0,1
0,01
0,001
0
1
2
3
4
5
6
7
… times rated current
8
9
10
11
12
Trip time in seconds
N.B.
All curves will only be maintained if the escutcheon is mounted on a vertical surface.
Ambient temperature or mounting side-by-side does not influence the trip curve, derating is not required.
The breakers may trip in the event of current peaks < 0.003 sec. For these applications we
offer a mechanical pulse delay – please enquire.
Other characteristic curves upon request (e.g. pulse delayed, for high inrush currents or capacitive loads).
1747
www.e-t-a.de
Trip time in seconds
5
京公网安备 11010802033920号
EEWORLD
