2FC53-73/TABS-XFA1 datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> 2FC53-73/TABS-XFA1

2FC53-73/TABS-XFA1: DescriptionToggle Switches F-Series Toggle Switch; CategoryMechanical and electronic products switch; File Size581KB，4 Pages; ManufacturerCarling Technologies

Download Datasheet Parametric View All

2FC53-73/TABS-XFA1 Overview

Toggle Switches F-Series Toggle Switch

2FC53-73/TABS-XFA1 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	4 weeks
Executor completed	NICKEL
Actuator length	0.687 inch
Actuator type	TOGGLE BAT
body width	16.1036 mm
body height	17.018 mm
Body length or diameter	28.8036 mm
Casing diameter	0.469 inch
Nozzle length	0.465 inch
Casing type	15/32-32
Contact (AC) maximum rated power R load	0.75HP@250VAC
Contact (AC) maximum rated R load	10A@250VAC
Maximum contact current (AC)	10 A
Contact function	ON-OFF-ON
Maximum contact voltage (AC)	250 V
Dielectric withstand voltage	1000VRMS V
Electrical life	50000 Cycle(s)
Insulation resistance	100000000 Ω
insulator material	PHENOLIC
Manufacturer's serial number	F
Installation features	PANEL MOUNT
Maximum operating temperature	66 °C
Minimum operating temperature	-17 °C
surface mount	NO
Switch action	MAINTAINED
switch function	SPDT
Switch type	TOGGLE SWITCH
Termination type	QUICK CONNECT
Base Number Matches	1

Preview

Download Datasheet

View All

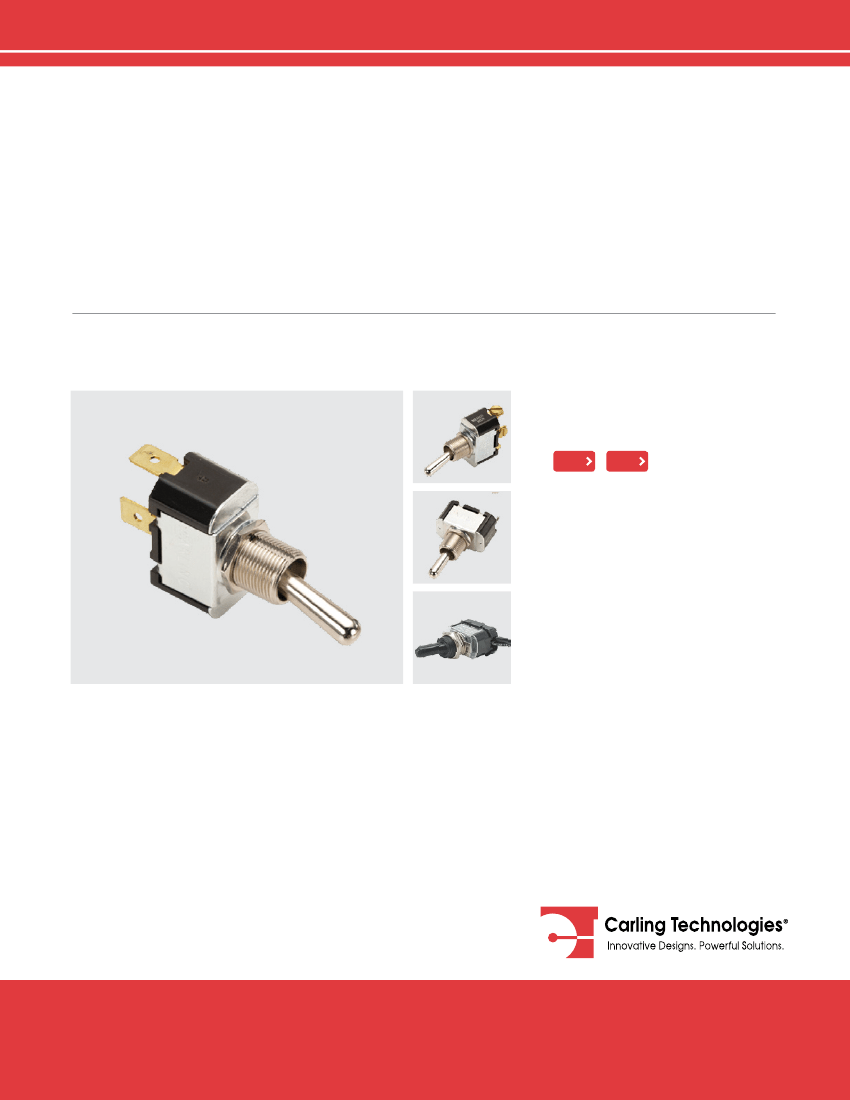

F-Series

SINGLE POLE TOGGLE SWITCHES

Resources:

IGS

STP

General purpose workhorses with options tailored to meet most any need. Ratings to 20A 277VAC, various

actuator, bushing, termination, and circuit choices allow this versatile switch to easily integrate into a

variety of different applications. The F-Series is appropriate for usage in low voltage DC applications.

Download 3D CAD Files

Product Highlights:

Ratings to 20A

Suitable for low voltage 12/24V DC

Variety of termination options

Consult factory for large choice of bushing/toggle

length combinations

Typical Applications:

Marine

Food Service

Generator

Industrial Control

Office Automation

Carling Technologies, Inc.

60 Johnson Avenue, Plainville, CT

06062

Email:

sales

carlingtech.com

Application Support:

team2

carlingtech.com

Phone:

860.793.9281

Fax:

860.793.9231

www.carlingtech.com
