87746-5101 datasheet, PDF - EEWORLD Datasheet

87746-5101: DescriptionCard Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size483KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

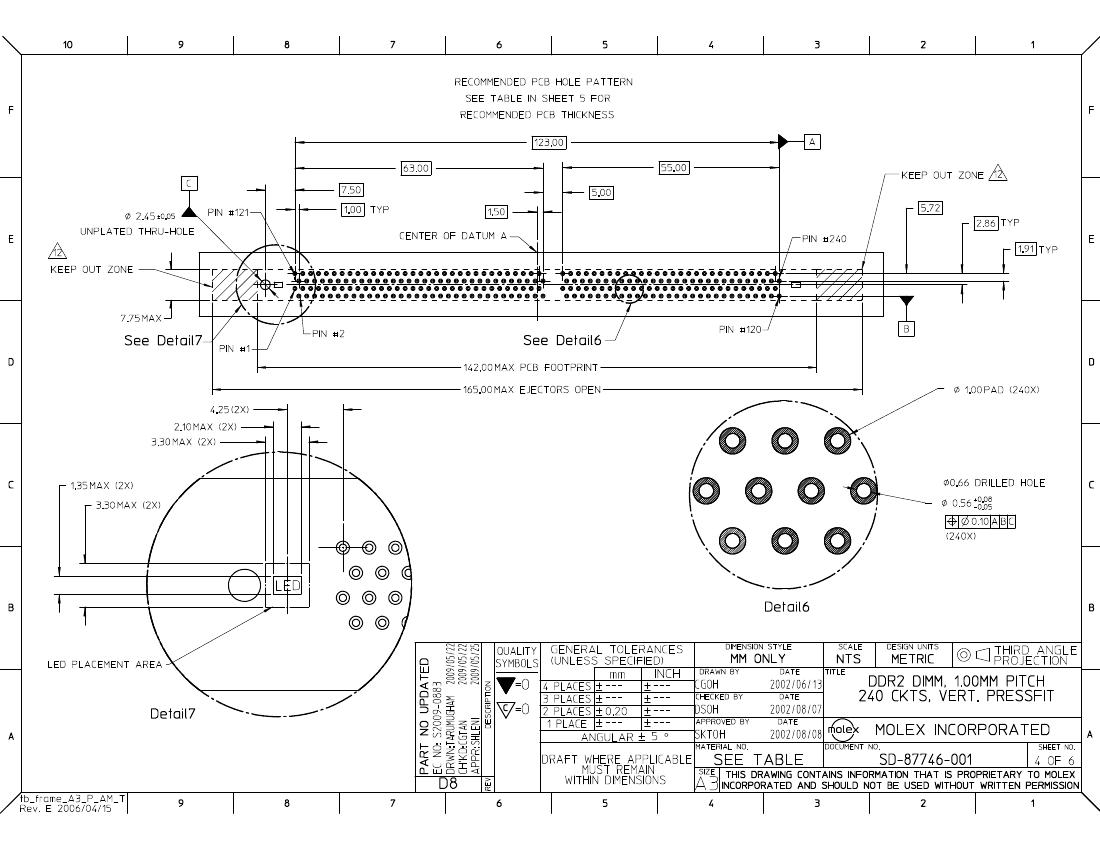

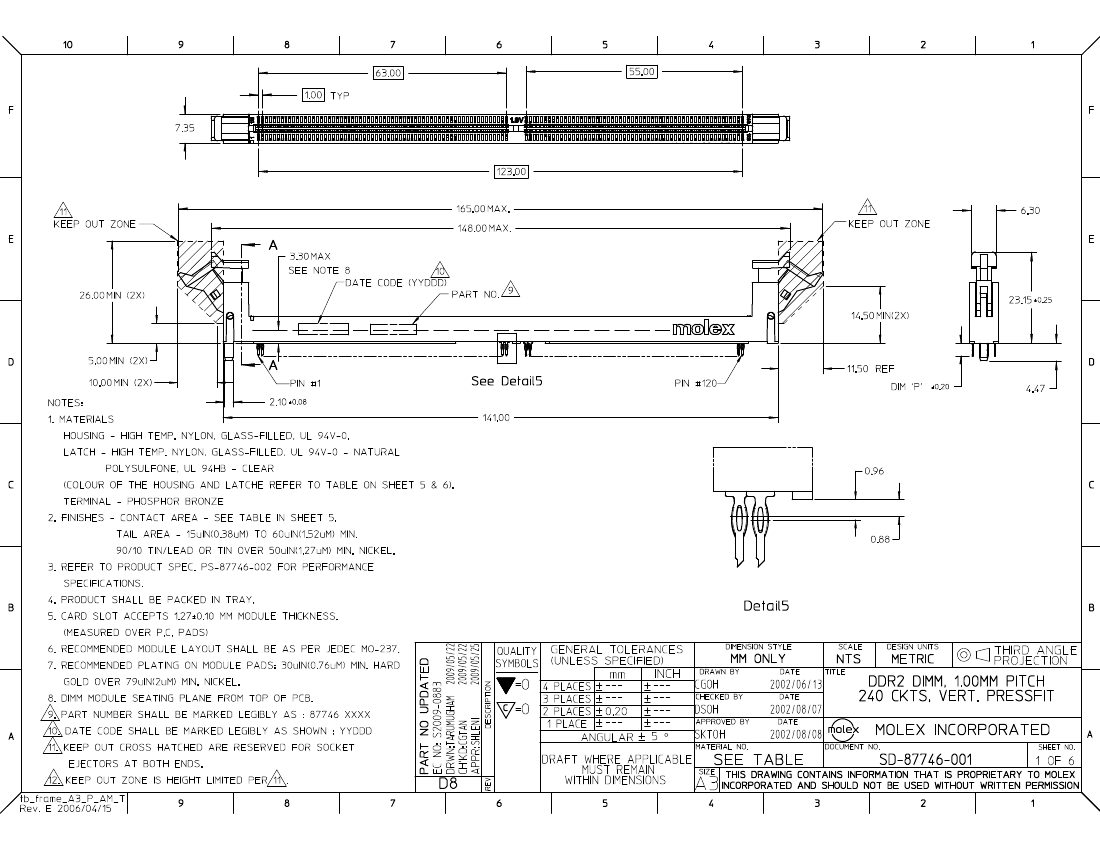

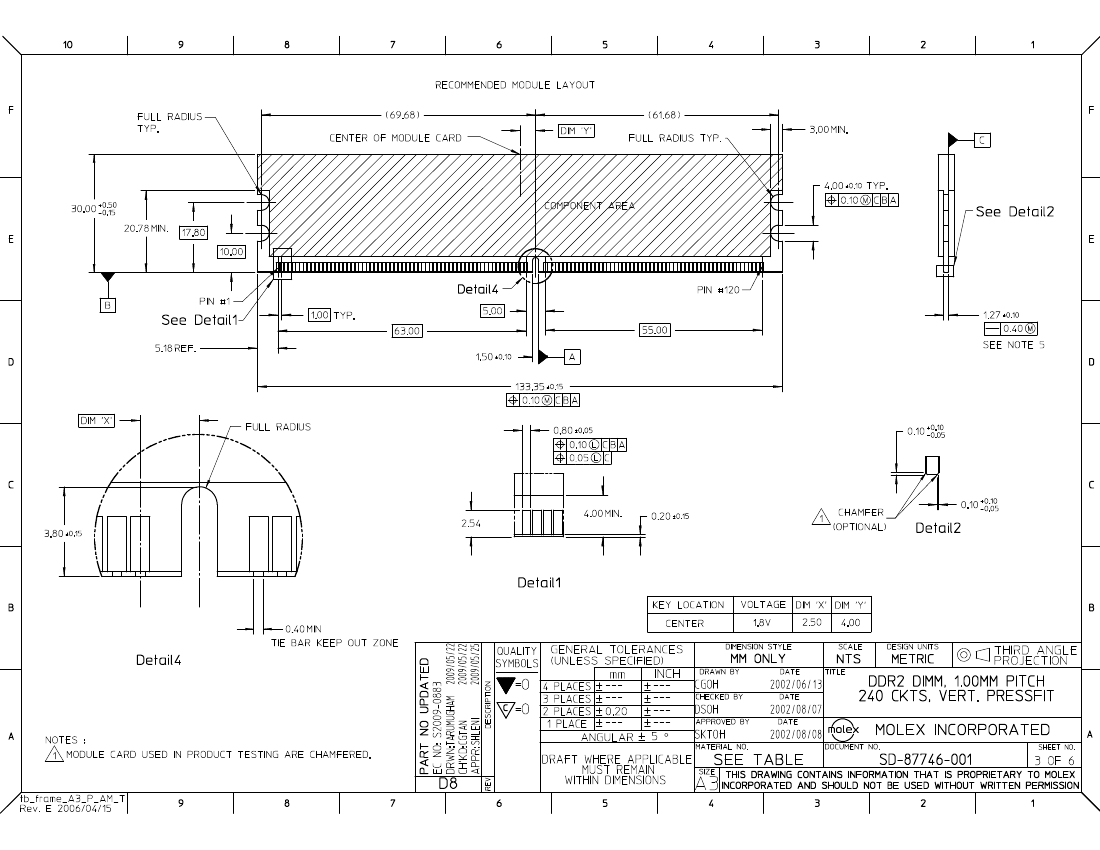

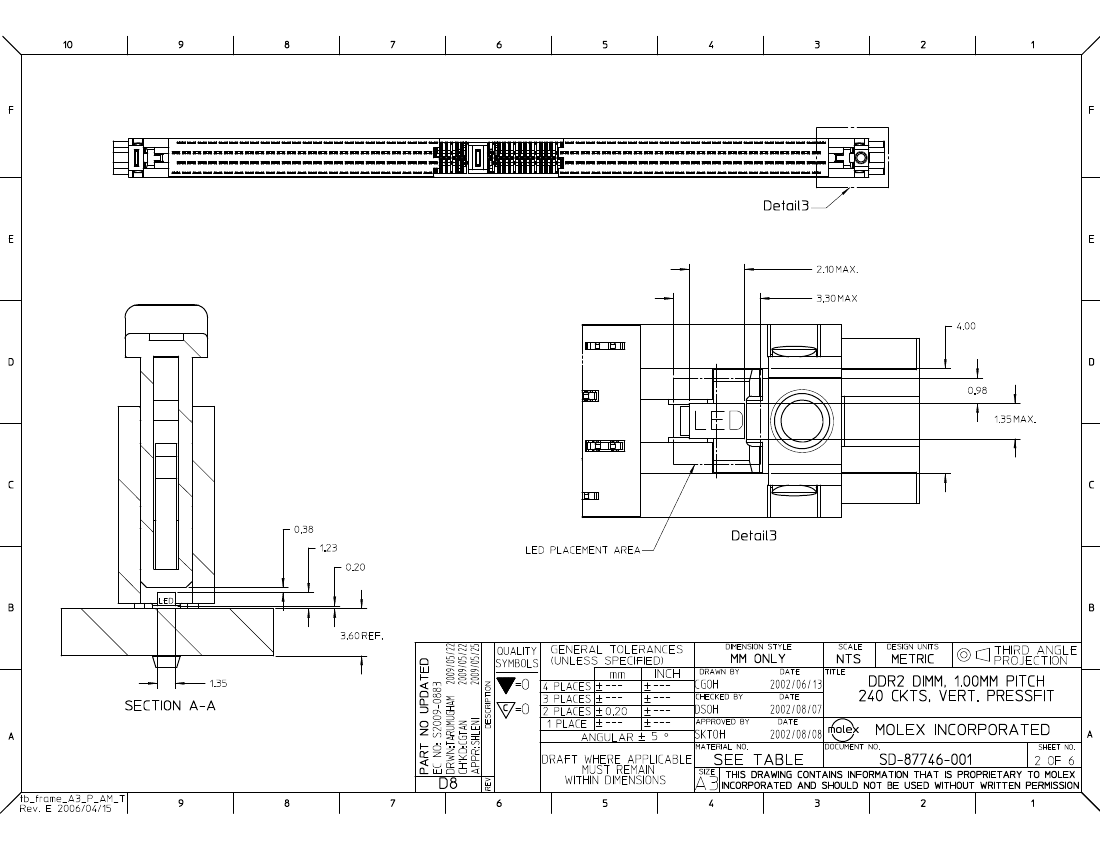

87746-5101 Overview

Card Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
Other features	LATCHED
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL
Contact completed and terminated	TIN LEAD (60) OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	87746
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	PRESS FIT
Total number of contacts	240
UL Flammability Code	94V-0
Base Number Matches	1

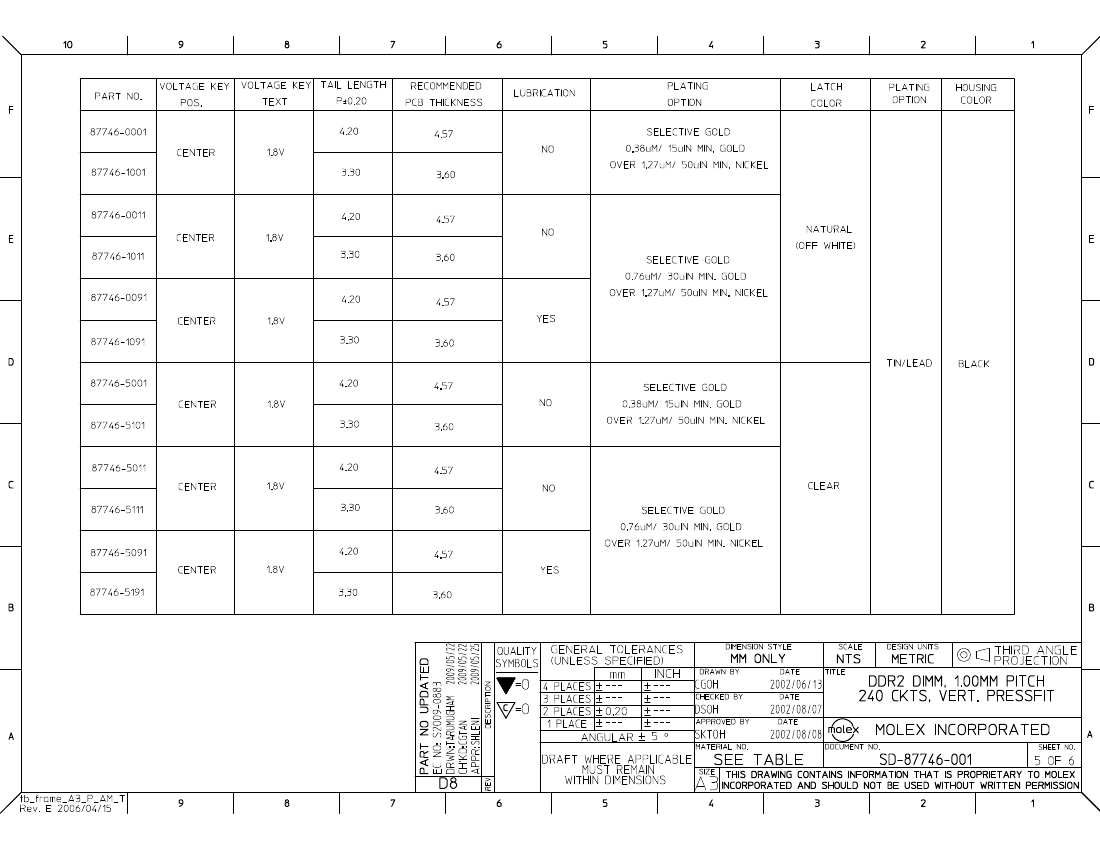

	87746-5101	87746-1001
Description	Card Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal	Card Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Press Fit Terminal, Latch & Eject, Black Insulator, Receptacle
Is it Rohs certified?	incompatible	incompatible
Maker	Molex	Molex
Reach Compliance Code	unknown	unknown
Other features	LATCHED	LATCHED
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL	GOLD (15) OVER NICKEL
Contact completed and terminated	TIN LEAD (60) OVER NICKEL	TIN LEAD (60) OVER NICKEL
Contact point gender	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e0	e0
MIL compliance	NO	NO
Manufacturer's serial number	87746	87746
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of rows loaded	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1 mm	1 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	240	240
UL Flammability Code	94V-0	94V-0
Base Number Matches	1	1
