CY7C1261V18, CY7C1276V18
CY7C1263V18, CY7C1265V18
36-Mbit QDR™-II+ SRAM 4-Word Burst
Architecture (2.5 Cycle Read Latency)
Features
■
Configurations
With Read Cycle Latency of 2.5 cycles:
CY7C1261V18 – 4M x 8
CY7C1276V18 – 4M x 9
CY7C1263V18 – 2M x 18
CY7C1265V18 – 1M x 36
Separate independent read and write data ports
❐
Supports concurrent transactions
300 MHz to 400 MHz clock for high bandwidth
4-Word Burst for reducing address bus frequency
Double Data Rate (DDR) interfaces on both read and write ports
(data transferred at 800 MHz) at 400 MHz
Read latency of 2.5 clock cycles
Two input clocks (K and K) for precise DDR timing
❐
SRAM uses rising edges only
Echo clocks (CQ and CQ) simplify data capture in high speed
systems
Single multiplexed address input bus latches address inputs
for both read and write ports
Separate Port Selects for depth expansion
Data valid pin (QVLD) to indicate valid data on the output
Synchronous internally self-timed writes
Available in x8, x9, x18, and x36 configurations
Full data coherency providing most current data
Core V
DD
= 1.8V ± 0.1V; IO V
DDQ
= 1.4V to V
DD[1]
HSTL inputs and variable drive HSTL output buffers
Available in 165-ball FBGA package (15 x 17 x 1.4 mm)
Offered in both Pb-free and non Pb-free packages
JTAG 1149.1 compatible test access port
Delay Lock Loop (DLL) for accurate data placement
■
■
■
■
■

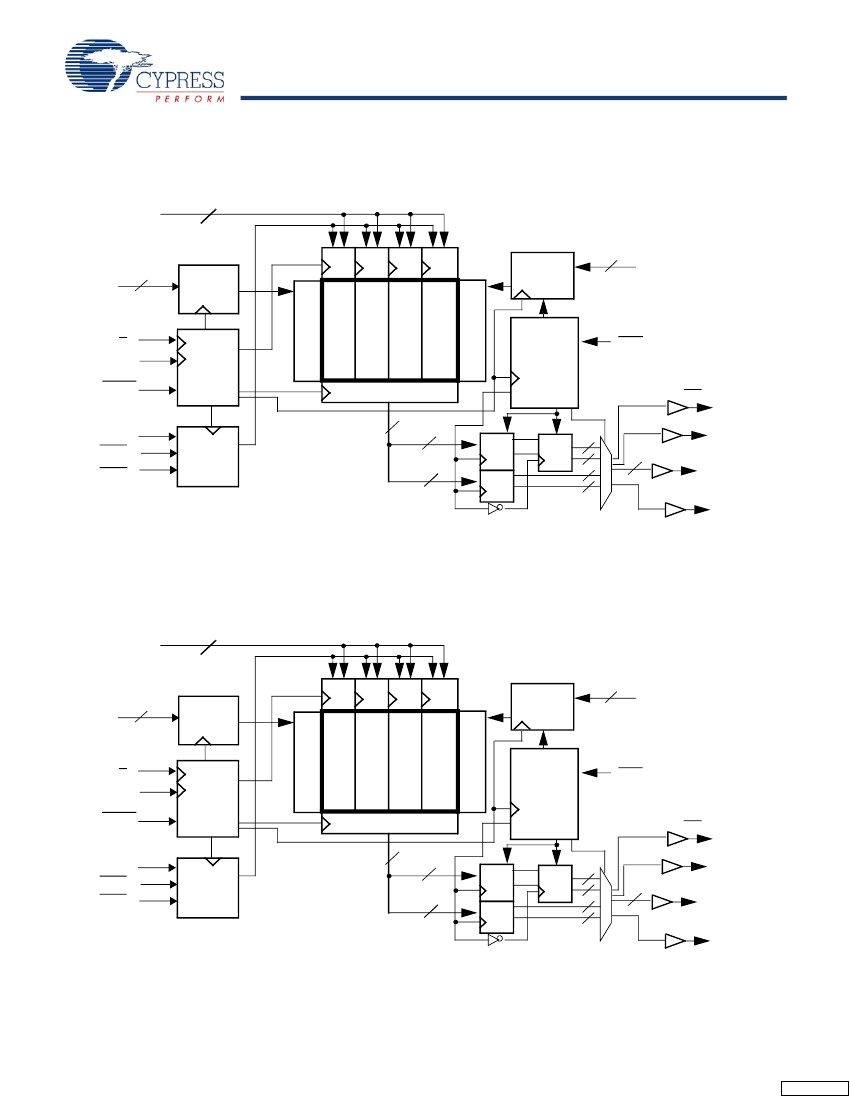

Functional Description
The CY7C1261V18, CY7C1276V18, CY7C1263V18, and
CY7C1265V18 are 1.8V Synchronous Pipelined SRAMs,
equipped with Quad Data Rate-II+ (QDR-II+) architecture.
QDR-II+ architecture consists of two separate ports to access
the memory array. The read port has dedicated data outputs to
support read operations and the write port has dedicated data
inputs to support write operations. QDR-II+ architecture has
separate data inputs and data outputs to completely eliminate
the need to “turn around” the data bus required with common IO
devices. Each port is accessed through a common address bus.
Addresses for read and write addresses are latched on alternate
rising edges of the input (K) clock. Accesses to the QDR-II+ read
and write ports are completely independent of one another. To
maximize data throughput, both read and write ports are
equipped with Double Data Rate (DDR) interfaces. Each
address location is associated with four 8-bit words
(CY7C1261V18), 9-bit words (CY7C1276V18), 18-bit words
(CY7C1263V18), or 36-bit words (CY7C1265V18) that burst
sequentially into or out of the device. Because data can be trans-
ferred into and out of the device on every rising edge of both input
clocks (K and K), memory bandwidth is maximized while simpli-
fying system design by eliminating bus “turn-arounds”.
Depth expansion is accomplished with Port Selects for each port.
Port selects enable each port to operate independently.
All synchronous inputs pass through input registers controlled by
the K or K input clocks. All data outputs pass through output
registers controlled by the K or K input clocks. Writes are
conducted with on-chip synchronous self-timed write circuitry.
■
■
■
■
■
■
■
■
■
■
■
■
■
Selection Guide
Description
Maximum Operating Frequency
Maximum Operating Current
400 MHz
400
1330
375 MHz
375
1240
333 MHz
333
1120
300 MHz
300
1040
Unit
MHz
mA
Note
1. The QDR consortium specification for V
DDQ
is 1.5V + 0.1V. The Cypress QDR devices exceed the QDR consortium specification and are capable of supporting
V
DDQ
= 1.4V to V
DD
.
Cypress Semiconductor Corporation
Document Number: 001-06366 Rev. *E
•
198 Champion Court
•
San Jose
,
CA 95134-1709
•
408-943-2600
Revised September 01, 2008
