L25 Incremental Optical Encoder
Shaft Diameter:
1/4” nominal
Flat On Shaft:
0.80 long x 0.03 deep
Shaft Loading:
up to 5 lbs. axial and 8 lbs. radial
Shaft Runout:
.0005 T.I.R. maximum
Starting Torque at 25°C:
0.07 in-oz typical, 0.12 in-oz maximum without sealed
bearings; 0.50 in-oz typical, 1.0 in-oz maximum with sealed bearings
Bearings:
Class ABEC 5
Shaft material:
416 stainless steel
Bearing Housing:
Die cast aluminum with iridite finish
Cover:
Drawn aluminum, 0.060” wall, protective finish standard. Die cast aluminum
with protective finish for EM, SM, ECS and SCS terminations
Bearing Life:
1 X 10
9
revs (6,700 hrs at 2500 RPM)
Maximum RPM:
10,000
Moment of Inertia:
4.1 x 10
-4
oz-in-sec
2
Weight:
13 oz. typical
Mechanical Specifications
Electrical Specifications

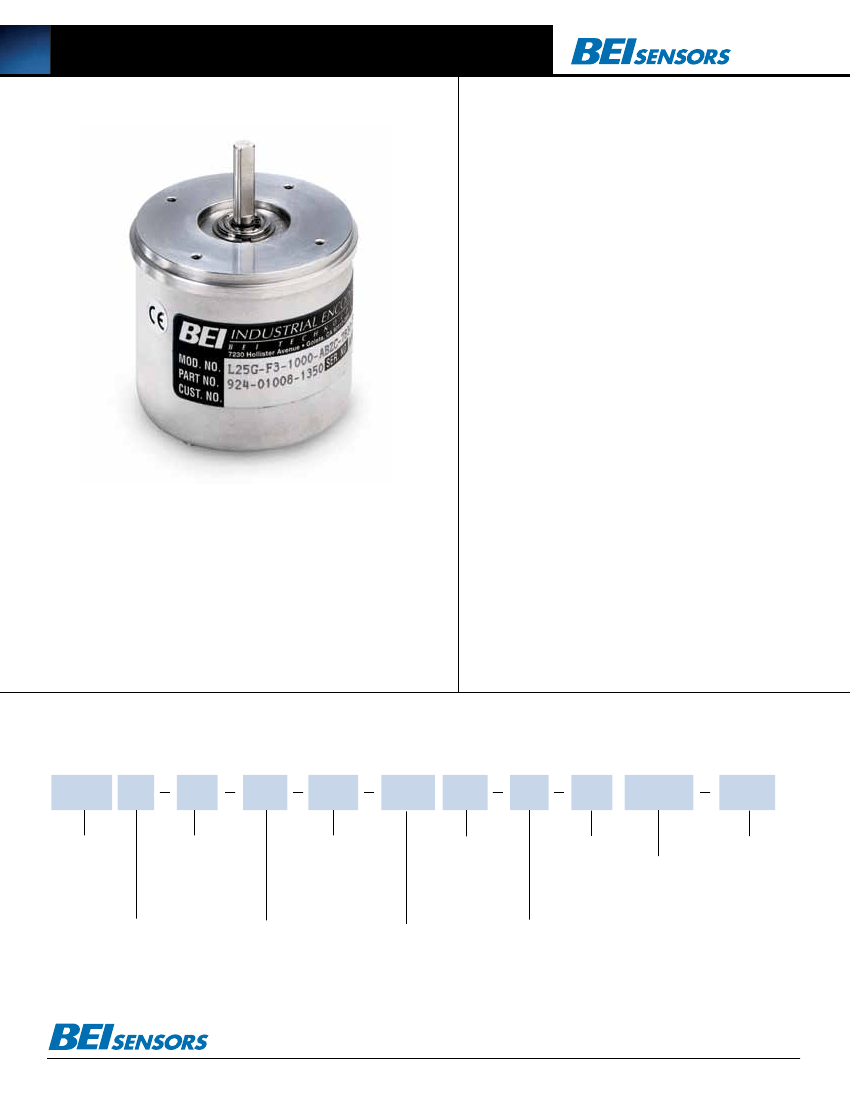

The L25 is a lighter duty version of BEI’s H25 optical encoder.
Incorporating the same high quality optics and electronics as the H25,
the L25 also offers low starting torque. Other features include ABEC
5 bearings, EMI shielding, a 1/4” diameter stainless steel shaft and
a drawn aluminum cover. Typical applications include use with light
machine tools, test and laboratory instrumentation, the biomedical
industry and flow metering.
Code:
Incremental
Cycles Per Shaft Turn:
1 to 28,800
Voltage/Output:
(see note 5)
15V/V: Line Driver, 5–15 VDC in, Vout = Vin
28V/V: Line Driver, 5–28 VDC in, Vout = Vin
28V/5V: Line Driver, 5–28 VDC in, Vout = 5 VDC
28V/OC: Open collector, 5–28 VDC in, OCout
Current Requirements:
TTL: 175 mA maximum 125 mA typical
Output Format:
2 channels in quadrature = 27º electrical typical. Optional index
is typically gated 1/2 cycle wide (see figure 1)
Protection Level:
Reverse, overvoltage and output short circuit (4469, 7272 only)
Frequency Response:
100 kHz (see note 7), up to 800 KHz with interpolation option
Output Terminations:
(see table 1)
Environmental Specifications
Enclosure Rating:
NEMA 2 (IP43)
Temperature:
Operating, 0º to 70º C; extended temperature testing available
(see note 8); storage; -25º to 90º C
Shock:
50 g’s for 11 msec duration
Vibration:
5 to 2000 Hz @ 20 G’s
Humidity:
98% RH without condensation
NOTES & TABLES:
All notes and tables referred to in the text can be found on the
back of this page.
Model L25 Ordering Options
L25
TYPE
:
L = Heavy Duty
25 = 2.500” Dia.
FoR ASSiSTANCe CAll
800-350-2727
Use this diagram, working from left to right to construct your model number (Example: L25G-F3-SB-2000-ABZC-28V/V-SC18).
G
OPTIONAL FACE
MOuNTS
CYCLES PER TuRN:
F1, F2, F3, or F4
Blank = None
(Enter Cycles)
See table 2
HOuSING CONFIG. LETTER: SHAFT SEAL CONFIGuRATION:
G=2.62 Dia. Servo Mount
See dimensions
SB = Seal Integral
with Bearing
Blank = Shielded Bearing
S= Special
features specified
E = End
M16 =
on purchase order
See note 4
S = Side
MS3102R16S-1P (consult factory)
D15 = DA15P
See table 6
VOLTAGE/OuTPuT:
NO. OF CHANNELS:
C = Pigtail Cable
15V/V = 5-15 V
in/out
28V/V
A = Single Channel
CS = Cable with Seal
= 5-28V
in/out
AB = Dual Quad. Ch.
Cable length
28V/5 = 5-28V
in
/
5V
out
ABZ = Dual with Index
specified in inches
AZ = Single with Index 28V/OC = 5-28V
in
/
OC
out
(i.e. C18 = Pigtail
See note 5
See note 3
18” long)
See table 1 & note 9
C = Complementary
Outputs
Blank = None
COMPLEMENTS
OuTPuT
TERMINATION
LOCATION:
OuTPuT
TERMINATION:
SPECIAL
FEATuRES:
Tel: 805-968-0782 /800-350-2727 | Fax: 805-968-3154 / 800-960-2726
7230 Hollister Ave., Goleta, CA 93117-2807 |
www.beisensors.com
Specification No. 02004-001 Rev.08-11
These commodities, technology or software if exported from the United States must be in accordance with the Bureau of Industry, and Security, Export Administration regulations. Diversion contrary to U.S law is prohibited.
EC = 2.06
.125
.125
0.22
L25 Incremental Optical Encoder
SC = 1.60
F1
EC = 2.06
SIDE
10-32 UNF-2B
.125
CABLE (SC)
0.188 Min.
PIGTAIL
Deep
18"
3 places equally spaced
LEADS
on a Ø
STANDARD
circle.
1.875. bolt
(22AWG)
0.88
± 0.03
0.22
.125
F1
10-32 UNF-2B
0.188 Min. Deep
3 places equally spaced
on a Ø 1.875. bolt circle.

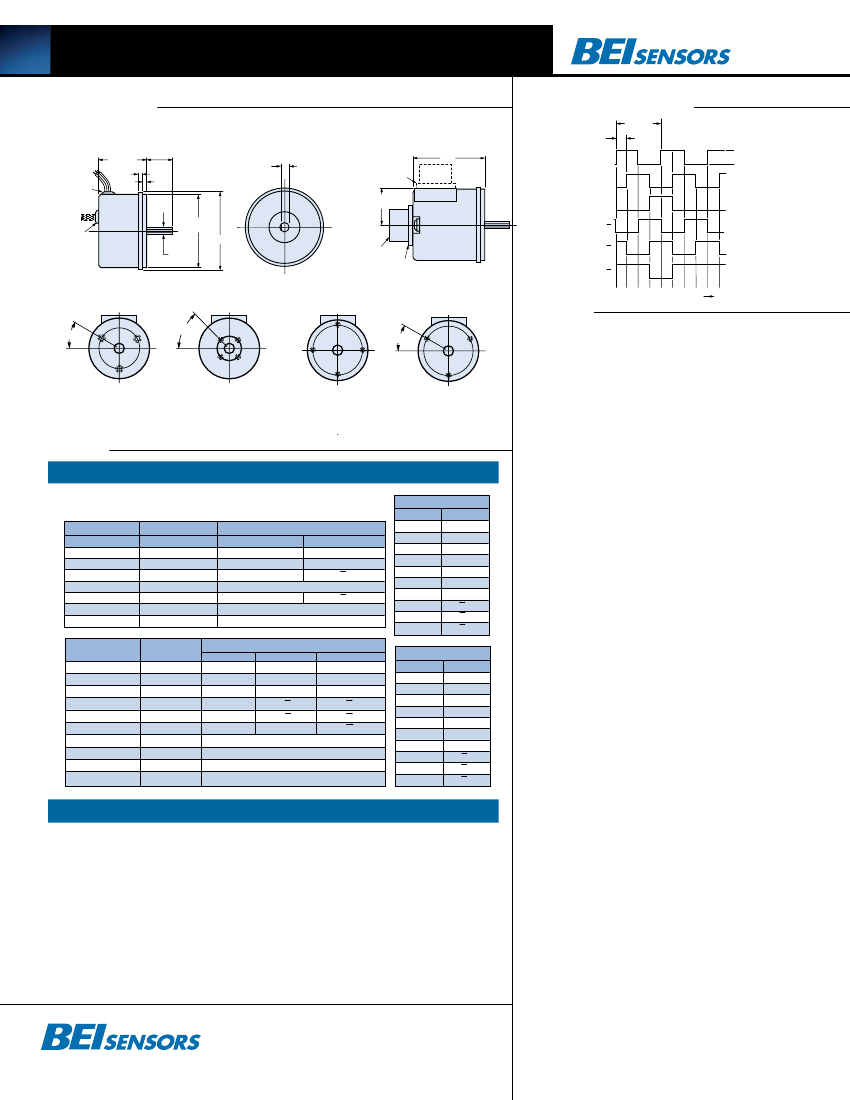

Dimensions
