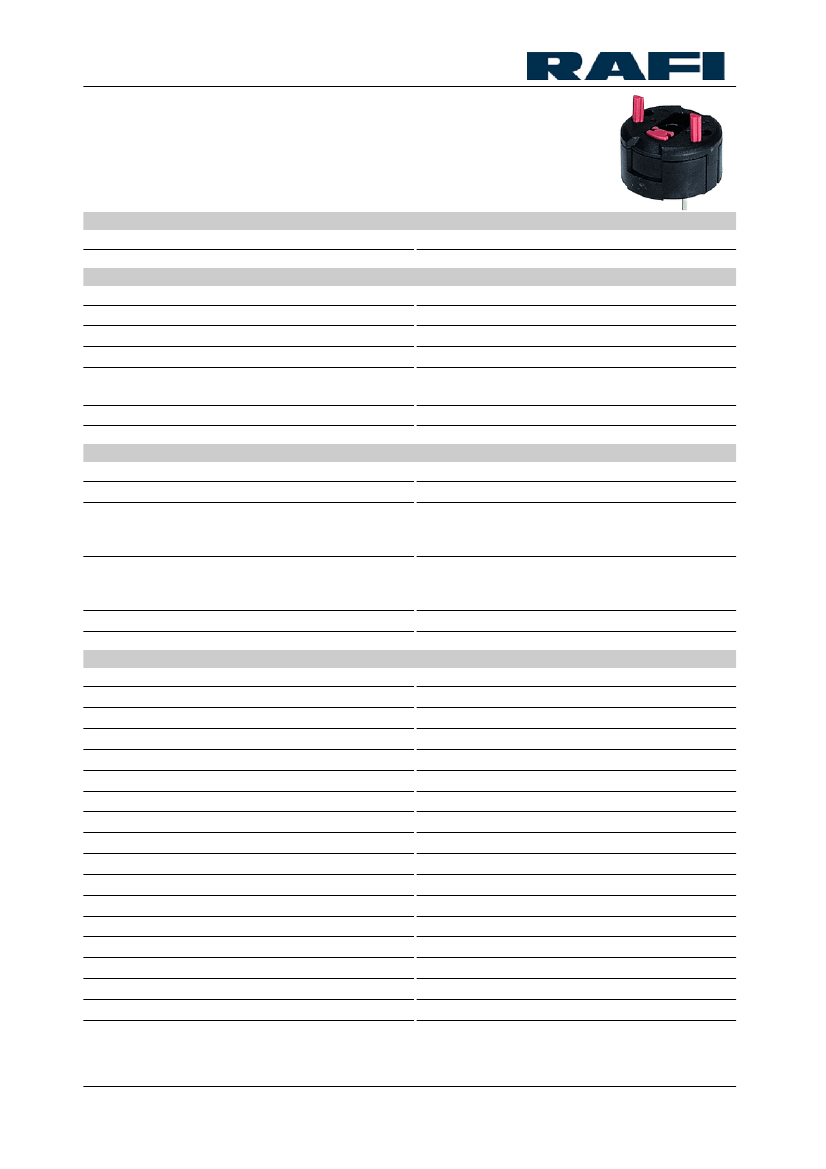

RAFIX 22 FS - Universal contact block, silver contacts, 1 NC
1.20.126.201/0000
General information
Lamp optional
Mechanical design
Mounting
Contact system
Contact materials
Contact arrangement
NC contact forcibly actuated acc. to IEC
60947-5-1
Terminals
THT LED
soldering in PCB
bridge-contact self cleaning
Ag
1 NC
yes
THT solder terminals with locating lug
Electrical characteristics acc. to IEC 60947, AC-15, DC-13
Rated insulation voltage AC / DC
Rated peak voltage
Rated operating current I
E
, AC15 B300
250 V
2500 V
3 A / 120 V; 1.5 A / 240 V; I
the
: 5 A
Rated operating current I
E
, DC13 Q300
550 mA / 120 V; 270 mA / 240 V; I
the
: 2.5 A
Max. fuse protection
Other specifications
Operating life at 250V / 1A
B10 at 250V / 1A
Operating life at 250V / 2A
B10 at 250V / 2A
Operating life at 250V / 4A
B10 at 250V / 4A
Switching reliability at 24V / 5mA DC
Ambient temp. operating max.
Storage temperature min.
Ambient temp. operating min.
Storage temperature max.
Color of plunger
Robustness
Shock resistance acc. to IEC 60068-2-27
Resistance to vibrations acc. to IEC 60068-2-6
Environmental restistance
Solderability / solder heat resistance
microfuse 5 x 20 mm, 6.3 A, inert
1,000,000
1,300,000
100,000
130,000
30,000
40,000
10 x 10
-6
+85 °C
-40 °C
-40 °C
+85 °C
red
acc. to IEC 60947-5-5 (TÜV)
50 g at 11 ms, amplitude half sinusoidal
5 g at 10 ... 500 Hz
acc. to IEC 60068-2-14, -30, -33 and -78
DIN EN 60068-2-20
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
21.05.2018

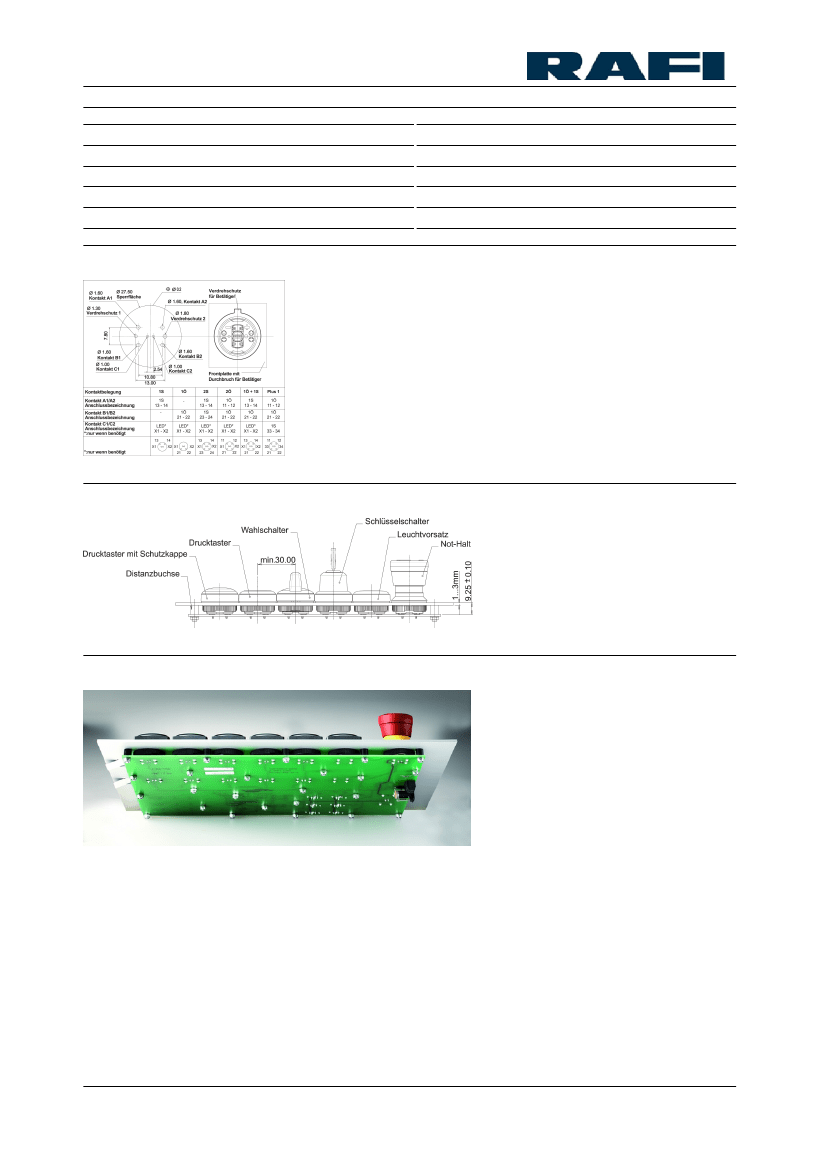

Solder techniques
Flame class acc. to UL 94
Hot wire ignition acc. to IEC 60695-2-1
Color of housing
ROHS compliant
REACH compliant
wave solder bath / manual soldering
V0
yes
black
yes
yes
