ZMID520x Evaluation Kit User Manual

Description

The ZMID520x Evaluation Kit enables evaluation of the IDT

ZMID520x Family of Inductive Position Sensor ICs via IDT’s

ZMID520x Application Modules (available separately). It can be

used for the sensor calibration for the following ICs:



ZMID5201: analog interface



ZMID5202: PWM interface



ZMID5203: SENT interface

The main purpose of the ZMID520x Evaluation Kit is communica-

tion between the user’s computer and the ZMID520x. The user’s

computer sends commands and data via its USB port to the ZMID

Communication Board (ZMID-COMBOARD).

The microcontroller on the ZMID-COMBOARD interprets these

commands and relays them to the ZMID520x located on the

ZMID520x Application Module using the one-wire interface (OWI)

communication interface.

The microcontroller also forwards data bytes from the ZMID520x

back to the computer via the USB connection. These bytes can be

sensor readings, ZMID520x internal registers values, or ZMID520x

EEPROM contents.

The

ZMID520x EVK Application Software

is a graphical user inter-

face (GUI) that is provided online for the kit. It supports all

ZMID520x configurations and enables the user to understand the

functionality of the ZMID520x as well as perform measurements.

Features



USB “plug and play” – no driver installation needed

Small ZMID-COMBOARD: 4cm



7.3cm

One-wire communication interface (OWI) enables quick and

easy configuration and calibration of the ZMID520x using the

user’s computer

PWM, analog, or SENT reading of the output depending on

product code

The modular design allows easy swapping of different

ZMID520x Application Modules (available separately) for

evaluation using the same ZMID-COMBOARD and

ZMID520x

EVK Application Software

The kit software is available for download from the IDT

product page for the ZMID-COMBOARD:

www.IDT.com/ZMID-COMBOARD



Kit Contents

ZMID-COMBOARD



Micro-USB cable



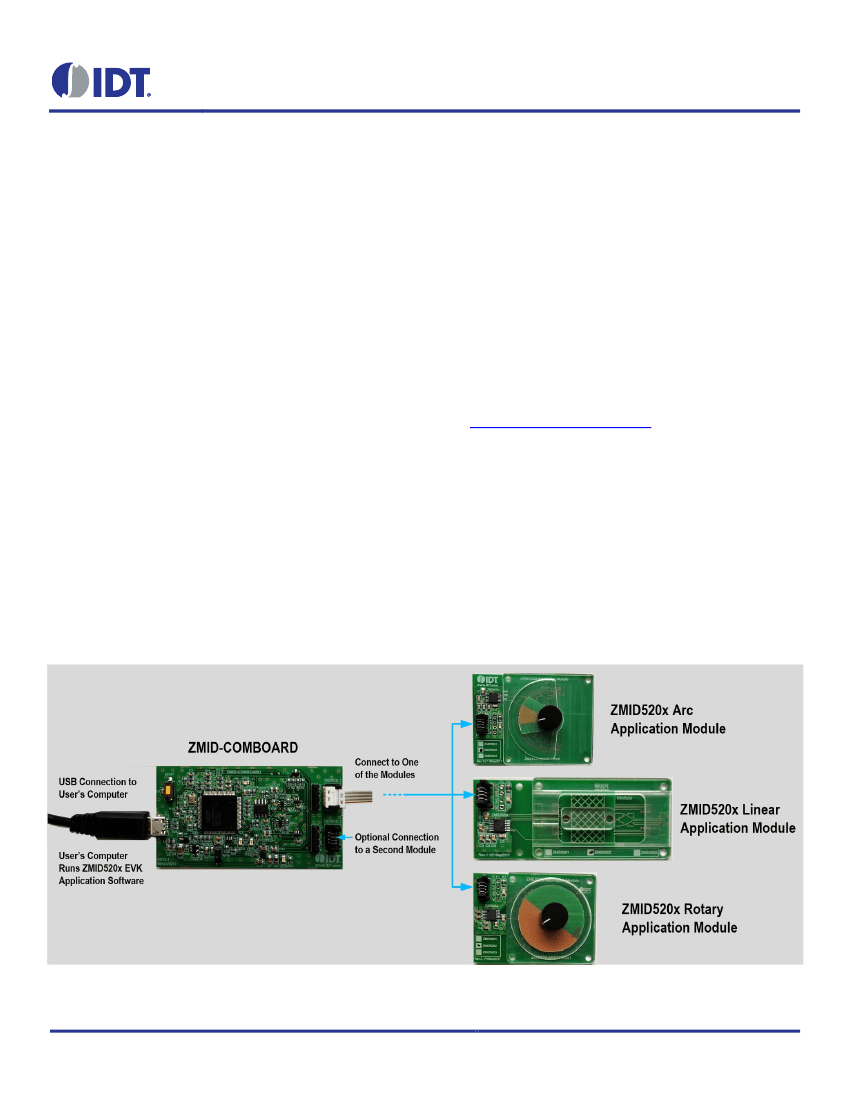

Figure 1.

ZMID520x Evaluation Kit and ZMID520x Application Modules

December 10, 2017

ZMID520x Evaluation Kit User Manual

Important Notes

Disclaimer

Integrated Device Technology, Inc. and its affiliated companies (herein referred to as “IDT”) shall not be liable for any damages arising out of defects resulting from

(i)

(ii)

delivered hardware or software

non-observance of instructions contained in this manual and in any other documentation provided to user, or

(iii) misuse, abuse, use under abnormal conditions, or alteration by anyone other than IDT.

TO THE EXTENT PERMITTED BY LAW, IDT HEREBY EXPRESSLY DISCLAIMS AND USER EXPRESSLY WAIVES ANY AND ALL WARRANTIES, WHETHER

EXPRESS, IMPLIED, OR STATUTORY, INCLUDING, WITHOUT LIMITATION, IMPLIED WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR A

PARTICULAR PURPOSE, STATUTORY WARRANTY OF NON-INFRINGEMENT, AND ANY OTHER WARRANTY THAT MAY ARISE BY REASON OF USAGE

OF TRADE, CUSTOM, OR COURSE OF DEALING.

Restrictions in Use

IDT’s ZMID520x Evaluation Kit, consisting of the ZMID-COMBOARD and micro-USB cable used in combination with the ZMID520x Application Module and the

ZMID520x AID EVK Application Software,

is designed for evaluation and configuration of the ZMID520x product family only. IDT’s ZMID520x Evaluation Kit

hardware and software must not be used for characterization measurements in terms of replacing calibrated laboratory environment and measurement devices.

Important Safety Warning:

These procedures can result in high currents, which can cause severe injury or death

and/or equipment damage. Only trained professional staff should connect external equipment and operate the software.

Important Equipment Warning:

Ensure the correct connection of all cables. Supplying the board using the wrong

polarity could result in damage to the board and/or the equipment.

Contents

Setup ............................................................................................................................................................................................................5

1.1

1.2

Required User Equipment ..................................................................................................................................................................5

User Computer Requirements and Setup ..........................................................................................................................................5

1.2.1

1.2.2

1.3

1.3.1

1.3.2

2.1

2.2

Computer Requirements .....................................................................................................................................................5

Software Installation and Setup ..........................................................................................................................................5

Overview of the Hardware...................................................................................................................................................6

Connecting the Kit ...............................................................................................................................................................9

Hardware Setup .................................................................................................................................................................................6

ZMID520x EVK Application Software User Guide ......................................................................................................................................10

Sections of the Display.....................................................................................................................................................................10

Getting Started .................................................................................................................................................................................11

2.2.1

2.2.2

Connecting to a Device .....................................................................................................................................................11

Reading Measurements ....................................................................................................................................................13

December 10, 2017

ZMID520x Evaluation Kit User Manual

2.3

2.4

Changing the Configuration Settings ...............................................................................................................................................16

Calibration ........................................................................................................................................................................................18

2.4.1

2.4.2

2.4.3

2.4.4

2.4.5

2.5

2.5.1

2.5.2

2.5.3

2.6

2.6.1

2.6.2

“OUTPUT CONFIG” Tab ...................................................................................................................................................18

Automatic Output Calibration Procedure...........................................................................................................................21

“AMPLITUDE OFFSET” Tab .............................................................................................................................................22

“LINEAR INTERPOLATION” Tab......................................................................................................................................24

“LINEAR INTERPOLATION” Tab – Correction Values .....................................................................................................26

“MEMORY EDIT” Tab .......................................................................................................................................................27

Saving and Loading Memory Dump Files .........................................................................................................................28

Viewing Memory Dump Files without Connecting to a Device (Offline) ............................................................................29

Identifying an Unknown Device .........................................................................................................................................30

Re-identifying a Device .....................................................................................................................................................31

Working with the Memory.................................................................................................................................................................27

Manually Identifying a Device ..........................................................................................................................................................30

Firmware Update ........................................................................................................................................................................................32

ZMID-COMBOARD Schematics .................................................................................................................................................................33

ZMID-COMBOARD BOM ...........................................................................................................................................................................36

Sensors Boards ..........................................................................................................................................................................................38

Glossary .....................................................................................................................................................................................................38

Ordering Information...................................................................................................................................................................................38

Revision History..........................................................................................................................................................................................39

List of Figures

Figure 1. ZMID520x Evaluation Kit and ZMID520x Application Modules ...........................................................................................................1

Figure 2. ZMID520x Evaluation Kit Connections – ZMID520x Arc Application Module Example .......................................................................6

Figure 3. ZMID-COMBOARD – Overview ..........................................................................................................................................................7

Figure 4. ZMID520x Rotary 360° Application Module – Overview .....................................................................................................................8

Figure 5. ZMID520x Arc 130°Application Module – Overview............................................................................................................................8

Figure 6. ZMID520x Linear Application Module – Overview ...............................................................................................................................9

Figure 7. Sections of the GUI Display – Example ZMID5203 ...........................................................................................................................10

Figure 8. Start-up Screen .................................................................................................................................................................................11

Figure 9. Display When Connected to a Device – ZMID5203 Example ...........................................................................................................12

Figure 10. Display When Connected to 2 Devices – ZMID5203 Example..........................................................................................................12

Figure 11. “OUTPUT” Tab – ZMID5203 Example...............................................................................................................................................13

Figure 12. “INTERNAL VALUES” Tab – ZMID5203 Example ............................................................................................................................14

Figure 13. “SENT” Tab (ZMID5203 only) ............................................................................................................................................................15

Figure 14. "CONFIGURE" Tab – Selection of Memory Type to be Displayed ....................................................................................................16

Figure 15. Buttons in the I/O FUNCTIONS Section ............................................................................................................................................16

Figure 16. Options on the SETTINGS Menu ......................................................................................................................................................17

December 10, 2017

ZMID520x Evaluation Kit User Manual

Figure 17. Example of Editable Numerical Values .............................................................................................................................................17

Figure 18. Example of a Multiple Choice Values ................................................................................................................................................17

Figure 19. Example of Read-Only Values ..........................................................................................................................................................17

Figure 20. Example of a Modified Value that is Not Yet Saved to Memory ........................................................................................................17

Figure 21. Example of Tooltip Information ..........................................................................................................................................................17

Figure 22. “OUTPUT CONFIG” Tab – ZMID5201 Example................................................................................................................................18

Figure 23. Linear Output Mode Example with Slope = 2, Offset = 90° ...............................................................................................................19

Figure 24. Modulus Output Example with Slope = 2, Offset = 60° .....................................................................................................................19

Figure 25. Output without Clamping ...................................................................................................................................................................20

Figure 26. Output Clamped from 20% to 80% ....................................................................................................................................................20

Figure 27. Specify the Original Slope .................................................................................................................................................................21

Figure 28. Request for Changing the Out_Mod Setting ......................................................................................................................................22

Figure 29. Successful Calibration Message .......................................................................................................................................................22

Figure 30. Unsuccessful Calibration Message ...................................................................................................................................................22

Figure 31. “AMPLITUDE OFFSET” Tab – ZMID5201 Example..........................................................................................................................23

Figure 32. Receiver Coil (ABS Value) Offset Example with Offset Compensation =



/2 ..................................................................................23

Figure 33. Amplitude Offset Calibration Completed – ZMID5201 Example ........................................................................................................24

Figure 34. “LINEAR INTERPOLATION” Tab – ZMID5201 Example ..................................................................................................................25

Figure 35. Calibration Diagram ...........................................................................................................................................................................26

Figure 36. “MEMORY EDIT” Tab Contents – ZMID5201 Example.....................................................................................................................27

Figure 37. Example of a Modified Value on the “MEMORY EDIT” Tab ..............................................................................................................27

Figure 38. Example of “MEMORY EDIT” Tab Tooltip Information ......................................................................................................................28

Figure 39. Menu Options for Saving and Loading Memory Dump Files .............................................................................................................28

Figure 40. Viewing a Memory Dump File "Offline" ..............................................................................................................................................29

Figure 41. GUI View if an Unknown Device is Selected .....................................................................................................................................30

Figure 42. File Dialog to Select an Identification File ..........................................................................................................................................30

Figure 43. “Identify Selected Device” Menu Option ............................................................................................................................................31

List of Tables

Table 1.

Table 2.

Table 3.

ZMID-COMMBOARD Key Components and Connector Descriptions .................................................................................................7

ZMID520x Application Module: Key Components and Connector Descriptions ..................................................................................8

Bill of Materials for ZMID-COMBOARD Rev. 5.1...............................................................................................................................36

December 10, 2017
