Quick Start Guide
QG000113
NanEye
Fiber Optic Box 2.0
NanEye_Fiber_Optic_Box_2.0
v1-00 • 2017-Dec-01
Document Feedback
NanEye ● Fiber Optic Box 2.0
Content Guide
Content Guide
1
1.1
Out of the Box ................................ 3
General ......................................................... 3
3.4
How to Debug USB3 Board ....................... 10
4
4.1
Start the Application ................... 12
NanEye Viewer .......................................... 12
2
2.1
2.2
2.3
Plug and Play ................................. 5
Connect Hardware ....................................... 5
Fiber Optic Box Operation............................ 6
Image Viewing .............................................. 6
3
3.1
3.2
3.3
Operation with PC.......................... 7
Software Installation ..................................... 7
Computer Connection with NanEye Viewer . 9
Installing FX3 Driver Manually ................... 10
Eval Kit Quick Start Guide • PUBLIC
QG000113 • v1-00 • 2017-Dec-01
17
│ 2
Document Feedback
NanEye ● Fiber Optic Box 2.0
Out of the Box
1
1.1
Out of the Box
General
NanEye Fiber Optic Box 2.0 is a fully embedded all in one image processing unit that interfaces the
NanEye® micro camera head signals and provides an output of 1080p/60 format HDMI video signal
which can be directly plugged to a HDMI compatible monitor, which in this mode no additional PC or
image processing is required.
The USB3 interface allows the connection to the NanEye Viewer running on a PC to get access to the
sensor’s raw images and control settings.
The demo kit includes a fiber light source, which provides light to the tip of the NanEye® Sensor probe
via a 0.5 mm plastic optic fiber. The fiber and NanEye® camera are housed in a 2.3 mm diameter of
1 m cable length that can be plugged and unplugged easily from the processing and illumination unit.
The illumination intensity is adjustable by a manual dial. The unit is supplied by 12 V DC. It can
interface to any standard monitor with HDMI input. The main body of the demo kit measures only
17 cm x 17 cm x 5.6 cm and provides all necessary video processing and display driving plus the
adjustable illumination.

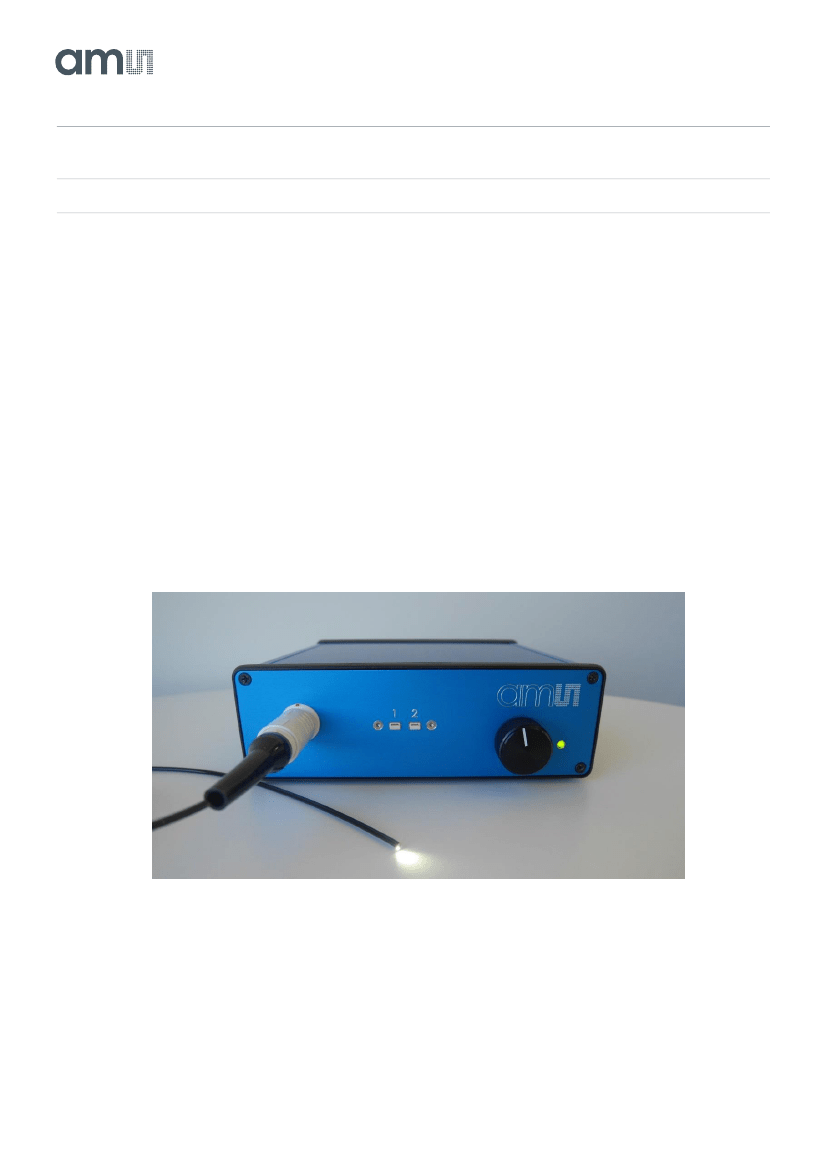

Figure 1:
NanEye Fiber Optic Box 2.0 Demo Kit with NanEye Fiber Connected
Eval Kit Quick Start Guide • PUBLIC
QG000113 • v1-00 • 2017-Dec-01
17
│ 3
Document Feedback
NanEye ● Fiber Optic Box 2.0
Out of the Box
Figure 2:
NanEye Fiber Optic Box 2.0 Benefits and Features
Benefits
Easy to use plug and play solution
Stand alone video output via HDMI
(no PC required)
High quality image output
All in one eval kit with illumination
Raw image data access and sensor
control via USB3 and NanEye viewer
Features
Supports up to 2 NanEye
®
2D
Integrated adjustabel fiber light source
HDMI 1080p/60 video output
USB3 PC interface to NanEye viewer
Image processing, correction and
enhancements
Figure 3:
NanEye Fiber Optic Box 2.0 Pinout Description
NanEye Fiber Optic Box 2.0 Description
Front Side
LEMO Connector
2 x NanEye_2D
1 x High-power LED current source
1 x LEMO F1 connector for internal high
power fiber optic light source
Rear Side
HDMI Output
1080P60 to display NanEye at
LEMO
No additional PC needed
JST Connectors
2 x NanEye_2D
1 x Current source up to 22.7 mA
(Channel 1)
USB3.0
Display NanEye channel 1&2 with
NanEye Viewer software
Adjust light intensity of distal LED
ring or fiber optic light source
Adjust image processing
Power Supply
12 V DC, 1.5 A minimum
Rotary Switch
Light mode and intensity control
Dual Color Status LED
Attention
The Fiber Demo Kit is intended solely for evaluation purposes, has no EMI approval and is not
advisable for medical use.
ams
therefore is not liable for any damage or harm resulting from its use.
Eval Kit Quick Start Guide • PUBLIC
QG000113 • v1-00 • 2017-Dec-01
17
│ 4
Document Feedback
NanEye ● Fiber Optic Box 2.0
Plug and Play
2
2.1
2.1.1
Plug and Play
Connect Hardware
Recommended Equipment
The following image shows the necessary equipment for a direct connection to a monitor.

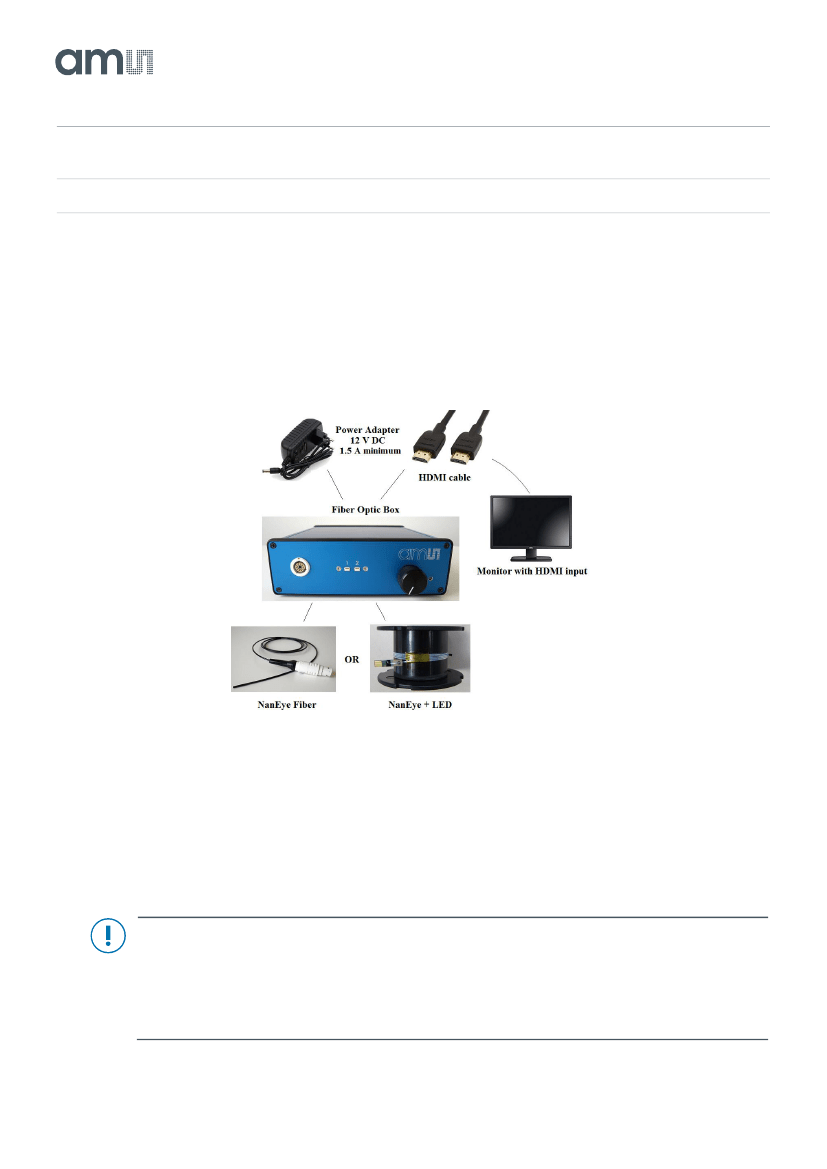

Figure 4:
Fiber Optic Box Plug and Play Equipment Connection
2.1.2
Recommended Connection
Firstly connect the NanEye, NanEye fiber or NanEye LED module to the box
Then connect the box to the monitor using a HDMI cable
Plug in the 12 V power adapter and wait for the Fiber Box to power up
Attention
Please be aware to not connect NanEye Fiber and the NanEye+LED simultaneously. When it
comes to the sensor connections, they share the same hardware input, therefore if connected at the
same time, may cause irreversible damage. This situation applies for Plug & Play mode as well as
when using NanEye Viewer through USB3 connection.
Eval Kit Quick Start Guide • PUBLIC
QG000113 • v1-00 • 2017-Dec-01
17
│ 5
