• Select any temperature in the range of 35°F to 325°F. Standard choices fall on the 5°F increments, for example 140°F, 145°F, 150°F, 155° F... up to 320°F or 325°F
• Specify the °F temperature in the part numbering scheme as a three digit code without the ‘°F’ in the part numbe r. For example, for 200°F, put in code ‘200’
• Bottom Temperature in °F” equals the “Top Temperature in °F” minus “Nominal Differential in °F”. For example 310°F - 30°F = 280°F
Tolerance Code
±˚F
±˚C
A
±5˚F
±2.8˚C
B
±8˚F
±4.4˚C
C
±10˚F
±5.6˚C
Y ( Bottom Temp Only)
Minimum
Minimum
Note
• The standard tolerance for the top temperature is based on the temperature range the top temperature falls in, please refer to the temperature setting chart, and
select the appropriate code for a standard top temperature tolerance
• For bottom temperature tolerance a “Y” = minimum trip, which indicates the “reset” trip occurs at or above the lower temperature set point.
Close contacts on temperature rise, 5003 series, 0.187” horizontal quick-connects with opposed orientation, mounting bracket with two 0.140” x 0.172” mounting
slots, 105°F top temperature with a ±5°F standard top tolerance and a standard 15°F differential between top and bottom temperature for temperature range of 35°F
to 200°F, differential helps calculate a bottom temperature of 90°F with a standard minimum reset for contacts to open at or above the bottom temperature setpoint.
C
Contact Operation
O, C
See Contact Operation Table
Family
5003 Series

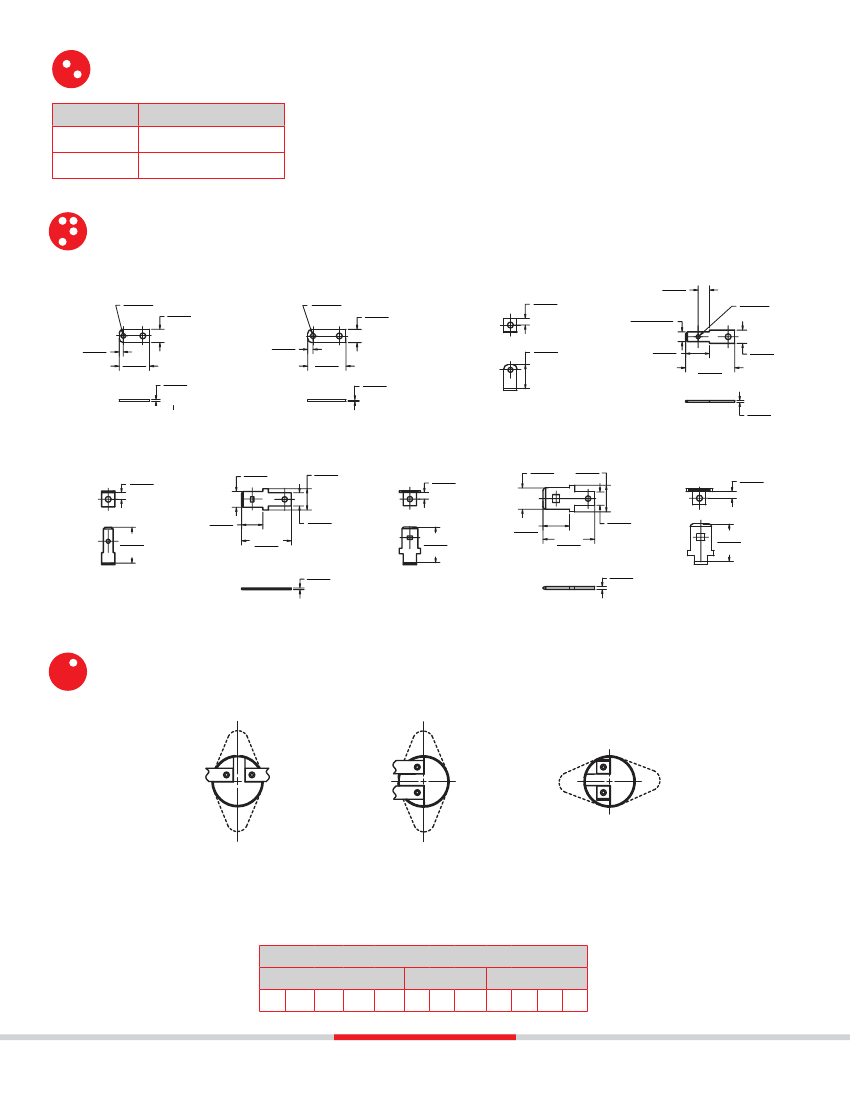

Terminal Selection
A, B, C, E, F, G, H, J, K
See Terminal Selection Table
Terminal Orientation
A, B, C
See Terminal Orientation Table

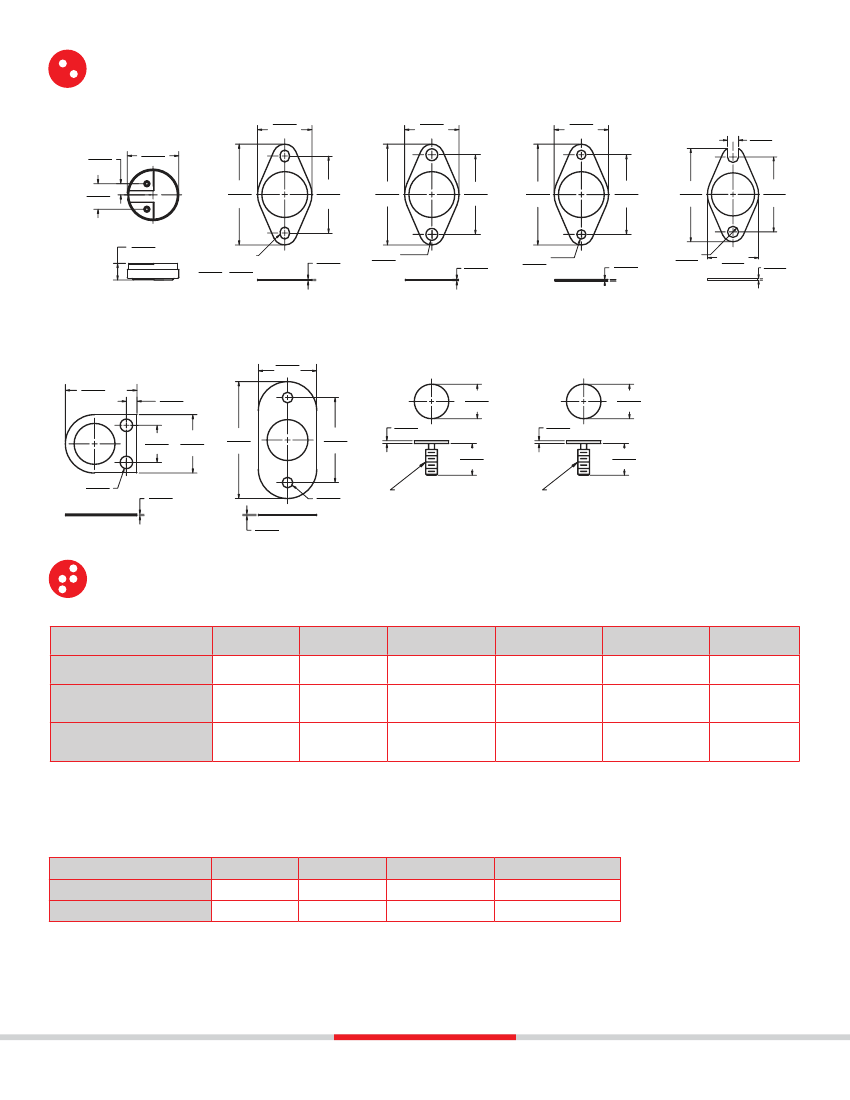

Mounting & Enclosure
A, B, C, D, E, F, G, H, J, Z
See Mounting and Enclosure Selection Table
Top Temperature (in °F)
See Temperature Codes and Tolerance Table (Available in Increments of 5°F)
Top Temperature Tolerance Code
A, B, C
See Temperature Code and Tolerance Table
Bottom Temperature (in °F)
See Temperature Codes and Tolerance Table
Bottom Temperature Tolerance Code
A, B, C, Y
See Temperature Code and Tolerance Table
53
G
A
B
1
0
5
A
-
0
9
0
Y
IMPORTANT NOTICE
These devices are not intended for use as service or repair components, strictly for use by Original Equipment Manufacturer. This
product is not rated as explosion proof and should not be applied in any application where flammable vapors or dust is present. End of
life failure of this device may result in either open or closed circuit condition, and as such, OEMs must apply end of life protection in
series, per agency requirements.
Users are solely responsible for proper design, application and function of this product in the end product or system. Users must
evaluate the suitability of these devices in their application with respect to Temperature Settings, Mechanical and Electrical Life
Cycles, Electrical loads and Environmental conditions.
These products are not environmentally sealed and have exposed electrical components. They are not intended to be used in
applications where exposure to condensing or dripping liquids, Immersion in liquids, or exposure to other environment contaminants
may occur.
Excessive mechanical cycling, high electrical loading or exposure to liquids or other environmental contaminants, as noted above,
may compromise the electrical insulating properties of these devices. Such conditions may result in electric insulation breakdown
accompanied by localized heating. The device may remain permanently closed or open as a result of these conditions as well as at
