DARTS
|
SERIES
Introduction
TEMPERATURE SENSOR PROBES

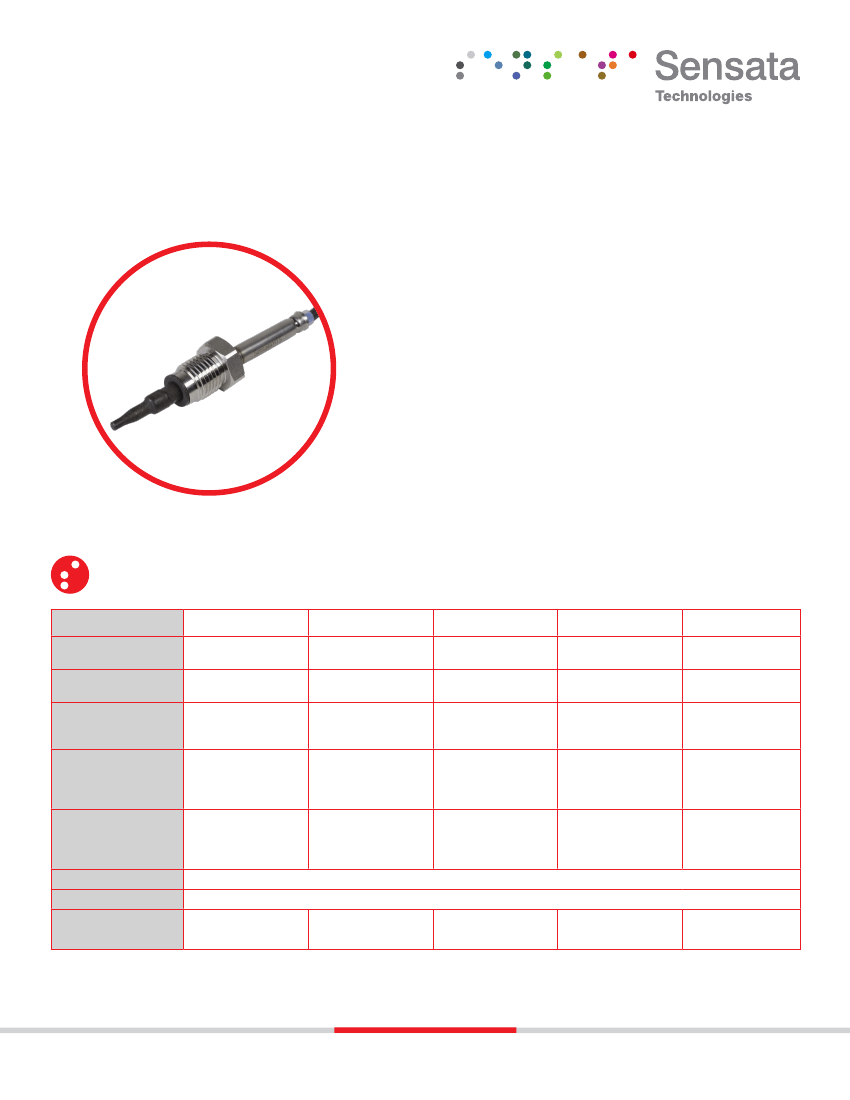

The DARTS series is a line of thin film platinum RTD based temperature sensors ideal for demanding air conditioning, refrigeration and industrial
applications where long term reliability is a must. Each configuration is specifically designed to optimize cost, robustness, and high absolute accuracy.
Features
• Available Metric and English Mounting Threads
• Thin Film Platinum temperature sensors displaying high linearity
• Flexibility in insertion depth: 25mm, 35mm, 40mm, 50mm,
70mm
• Straight and bended configurations for rear housing, 0º to 120º
to facilitate installation on the engine
Applications
• Industrial Exhaust Gas
• HVAC
• Industrial
• Rugged immersion and air temperature sensing
SPECIFICATIONS
SENSOR FAMILY
SENSOR ELEMENT
NOMINAL RESISTANCE
TEMPERATURE RANGE
DARTS1000-E
PT-1000 platinum RTD
1000Ω at 0°C
Continuous -40°C to 150°C
DARTS500-B
PT-500 platinum RTD
500Ω at 0°C
Continuous: -40°C to 300°C
Peak: 500°C
±2.5°C from -40°C to 160°C
±1.5% from 160°C to 300°C
<12 seconds at 300°C, air
velocity of 11m/s
<6.5 seconds at 300°C, air
velocity of 70m/s
DARTS500-E
PT-500 platinum RTD
500Ω at 0°C
Continuous: -40°C to 550°C
Peak: 600°C
Continuous: -40°C to 550°C
Peak: 600°C
<12 seconds at 300°C, air
velocity of 11m/s
<6.5 seconds at 300°C, air
velocity of 70m/s
>1MΩ at 20°C, VDC 500 Volt
Mounting Nut
Cable with connector
chosen by customer
Integral MLK connector
Cable with connector
chosen by customer
Cable with connector
chosen by customer
Cable with connector
chosen by customer
DARTS200-Aw
PT-200 platinum RTD
200Ω at 0°C
Continuous: -40°C to 750°C
Peak: 800°C
±2.5°C from -40°C to 280°C
±0.9% from 280°C to 750°C
<12 seconds at 300°C, air
velocity of 11m/s
<6.5 seconds at 300°C, air
velocity of 70m/s
DARTS200-Ds
PT-200 platinum RTD
200Ω at 0°C
Continuous: -40°C to
850°C
Peak: 900°C
±2.5°C from -40°C to
280°C
±0.9% from 280°C to
850°C
<11 seconds at 300°C, air
velocity of 11m/s
<6.5 seconds at 300°C, air
velocity of 70m/s
ACCURACY
±1.0% from -40°C to 150°C
RESPONSE TIME T63
INSULATION RESISTANCE
FASTENING
CONNECTOR
Page 1
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com

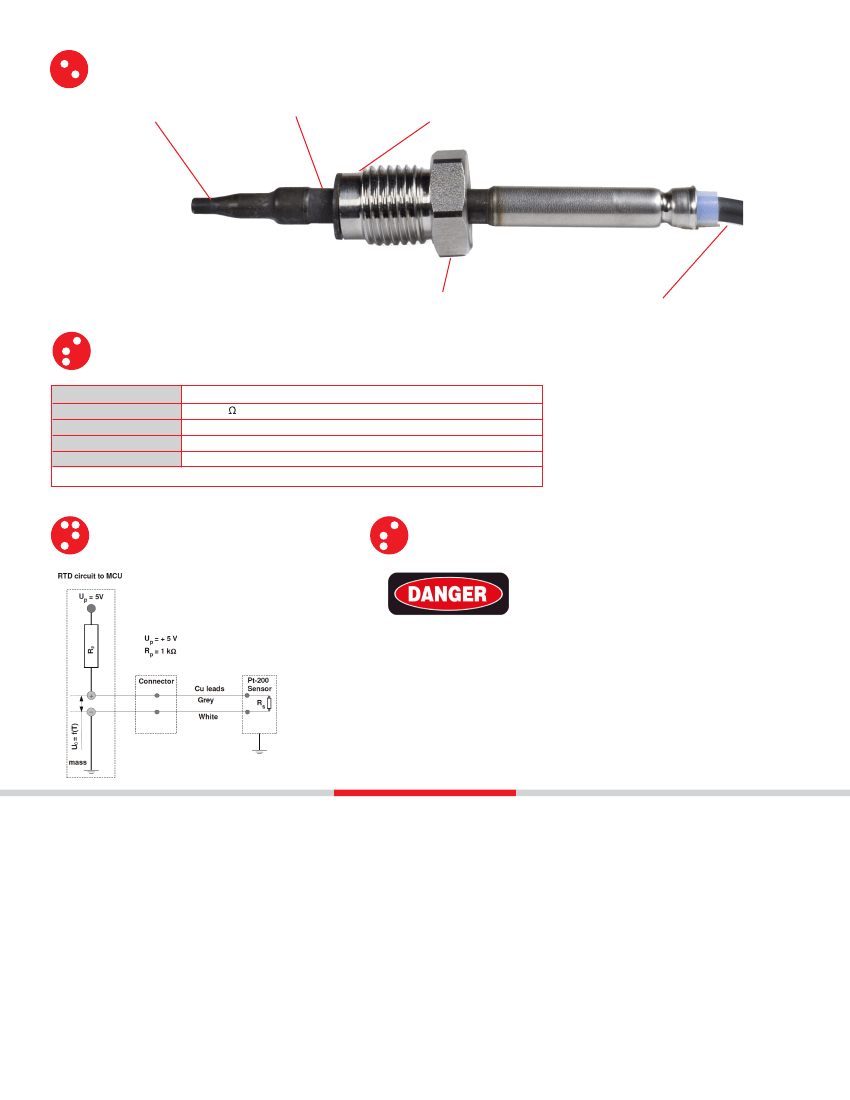

TYPICAL SENSOR CONSTRUCTION
Sensor Element
Sensor Housing
Mounting flange
Mounting Nut
TYPICAL 5V MEASUREMENT CIRCUIT
Pull-Up Voltage
Pull-Up Resistance
A/D Converter Accuracy
Polarity
Operational Current
U
p
= + 5V ± 0.1%
R
p
= 1k ± 0.1%
10 bit
Signal: Grey
Between 2.7mA and 4.2mA
Connection Cable
Ground: White
(Same methodology applies for other voltage systems (e.g. 3.3V), but operational current must be lower than 5mA)
CONNECTION DIAGRAM
WARNINGS
RISK OF MATERIAL DAMAGE AND HOT ENCLOSURE
• The product’s side panels may be hot, allow the product to cool
before touching
• Follow proper mounting instructions including torque values
• Do not allow liquids or foreign objects to enter this product
Failure to follow these instructions can result in serious
injury, or equipment damage.
Page 2
