The Millivolt Output pressure sensor is based upon a proprietary technology to reduce all output offset or common mode errors.
This model provides a calibrated millivolt output with superior output offset characteristics. Output offset errors due to change in
temperature, stability to warm-up, stability to long time period, and position sensitivity are all significantly reduced when compared
to conventional compensation methods. In addition the sensor utilizes a silicon, micromachined, stress concentration enhanced
structure to provide a very linear output to measured pressure.
These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. This
series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like.
The output of the device is ratiometric to the supply voltage and operation from any D.C. supply voltage up to +16 V is acceptable.
R
www.allsensors.com
R
www.allsensors.com
Signed Original On File
Signed Original On File

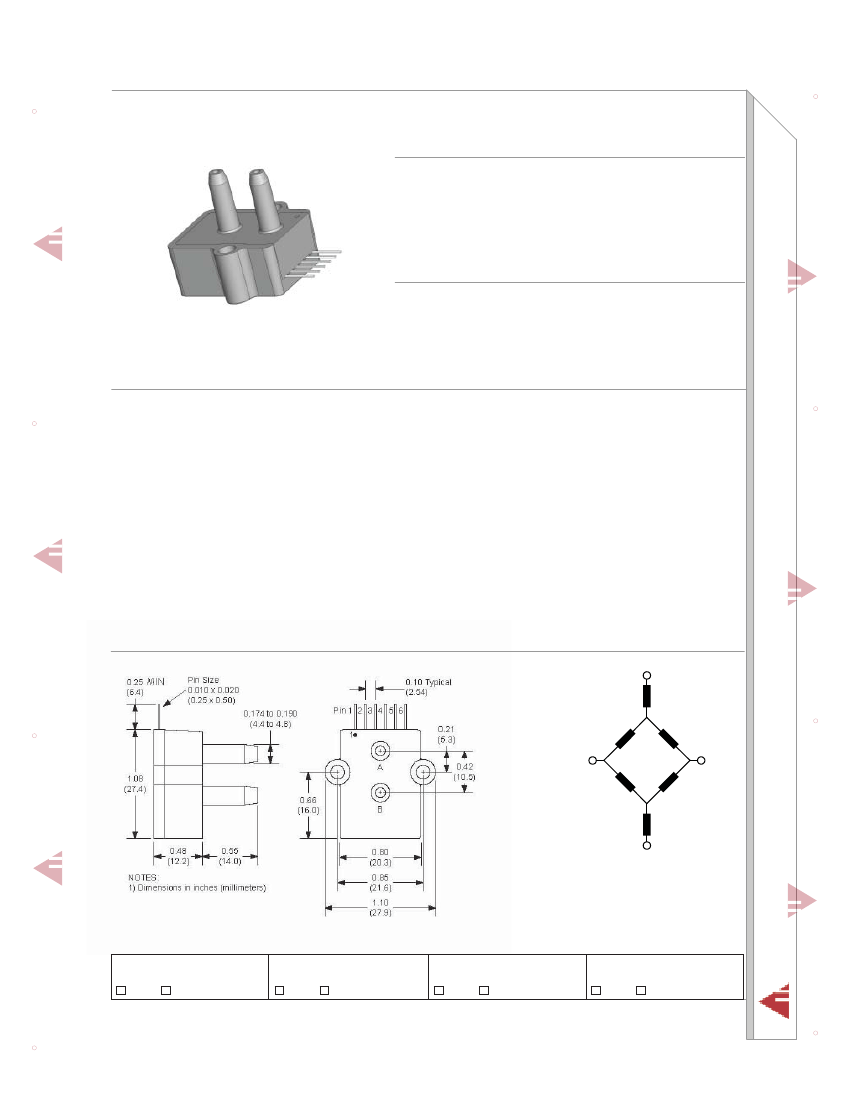

Equivalent Circuit
+Vs upply
p
408 225 4314
Physical Dimensions
R
-Vout
+Vout
Pin 1: N/C
Pin 2: +V supply
Pin 3: +Voutput
Pin 4: -Vsupply
Pin 5: -Voutput
Input Resittance
Output Resistance
4.5 k ohm
1.5 k ohm
-Vs upply
a
16035 Vineyard Blvd. Morgan Hill, CA 95037
www.allsensors.com
R
www.allsensors.com
Original On File
Pin 6: N/C
Approvals
MKT
DATE
MFG
DATE
ENG
Signed Original O
DATE
QA
DATE
As Is
With Change
As Is
With Change
As Is
With Change
As Is
With Change
All Sensors
DS-0091 Rev C
R
ors.com
R
Signed Original On File
w.allsensors.com
Signed Original On F
R
www.allsensors.com
Pressure Sensor Ratings
Supply Voltage Vs, max
Common-mode pressure
Lead Temperature, max
(soldering 2-4 sec.)
16 Vdc
-10 to +10 psig
270°C
Environmental Specifications
Temperature Ranges
Compensated
Operating
Storage
Humidity Limits
0 to 50(70)° C
-25 to 85° C
-40 to 125° C
0 to 95% RH
(non condensing)
R
Standard Pressure Ranges
www.allsensors.com
Signed Original On File
Part Number
0.5 INCH-D-MV
1 INCH-D-MV
2 INCH-D-MV
5 INCH-D-MV
10 INCH-D-MV
20 INCH-D-MV
30 INCH-D-MV
Operating Pressure
0 - 0.5” H2O
0 - 1“ H2O
0 - 2“ H2O
0 - 5“ H2O
0 - 10“ H2O
0 - 20“ H2O
0 - 30“ H2O
Nominal Span
10mV
10 mV
10mv
20 mV
20 mV
20 mV
20 mV
Proof Pressure
100 “H2O
100 “H2O
100 “H2O
200 “H2O
200 “H2O
200 “H2O
200 “H2O
Burst Pressure
200 “H2O
200 “H2O
200 “H2O
300 “H2O
300 “H2O
500 “H2O
800 “H2O
Signed Original On File
R
www.allsensors.com
R
Performance Characteristics for 0.5 INCH-D-MV
Parameter, note 1
Operating Range, differential pressure
Output Span, @ 0.5“H2O, note 5
Offset Voltage @ zero differential pressure
Minimum
--
9.0
--
--
--
--
--
--
--
Nominal
0 .5
10.0
--
--
--
--
--
0.05
--
Maximum
--
11.0
±500
±250
±100
±5.0
±200
0.25
±200
Units
“H2O
mV
uV
www.allsensors.com
Signed Original On File
Offset Temperature Shift (0°C-50°C), note 2
Offset Warm-up Shift, note 3
Offset Position Sensitivity (1g)
Offset Long Term Drift (one year)
Linearity, hysteresis error, note 4
Full Scale Shift (0°C-50°C), note 2
uV
uV
uV
uV
%fs
uV
Signed Original On File
R
www.allsensors.com
R
Performance Characteristics for 1 INCH-D-MV
Parameter, note 1
Operating Range, differential pressure
Output Span, @ 1“H2O, note 5
Offset Voltage @ zero differential pressure
Offset Temperature Shift (0°C-50°C), note 2
Offset Warm-up Shift, note 3
Minimum
--
9.0
--
--
--
--
--
--
--
Nominal
1 .0
10.0
--
--
--
--
--
0.05
--
Maximum
--
11.0
±500
±250
±100
±50
±200
0.25
±200
Units
“H2O
mV
uV
uV
uV
uV
uV
%fs
uV
Original On File
Offset Position Sensitivity (1g)
Offset Long Term Drift (one year)
Linearity, hysteresis error, note 4
Full Scale Shift (0°C-50°C), note 2
www.allsensors.com
Signed Original O
Millivolt Low pressure sensors
R
ors.com
R
Signed Original On File
w.allsensors.com
Signed Original On F
R
Performance Characteristics for 2 INCH-D-MV
Parameter, note 1
Operating Range, differential pressure
Output Span, note 5
Offset Voltage @ zero differential pressure
Offset Temperature Shift (0°C-50°C), note 2
Offset Warm-up Shift, note 3
Offset Position Sensitivity (1g)
Offset Long Term Drift (one year)
Minimum
--
9.0
--
--
--
--
--
--
--
Nominal
2.0
10.0
--
--
--
--
--
0.05
--
Maximum
--
11.0
±500
±250
±100
±50
±200
0.25
±200
Units
“H2O
mV
uV
uV
uV
uV
uV
%fs
uV
www.allsensors.com
R
all sensors
e
www.allsensors.com
f
408 225 2079
p
408 225 4314
a
16035 Vineyard Blvd. Morgan Hill, CA 95037
www.allsensors.com
Signed Original On File
Linearity, hysteresis error, note 4
Full Scale Shift (0°C-50°C), note 2
Signed Original On File
R
www.allsensors.com
Performance Characteristics for 5 INCH-D-MV
Parameter, note 1
Operating Range, differential pressure
Output Span, note 5
Offset Voltage @ zero differential pressure
Offset Temperature Shift (0°C-50°C), note 2
Offset Warm-up Shift, note 3
Offset Position Sensitivity (1g)
Minimum
--
19.0
--
--
--
--
--
--
--
Nominal
5.0
20.0
--
--
--
--
--
0.05
--
Maximum
--
21.0
±500
±150
±50
±10
±100
0.25
±200
Units
“H2O
mV
uV
uV
uV
uV
uV
%fs
uV
R
www.allsensors.com
Signed Original On File
Offset Long Term Drift (one year)
Linearity, hysteresis error, note 4
Full Scale Shift (0°C-50°C), note 2
Signed Original On File
R
R
www.allsensors.com
Performance Characteristics for 10 INCH-D-MV
Parameter, note 1
Operating Range, differential pressure
Output Span, note 5
Offset Voltage @ zero differential pressure
Offset Temperature Shift (0°C-70°C), note 2
Offset Warm-up Shift, note 3
Minimum
--
19.0
--
--
--
--
--
--
--
Nominal
10.0
20.0
--
--
--
--
--
0.05
--
Maximum
--
21.0
±500
±150
±50
±5
±100
0.25
±200
Units
“H2O
mV
uV
uV
uV
uV
uV
%fs
uV
Original On File
Offset Position Sensitivity (1g)
Offset Long Term Drift (one year)
Linearity, hysteresis error, note 4
Full Scale Shift (0°C-70°C), note 2
www.allsensors.com
Signed Original O
All Sensors
DS-0091 Rev C
R
ors.com
R
Signed Original On File
w.allsensors.com
Signed Original On F
R
Performance Characteristics for 20 INCH-D-MV
Parameter, note 1
Operating Range, differential pressure
Output Span, note 5
Offset Voltage @ zero differential pressure
Offset Temperature Shift (0°C-70°C), note 2
Offset Warm-up Shift, note 3
Offset Position Sensitivity (1g)
Minimum
--
19.0
--
--
--
--
--
--
--
Nominal
20.0
20.0
--
--
--
--
--
0.05
--
Maximum
--
21.0
±500
±150
±50
±5
±100
0.25
±200
Units
“H2O
mV
uV
uV
uV
uV
www.allsensors.com
R
www.allsensors.com
Signed Original On File
Offset Long Term Drift (one year)
Linearity, hysteresis error, note 4
Full Scale Shift (0°C-70°C), note 2
uV
%fs
uV
Signed Original On File
R
Performance Characteristics for 30 INCH-D-MV
Parameter, note 1
Operating Range, differential pressure
Output Span, note 5
Offset Voltage @ zero differential pressure
Offset Temperature Shift (0°C-70°C), note 2
Offset Warm-up Shift, note 3
Offset Position Sensitivity (1g)
Minimum
--
19.0
--
--
--
--
--
--
--
Nominal
30.0
20.0
--
--
--
--
--
0.05
--
Maximum
--
21.0
±500
±150
±50
±5
±100
0.25
±200
Units
“H2O
mV
uV
uV
uV
uV
uV
%fs
uV
www.allsensors.com
R
Signed Original On File
Offset Long Term Drift (one year)
Linearity, hysteresis error, note 4
Full Scale Shift (0°C-70°C), note 2
www.allsensors.com
R
Signed Original On File
www.allsensors.com
R
Specification Notes
1: A
LL PARAMETERS ARE MEASURED AT
12.0
VOLT EXCITATION
,
FOR THE NOMINAL FULL SCALE PRESSURE AND ROOM TEMPERATURE UNLESS
P
RESSURE MEASUREMENTS ARE WITH POSITIVE PRESSURE APPLIED TO
P
ORT
B.
NOTE
2: S
HIFT IS RELATIVE TO
25°C.
NOTE
3: S
HIFT IS WITHIN THE FIRST HOUR OF EXCITATION APPLIED TO THE DEVICE
.
NOTE
4: M
EASURED AT ONE
-
HALF FULL SCALE RATED PRESSURE USING BEST STRAIGHT LINE CURVE FIT
.
NOTE
5: T
HE VOLTAGE ADDED TO THE OFFSET VOLTAGE AT FULL SCALE PRESSURE
.
NOTE
OTHERWISE SPECIFIED
.
Pressure Response: for any pressure applied the response time to get to 90% of pressure applied is typically less
Original On File
than 100 useconds.
All Sensors reserves the right to make changes to any products herein. All Sensors does not assume any liability arising out of the application or use of
any product or circuit described herein, neither does it convey any license under its patent rights nor the rights of others.
