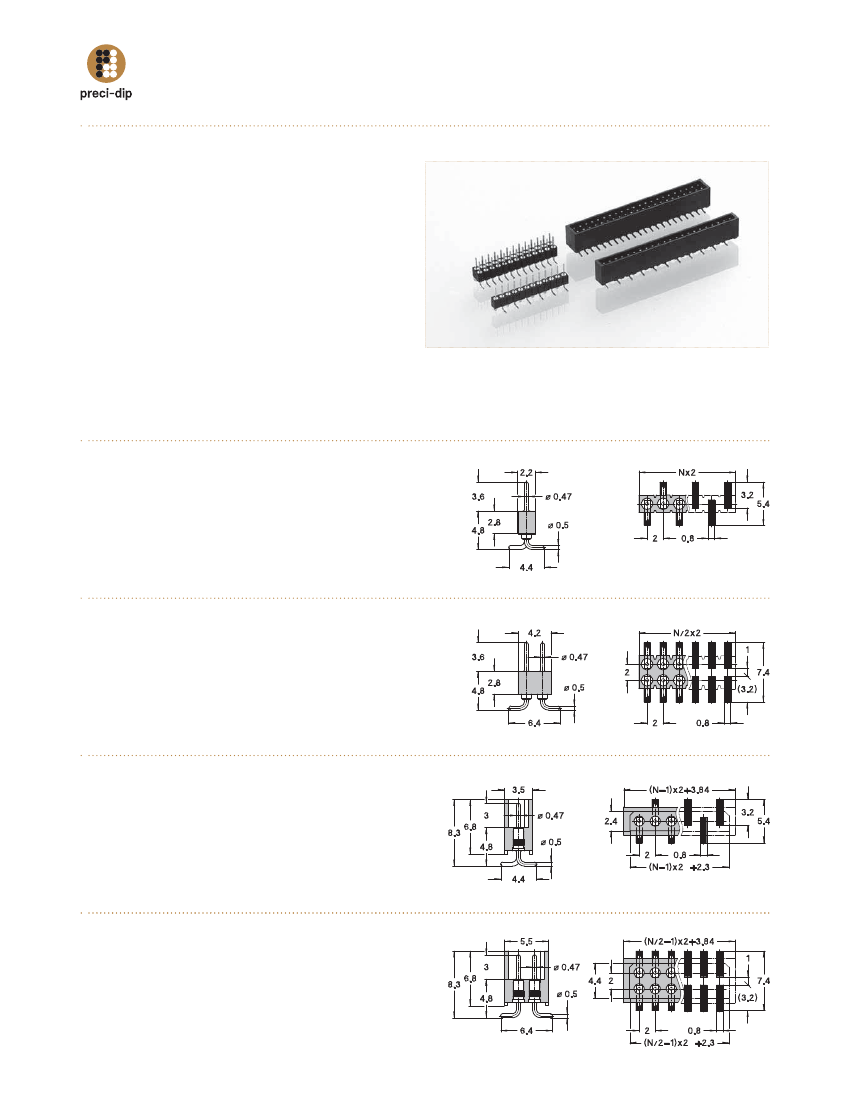

PIN CONNECTORS 2 mm
SINGLE ROW / DOUBLE ROW / SURFACE MOUNT
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
"Hard metric" PCB pin connectors, SMD mount.
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
FL AMMABILIT Y
CONTACT
CONNECTING PIN Ø
MECHANICAL LIFE
RATED CURRENT
DIELECTRIC STRENGTH
COPL ANARIT Y
SMD TERMINATIONS
Black glass filled polymer LCP-GF30-FR
UL 94V-O
Brass CuZn36Pb3 (C36000)
0.47 mm
Min. 500 cycles
3A
Min. 1’000 V
RMS
Max. 0.1 mm (measured on 25 mm long connectors)
For corresponding socket connectors, see pages 57-63.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
80
Tin
V3*
Tin
*only for 830/832...32-002101 series
0.25 μm gold
Tin
0.75 μm gold
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 830-10-NNN-30-001101 for a single row version with 8 pins becomes
830-10-008-30-001101.
Bulk :
T & R Packaging with pick & place cap* :
830-PP-NNN-30-001101
830-PP-NNN-30-001191
SMD pin connector, single row, perpendicular mount
AVAIL ABILIT Y FROM
3 to 50 contacts
(standard number of contacts: 50)
For connectors having more than 12 contacts,
the coplanarity issue is to be addressed specifically
*Please consult
www.precidip.com
for availability size of tape, size of
reel, number of components per reel and packing units.
Bulk :
T & R Packaging with pick & place cap* :
832-PP-NNN-30-001101
832-PP-NNN-30-001191
SMD pin connector, double row, perpendicular mount
AVAIL ABILIT Y FROM
4 to 100 contacts
(Standard number of contacts: 100)
For connectors having more than 12 contacts per row,
the coplanarity issue is to be addressed specifically
*Please consult
www.precidip.com
for availability size of tape, size of
reel, number of components per reel and packing units.
Bulk :
T & R Packaging with pick & place cap* :
830-V3-NNN-32-002101
830-V3-NNN-32-002191
SMD pin connector, single row, perpendicular mount, shrouded and polarised
AVAIL ABILIT Y
22 contacts
Other pin number on request
For connectors having more than 12 contacts per row,
the coplanarity issue is to be addressed specifically
*Please consult
www.precidip.com
for availability size of tape, size of
reel, number of components per reel and packing units.
Bulk :
T & R Packaging with pick & place cap* :
832-V3-NNN-32-002101
832-V3-NNN-32-002191
SMD pin connector, double row, perpendicular mount, shrouded and polarised
AVAIL ABILIT Y
26 and 44 contacts
Other pin number on request
For connectors having more than 12 contacts per row,
the coplanarity issue is to be addressed specifically
*Please consult
www.precidip.com
for availability size of tape, size of
reel, number of components per reel and packing units.
66
Due to technical progress, all information provided is subject to change without prior notice.
