93086-001 datasheet, PDF - EEWORLD Datasheet

93086-001: DescriptionCard Edge Connector, 120 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,; CategoryThe connector The connector; File Size268KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

93086-001 Overview

Card Edge Connector, 120 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	CARD EDGE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	93086
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	120

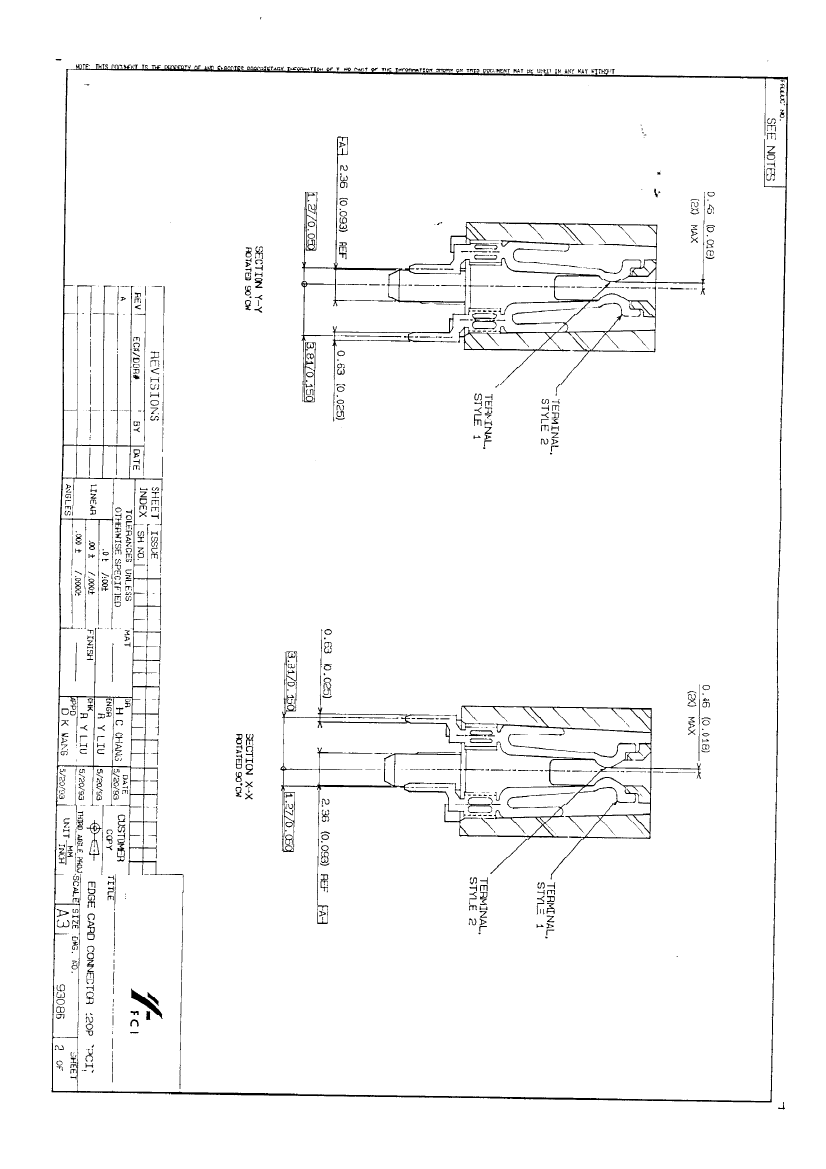

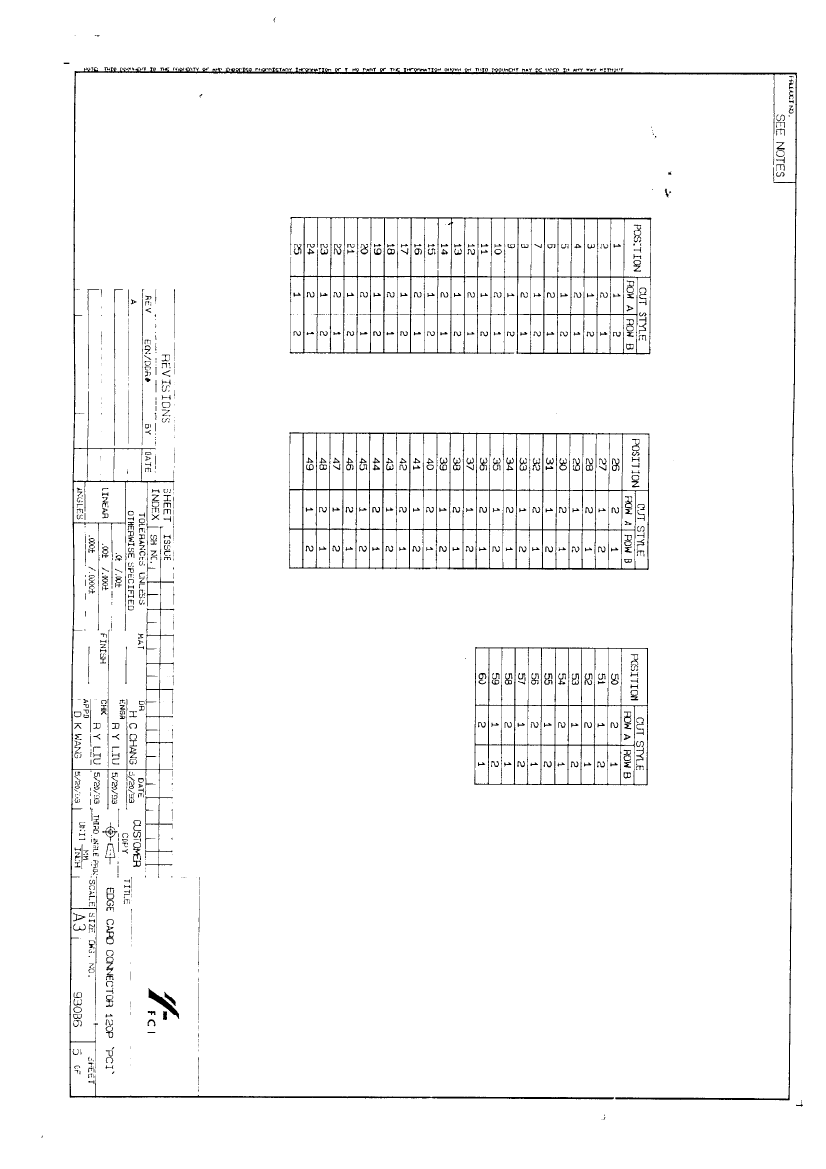

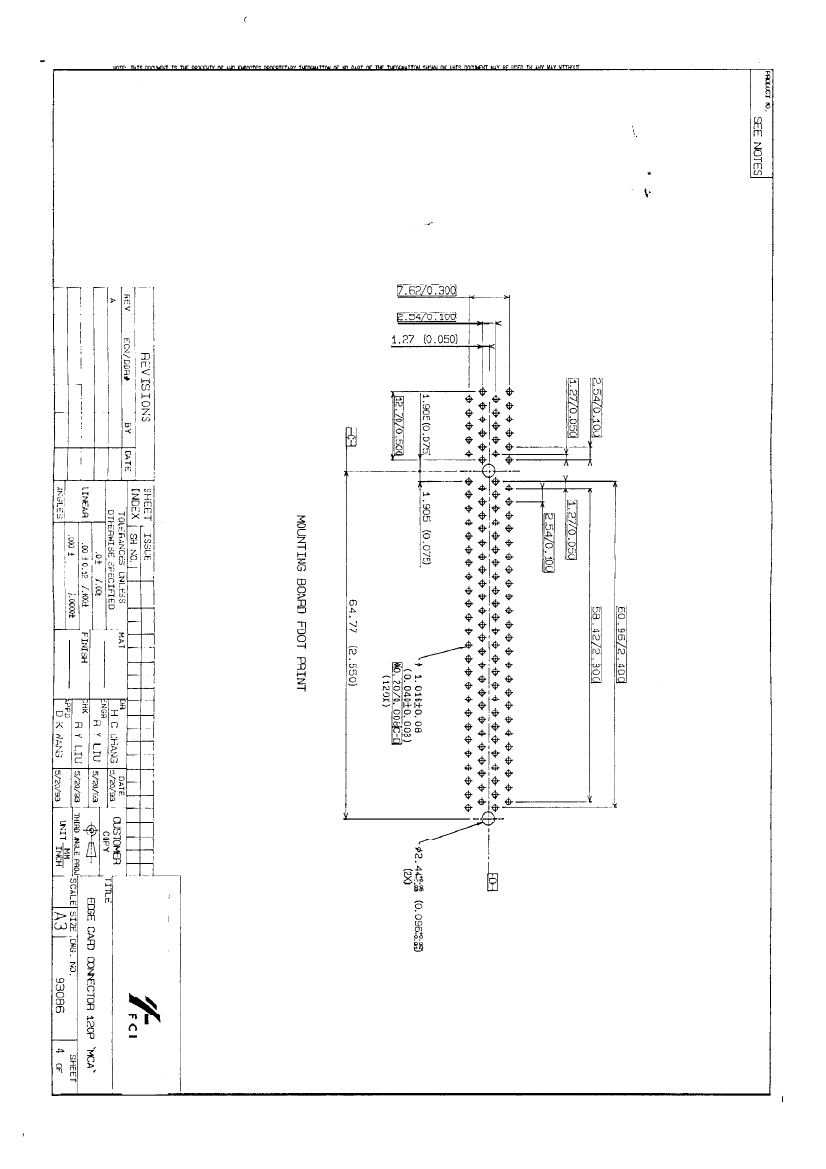

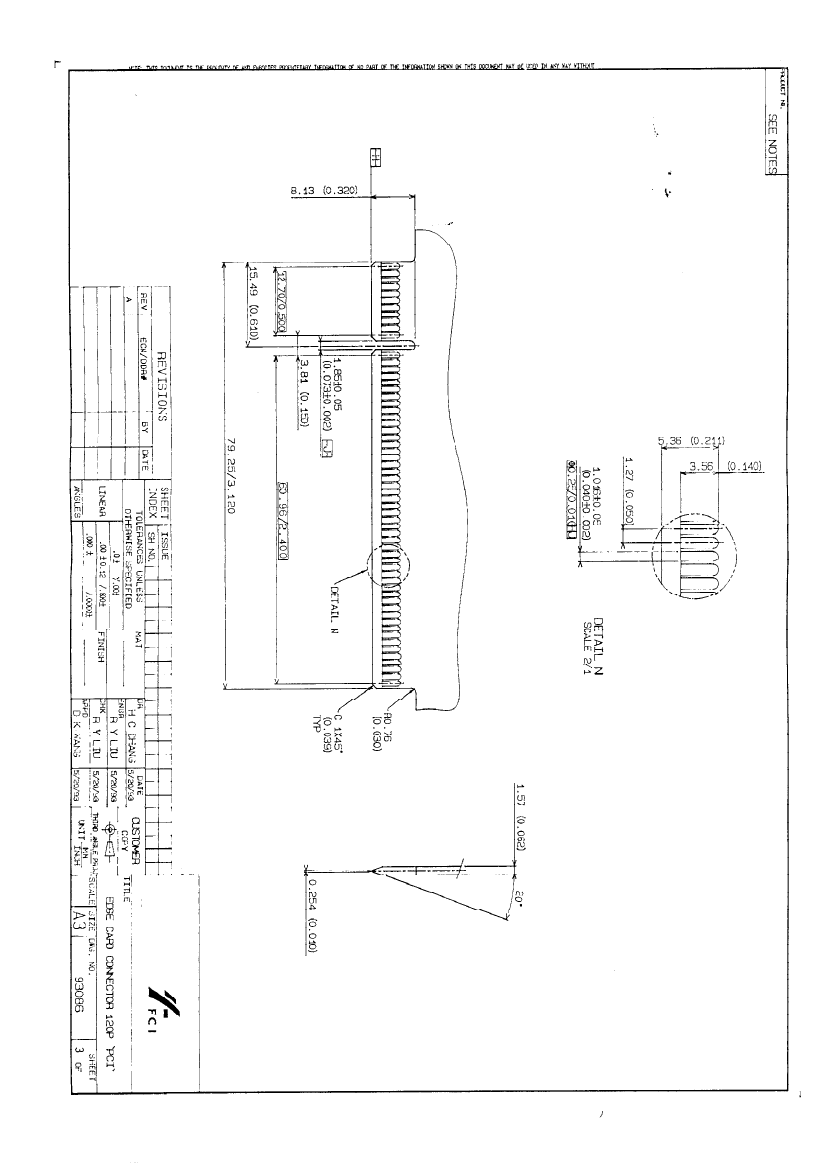

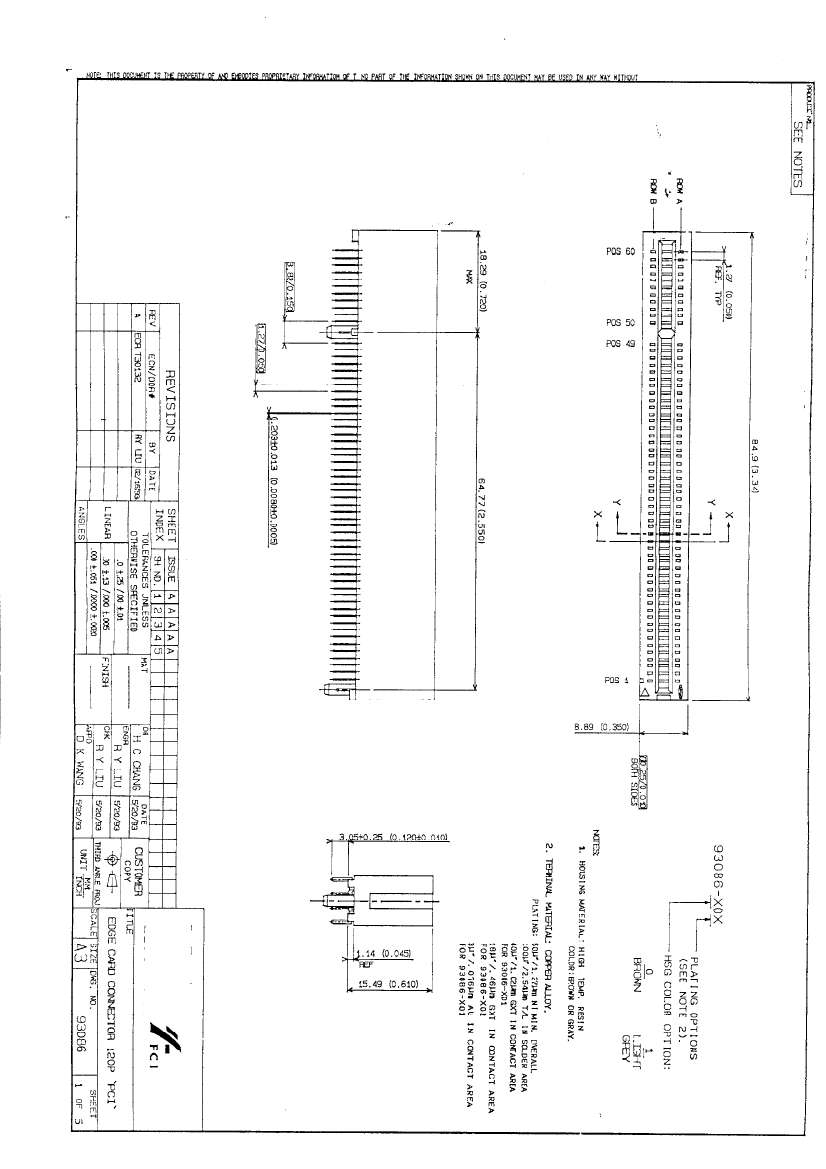

PDM: Rev:A

STATUS:

Released

Printed: Feb 08, 2006

.

	93086-001	93086-002	93086-003	93086-101	93086-102	93086-103
Description	Card Edge Connector, 120 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,	Card Edge Connector, 120 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,	Card Edge Connector, 120 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,	Card Edge Connector, 120 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,	Card Edge Connector, 120 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,	Card Edge Connector, 120 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	93086	93086	93086	93086	93086	93086
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	120	120	120	120	120	120
