ESM243-500 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > ESM243-500

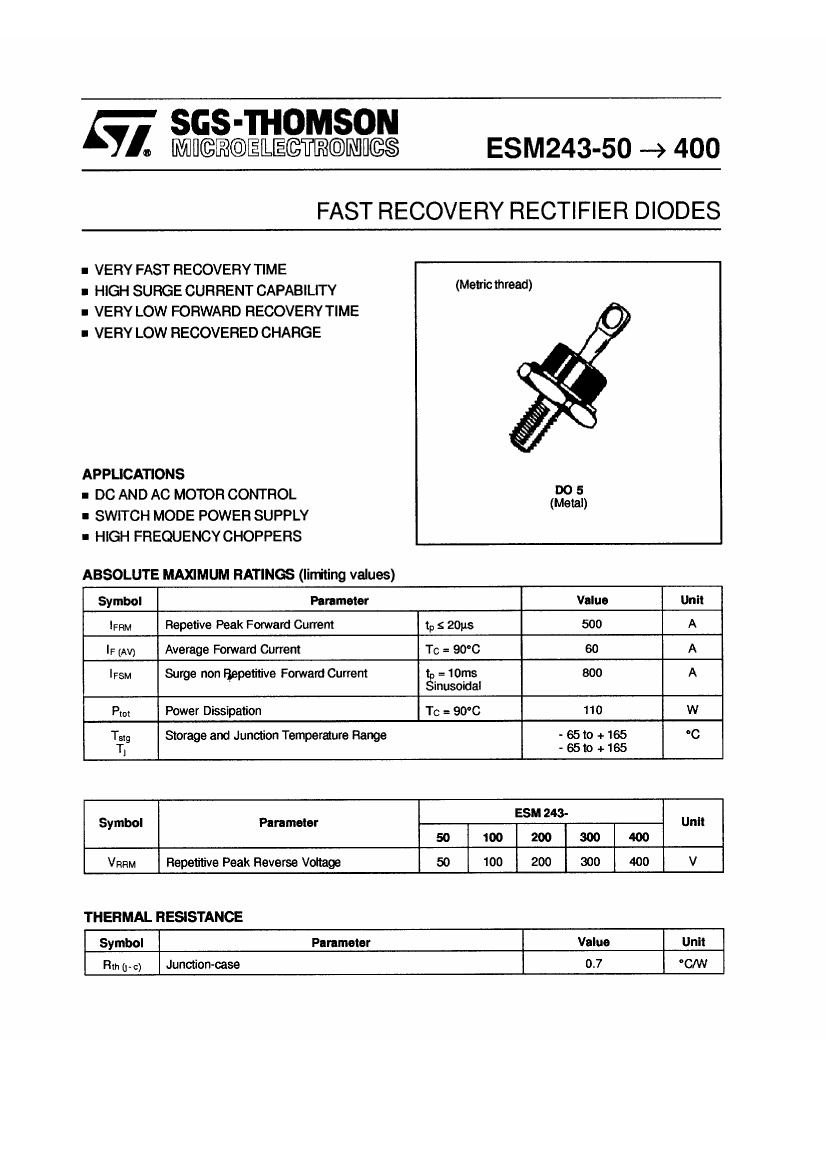

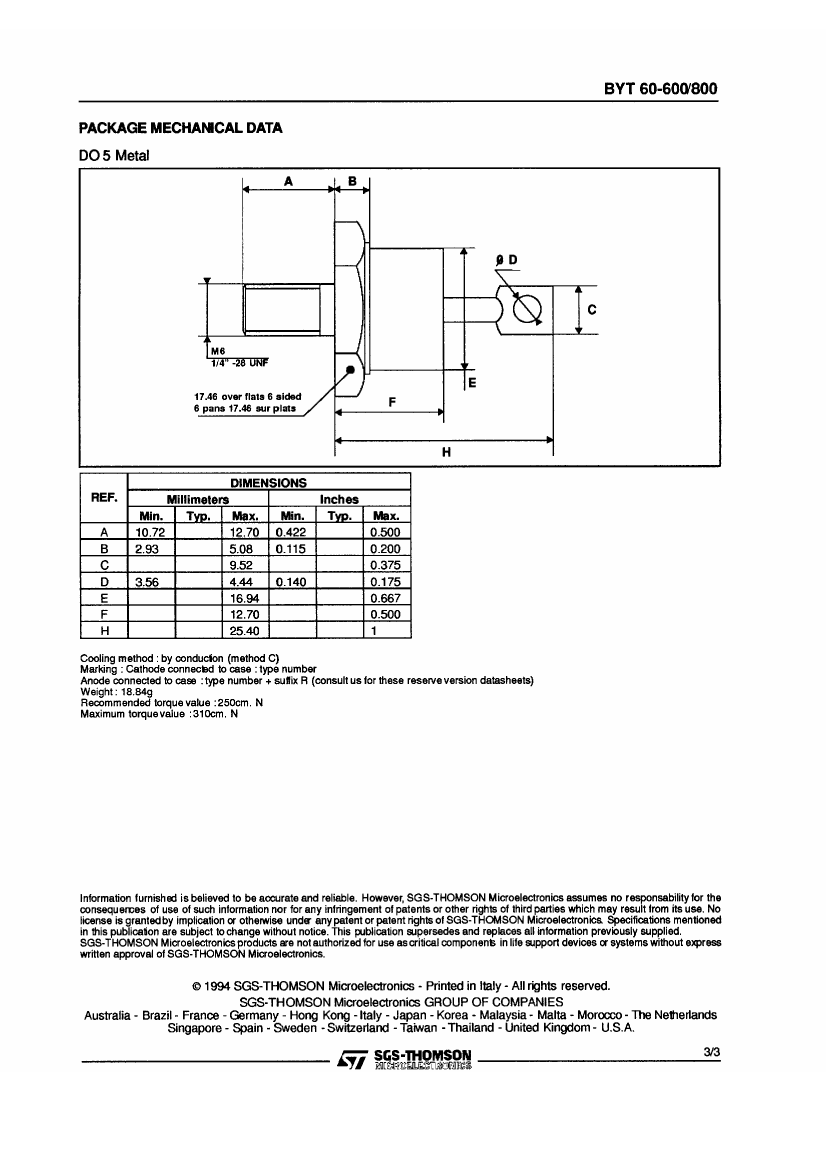

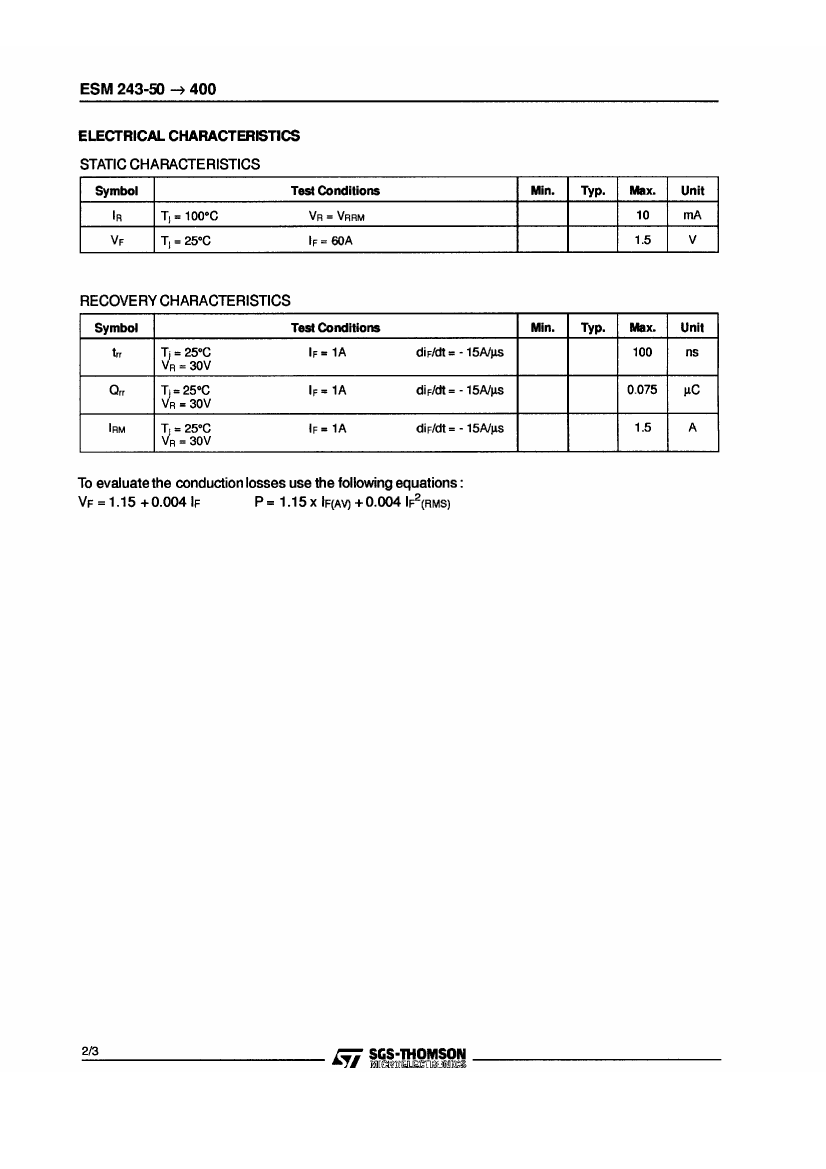

Preview

ESM243-500: DescriptionFAST RECOVERY RECTIFIER DIDODES; File Size248KB，3 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Compare View All

ESM243-500 Overview

FAST RECOVERY RECTIFIER DIDODES

Preview

Download Datasheet

View All

ESM243-500 Related Products

	ESM243-500	ESM243	ESM243-400	ESM243-100	ESM243-200	ESM243-300
Description	FAST RECOVERY RECTIFIER DIDODES	FAST RECOVERY RECTIFIER DIDODES	FAST RECOVERY RECTIFIER DIDODES	FAST RECOVERY RECTIFIER DIDODES	FAST RECOVERY RECTIFIER DIDODES	FAST RECOVERY RECTIFIER DIDODES
Reach Compliance Code	-	-	compliant	compli	compli	compli
ECCN code	-	-	EAR99	EAR99	EAR99	EAR99
application	-	-	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY
Shell connection	-	-	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	-	-	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	-	-	SILICON	SILICON	SILICON	SILICON
Diode type	-	-	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	-	-	1.5 V	1.5 V	1.5 V	1.5 V
JESD-30 code	-	-	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Maximum non-repetitive peak forward current	-	-	800 A	800 A	800 A	800 A
Number of components	-	-	1	1	1	1
Phase	-	-	1	1	1	1
Number of terminals	-	-	1	1	1	1
Maximum operating temperature	-	-	165 °C	165 °C	165 °C	165 °C
Minimum operating temperature	-	-	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	-	-	60 A	60 A	60 A	60 A
Package body material	-	-	METAL	METAL	METAL	METAL
Package shape	-	-	ROUND	ROUND	ROUND	ROUND
Package form	-	-	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Maximum power dissipation	-	-	110 W	110 W	110 W	110 W
Certification status	-	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	-	-	400 V	100 V	200 V	300 V
Maximum reverse current	-	-	10000 µA	10000 µA	10000 µA	10000 µA
Maximum reverse recovery time	-	-	0.1 µs	0.1 µs	0.1 µs	0.1 µs
surface mount	-	-	NO	NO	NO	NO
Terminal form	-	-	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	-	-	UPPER	UPPER	UPPER	UPPER
