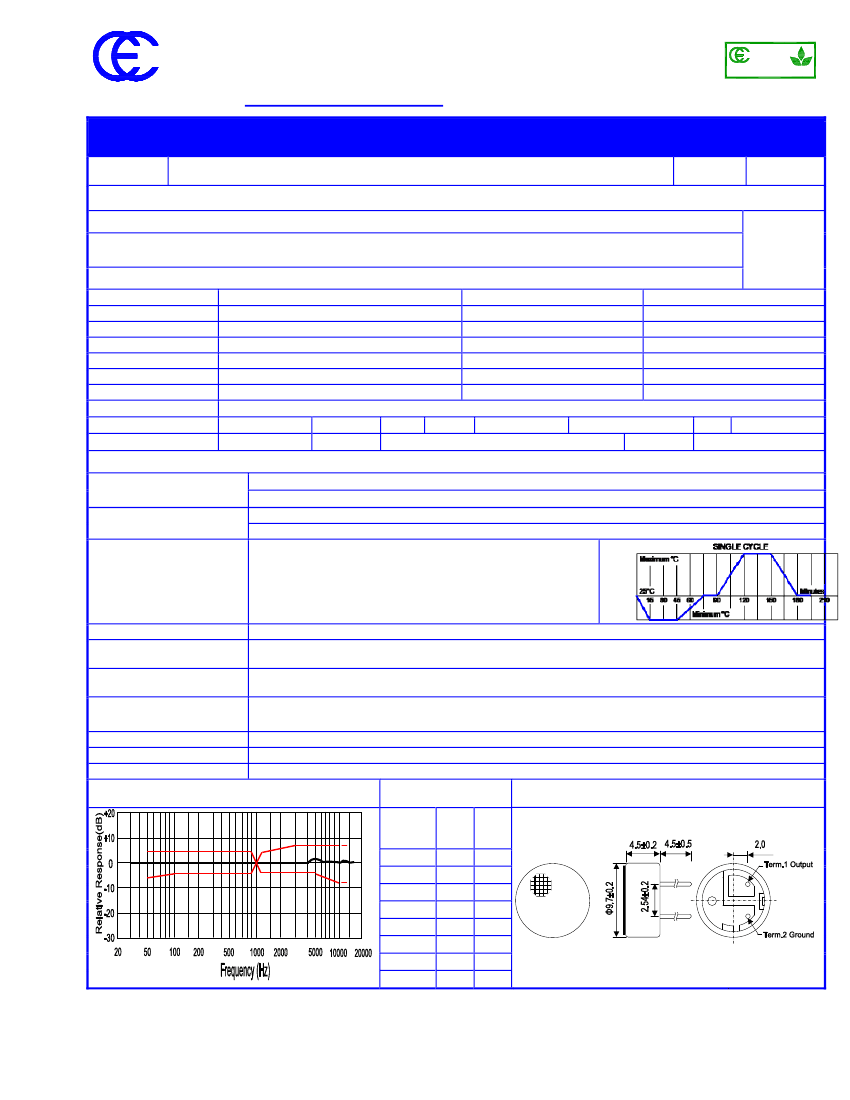

PRODUCT INFORMATION
PART #
CEM-C9745JAD462P2.54R
Revision
0-2010
Omni-Directional Foil Electret Condenser Microphone
DESCRIPTION
Omni-Directional Foil Electret
Microphone, 9.7 mm diameter and 4.5 mm high, Power Supply 5.0 V max, External
Resistance Loading of 680
,
and sensitivity of -44 dB. Terminated with 2 solder points, Lead Free RoHS Compliant
SPECIFICATIONS:
Omni Directional Foil Electret
Direction
Minimum Direction sensitivity
Power Supply ( Vs
)
Vs= 1.0 Vdc ~ 10.0 Vdc
1.5 V
Operating Voltage Range
100 ~ 10,000 Hz.
0.5 mA
Frequency Range
Maximum Current
- 46 ± 2.0, ( 0 dB = 1V / Pa ) at 1K Hz.
58 dB
Sensitivity
Minimum Sensitivity to Noise Ratio
3.0 V to 2.0 V -3 dB
110 dB at 1.0 KHz, THD <1%
Sensitivity Reduction
Maximum input S.P.L.
-20ºC to + 60ºC
-40ºC to + 75ºC
Operating Temperature
Storage Temperature
External, 680
Ω
at Vs = 1.5 V, Max. 2,200
Ω
None
Loading Resistance (R
L
)
Built in Capacitors
PC Pins, 4.5 mm Long, 0.6 mm
Ø,
2.54 mm Spacing
Termination
Al-Mg Alloy.
Dimensions
Length / Diameter
9.7 mm
Ø
Height
4.5 mm
Housing Material
Color
Approximate Weight
0.7 grams
Options
Compliance
RoHS, Lead Free
Reliability
Thermal Operating Cycle Test
Thermal Storage Cycle Test
250 hours
continuous operation
at Rated Power
, at
Maximum Rated Operating Temperature
*
250 hours
continuous operation
at Rated Power
, at
Minimum Rated Operating Temperature
*
Parts are subjected to
250 hours
storage at
Maximum Rated Storage Temperatures
*
Parts are subjected to
250 hours
storage at
Minimum Rated Storage Temperatures
*
Parts are subjected to five
(5) cycles
of
Minimum and Maximum
Operating Temperature.
Each cycle shell be set per diagram below
and is three (3) hours long
*
Parts are subjected to
240 Hours
at +40°C±2°C. 90-95% RH
*
Parts are subjected to 2 Hours of at 1.5 mm with 10 to 55 Hz. vibration frequency to each of 3 perpendicular
directions
*
Parts are dropped naturally from 1 meter height onto the surface of 40 mm wooden board, 2 axes (X,Y) directions, 3
times (6 times total)
*
Parts should conform to original performance within ±5 dB tested with
Rated Power,
after 3 hours of
recovery period.
Terminals should withstand a 1.0 Kg. pull test for up to 1 minute.
At rated voltage in room temperature continuously for 1,000 hours
For a period of one (1) year from date of shipping under normal operations conditions
Microphone Response Toll
Response
Dimensions
Units in: mm Tolerance: ±0.3 mm
Window
Frequency Lower Upper
(Hz)
Limit Limit
(dB)
(dB)
Thermal Shock Test:
Humidity Test
Vibration Test
Drop Test
Reliability Test Performance
*
Termination Strength
Life Test
Warranty
Typical Frequency
50
100
800
1000
1200
3000
5000
10000
-6
-3
-3
0
-3
-3
-3
-8
+3
+3
+3
0
+3
+8
+8
+8
The information contained herein is believed to be correct, but no guarantee or warranty, express or implied,
with respect to accuracy, completeness or results is extended and no liability is assumed.
Challenge Electronics reserves the right to make changes in any specification, data or material contained herein.
Copyright
© 2010
Challenge Electronics
1 of 2
Challenge Electronics
95 East Jefryn Boulevard
Deer Park, NY 11729
EMAIL: SALES@CHALLELEC.COM
Tel: 1-800-722-8197
1-631-595-2217
Fax: 1-631-586-5899
ISO 9001:2000
ISO 14001:2004
ISO/TS 16949:2002
Lead Free
RoHS
COMPLIANCE
WEB: WWW.CHALLENGEELECTRONICS.COM

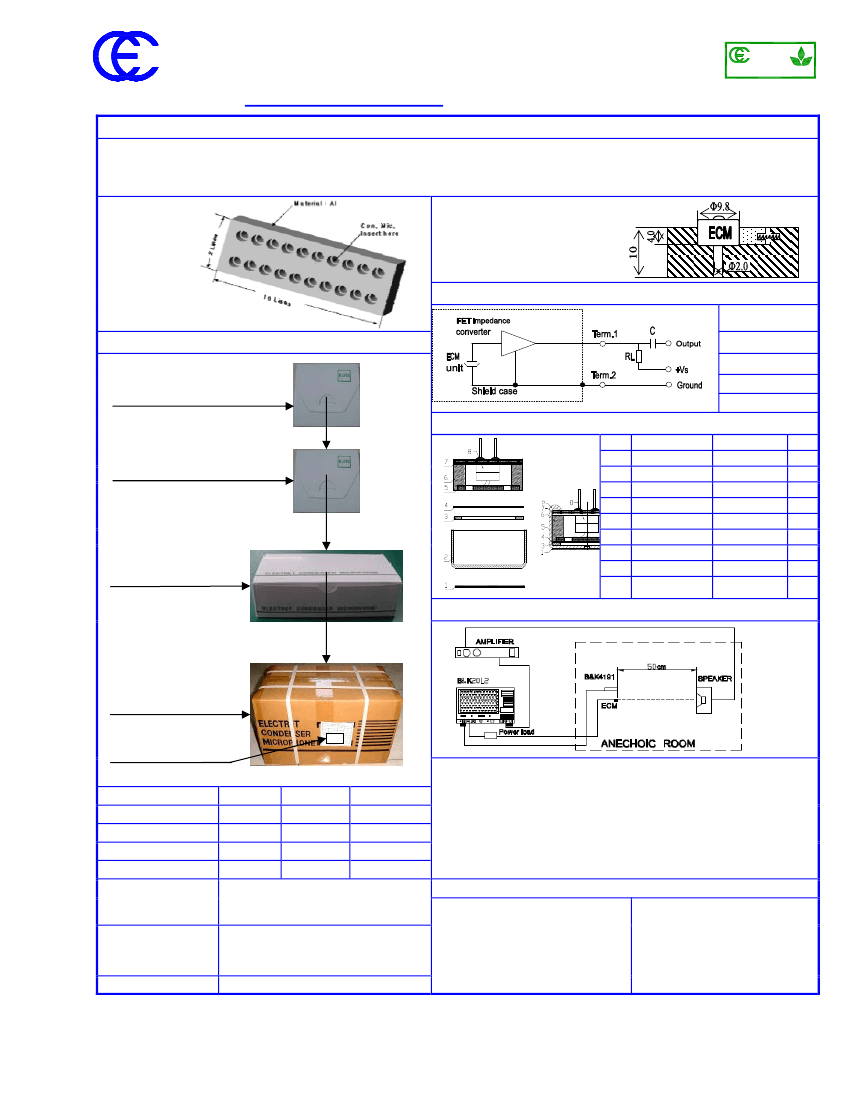

Soldering Instructions
1.
Soldering temperature should be controlled under 320 and soldering time for each terminal should be 1~2 sec..
2.
Microphone should be fixed on the metal block (heat sink), which has high radiation effects, and heat sink shall contact with MIC tightly.
3.
Microphone may easily be destroyed by the static electricity. All countermeasure for eliminating static electricity must be executed (worktable
and human body shall be ground connection)
Shape of
heat sink
Shape of hole at fixed part Heat Sink
Schematic Drawing
R
L
= 680
Ω
Packaging
1.1 Anti-Static Bag
Parts
V
S
= 1.5 V
C
＝
1
μF
Construction Materials
1.2 Small Box
100 Parts
#
1
2
3
4
5
6
7
8
9
Name
Dustproof gauze
Case
Diaphragm
Spacer
Electret Plate
Housing Chamber
PCB
FET
PC Pins
FR4
Copper blank
Al-Mg Alloy
DUPONT
Material
QTY
1
1
1
1
1
1
1
2
X 60
1.3 Middle Box
6,000 Parts
Testing Procedure
X2
1.4 Shipping Carton
12,000 Parts
4. Shipping Label
1. Dimensions:
1. Measure the microphones under standard operating condition.
2. Put the microphone and standard microphone face to the sound source (speaker),
the distance between sound source and microphone & standard microphone is
50cm. And keep the center distance 5cm between them to ensure that the change
of sound pressure should be kept within ± 1dB.
3. Keep the sound source pressure within ± 1dB from speaker Measured by standard
microphone.
The sensitivity of microphone can obtain its output voltage when sound
source kept within 1,000Hz & 0.1Pa.
Length
Width
Height
1.1 Anti-Static Bag:
mm
mm
mm
1.2 Small Box:
100 mm
100 mm
5 mm
1.3 Middle Box:
450 mm
280 mm
135 mm
1.3 Carton Size:
230 mm
235 mm
550 mm
2.1 In Anti Static Box
100 parts
Testing Condition
2. Quantity:
2.2 In mid. Size box
6,000 parts.
In Normal Weather
2.3 In master box
12,000 parts
Environment Temperature: 5~+35°C
3.1 One Part:
0.7
gram
Relative Humidity:
45 ~ 85%
3.2 Net Weight：
8.4
kg
3. Weight:
ressure:
86 ~ 106Kpa
3.3 Gross Weight：
12
kg
4. Label Directions:
4.1
Contents should be visible clearly.
The information contained herein is believed to be correct, but no guarantee or warranty, express or implied,
with respect to accuracy, completeness or results is extended and no liability is assumed.
Challenge Electronics reserves the right to make changes in any specification, data or material contained herein.
In Arbitrate Weather
Environment Temperature: 20±2°C
Relative Humidity:
60 ~ 70%
Air Pressure:
86 ~ 106Kpa
Copyright
© 2010
Challenge Electronics
2 of 2
